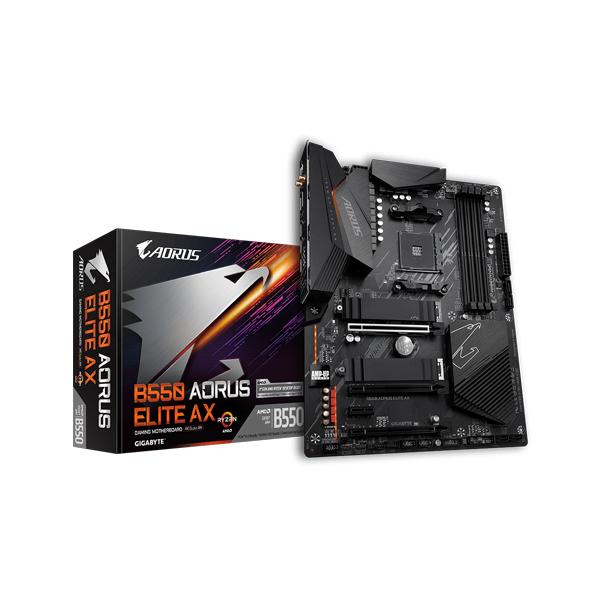

GIGABYTE B550 Aorus Elite AX Wifi DDR4 AMD Motherboard
MPN GIGABYTE-B550-AORUS-ELITE-AX-WIFI · Brand Gigabyte · ATX
The Gigabyte B550 Aorus Elite AX WiFi is an AMD AM4 ATX motherboard with PCIe 4.0, dual M.2 (PCIe 4.0 + 3.0), Intel Wi-Fi 6, 2.5GbE LAN, and a 12+2 phase digital VRM for robust 3rd Gen Ryzen performance
Inclusive of GST · GST invoice available
Overview
The Gigabyte B550 Aorus Elite AX WiFi is an ATX-form-factor motherboard built on the AMD B550 chipset for Socket AM4, designed to pair with 3rd Generation AMD Ryzen processors and 3rd Generation AMD Ryzen processors with Radeon Graphics. Its 12+2 phase digital VRM, using 50A DrMOS components and an Intersil digital PWM controller, delivers stable, precise power to demanding Ryzen CPUs without requiring compromise on voltage stability under sustained workloads. Memory support is broad: four DDR4 DIMM slots accept up to 128 GB total (32 GB per slot), spanning native speeds of 2133–3200 MHz and overclocked profiles up to DDR4 4000 (O.C.) with 3rd Gen Ryzen, or up to DDR4 4733 (O.C.) with Ryzen APUs. ECC unbuffered and XMP modules are both supported. Storage options include two M.2 slots with thermal guards — the CPU-connected M2A slot supports PCIe 4.0 x4 NVMe drives with 3rd Gen Ryzen, while the chipset-connected M2B slot supports PCIe 3.0 x4 NVMe. Four SATA 6Gb/s ports add conventional storage with RAID 0, 1, and 10 support. Connectivity is a standout. The onboard Intel Wi-Fi 6 AX200 module supports 802.11ax dual-band (2.4/5 GHz) at up to 2.4 Gbps (theoretical, conditions vary) and Bluetooth 5, paired with an AORUS 2T2R antenna. A Realtek 2.5GbE LAN port with bandwidth management software handles wired networking at up to 2.5 Gbit. The rear I/O carries 2 x USB 3.2 Gen 2 Type-A (red), 4 x USB 3.2 Gen 1, 2 x USB 2.0, DisplayPort 1.4, HDMI 2.1, an optical S/PDIF output, and five audio jacks backed by a Realtek ALC1200 codec supporting up to 7.1-channel HD audio with WIMA capacitors. The primary PCIe x16 slot is PCIe 4.0 with Ryzen 3000 non-APU CPUs. RGB Fusion 2.0 controls onboard and connected ARGB/RGB strips via two addressable and two standard RGB headers. Smart Fan 5 manages up to five fan/pump headers with hybrid PWM and DC control. Q-Flash Plus enables BIOS updates from a USB drive without installing the CPU, memory, or GPU — a practical convenience during initial builds. Verified Specifications: Chipset: AMD B550 | Socket: AM4 | Form Factor: ATX, 30.5 cm x 24.4 cm | Memory: 4x DDR4, max 128 GB, DDR4-3200 native / up to DDR4-4000 O.C. (Ryzen 3000) | Primary PCIe: x16 PCIe 4.0 (CPU) | M.2: 2 slots (PCIe 4.0 x4 + PCIe 3.0 x4) with thermal guards | SATA: 4 x 6Gb/s, RAID 0/1/10 | LAN: Realtek 2.5GbE | Wireless: Intel Wi-Fi 6 AX200, BT 5 | Audio: Realtek ALC1200, 7.1-ch HD | USB (rear): 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0 | Display: DisplayPort 1.4 (max 5120x2880@60 Hz), HDMI 2.1 (max 4096x2160@60 Hz) | BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus | Warranty: 3 Years

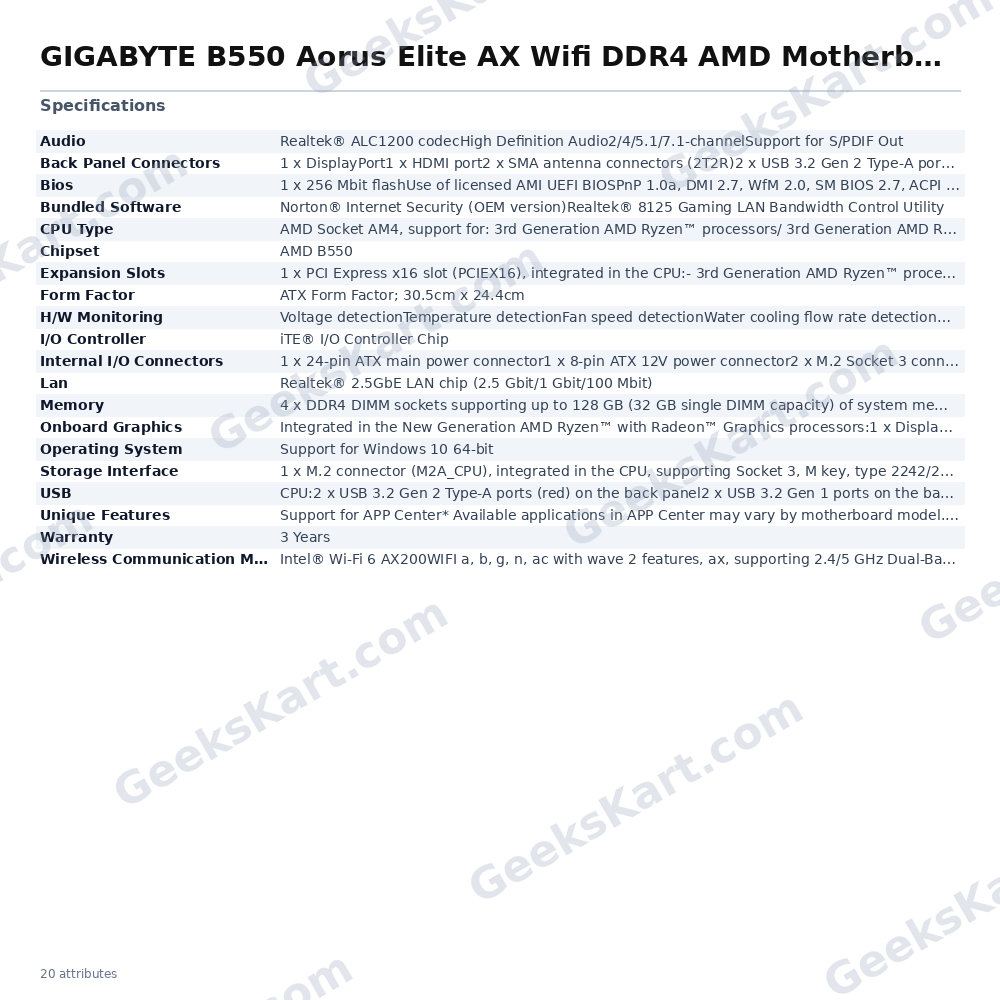

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD B550 |
| CPU Type | AMD Socket AM4, support for: 3rd Generation AMD RyzenTM processors/ 3rd Generation AMD RyzenTM with RadeonTM Graphics processors(Please refer "CPU Support List" for more information.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| USB | CPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1200 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory3rd Gen AMD Ryzen™ Processors:Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modulesNew Generation AMD Ryzen™ with Radeon™ Graphics processors:Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode- 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:- Supporting PCIe 3.0 x2 mode1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® 8125 Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs- 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- Supporting SATA and PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset:- Support for RAID 0, RAID 1, and RAID 10 |
| Back Panel Connectors | 1 x DisplayPort1 x HDMI port2 x SMA antenna connectors (2T2R)2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
