GIGABYTE B550M Aorus Elite AX Wifi DDR4 AMD Motherboard
MPN GIGABYTE-B550M-AORUS-ELITE-AX · Brand Gigabyte · mATX
The Gigabyte B550M Aorus Elite AX is an AM4 Micro ATX motherboard with Wi-Fi 6E, Bluetooth 5.3, dual M.2 PCIe 4.0 slots, and support for AMD Ryzen 5000/4000G/3000 Series processors with up to 128 GB DDR4
Inclusive of GST · GST invoice available
Overview

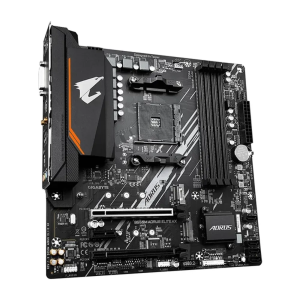

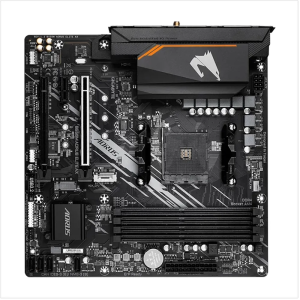

The Gigabyte B550M Aorus Elite AX is a Micro ATX motherboard built on the AMD B550 chipset for the AM4 socket, designed to support AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series processors. At just 24.4 cm x 24.4 cm, it fits compact mid-tower and small-form-factor cases while delivering a feature set that rivals larger boards. Connectivity is a standout area. The onboard Realtek Wi-Fi 6E (802.11ax, model RTL8852CE) covers the 2.4 GHz, 5 GHz, and the newly available 6 GHz bands, with support for the 11ax 160 MHz standard delivering up to 2.4 Gbps theoretical wireless throughput. Bluetooth 5.3 is included for peripheral pairing. Two SMA antenna connectors on the rear panel (2T2R configuration) complete the wireless setup. Wired networking is handled by a Realtek Gigabit Ethernet (GbE) controller with bandwidth management support. For storage, the board provides two M.2 connectors: M2A_CPU (CPU-connected) supports PCIe 4.0 x4 NVMe drives with Ryzen 5000/3000 processors and accommodates 2242, 2260, 2280, and 22110 form factors. M2B_SB (chipset-connected) supports PCIe 3.0 x2 and SATA M.2 drives in 2242, 2260, and 2280 sizes. Four SATA 6 Gb/s ports add traditional drive support with RAID 0, 1, and 10 capability. Memory capacity reaches up to 128 GB across four DDR4 DIMM slots in dual-channel configuration, with native speeds from 2133 MHz up to 3200 MHz and XMP overclocking profiles up to 4733 MHz (O.C.). ECC unbuffered DIMMs are supported (CPU-dependent). The VRM implements a 5+3 phase pure digital solution with low RDS MOSFETs for stable CPU power delivery. Expansion slots include one PCIe x16 slot (PCIe 4.0 x16 with Ryzen 5000/3000 CPUs), one PCIe x16 slot wired as PCIe 3.0 x4, and one PCIe 3.0 x1 slot. Display outputs — HDMI 2.1 (up to 4096x2160@60 Hz with HDR and HDCP 2.3) and DVI-D (up to 1920x1200@60 Hz) — are active when using Ryzen 5000 G-Series or 4000 G-Series APUs. Audio is powered by a Realtek High Definition Audio CODEC supporting 2/4/5.1/7.1-channel output with audio noise guard circuitry and high-quality audio capacitors. Gigabyte's RGB Fusion 2.0 system manages onboard lighting and external strips via two addressable LED headers (5V) and two standard RGB LED headers (12V), supporting up to 300 individually addressable LEDs. Smart Fan 5 provides hybrid PWM/voltage fan control across three fan headers with multiple thermal sensor inputs and a FAN STOP feature for silent operation at low loads. Q-Flash Plus enables BIOS updates without installing a CPU, memory, or graphics card — a useful feature when building fresh or recovering from a failed BIOS update. Verified Specifications: - Socket: AMD AM4 | Chipset: AMD B550 - Form Factor: Micro ATX, 24.4 cm x 24.4 cm - Memory: 4x DDR4 DIMM, up to 128 GB, dual-channel, XMP, ECC (CPU-dependent) - Storage: 2x M.2 (PCIe 4.0 x4 + PCIe 3.0 x2), 4x SATA 6 Gb/s, RAID 0/1/10 - Wireless: Wi-Fi 6E 802.11ax (RTL8852CE), 2.4/5/6 GHz, up to 2.4 Gbps, BT 5.3 - LAN: Realtek GbE (1 Gbps/100 Mbps) - PCIe: 1x PCIe 4.0 x16, 1x PCIe 3.0 x4, 1x PCIe 3.0 x1 - USB (rear): 4x USB 3.2 Gen 1, 4x USB 2.0 - Video out: 1x HDMI 2.1, 1x DVI-D (APU required) - BIOS: AMI UEFI, 128 Mbit flash, Q-Flash Plus - Warranty: 3 Years

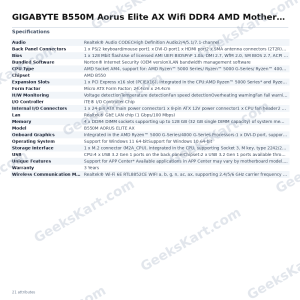

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD B550 |
| CPU Type | AMD Socket AM4, support for: AMD RyzenTM 5000 Series/ RyzenTM 5000 G-Series/ RyzenTM 4000 G-Series and RyzenTM 3000 Series Processors |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| USB | CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules** ECC memory (ECC mode) support varies by CPUSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| Model | B550M AORUS ELITE AX |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode* Actual support may vary by AMD CPU's specification.AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:Supporting PCIe 3.0 x1 mode |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated in the AMD Ryzen™ 5000 G-Series/4000 G-Series Processors:1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GB |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDsAMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:Supporting SATA and PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10 |

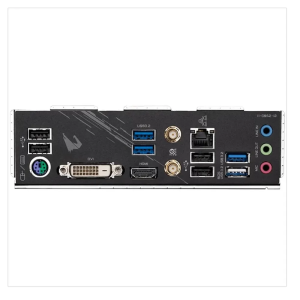

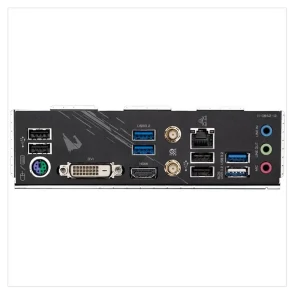

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port2 x SMA antenna connectors (2T2R)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button |
| Wireless Communication Module | Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
