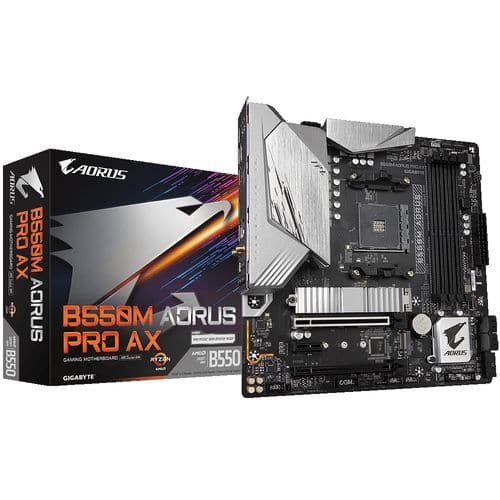

The GIGABYTE B550M Aorus Pro AX is a Micro ATX motherboard built on the AMD B550 chipset for Socket AM4 processors. It supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series CPUs, making it a capable platform for a wide range of AMD builds ranging from everyday productivity to gaming workloads. Power delivery is handled by a 10+2 phase Digital Twin Power Design using 50A DrMOS components, backed by enlarged VRM heatsinks to manage heat under sustained loads. Memory support spans four DDR4 DIMM slots capable of holding up to 128 GB total (32 GB per DIMM) in dual-channel configuration. XMP profiles are supported, and speeds reach DDR4-4266 (O.C.) with Ryzen 5000 series processors. Storage connectivity includes two M.2 slots: one CPU-attached slot supporting PCIe 4.0 x4 NVMe drives (types 2242/2260/2280/22110) and one chipset-attached slot supporting PCIe 3.0 x4 NVMe drives (types 2242/2260/2280). Four SATA 6 Gb/s ports add further storage capacity with RAID 0, 1, and 10 support. Network connectivity features onboard Intel WiFi 6 (802.11ax, 2T2R) with Bluetooth 5 and an AORUS antenna, along with a Realtek GbE (1000/100 Mbit) wired LAN port. Audio is handled by a Realtek ALC1200 codec supporting up to 7.1-channel High Definition Audio and optical S/PDIF Out. Display output for APU-based builds includes one HDMI 2.1 port (up to 4096×2160 @ 60 Hz) and one DisplayPort 1.4 (up to 5120×2880 @ 60 Hz). The rear I/O also provides four USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-A port, one USB 3.2 Gen 2 Type-C port, and four USB 2.0 ports. RGB FUSION 2.0 manages onboard and external lighting via two addressable LED headers and two standard RGB LED headers. Smart Fan 5 provides multi-zone fan and pump control. Q-Flash Plus allows BIOS updates without a CPU or memory installed. The board ships with a pre-installed I/O shield and carries a 3-year manufacturer warranty. Verified Specifications: – Form Factor: Micro ATX, 24.4 cm × 24.4 cm – Chipset: AMD B550 – Socket: AM4 – Memory: 4× DDR4 DIMM, up to 128 GB, dual-channel, XMP, ECC unbuffered supported – Storage: 2× M.2 (PCIe 4.0 x4 + PCIe 3.0 x4), 4× SATA 6 Gb/s, RAID 0/1/10 – PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x4, 1× PCIe 3.0 x1 – Audio: Realtek ALC1200, 7.1-channel HD Audio, S/PDIF Out – Wired LAN: Realtek GbE (1000/100 Mbit) – Wireless: Intel WiFi 6 802.11ax 2T2R + Bluetooth 5 – Display: HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (5K@60Hz) – BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus – Warranty: 3 Years
GIGABYTE X670 Aorus Elite AX Wifi DDR5 AMD Motherboard
₹23,910.00
GIGABYTE X870 Eagle Wifi7 DDR5 AMD Motherboard ( Black )
₹25,735.00
GIGABYTE B550M Aorus Pro AX DDR4 AMD Motherboard
₹15,295.00
The GIGABYTE B550M Aorus Pro AX is a Micro ATX AMD AM4 motherboard featuring PCIe 4.0, dual M.2 storage, Intel WiFi 6 802.11ax, 128 GB DDR4 support, and Realtek ALC1200 audio — designed for Ryzen 5000, 4000 G-Series, and 3000 Series builds
Out of stock

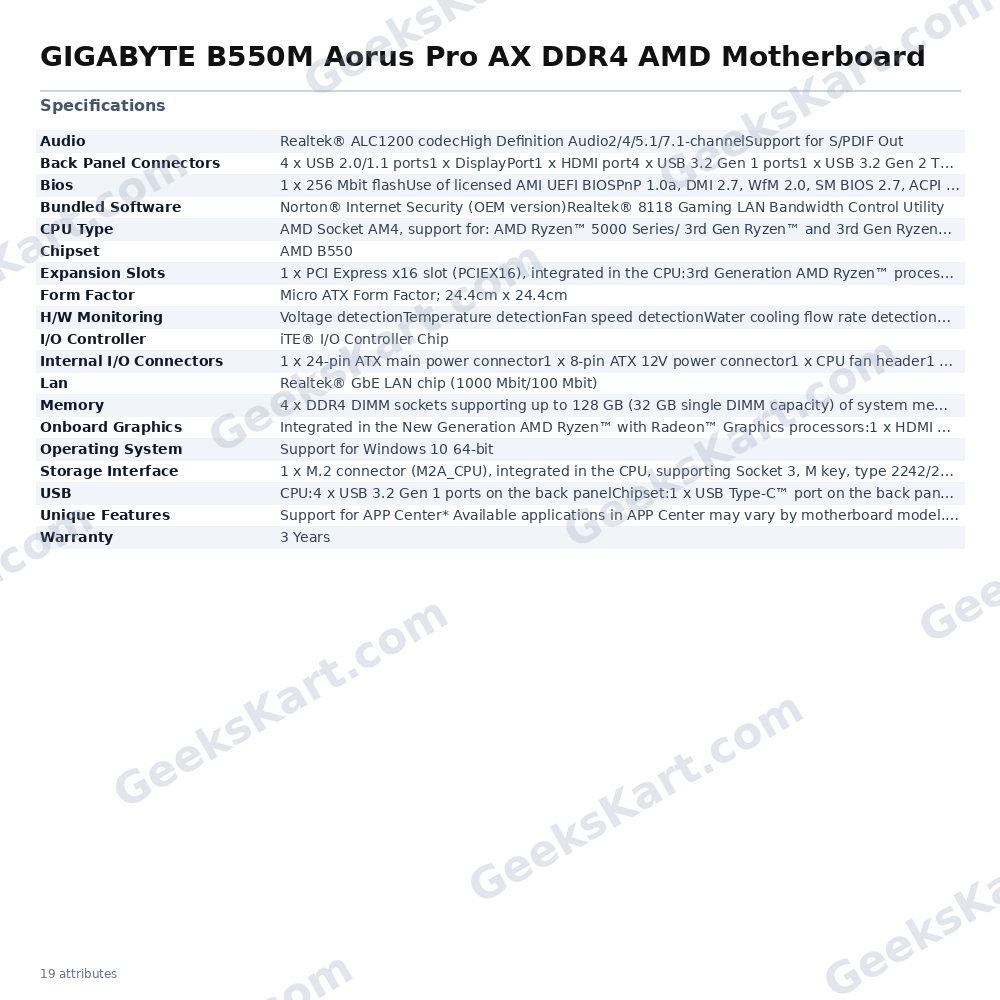

Additional information
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD B550 |
| CPU Type | AMD Socket AM4, support for: AMD RyzenTM 5000 Series/ 3rd Gen RyzenTM and 3rd Gen RyzenTM with RadeonTM Graphics Processors |
| Lan | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| USB | CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header4 x USB 2.0/1.1 ports available through the internal USB headersChipset+1 USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panel |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1200 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryAMD Ryzen™ 5000 series processors:Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules3rd Gen AMD Ryzen™ Processors:Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 modeNew Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:Supporting PCIe 3.0 x1 mode |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDsNew Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:Supporting SATA and PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10 |
| Back Panel Connectors | 4 x USB 2.0/1.1 ports1 x DisplayPort1 x HDMI port4 x USB 3.2 Gen 1 ports1 x USB 3.2 Gen 2 Type-A port (red)1 x USB Type-C™ port, with USB 3.2 Gen 2 support1 x Q-Flash Plus button1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper |
