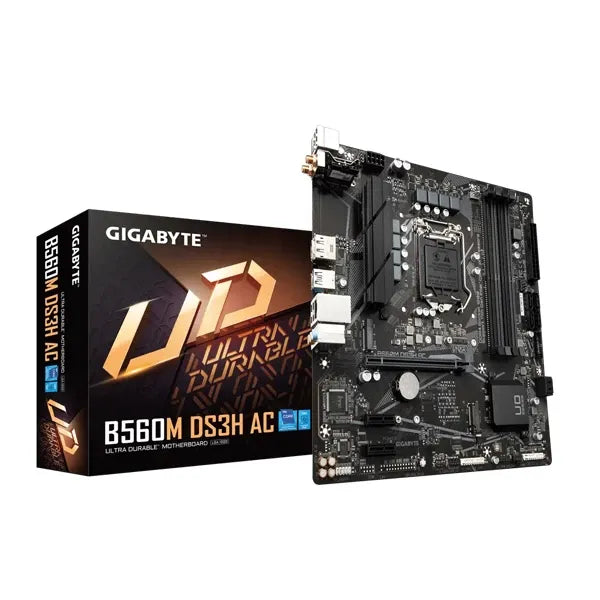

GIGABYTE B560M DS3H AC Wifi DDR4 Intel Motherboard
MPN GIGABYTE-B560M-DS3H-AC · Brand Gigabyte · mATX
The Gigabyte B560M DS3H AC is a Micro ATX LGA1200 motherboard with Intel B560 chipset, dual-band 802.11ac Wi-Fi, Bluetooth 4.2, PCIe 4.0 M.2 storage, and RGB Fusion 2.0 support for Intel 10th and 11th Gen processors
Inclusive of GST · GST invoice available
Overview
The Gigabyte B560M DS3H AC is a Micro ATX motherboard built on the Intel B560 Express Chipset, designed for LGA1200 socket processors. It supports Intel 11th Generation Core i9, i7, and i5 processors, as well as 10th Generation Core i9, i7, i5, i3, Pentium, and Celeron processors, making it a versatile foundation for a wide range of Intel-based builds. Memory flexibility is a key strength of this board. Four DDR4 DIMM slots support up to 128 GB of system memory in a dual-channel configuration. With an 11th Gen processor installed, memory can be overclocked up to DDR4 5333 (O.C.), while 10th Gen i9 and i7 processors support up to DDR4 2933 natively. XMP profiles are also supported for straightforward memory tuning. Storage options are generous for a compact form factor. A CPU-connected M.2 slot (M2P_CPU) supports PCIe 4.0 x4 NVMe drives in 2260, 2280, and 22110 sizes, while a chipset-connected M.2 slot (M2A_SB) supports both SATA and PCIe 3.0 x4 drives. Six SATA 6 Gb/s ports round out the storage connectivity. Onboard wireless is provided by an AzureWave AW-CB304NF module (Realtek RTL8821CE), delivering 802.11a/b/g/n/ac dual-band Wi-Fi across 2.4 GHz and 5 GHz bands with Bluetooth 4.2. Wired networking uses a Realtek GbE LAN chip. The back panel offers a USB Type-C port with USB 3.2 Gen 1 support, three USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, DisplayPort 1.2 (up to 4096×2304 @ 60 Hz), HDMI 1.4 (up to 4096×2160 @ 30 Hz), a PS/2 keyboard/mouse port, and three audio jacks. RGB Fusion 2.0 supports both 5 V addressable LED and 12 V RGB LED strips, with one dedicated header for each type onboard. Smart Fan 6 provides granular fan control through up to seven temperature and speed control points per header, with FAN STOP capability to eliminate fan noise under low load. Power delivery uses a direct 6+2-phase digital VRM with low RDS MOSFETs and an 8-pin solid-pin ATX 12V connector. The Q-Flash Plus feature allows BIOS updates without installing a CPU, memory, or graphics card — a practical advantage during initial builds or recovery scenarios. Audio is handled by a Realtek High Definition Audio CODEC supporting up to 7.1-channel output. Verified Specifications: - Form Factor: Micro ATX, 24.4 cm x 24.4 cm - Socket: LGA1200 - Chipset: Intel B560 Express - Memory: 4x DDR4 DIMM, up to 128 GB, dual-channel, XMP support - M.2 Slots: 1x PCIe 4.0 x4 (CPU), 1x PCIe 3.0 x4/SATA (Chipset) - SATA Ports: 6x SATA 6 Gb/s - PCIe Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 - Wi-Fi: 802.11a/b/g/n/ac dual-band (2.4/5 GHz), up to 433 Mbps - Bluetooth: 4.2 - LAN: Realtek GbE (1000/100 Mbit) - USB (rear): 1x USB Type-C (3.2 Gen 1), 3x USB 3.2 Gen 1, 2x USB 2.0 - Display Outputs: 1x DisplayPort 1.2, 1x HDMI 1.4 - Audio: Realtek HD Audio CODEC, 2/4/5.1/7.1-channel - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - Warranty: 3 Years

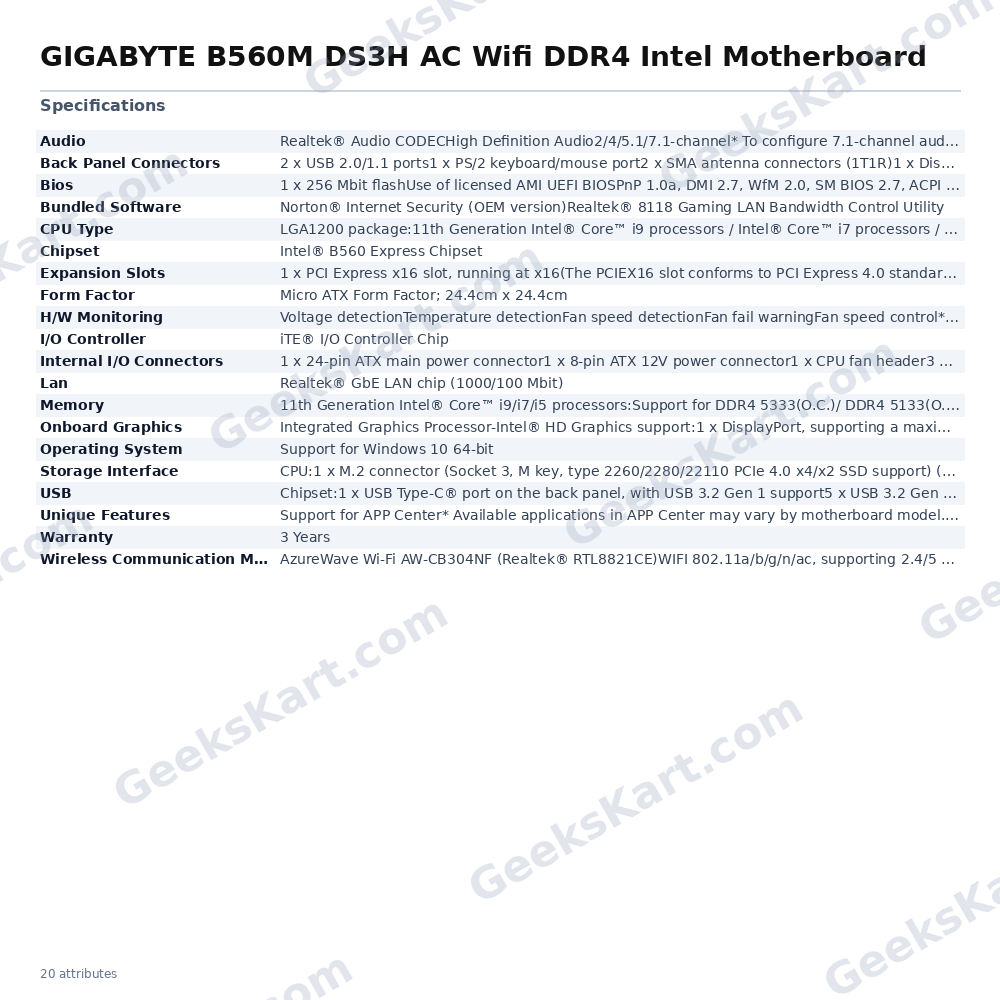

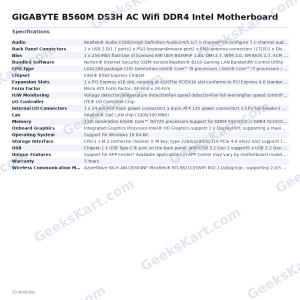

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B560 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (1000/100 Mbit) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports available through the internal USB headersChipset+USB 2.0 Hub:2 x USB 2.0/1.1 ports on the back panel |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first |
| Memory | 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz10th Generation Intel® Core™ i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)2 x PCI Express x1 slots(The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)6 x SATA 6Gb/s connectors* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready* System Acceleration with Intel® Optane™ Memory enabled on the M2P_CPU connector only |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (1T1R)1 x DisplayPort1 x HDMI port3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x Clear CMOS jumper1 x Q-Flash Plus button＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
| Wireless Communication Module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 4.2Support for 11ac wireless standard and up to 433 Mbps data rate* Actual data rate may vary depending on environment and equipment |
