Gigabyte B650 Aorus Elite AX ICE WIFI ATX Motherboard
MPN B650-AORUS-ELITE-AX-ICE · Brand GIGABYTE · ATX
The GIGABYTE B650 Aorus Elite AX ICE is an ATX motherboard for AMD AM5 processors (Ryzen 7000/8000/9000), featuring DDR5 support up to 8000 MT/s, a PCIe 5.0 M.2 slot, Wi-Fi 6E, 2.5GbE LAN, and a screwless EZ-Latch design
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B650 Aorus Elite AX ICE is a full-size ATX motherboard built on the AMD B650 chipset for the AM5 platform, designed to support AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 series processors. Its clean white aesthetic pairs a robust power delivery system with a comprehensive feature set that suits both high-performance gaming rigs and productivity workstations. At the heart of the board is a Twin 12+2+2 phase digital VRM solution, backed by an advanced thermal design and dedicated M.2 thermal guards that maintain stability under sustained workloads. Four DDR5 DIMM slots support dual-channel memory in capacities up to 256 GB (48 GB per single DIMM), with speeds ranging from 4400 MT/s up to 8000 MT/s in overclocked profiles. Both AMD EXPO and Intel XMP memory profiles are supported, making it straightforward to unlock rated XMP/EXPO speeds on compatible kits. Storage options are generous: the primary M.2 slot (M2A_CPU) connects directly to the CPU and delivers PCIe 5.0 x4 bandwidth when paired with Ryzen 7000 series processors, enabling next-generation NVMe SSD speeds. A second CPU-connected M.2 slot (M2B_CPU) runs at PCIe 4.0 x4, and a third chipset-connected slot (M2C_SB) also operates at PCIe 4.0. All three M.2 connectors support up to 25110-length drives. Four SATA 6 Gb/s ports are available alongside RAID 0, 1, and 10 support for both NVMe and SATA arrays. GIGABYTE's EZ-Latch mechanism on the PCIe x16 slot and M.2 connectors enables tool-free, screwless installation. Connectivity is a standout: a Realtek RTL8852CE module delivers Wi-Fi 6E across 2.4 GHz, 5 GHz, and 6 GHz bands with 160 MHz channel support and Bluetooth 5.3, while a Realtek 2.5GbE LAN chip handles wired networking. The rear I/O panel is well-stocked with a USB Type-C port (USB 3.2 Gen 2), two USB 3.2 Gen 2 Type-A ports, five USB 3.2 Gen 1 ports, four USB 2.0 ports, DisplayPort and HDMI video outputs, optical S/PDIF out, and the Q-Flash Plus button for BIOS updates without installing a CPU or memory. An internal USB Type-C header adds USB 3.2 Gen 2x2 (20 Gb/s) for compatible front-panel connectors. Fan and cooling management is handled by Smart Fan 6, which uses multiple temperature sensors and supports hybrid fan headers with FAN STOP functionality. Addressable RGB and standard RGB headers allow lighting customisation via GIGABYTE Control Center software. The AMI UEFI BIOS includes Q-Flash and Q-Flash Plus support. Key Verified Specifications: - Socket: AMD AM5 - Chipset: AMD B650 - Form Factor: ATX (305 mm × 244 mm) - Memory: 4× DDR5 DIMM, dual-channel, up to 256 GB, 4400–8000 MT/s (OC), AMD EXPO & Intel XMP - M.2 Slots: 3× (PCIe 5.0 x4 / PCIe 4.0 x4 / PCIe 4.0 x4, all support up to 25110) - SATA: 4× SATA 6 Gb/s - Wireless: Wi-Fi 6E (Realtek RTL8852CE, 2.4/5/6 GHz, 802.11ax, 160 MHz), Bluetooth 5.3 - LAN: Realtek 2.5 GbE - Rear USB: 1× USB-C Gen 2, 2× USB-A Gen 2, 5× USB-A Gen 1, 4× USB 2.0 - Video Output: 1× DisplayPort (up to 3840×2160 @ 144 Hz), 1× HDMI (up to 4096×2160 @ 60 Hz) - Audio: Realtek HD Audio CODEC, 7.1-channel, optical S/PDIF out - VRM: 12+2+2 phase digital - Warranty: 3 years

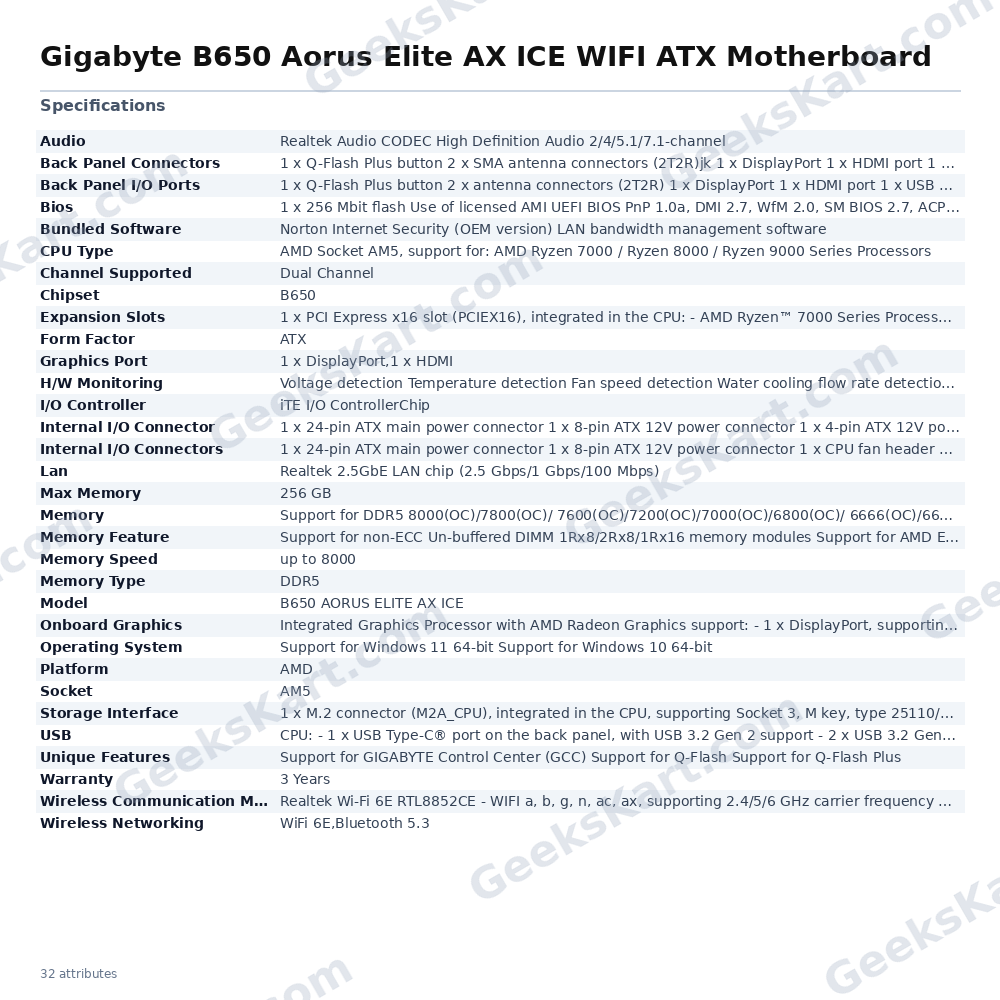

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | B650 |
| Socket | AM5 |
| CPU Type | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Max Memory | 256 GB |
| Memory Speed | up to 8000 |
| Lan | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Model | B650 AORUS ELITE AX ICE |
| Memory | Support for DDR5 8000(OC)/7800(OC)/ 7600(OC)/7200(OC)/7000(OC)/6800(OC)/ 6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Platform | AMD |
| Graphics Port | 1 x DisplayPort,1 x HDMI |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE I/O ControllerChip |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160144 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160 60 Hz |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Channel Supported | Dual Channel |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: -AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs -AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs -AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: -AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs -AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs -AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1xM.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key,type 25110/22110/2580/2280 PCIe 4.0 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Back Panel Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Wireless Communication Module | Realtek Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment) |
