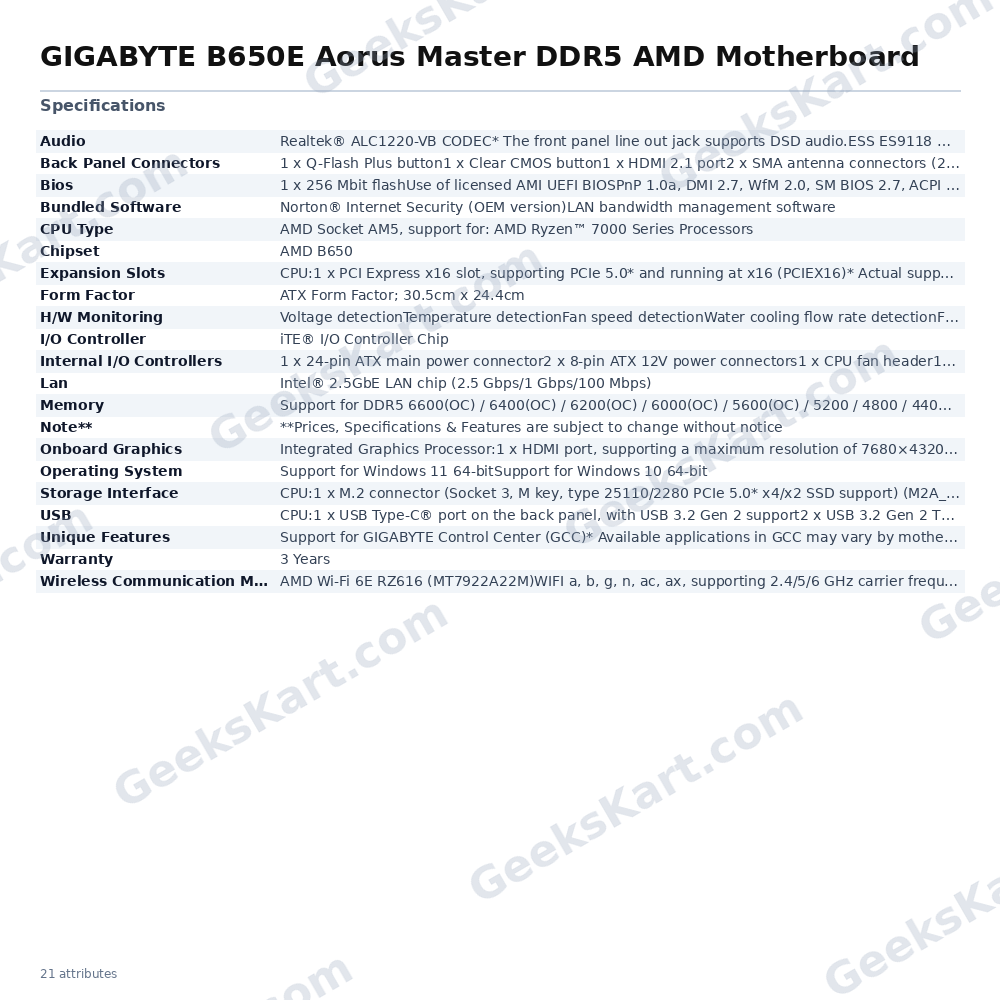

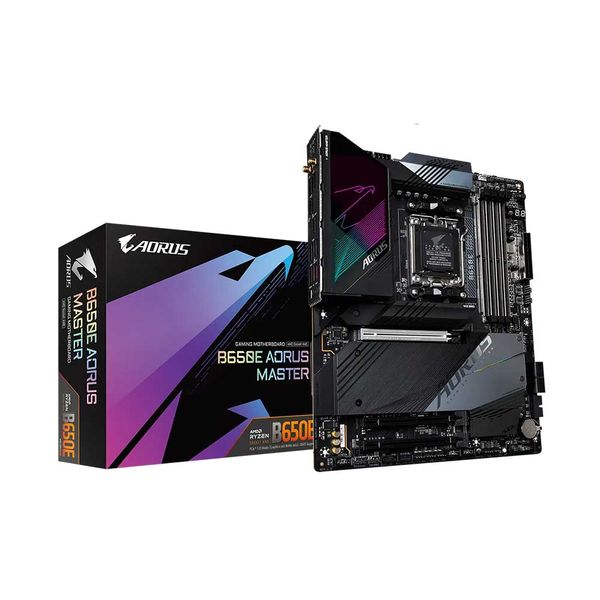

GIGABYTE B650E Aorus Master DDR5 AMD Motherboard

The GIGABYTE B650E Aorus Master is a full-size ATX motherboard built on the AMD B650 chipset and designed for AMD Ryzen 7000 series processors using the AM5 socket. It targets builders and enthusiasts who need a stable, feature-dense platform without moving to the X670E tier. Power delivery is handled by a Twin 16+2+2 phase digital VRM arrangement, supported by a fully covered MOSFET heatsink with a one-piece construction and multi-cut channel design to aid airflow across the power stages. Two 8-pin ATX 12V connectors feed the CPU rail. A large Mega-Heatpipe connects the VRM heatsink sections to spread heat effectively under sustained workloads. The board provides four DDR5 DIMM slots capable of holding up to 128 GB of system memory (32 GB per DIMM). Supported speeds range from 4400 MT/s at base up to 6600 MT/s in overclocked profiles, with native support for both AMD EXPO and Intel XMP memory modules for one-click frequency tuning. Storage options are a clear strength. Four M.2 connectors all support PCIe 5.0 x4 NVMe drives — one accommodating 25110 and 2280 form factors, the remaining three accepting 22110 and 2280. Every M.2 slot is protected by M.2 Thermal Guard III heatsinks with optimised dissipation surfaces to reduce thermal throttling under heavy sequential workloads. Four SATA 6 Gb/s ports are also present, and RAID 0, 1, and 10 configurations are supported for both NVMe and SATA arrays. The primary PCIe x16 slot runs at PCIe 5.0 x16 for the graphics card. Connectivity covers Intel 2.5GbE wired LAN alongside an AMD Wi-Fi 6E RZ616 module supporting 2.4 GHz, 5 GHz, and 6 GHz bands at up to 2.4 Gbps theoretical throughput (conditions dependent), and Bluetooth 5.2. The rear panel provides one USB Type-C port (USB 3.2 Gen 2), four USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, and four USB 2.0 ports. An internal USB Type-C header supports USB 3.2 Gen 2×2 at 20 Gbps for front-panel connectivity. Audio is managed by a Realtek ALC1220-VB codec paired with an ESS ES9118 DAC chip on the rear output, with DTS:X Ultra support and optical S/PDIF output. Smart Fan 6 controls up to eight fan and pump headers (4 dedicated system fan headers plus 4 fan/pump headers), each supporting up to 2 A at 12 V with PWM or DC mode and individual curve programming. RGB and ARGB headers are present for lighting integration. The multi-function reset button can be reassigned in BIOS to serve as an RGB kill switch, Direct-to-BIOS shortcut, or Safe Mode entry. Q-Flash Plus allows BIOS updates without a CPU, memory, or GPU installed. Verified Specifications: – Socket: AM5 | Chipset: AMD B650 – Form Factor: ATX (30.5 cm x 24.4 cm) – Memory: 4x DDR5 DIMM, up to 128 GB, 4400–6600(OC) MT/s, dual-channel, EXPO & XMP – M.2 Slots: 4x PCIe 5.0 x4 (all CPU-connected) – SATA: 4x SATA 6 Gb/s – Primary PCIe: 1x PCIe 5.0 x16 – LAN: Intel 2.5GbE – Wi-Fi: AMD Wi-Fi 6E (2.4/5/6 GHz), up to 2.4 Gbps; Bluetooth 5.2 – Audio: Realtek ALC1220-VB + ESS ES9118 DAC, DTS:X Ultra, S/PDIF Out – Rear USB: 1x USB-C Gen 2, 4x USB-A Gen 2, 4x USB-A Gen 1, 4x USB 2.0 – Front USB header: USB-C Gen 2×2 (20 Gbps) – Video Out: 1x HDMI 2.1 (up to 7680×4320 @ 60 Hz via iGPU) – BIOS: AMI UEFI, 256 Mbit flash, Q-Flash, Q-Flash Plus – Warranty: 3 years
