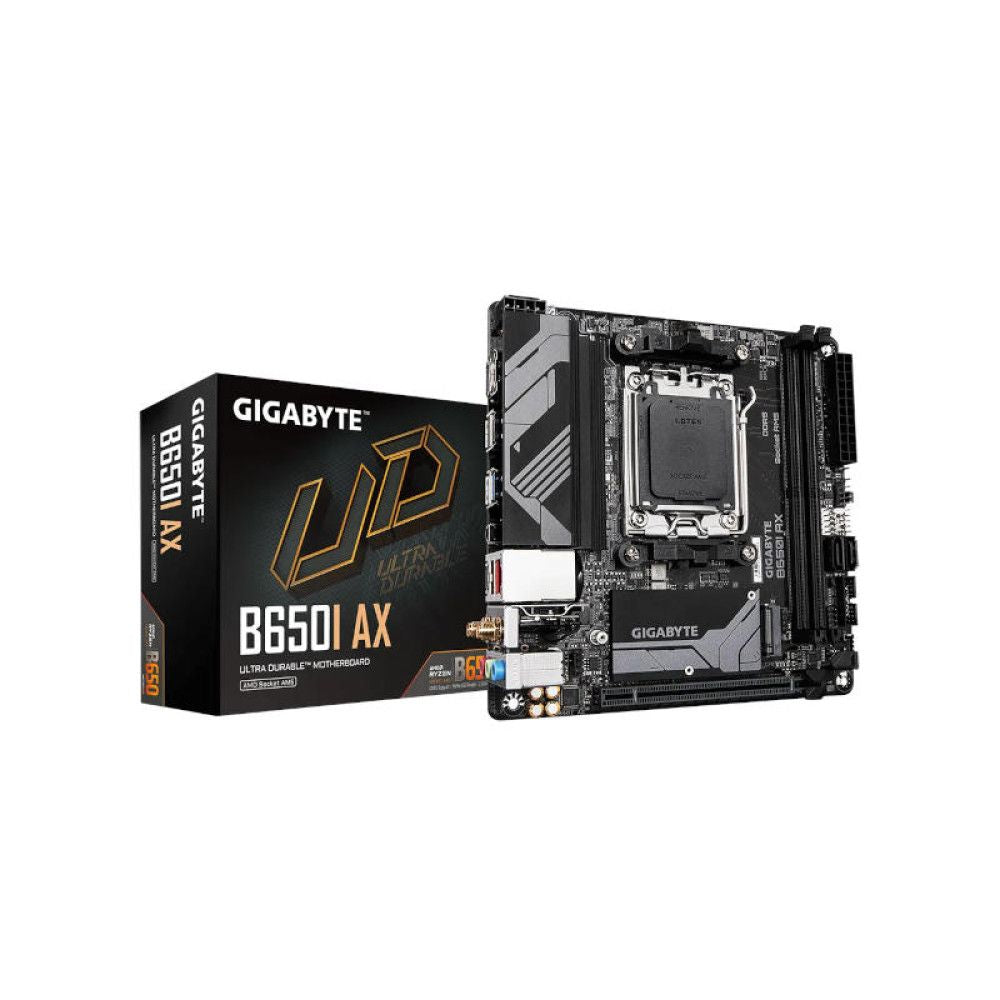

GIGABYTE B650I UD AX DDR5 AMD Motherboard
MPN GIGABYTE-B650I-AX-DDR5 · Brand Gigabyte · Mini-ITX
The Gigabyte B650I UD AX DDR5 is a Mini-ITX AM5 motherboard featuring the AMD B650 chipset, dual DDR5 slots (up to 96 GB), Wi-Fi 6E, 2.5GbE LAN, and PCIe 4.0 storage — ideal for compact high-performance builds
Inclusive of GST · GST invoice available
Overview

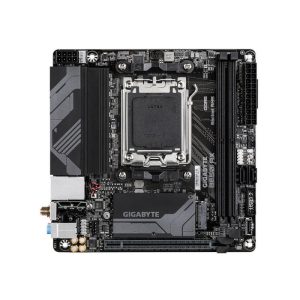

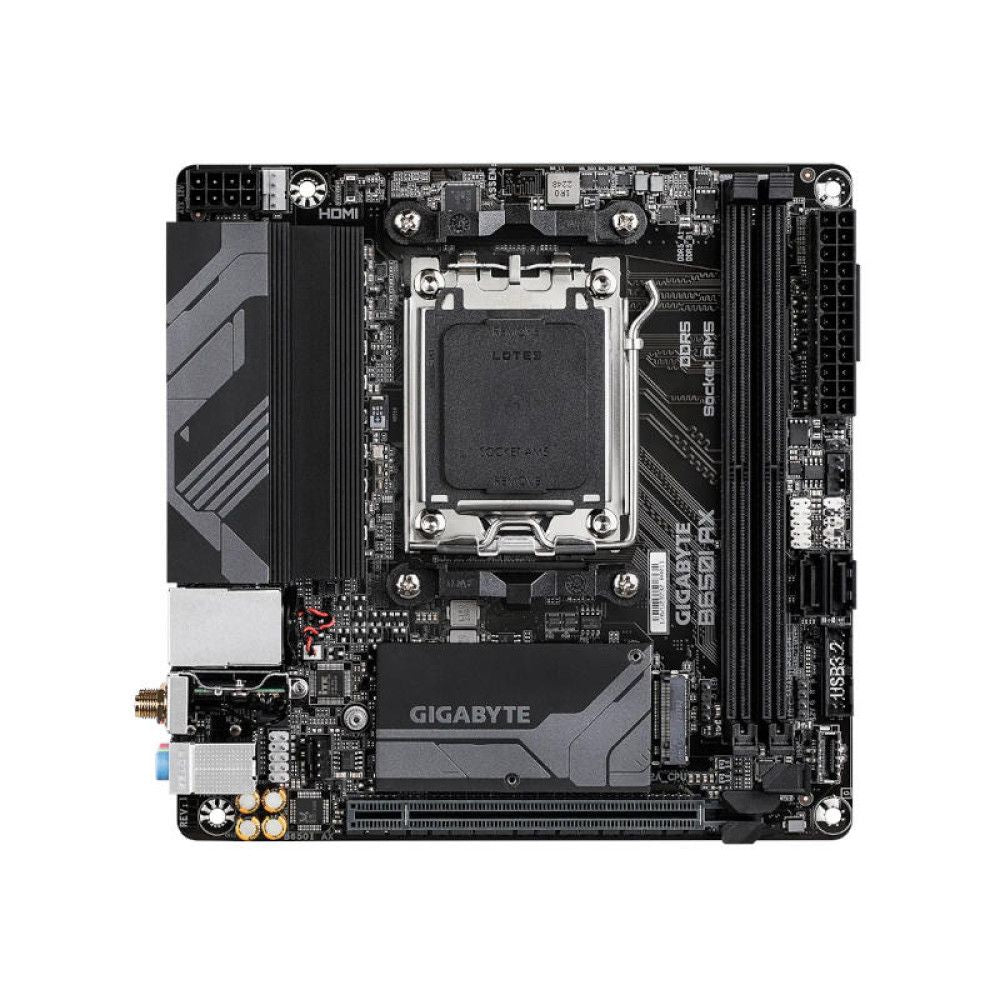

The Gigabyte B650I UD AX DDR5 is a Mini-ITX form-factor motherboard (17.0 cm × 17.0 cm) built on the AMD B650 chipset and designed for the AM5 socket. It is compatible with AMD Ryzen 7000 and Ryzen 8000 Series processors, giving builders access to a current-generation platform in a compact chassis. Memory support spans two DDR5 DIMM slots with a dual-channel architecture, accommodating up to 96 GB total (48 GB per slot) across rated speeds of 4400, 4800, and 5200 MT/s, with overclocked profiles reaching 5600, 6000, 6200, and 6400 MT/s. Both AMD EXPO and Intel XMP profiles are recognised automatically from the SPD, so achieving rated memory speeds requires nothing more than enabling the chosen profile in BIOS. Power delivery relies on a 5+2+1 phase digital VRM with DrMOS components, fed through standard 24-pin ATX and 8-pin ATX 12V connectors. Storage is handled by one M.2 Socket 3 (M-key, 2280) connector integrated in the CPU, supporting PCIe 4.0 x4 NVMe SSDs, alongside two SATA 6 Gb/s ports. RAID 0 and RAID 1 are available for both NVMe and SATA devices. Networking is covered by a Realtek Wi-Fi 6E module (RTL8852CE) supporting 2.4 GHz, 5 GHz, and 6 GHz bands with 802.11ax and 160 MHz channel width, Bluetooth 5.3, and a Realtek 2.5GbE wired LAN port (10/100/1000/2500 Mbps). Display outputs include one DisplayPort 1.4 (up to 3840×2160 @ 144 Hz) and one HDMI 2.1 port (up to 4096×2160 @ 60 Hz) for use with AMD processors featuring integrated graphics. The back panel also carries one USB 3.2 Gen 2 Type-A port, one USB 3.2 Gen 1 Type-C port, one USB 3.2 Gen 1 Type-A port, three USB 2.0/1.1 ports, three audio jacks, the Q-Flash Plus button, and two SMA Wi-Fi antenna connectors. Internal headers include addressable LED and RGB LED strip headers, a CPU fan header, two system fan headers, and USB Type-C and USB 3.2 Gen 1 internal headers. Fan control is managed through Smart Fan 6, which provides PWM and DC support, per-header fan curves with up to seven control points, and a Fan Stop function. BIOS updates can be applied via Q-Flash Plus without installing a CPU, memory, or graphics card. The AMI UEFI BIOS is stored on a 256 Mbit flash chip and is managed through GIGABYTE Control Center software. The board carries a 3-year warranty. Key Specifications: - Form Factor: Mini-ITX, 17.0 cm × 17.0 cm - Socket: AMD AM5 - Chipset: AMD B650 - CPU Support: AMD Ryzen 7000 / Ryzen 8000 Series - Memory: 2 × DDR5 DIMM, up to 96 GB, DDR5-4400 to DDR5-6400 (OC), EXPO & XMP - PCIe Slot: 1 × PCIe 4.0 x16 (x16/x8/x4 depending on CPU) - Storage: 1 × M.2 2280 PCIe 4.0 x4, 2 × SATA 6 Gb/s, RAID 0/1 - Wireless: Realtek Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, 160 MHz), Bluetooth 5.3 - LAN: Realtek 2.5GbE (10/100/1000/2500 Mbps) - VRM: 5+2+1 Phase Digital with DrMOS - Display: 1 × DisplayPort 1.4, 1 × HDMI 2.1 - Audio: Realtek HD Audio CODEC, 7.1-channel - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years
Datasheet

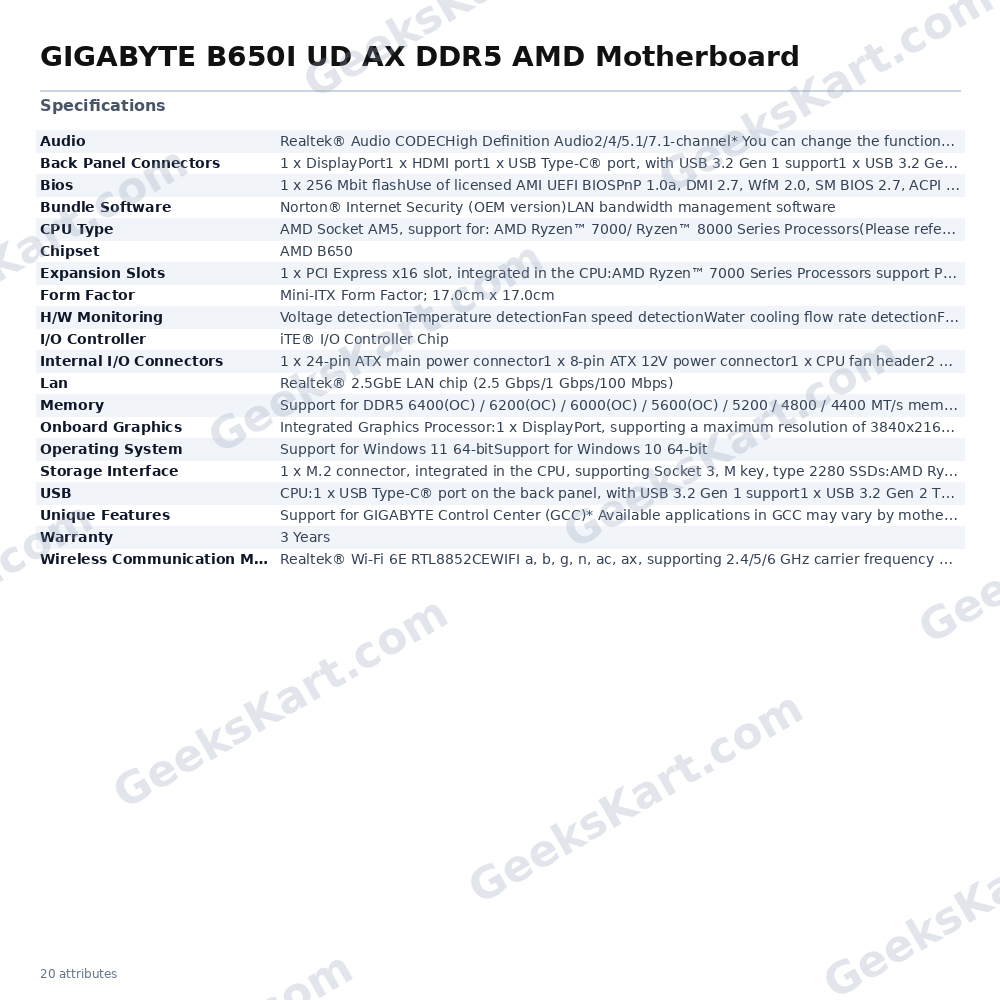

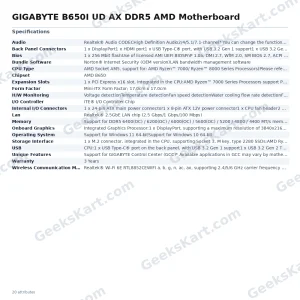

| Warranty | 3 Years |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | AMD B650 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 7000/ RyzenTM 8000 Series Processors(Please refer "CPU Support List" for more information.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 2 Type-A port (red) on the back panel1 x USB 2.0/1.1 port on the back panelChipset:1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU:AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Onboard Graphics | Integrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devicesRAID 0 and RAID 1 support for SATA storage devices |

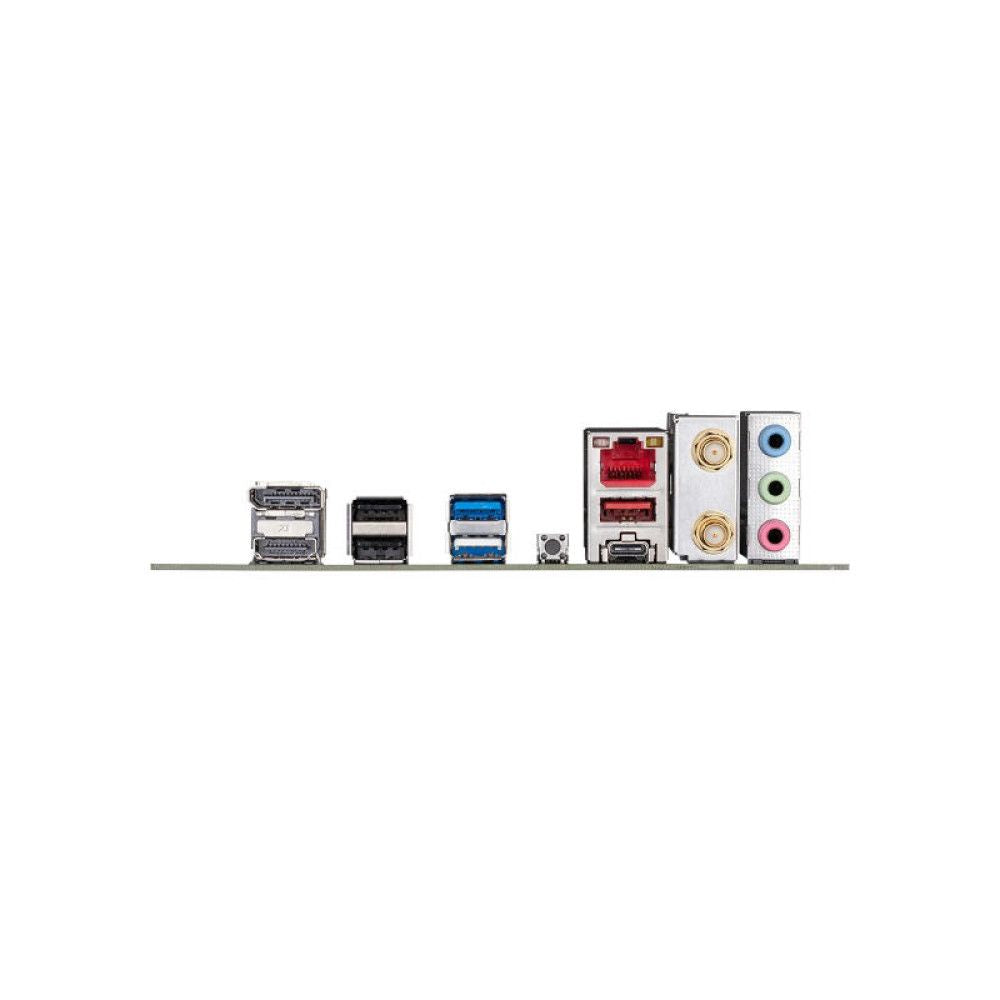

| Back Panel Connectors | 1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 2 Type-A port (red)1 x USB 3.2 Gen 1 port3 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port2 x SMA antenna connectors (2T2R)3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M.2 Socket 3 connector2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Clear CMOS jumper1 x chassis intrusion header |
| Wireless Communication Module | Realtek® Wi-Fi 6E RTL8852CEWIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) |
