GIGABYTE B650M D3HP DDR5 AMD Motherboard

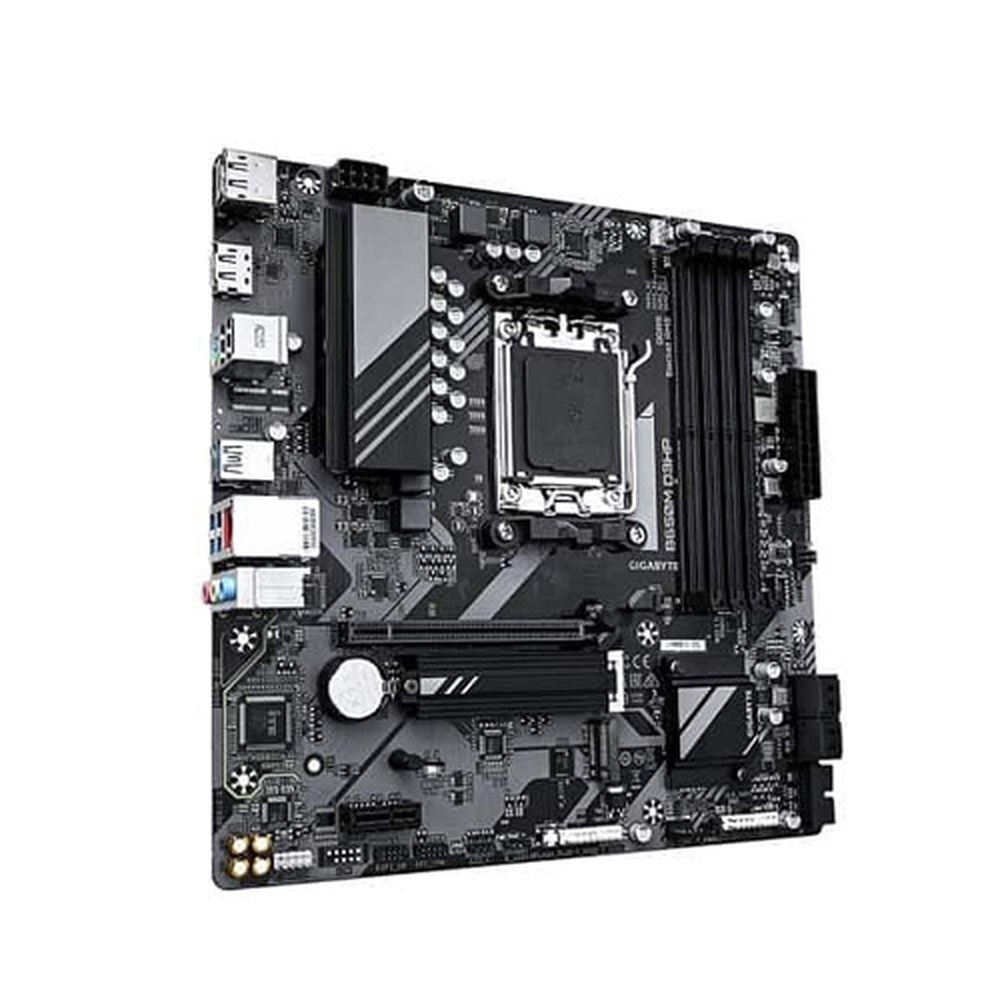

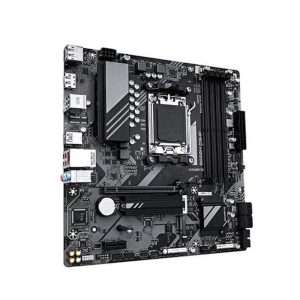

The GIGABYTE B650M D3HP is a Micro ATX motherboard built on the AMD B650 chipset, designed to pair with AMD Ryzen 7000 series processors via the AM5 socket. It brings a compelling blend of modern connectivity, reliable power delivery, and practical storage options into a compact 9.6 x 9.6-inch footprint — making it well suited for space-efficient desktop builds that still demand current-generation performance. Power delivery is handled by a 5+2+2 phase digital VRM solution, supplying steady current to the CPU and associated components. Four DDR5 DIMM slots support dual-channel memory configurations up to 192 GB (based on 48 GB single DIMM capacity), with compatibility spanning DDR5 4800 MT/s natively and overclocked profiles up to DDR5 7600 MT/s via AMD EXPO and Intel XMP support. Non-ECC, unbuffered DIMMs in 1Rx8, 2Rx8, and 1Rx16 configurations are supported. Storage flexibility comes through two M.2 Socket 3 connectors — one CPU-connected slot (M2A_CPU) supporting type 2580 PCIe 4.0 x4/x2 SSDs, and a chipset-connected slot (M2C_SB) supporting type 22110/2280 PCIe 4.0 x4/x2 SSDs — alongside four SATA 6Gb/s ports. RAID 0, 1, and 10 configurations are available for both NVMe and SATA storage devices. Expansion is covered by one PCIe 4.0 x16 slot (CPU-connected, running at x16) with EZ-Latch quick-release design, and one PCIe 3.0 x1 slot from the chipset. Rear I/O includes dual DisplayPort outputs, one HDMI port, one USB Type-C port with USB 3.2 Gen 1, three USB 3.2 Gen 1 Type-A ports, two USB 2.0/1.1 ports, a 2.5GbE LAN port (Realtek chip, supporting 2.5/1/0.1 Gbps), three audio jacks, and a legacy PS/2 keyboard/mouse port. Onboard audio uses a Realtek High Definition Audio CODEC with up to 7.1-channel output and an audio noise guard that physically isolates analog audio circuitry at the PCB level. Fan management is handled by Smart Fan 6 with multiple temperature sensors and hybrid fan headers that support FAN STOP functionality across one CPU fan header and two system fan headers. RGB and ARGB lighting are supported via one RGB LED strip header and two addressable LED strip headers. BIOS management is supported by Q-Flash Plus, enabling BIOS updates via a USB drive without a CPU, memory, or GPU installed. GIGABYTE Control Center software provides a unified interface for system monitoring and tuning. Windows 11 is supported. Key Specifications: - Chipset: AMD B650 - Socket: AM5 - CPU Support: AMD Ryzen 7000 Series - Form Factor: Micro ATX (9.6" x 9.6") - Memory: 4x DDR5 DIMM, up to 192 GB, DDR5 4800–7600(OC) MT/s, Dual Channel, Non-ECC Unbuffered, AMD EXPO & XMP - M.2 Slots: 2x PCIe 4.0 x4 (one CPU-lane, one chipset-lane) - SATA: 4x SATA 6Gb/s; RAID 0/1/10 (NVMe & SATA) - PCIe: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) - LAN: Realtek 2.5GbE (2.5/1/0.1 Gbps) - Audio: Realtek HD Audio CODEC, 7.1-channel - Rear USB: 1x USB-C 3.2 Gen 1, 3x USB-A 3.2 Gen 1, 2x USB 2.0 - Display Outputs: 2x DisplayPort, 1x HDMI - Power: 24-pin ATX + 8-pin ATX 12V - OS: Windows 11 Supported
