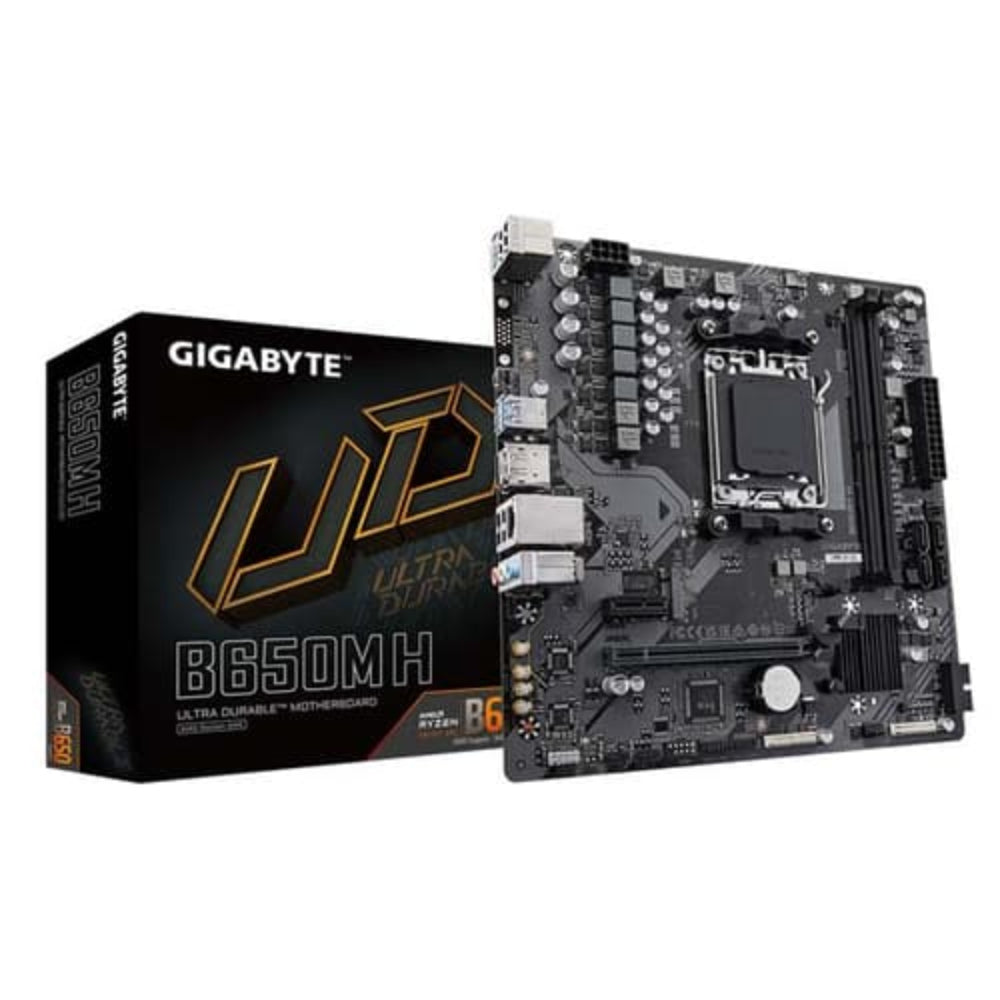

GIGABYTE B650M H DDR5 AMD Motherboard

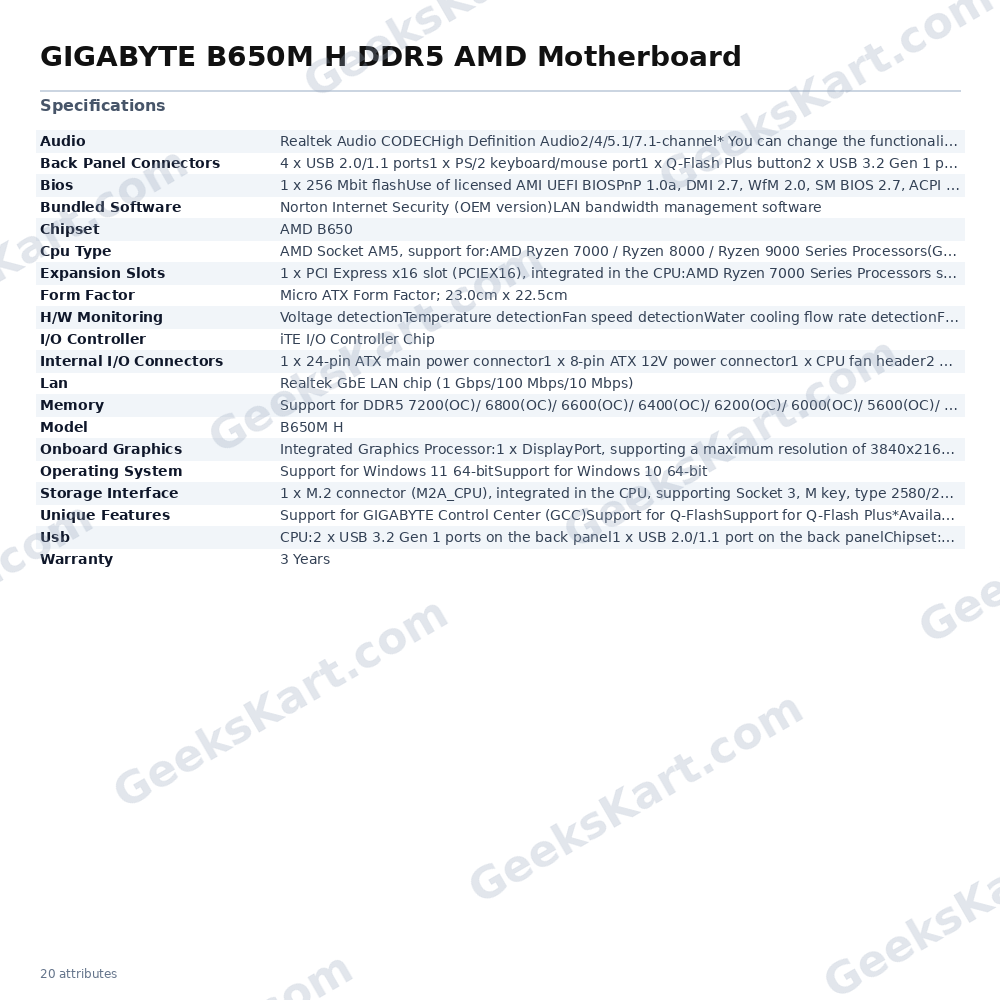

The GIGABYTE B650M H is a Micro ATX motherboard built on the AMD B650 chipset, designed for the AM5 socket and compatible with AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 series processors. Measuring 23.0 cm x 22.5 cm, it fits standard Micro ATX chassis and delivers a well-rounded feature set for both everyday computing and performance-focused builds. Memory support is handled through two DDR5 DIMM slots capable of holding up to 128 GB of system memory (64 GB per slot), running at speeds up to DDR5-7200 MT/s in overclocked configurations, with native support at 4800 and 5200 MT/s. Both AMD EXPO and Intel XMP profiles are supported for straightforward memory overclocking. The board’s 5+2+2 phase digital VRM solution with low RDS MOSFETs helps deliver stable power delivery to the processor. Storage options include one M.2 connector (M2A_CPU, Socket 3, M key, 2242/2280) supporting PCIe 4.0 x4 NVMe SSDs, and four SATA 6 Gb/s connectors. RAID 0, 1, and 10 configurations are supported for both NVMe and SATA devices. For expansion, there is one PCIe x16 slot (CPU-connected, PCIe 4.0) and one PCIe x1 slot (chipset, PCIe 3.0). The board features onboard integrated graphics output via one DisplayPort 1.4 (up to 3840×2160@144 Hz) and one HDMI 2.1 port (up to 4096×2160@60 Hz), subject to CPU integrated graphics support. Connectivity on the rear panel includes four USB 2.0/1.1 ports, two USB 3.2 Gen 1 ports, one USB 2.0/1.1 port, one PS/2 keyboard/mouse port, DisplayPort, HDMI, RJ-45 (Realtek GbE LAN, 1 Gbps/100 Mbps/10 Mbps), and three audio jacks. Audio is handled by a Realtek High Definition Audio CODEC supporting up to 7.1-channel output. A noise-isolation trace on the PCB helps separate analog audio circuitry from digital interference. GIGABYTE’s Smart Fan 6 technology provides multi-zone temperature monitoring, PWM/DC fan control across one CPU fan header and two system fan headers, and a FAN STOP feature for near-silent operation at low loads. The Q-Flash Plus button on the rear panel allows BIOS updates without installing a CPU, memory, or graphics card. ARGB and RGB LED strip headers are also present for optional lighting. The board ships with a 3-year warranty and supports Windows 11 and Windows 10 (64-bit). Key Specifications: – Chipset: AMD B650 – Socket: AM5 (AMD Ryzen 7000 / 8000 / 9000 series) – Form Factor: Micro ATX, 23.0 cm x 22.5 cm – Memory: 2x DDR5 DIMM, up to 128 GB, DDR5-4400 to DDR5-7200(OC) MT/s, AMD EXPO & XMP – Storage: 1x M.2 PCIe 4.0 x4 (2280/2242), 4x SATA 6 Gb/s, RAID 0/1/10 – Display Output: 1x DisplayPort 1.4 (3840×2160@144 Hz), 1x HDMI 2.1 (4096×2160@60 Hz) – LAN: Realtek GbE (1 Gbps/100 Mbps/10 Mbps) – Audio: Realtek HD Audio, 2/4/5.1/7.1-channel – USB (Rear): 4x USB 2.0, 2x USB 3.2 Gen 1, 1x USB 2.0 – VRM: 5+2+2 Phase Digital – BIOS: AMI UEFI, Q-Flash, Q-Flash Plus – OS: Windows 11 / Windows 10 (64-bit) – Warranty: 3 Years
