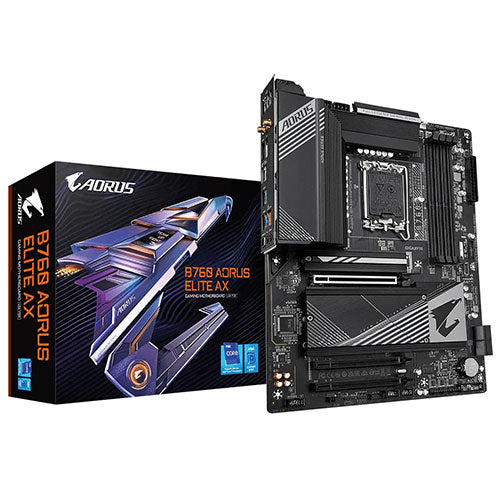

GIGABYTE B760 Aorus Elite AX DDR5 Intel Motherboard
MPN B760-AORUS-ELITE-AX-DDR5 · Brand Gigabyte · ATX
The Gigabyte B760 Aorus Elite AX DDR5 is an ATX motherboard for LGA1700 Intel 12th and 13th Gen CPUs, featuring DDR5 support up to 128 GB, PCIe 4.0, 2.5GbE LAN, Wi-Fi, and a rich USB rear I/O
Inclusive of GST · GST invoice available
Overview
The Gigabyte B760 Aorus Elite AX DDR5 is an ATX-form-factor desktop motherboard built around Intel's B760 chipset and the LGA1700 socket. It is compatible with both 12th-generation Intel Core, Pentium Gold, and Celeron processors as well as 13th-generation Intel Core processors, giving builders flexibility when choosing their CPU. Memory support centres on DDR5, with four DIMM slots accommodating dual-channel configurations up to a total of 128 GB. Out-of-the-box DDR5-4800 and DDR5-4000 MT/s speeds are supported, while the XMP/overclocking profiles extend that ceiling up to DDR5-7600 MT/s (O.C.), passing through a wide ladder of intermediate speeds including 5600, 6000, 6600, 7000, and 7200 MT/s. For graphics, the primary PCIe x16 slot runs at PCIe 4.0 x16 bandwidth, ideal for current-generation discrete GPUs. Two additional physical x16 slots operate at PCIe 3.0 x1 electrical. Storage connectivity includes four SATA 6 Gb/s ports for traditional drives; M.2 slot information was not confirmed in the available source data and should be verified before publishing. Connectivity is a highlight. The board carries a Realtek 2.5GbE wired LAN controller supporting 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds. The "AX" designation indicates integrated Wi-Fi (exact Wi-Fi generation not confirmed in source data — flag for manual review). The rear I/O panel includes one USB Type-C port with USB 3.2 Gen 2 support, one USB 3.2 Gen 2 Type-A port, four USB 3.2 Gen 1 ports, and four USB 2.0/1.1 ports. Display outputs on the rear I/O are one HDMI port and one DisplayPort, supporting processors with integrated graphics. Audio is handled by a Realtek codec delivering up to 7.1-channel output, with an optical S/PDIF output also present. The board measures 30.5 × 24.4 cm (standard ATX) and uses a 24-pin main ATX power connector alongside an 8-pin plus 4-pin ATX 12V CPU power arrangement. Verified Specifications: - Brand: Gigabyte - Model: B760 AORUS ELITE AX - Form Factor: ATX (30.5 × 24.4 cm) - Socket: LGA1700 - Chipset: Intel B760 - CPU Support: 12th & 13th Gen Intel Core / Pentium Gold / Celeron - Memory: 4 × DDR5 DIMM, Dual Channel, max 128 GB, DDR5-4800 native / up to DDR5-7600 O.C. - PCIe: 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1 (x16 physical) - Storage: 4 × SATA 6 Gb/s - LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) - Audio: Realtek codec, up to 7.1-channel, optical S/PDIF out - Rear USB: 1× USB-C 3.2 Gen 2, 1× USB-A 3.2 Gen 2, 4× USB 3.2 Gen 1, 4× USB 2.0 - Video Out: 1× HDMI, 1× DisplayPort - Power: 24-pin ATX + 8-pin + 4-pin ATX 12V

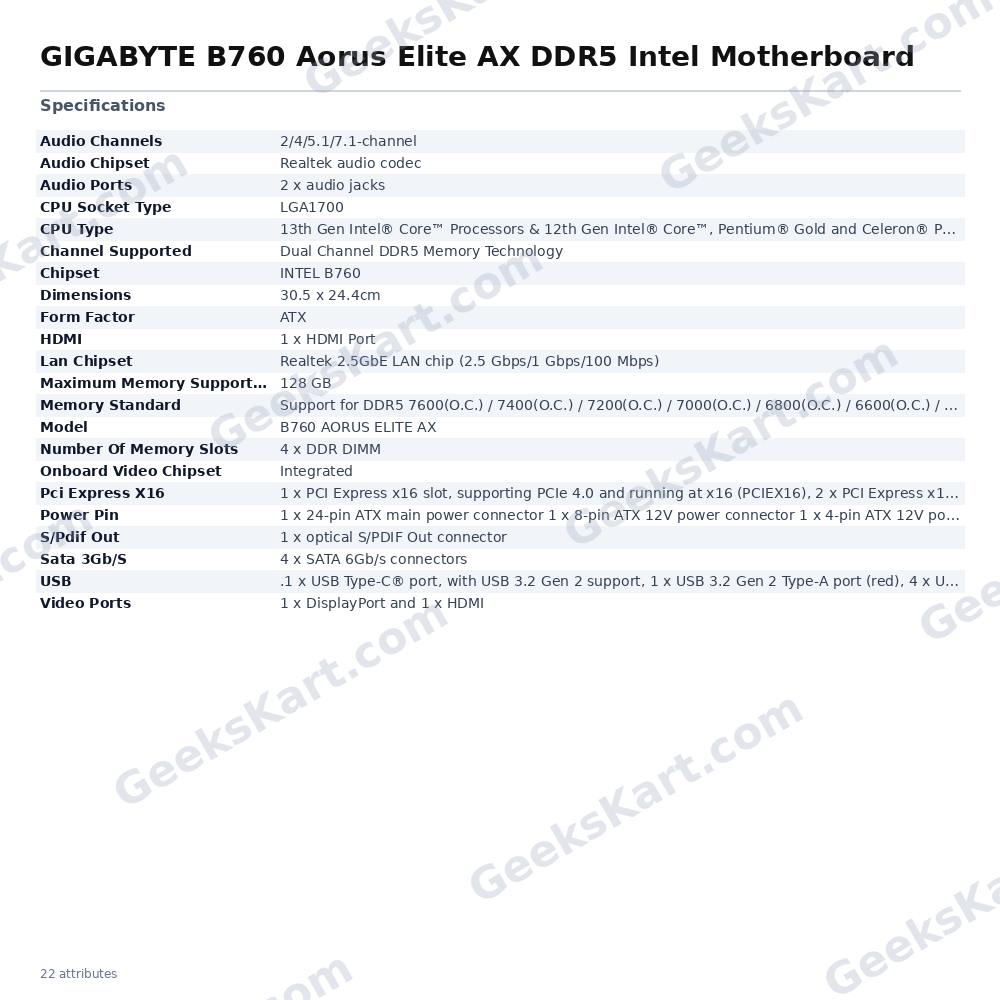

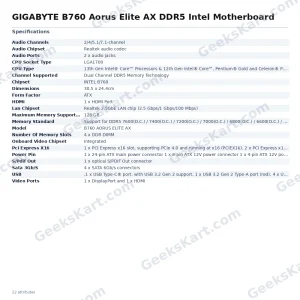

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | INTEL B760 |
| CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| USB | .1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| HDMI | 1 x HDMI Port |
| Model | B760 AORUS ELITE AX |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Dimensions | 30.5 x 24.4cm |
| S/Pdif Out | 1 x optical S/PDIF Out connector |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 2 x audio jacks |
| Lan Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Video Ports | 1 x DisplayPort and 1 x HDMI |
| Audio Chipset | Realtek audio codec |
| Audio Channels | 2/4/5.1/7.1-channel |
| CPU Socket Type | LGA1700 |
| Memory Standard | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT |
| Pci Express X16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Channel Supported | Dual Channel DDR5 Memory Technology |
| Onboard Video Chipset | Integrated |
| Number Of Memory Slots | 4 x DDR DIMM |
| Maximum Memory Supported | 128 GB |
