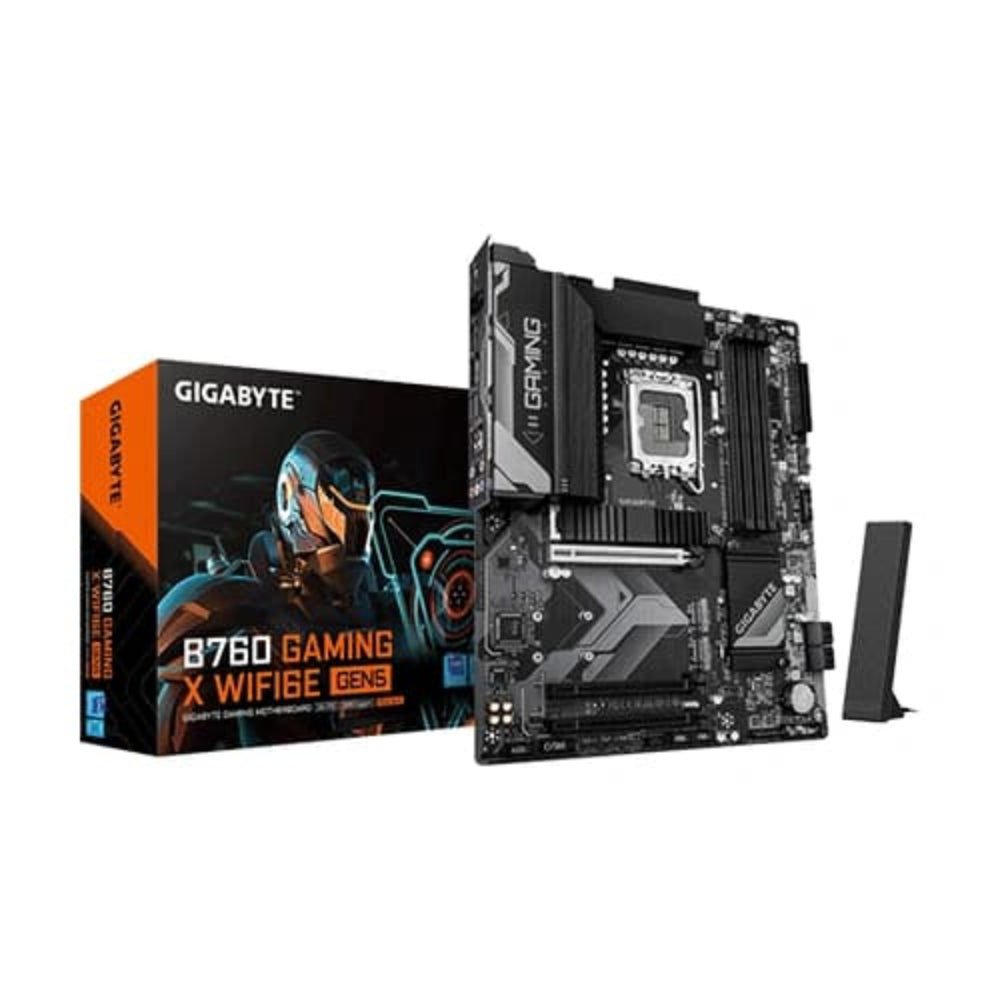

GIGABYTE B760 Gaming X Wifi6E Gen5 DDR5 Intel Motherboard
MPN GIGABYTE-B760-GAMING-X-WIFI6E-GEN5 · Brand GIGABYTE · ATX
GIGABYTE B760 Gaming X WiFi 6E Gen5 is a full-ATX LGA 1700 motherboard supporting Intel 12th–14th Gen CPUs, DDR5-7600, PCIe 5.0 x16, three PCIe 4.0 M.2 slots, Wi-Fi 6E, and 2.5GbE LAN — built for high-performance Intel gaming and productivity builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B760 Gaming X WiFi 6E Gen5 is a full-ATX Intel motherboard built on the B760 chipset for the LGA 1700 socket. It supports Intel 12th, 13th, and 14th Generation Core processors as well as Pentium Gold and Celeron processors on the same platform, making it a versatile long-term investment for both new builds and CPU upgrades. At its core, the board features a PCIe 5.0 x16 primary slot with GIGABYTE's EZ-Latch quick-release mechanism, enabling fast GPU swaps without tools. PCIe 5.0 doubles the per-lane data transfer rate compared to PCIe 4.0, reaching 32 GT/s per lane — a meaningful advantage for high-bandwidth discrete graphics cards. Two additional chipset-connected PCIe 3.0 x1 slots round out the expansion options. Memory support is built around dual-channel DDR5, with four DIMM slots accepting up to 256 GB and speeds up to DDR5-7600 via XMP profiles. ECC unbuffered modules are also accepted (operating in non-ECC mode), adding flexibility for workstation-adjacent use cases. Storage is handled by three M.2 Socket 3 connectors (each PCIe 4.0 x4), all covered by GIGABYTE's M.2 Thermal Guard heatsinks to help manage heat from high-speed NVMe drives. Four SATA 6Gb/s ports provide additional drive capacity. Networking combines a 2.5GbE wired LAN port with an integrated Wi-Fi 6E (802.11ax) and Bluetooth 5.3 module. GIGABYTE's WIFI EZ-Plug connector simplifies antenna installation, while the WIFI Compass feature assists with optimal antenna positioning. The rear I/O panel includes USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-C, DisplayPort, and HDMI outputs. A front-panel USB Type-C header with USB 3.2 Gen 2 speeds is also present internally. Thermal management uses a hybrid 8+1+1 phase VRM with VRM Thermal Armor and integrated heatsinks designed to sustain Turbo Boost under load. GIGABYTE's Smart Fan 6 system supports multiple temperature sensors across six fan/pump headers (including hybrid FAN STOP capability for silent operation at idle). Three addressable RGB Gen2 headers and one standard RGB header are available for lighting builds. Q-Flash Plus enables BIOS updates from a USB drive without a CPU, memory, or GPU installed — a practical convenience during platform setup. Key Verified Specifications: - Socket: LGA 1700 | Chipset: Intel B760 - Supported CPUs: Intel 12th / 13th / 14th Gen Core, Pentium Gold, Celeron - Memory: 4 x DDR5 DIMM, dual channel, up to 256 GB, up to DDR5-7600 (XMP) - Primary PCIe Slot: 1 x PCIe 5.0 x16 (CPU-connected, EZ-Latch) - Additional Slots: 2 x PCIe 3.0 x1 (chipset) - Storage: 3 x M.2 PCIe 4.0 x4 (with Thermal Guard), 4 x SATA 6Gb/s - Networking: 2.5GbE LAN, Wi-Fi 6E 802.11ax (2T2R), Bluetooth 5.3 - Rear I/O: 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 1 Type-A, 5x USB 2.0/1.1, HDMI, DisplayPort, RJ-45, 6x audio jacks - Internal Front Panel: USB Type-C header (USB 3.2 Gen 2), USB 3.2 Gen 1 header, 2x USB 2.0 headers - RGB: 3x ARGB Gen2 headers, 1x RGB header - Fan Headers: 6 total (CPU fan, CPU fan/pump, 3x system fan, 1x system fan/pump) - Form Factor: ATX | Warranty: 3 Years
Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 256 GB |
| Memory Speed | up to 7600 |
| Platform | INTEL |
| Product Code | B760-G-X-WF6E-GEN5 |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number ofDRAM modules, please refer to "Memory Support List" Visit Brand website for more information.) |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, besure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 Type-A port (red)1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 port5 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)1 x DisplayPort (Note)1 x HDMI port (Note)1 x RJ-45 port6 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
