The GIGABYTE B760M Aorus Elite WiFi 6E Gen5 is a Micro-ATX motherboard built on Intel’s B760 chipset for LGA1700 processors, officially supporting Intel Core 12th, 13th, and 14th generation CPUs as well as Pentium Gold and Celeron processors. Designed for builders who want forward-looking connectivity in a compact form factor, it pairs PCIe 5.0 on the primary x16 slot with two PCIe 4.0 x4 M.2 connectors, enabling both next-generation discrete graphics and fast NVMe storage. Power delivery is handled by a Twin 12+1+1 Phase Hybrid VRM solution complemented by a VRM Thermal Armor heatsink, helping sustain stable CPU performance under sustained workloads. The M.2 Thermal Guard dissipates heat from high-speed SSDs before throttling becomes a concern, while Smart Fan 6 provides multiple temperature sensor inputs and hybrid fan headers with FAN STOP functionality for silent idle operation. Memory support spans four DDR5 DIMM slots in dual-channel configuration with XMP profile compatibility, scaling up to a maximum of 256 GB. Rated support reaches DDR5-7800, making it suitable for high-bandwidth memory kits. ECC unbuffered modules are recognised but operate in non-ECC mode. Wireless connectivity is delivered via an integrated Wi-Fi 6E (802.11ax) adapter with Bluetooth 5.3. GIGABYTE’s WIFI EZ-Plug simplifies antenna installation, and WIFI Compass automatically identifies the strongest antenna orientation. Wired networking is provided by a 2.5 Gigabit Ethernet port. The rear I/O includes a USB Type-C port at USB 3.2 Gen 2×2 (20 Gb/s), one USB 3.2 Gen 2 Type-A port, three USB 3.2 Gen 1 ports, four USB 2.0/1.1 ports, HDMI and DisplayPort outputs, optical S/PDIF out, and two analogue audio jacks. Internal headers add a front-panel USB-C at 10 Gb/s, a USB 3.2 Gen 1 header, two USB 2.0 headers, and two Thunderbolt add-in card connectors. Audio is powered by a Realtek ALC1220 codec paired with high-end audio capacitors. Q-Flash Plus allows BIOS updates from a USB drive without a CPU, memory, or GPU installed. The EZ-Latch mechanism on the PCIe 5.0 x16 slot and the EZ-Latch Plus screwless M.2 retention clips simplify installation and removal of cards and drives. Verified Specifications: – Socket: LGA1700 – Chipset: Intel B760 – Form Factor: Micro-ATX – CPU Support: Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron (LGA1700) – Memory: 4× DDR5 DIMM, Dual Channel, up to 256 GB, up to DDR5-7800 (XMP) – PCIe Slots: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (Chipset) – Storage: 2× M.2 PCIe 4.0 x4, 4× SATA 6 Gb/s – Networking: 2.5GbE LAN, Wi-Fi 6E 802.11ax, Bluetooth 5.3 – Rear USB: 1× USB-C 20 Gb/s, 1× USB-A 10 Gb/s, 3× USB 3.2 Gen 1, 4× USB 2.0 – Display Output: 1× HDMI, 1× DisplayPort – Audio: Realtek ALC1220 – RGB: 3× Addressable RGB Gen2 headers, 1× RGB header – Warranty: 3 Years

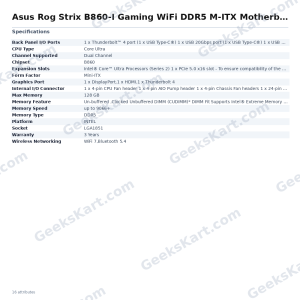

Asus Rog Strix B860-I Gaming WiFi DDR5 M-ITX Motherboard
₹26,330.00
Gigabyte B850M Aorus Elite WiFi6E M-ATX Motherboard
₹21,290.00
Gigabyte B760M Aorus Elite WiFi6E GEN5 M-ATX Motherboard
₹19,790.00
GIGABYTE B760M Aorus Elite WiFi 6E Gen5 Micro-ATX motherboard for LGA1700 Intel 12th–14th Gen CPUs, featuring PCIe 5.0, DDR5 up to 256 GB, 2.5GbE LAN, Wi-Fi 6E, and a 12+1+1 phase VRM
Additional information
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 256 GB |
| Memory Speed | up to 7800 |
| Platform | INTEL |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" Visit Brand website for more information.) |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, besure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 2 x antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
