Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard

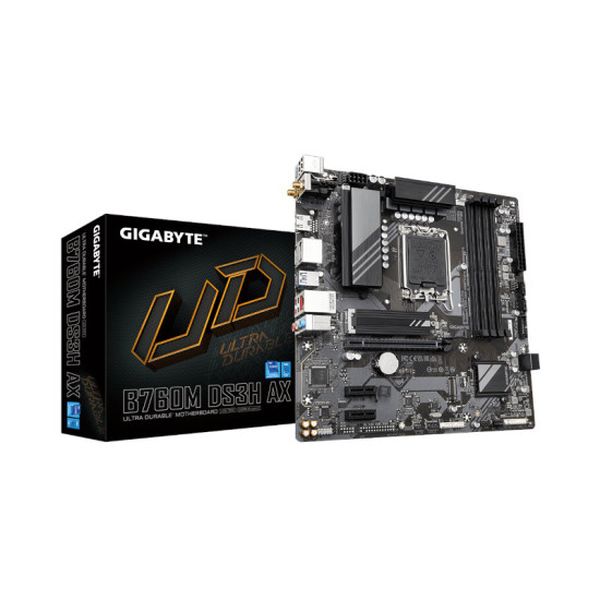

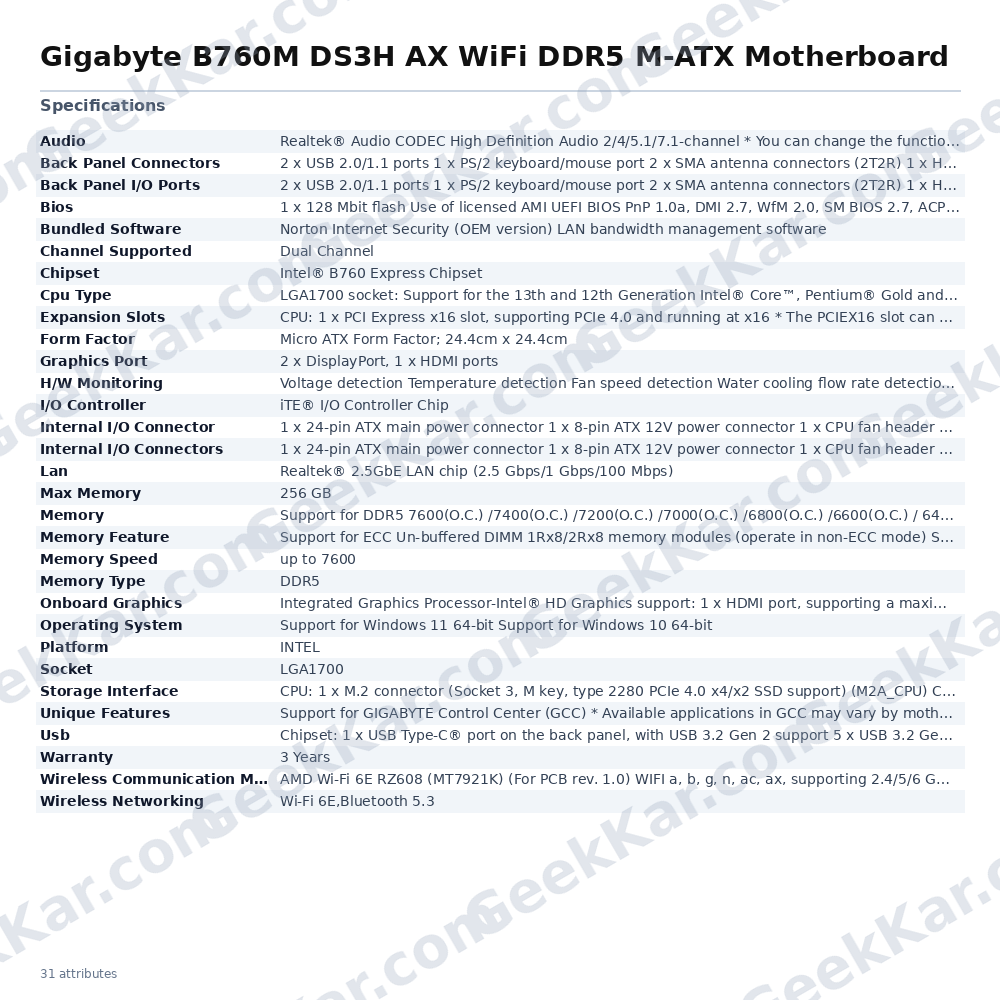

The GIGABYTE B760M DS3H AX is a Micro-ATX motherboard built on the Intel B760 Express Chipset and designed for Intel LGA1700 socket processors, with verified support for 12th and 13th Generation Intel Core, Pentium Gold, and Celeron CPUs. It is a capable platform for mid-range desktop builds that demand modern connectivity without the footprint of a full ATX board. Memory performance is a highlight of this board. Four DDR5 DIMM slots operate in dual-channel mode and support speeds from 4000 MT/s up to 7600 MT/s (O.C. via XMP), with a maximum capacity of 192 GB (using 48 GB single DIMMs). Both ECC and non-ECC unbuffered modules are accommodated, and XMP profile activation is handled directly through the AMI UEFI BIOS. Storage options are equally modern. Two M.2 connectors (M2A_CPU and M2P_SB) both support PCIe 4.0 x4 NVMe SSDs in the 2280 form factor, complemented by four SATA 6 Gb/s ports with support for RAID 0, 1, 5, and 10 configurations. GIGABYTE’s M.2 Thermal Guard helps manage heat on high-speed NVMe drives to maintain sustained throughput. Networking is handled by a Realtek 2.5GbE LAN controller alongside an onboard Wi-Fi 6E module (802.11ax) covering 2.4 GHz, 5 GHz, and 6 GHz bands; Bluetooth 5.3 is included on PCB revisions 1.1 and later. The rear I/O panel provides a USB Type-C port with USB 3.2 Gen 2 (10 Gb/s) speeds, three USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, a PS/2 combo port, HDMI 2.0 (up to 4096×2160 @ 60 Hz), dual DisplayPort 1.2 outputs, and a 3-port audio jack array backed by a Realtek HD Audio CODEC supporting up to 7.1-channel output with S/PDIF Out. The VRM uses a Hybrid 6+2+1 Phase Digital design with low RDS MOSFETs, premium chokes, and capacitors for stable power delivery. Smart Fan 6 provides per-header PWM/DC fan and pump control (up to 24 W per header) with multiple temperature sensor inputs and a FAN STOP function. The PCIe x16 slot features GIGABYTE’s EZ-Latch quick-release mechanism, and the Q-Flash Plus button allows BIOS updates without installing a CPU, memory, or GPU. Key Verified Specifications: — Socket: LGA1700 | Chipset: Intel B760 Express — Memory: 4× DDR5 DIMM, dual-channel, up to 192 GB, 4000–7600 MT/s (XMP O.C.) — Storage: 2× M.2 PCIe 4.0 x4 (2280), 4× SATA 6 Gb/s, RAID 0/1/5/10 — PCIe Slots: 1× PCIe 4.0 x16 (CPU), 2× PCIe 3.0 x1 (Chipset) — LAN: Realtek 2.5GbE | Wireless: Wi-Fi 6E 802.11ax + Bluetooth 5.3 (rev. 1.1+) — Display: 1× HDMI 2.0 (4K@60 Hz), 2× DisplayPort 1.2, triple-display support — USB Rear: 1× USB-C 3.2 Gen 2 (10 Gb/s), 3× USB 3.2 Gen 1, 2× USB 2.0 — Form Factor: Micro-ATX, 244 mm × 244 mm — BIOS: AMI UEFI, 128 Mbit flash, Q-Flash Plus — Warranty: 3 Years
