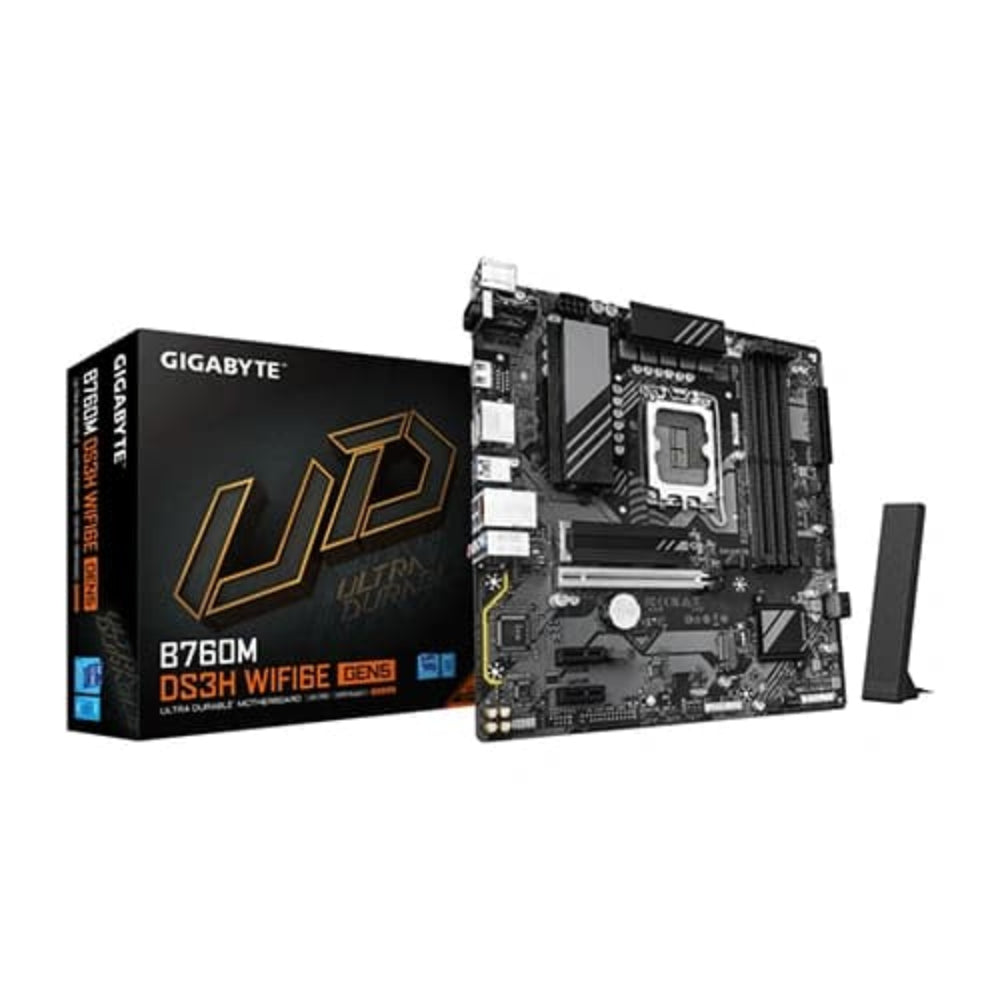

GIGABYTE B760M DS3H Wifi6e Gen5 DDR5 Intel Motherboard
MPN GIGABYTE-B760M-DS3H-WIFI6E-GEN5 · Brand GIGABYTE · mATX
The GIGABYTE B760M DS3H WiFi 6E Gen5 is a Micro-ATX motherboard for Intel LGA1700 processors featuring a PCIe 5.0 x16 slot, dual-channel DDR5 support up to 256 GB, Wi-Fi 6E, 2.5 GbE LAN, and two PCIe 4.0 M.2 slots
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B760M DS3H WiFi 6E Gen5 is a Micro-ATX motherboard built on Intel's B760 chipset, designed for the LGA1700 socket and compatible with Intel's 12th, 13th, and 14th generation Core processors, as well as Pentium Gold and Celeron processors of the same socket generation. It is engineered to bring PCIe 5.0 connectivity to a value-oriented platform, offering a single PCIe 5.0 x16 slot reinforced with GIGABYTE's PCIe UD Slot stainless-steel shielding for added structural rigidity when supporting heavy graphics cards. Memory support is provided through four DDR5 DIMM slots in a dual-channel configuration, accommodating up to 256 GB of DDR5 memory with speeds reaching up to 7600 MT/s via XMP profiles. The board also supports ECC Un-buffered DIMM modules operating in non-ECC mode, adding flexibility for workstation-adjacent use cases. For storage, two M.2 Socket 3 connectors support PCIe 4.0 x4 NVMe drives, complemented by four SATA 6 Gb/s ports for additional mass storage. Networking is handled by an onboard 2.5 GbE LAN port alongside Wi-Fi 6E (802.11ax) and Bluetooth 5.3 via a 2T2R antenna configuration, with a WIFI EZ-Plug and WIFI Compass feature to simplify antenna installation and optimise signal direction. The rear I/O panel includes one HDMI port, two DisplayPorts, three USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, two USB 2.0 ports, one PS/2 port, and three audio jacks. Internal connectivity includes one USB 3.2 Gen 1 header and two USB 2.0 headers for front-panel expansion. Power delivery is managed through a 6+2+1 phase hybrid VRM design fed by a 24-pin ATX main connector and an 8-pin ATX 12V CPU connector using GIGABYTE's UD Solid Pin design for improved thermal dissipation and conductivity. Smart Fan 6 technology provides hybrid fan control across one CPU fan header and three system fan headers, with FAN STOP support. GIGABYTE's Q-Flash Plus button allows BIOS updates without installing a CPU, memory, or graphics card, simplifying the initial setup process. Verified Specifications: - Socket: LGA1700 - Chipset: Intel B760 - Form Factor: Micro-ATX - CPU Support: Intel 12th / 13th / 14th Gen Core, Pentium Gold, Celeron (LGA1700) - Memory: 4x DDR5 DIMM, Dual Channel, up to 256 GB, up to 7600 MT/s (XMP) - PCIe Slots: 1x PCIe 5.0 x16 (CPU), 2x PCIe 3.0 x1 (Chipset) - Storage: 2x M.2 PCIe 4.0 x4, 4x SATA 6 Gb/s - Wireless: Wi-Fi 6E (802.11ax), Bluetooth 5.3 - LAN: 2.5 GbE - Rear USB: 1x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 1 Type-A, 2x USB 2.0 - Display Output: 1x HDMI, 2x DisplayPort - VRM: 6+2+1 Phase Hybrid - Warranty: 3 Years

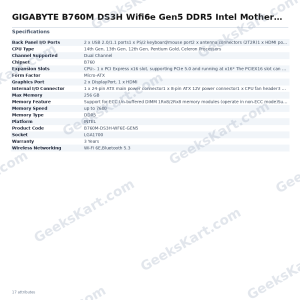

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 256 GB |
| Memory Speed | up to 7600 |
| Platform | INTEL |
| Product Code | B760M-DS3H-WF6E-GEN5 |
| Graphics Port | 2 x DisplayPort, 1 x HDMI |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Brand website for more information.) |
| Expansion Slots | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x antenna connectors (2T2R)1 x HDMI port (Note)2 x DisplayPorts (Note)3 x USB 3.2 Gen 1 ports1 x USB Type-C port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacks |
