GIGABYTE B760M G AX WiFi DDR5 Intel Motherboard
MPN GIGABYTE-B760M-G-AX-WI-FI · Brand Gigabyte · mATX
The Gigabyte B760M G AX WiFi DDR5 is a Micro ATX motherboard for LGA1700 Intel processors (12th–14th Gen) featuring Intel Wi-Fi 6E AX211, DDR5 support up to 8000 MT/s (O.C.), dual PCIe 4.0 M.2 slots, and 2.5GbE wired LAN
Inclusive of GST · GST invoice available
Overview

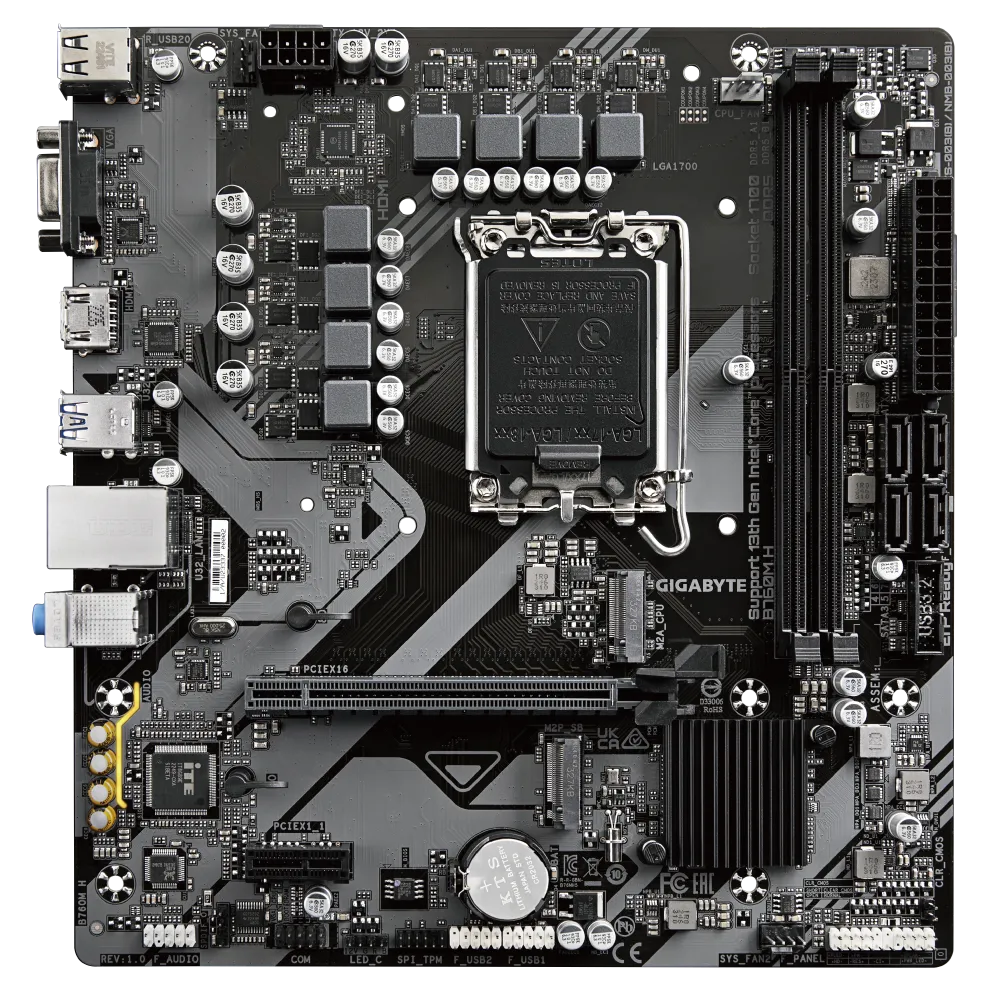

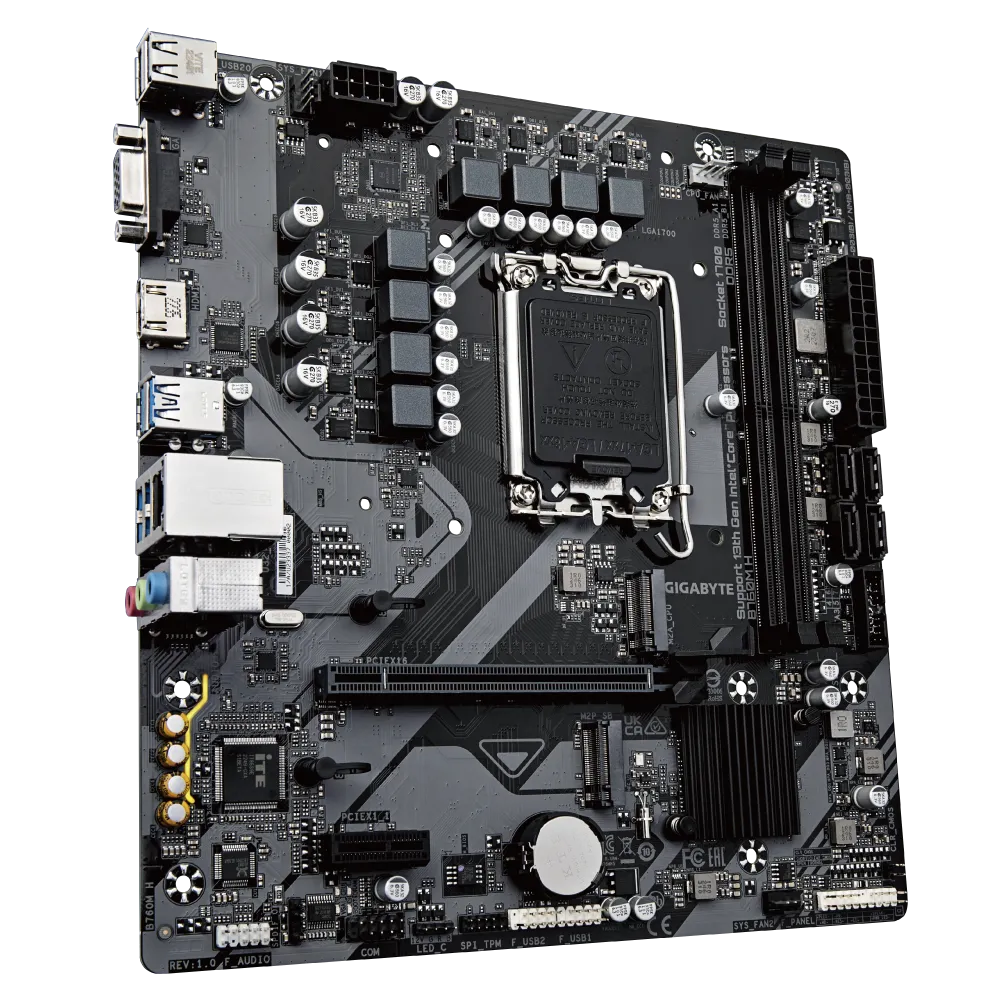

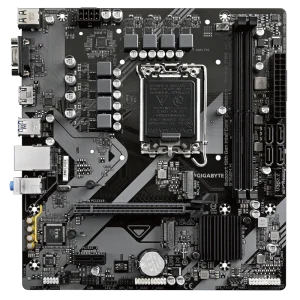

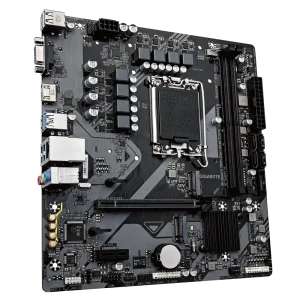

The Gigabyte B760M G AX WiFi DDR5 is a Micro ATX motherboard built on the Intel B760 Express Chipset, designed for LGA1700 processors spanning the 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron families. At 24.4 cm x 22.5 cm, it slots neatly into compact mid-tower and Micro ATX chassis without sacrificing feature depth. The board ships with a 6+2+1 phase hybrid digital VRM using low RDS MOSFETs, premium chokes, and capacitors engineered to improve transient response and minimize oscillation — a solid power delivery foundation for 13th and 14th Gen Core i5 through i9 processors. Two DDR5 DIMM slots support up to 96 GB of system memory (48 GB per DIMM) in dual-channel configuration. With compatible 13th/14th Gen Core i9 and i7 processors, XMP memory overclocking is supported up to DDR5-8000 (O.C.) and beyond; 12th Gen and lower-tier 13th Gen processors are rated for DDR5-4800/4400 MT/s natively. Storage is handled by two M.2 Socket 3 (M key, type 2280) connectors, both running PCIe 4.0 x4, complemented by four SATA 6 Gb/s ports with RAID 0, 1, 5, and 10 support. The primary PCIe x16 slot (CPU-connected) operates at PCIe 4.0 x16 and can accommodate a discrete GPU or NVMe SSD. A chipset-connected PCIe 3.0 x1 slot handles lighter expansion cards. Wireless connectivity is provided by the Intel Wi-Fi 6E AX211 module, covering 2.4 GHz, 5 GHz, and the new 6 GHz band with 802.11ax at up to 160 MHz channel width and Bluetooth 5.3. Wired networking relies on a Realtek 2.5GbE LAN chip supporting 10/100/1000/2500 Mbps multi-gigabit speeds. The back panel includes one USB Type-C (USB 3.2 Gen 1), three USB 3.2 Gen 1 Type-A, two USB 2.0 ports, HDMI 2.1 (4K 60 Hz), DisplayPort 1.2 (4096×2304 @ 60 Hz), D-Sub, and three audio jacks — with triple-display support via integrated graphics. Fan management is handled by Gigabyte's Smart Fan 6 system across one CPU and three system fan headers, each supporting PWM and DC modes with up to 24 W (12 V × 2 A) output and over-current protection. ARGB and RGB LED headers (two addressable, one standard) are included for lighting control via Gigabyte Control Center. The Q-Flash Plus button enables BIOS updates without installing a CPU, memory, or GPU — a practical convenience during new-platform builds. Verifiable Specifications: - Socket: LGA1700 | Chipset: Intel B760 Express - Form Factor: Micro ATX, 24.4 cm × 22.5 cm - Memory: 2× DDR5 DIMM, dual-channel, up to 96 GB; DDR5-8000 (O.C.) with compatible CPU - Storage: 2× M.2 PCIe 4.0 x4 (type 2280) + 4× SATA 6 Gb/s; RAID 0/1/5/10 - Wireless: Intel Wi-Fi 6E AX211 (2.4/5/6 GHz, 802.11ax 160 MHz) + Bluetooth 5.3 - LAN: Realtek 2.5GbE (10/100/1000/2500 Mbps) - Display outputs: HDMI 2.1, DisplayPort 1.2, D-Sub - USB (rear): 1× Type-C USB 3.2 Gen 1, 3× USB 3.2 Gen 1, 2× USB 2.0 - Audio: Realtek HD Audio CODEC, 7.1-channel, S/PDIF out - BIOS: 128 Mbit flash, AMI UEFI - Warranty: 3 years

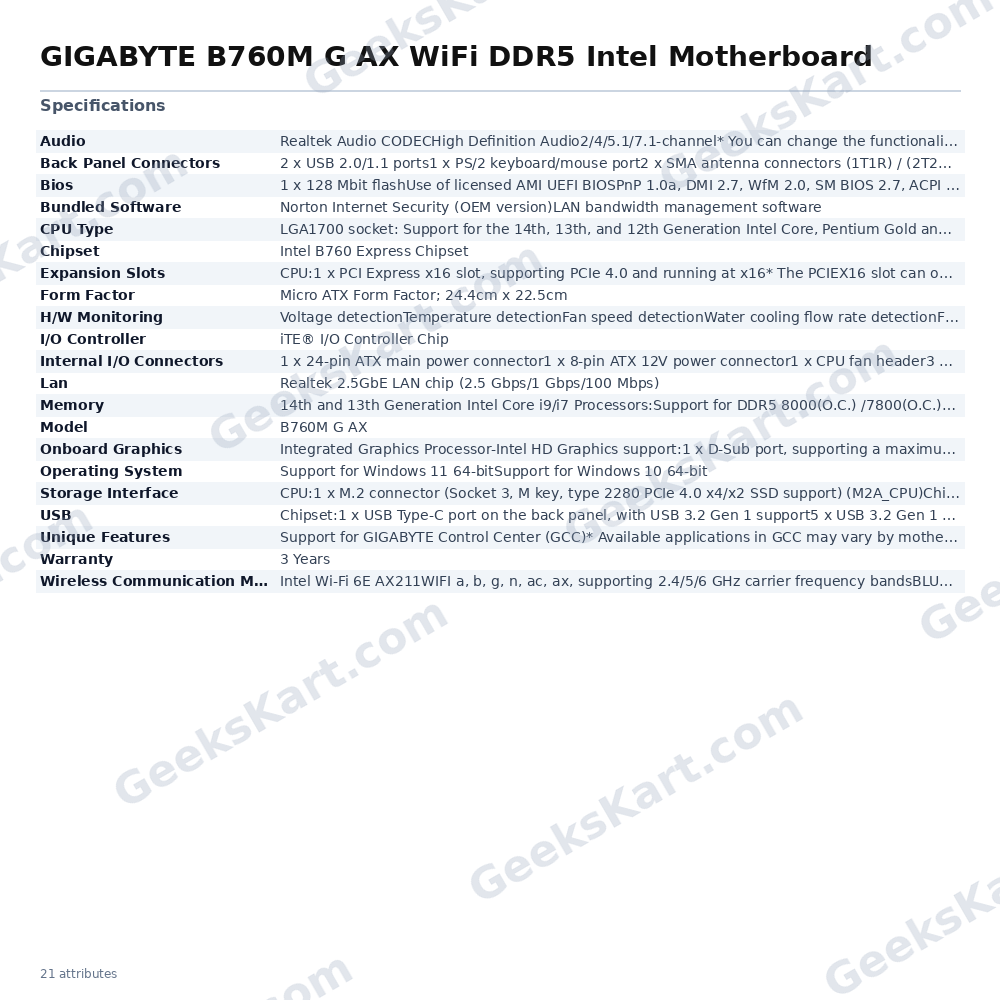

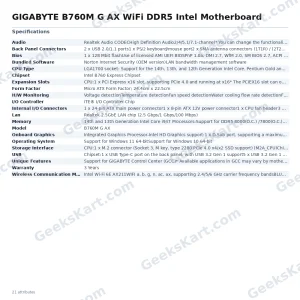

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel B760 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron ProcessorsL3 cache varies with CPU* Please refer to "CPU Support List" for more information |
| Lan | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Model | B760M G AX |
| Memory | 14th and 13th Generation Intel Core i9/i7 Processors:Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600/5200/4800/4400 MT/s memory modules13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:Support for DDR5 4800/4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect thesupported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same time |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |

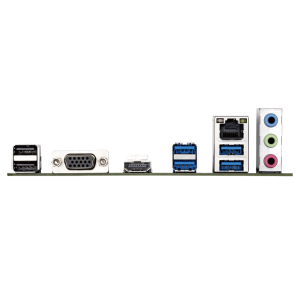

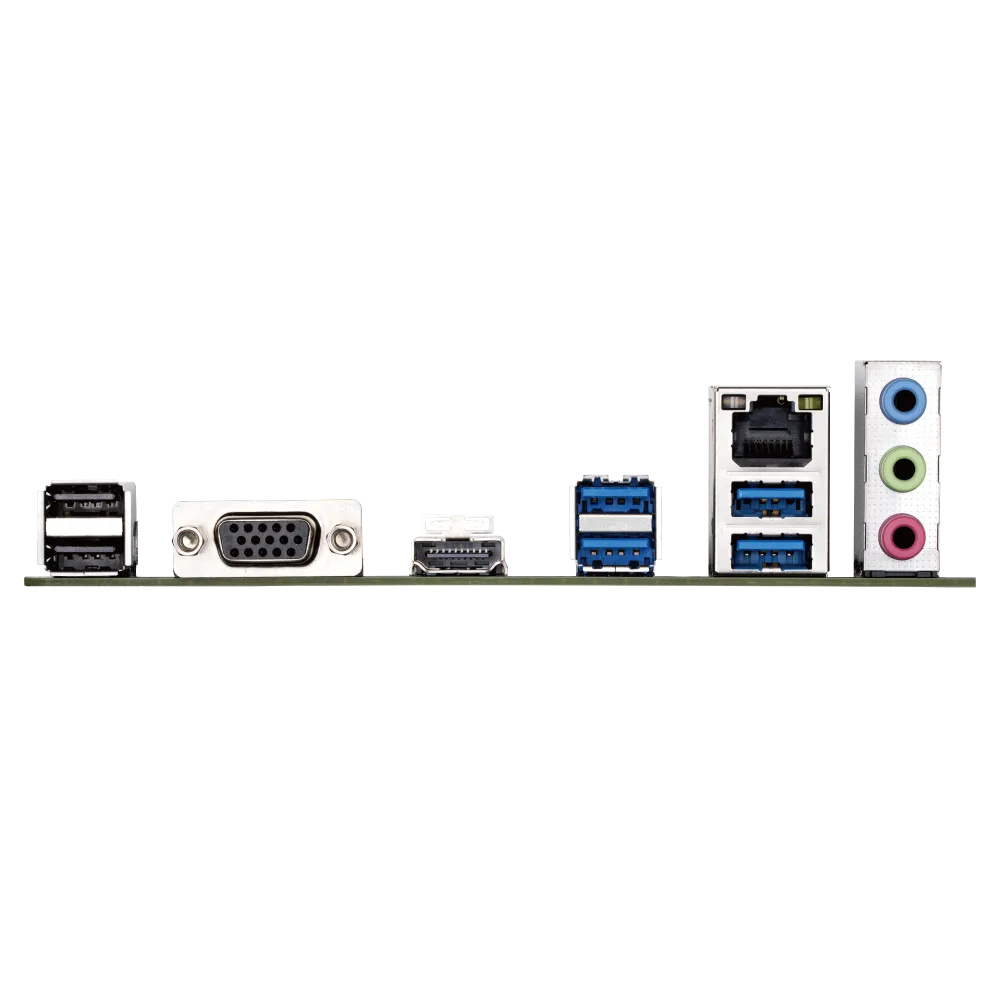

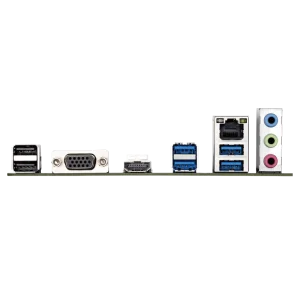

| Back Panel Connectors | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (1T1R) / (2T2R) (Note) jkl1 x D-Sub port1 x HDMI port1 x DisplayPort3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | Intel Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) |
