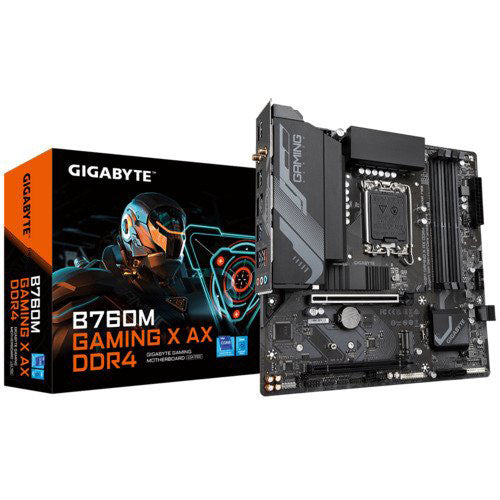

GIGABYTE B760M G X AX DDR4 Intel Motherboard
MPN B760M-G-X-AX · Brand Gigabyte · mATX
The Gigabyte B760M Gaming X AX is a Micro ATX motherboard featuring the Intel B760 chipset, LGA1700 socket for 12th and 13th Gen Intel CPUs, four DDR4 slots supporting up to 128 GB, PCIe 4.0 x16, 2.5GbE LAN, and onboard Wi-Fi
Inclusive of GST · GST invoice available
Overview
The Gigabyte B760M Gaming X AX is a Micro ATX motherboard built on Intel's B760 chipset, designed for 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. Its compact 244 mm x 244 mm footprint makes it well suited to space-conscious builds without compromising on connectivity or expansion options. Memory support is handled by four DDR4 DIMM slots in a dual-channel configuration, accepting up to 128 GB of RAM. Native DDR4-3733 operation is supported out of the box, with overclocked profiles available up to DDR4-5333 (O.C.) for enthusiasts who want to push memory performance further. For graphics, the board provides one PCIe 4.0 x16 slot for the primary GPU, complemented by a secondary PCIe 3.0 x16 physical slot running at x4 bandwidth. Storage connectivity comes via four SATA 6 Gb/s ports for traditional drives or large-capacity SSDs. Networking is a standout area: the board includes a Realtek 2.5GbE LAN controller supporting 2.5 Gbps, 1 Gbps, and 100 Mbps speeds, along with onboard Wi-Fi indicated by the AX designation in the model name, enabling fast wireless connectivity without an add-in card. Rear I/O includes three USB 3.2 Gen 1 ports and five USB 2.0/1.1 ports, display outputs via one HDMI 2.0 port and one DisplayPort, three audio jacks backed by a Realtek audio CODEC supporting 2/4/5.1/7.1-channel configurations, and one optical S/PDIF output. Integrated graphics via Intel HD Graphics are supported when using a compatible CPU with integrated graphics. Verified Specifications: - Model: B760M Gaming X AX - Chipset: Intel B760 - Socket: LGA1700 - Supported CPUs: 12th and 13th Gen Intel Core, Pentium Gold, Celeron - Form Factor: Micro ATX (244 mm x 244 mm) - Memory: 4 x DDR4 DIMM slots, dual-channel, up to 128 GB, DDR4-3733 native / up to DDR4-5333 (O.C.) - PCIe: 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x16 (x4 electrical) - Storage: 4 x SATA 6 Gb/s - LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) - Wireless: Wi-Fi (AX) - Rear USB: 3 x USB 3.2 Gen 1, 5 x USB 2.0/1.1 - Video Output: 1 x HDMI 2.0, 1 x DisplayPort - Audio: Realtek CODEC, up to 7.1-channel, 3 x audio jacks, 1 x Optical S/PDIF - Power: 24-pin ATX + 8-pin ATX 12V
Datasheet

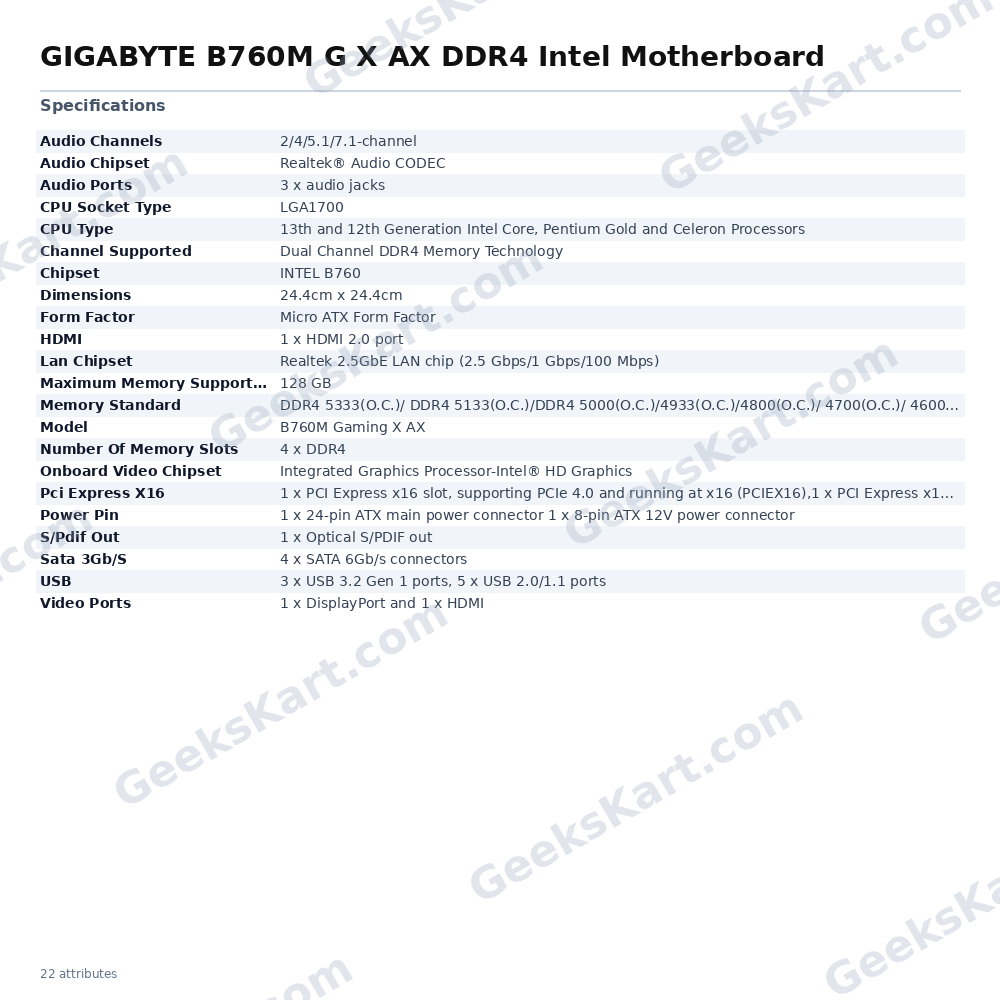

| Form Factor | mATX |
|---|---|
| Chipset | INTEL B760 |
| CPU Type | 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| USB | 3 x USB 3.2 Gen 1 ports, 5 x USB 2.0/1.1 ports |
| HDMI | 1 x HDMI 2.0 port |
| Model | B760M Gaming X AX |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Dimensions | 24.4cm x 24.4cm |
| S/Pdif Out | 1 x Optical S/PDIF out |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 3 x audio jacks |
| Lan Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Video Ports | 1 x DisplayPort and 1 x HDMI |
| Audio Chipset | Realtek® Audio CODEC |
| Audio Channels | 2/4/5.1/7.1-channel |
| CPU Socket Type | LGA1700 |
| Memory Standard | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733 |
| Pci Express X16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16),1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Number Of Memory Slots | 4 x DDR4 |
| Maximum Memory Supported | 128 GB |
