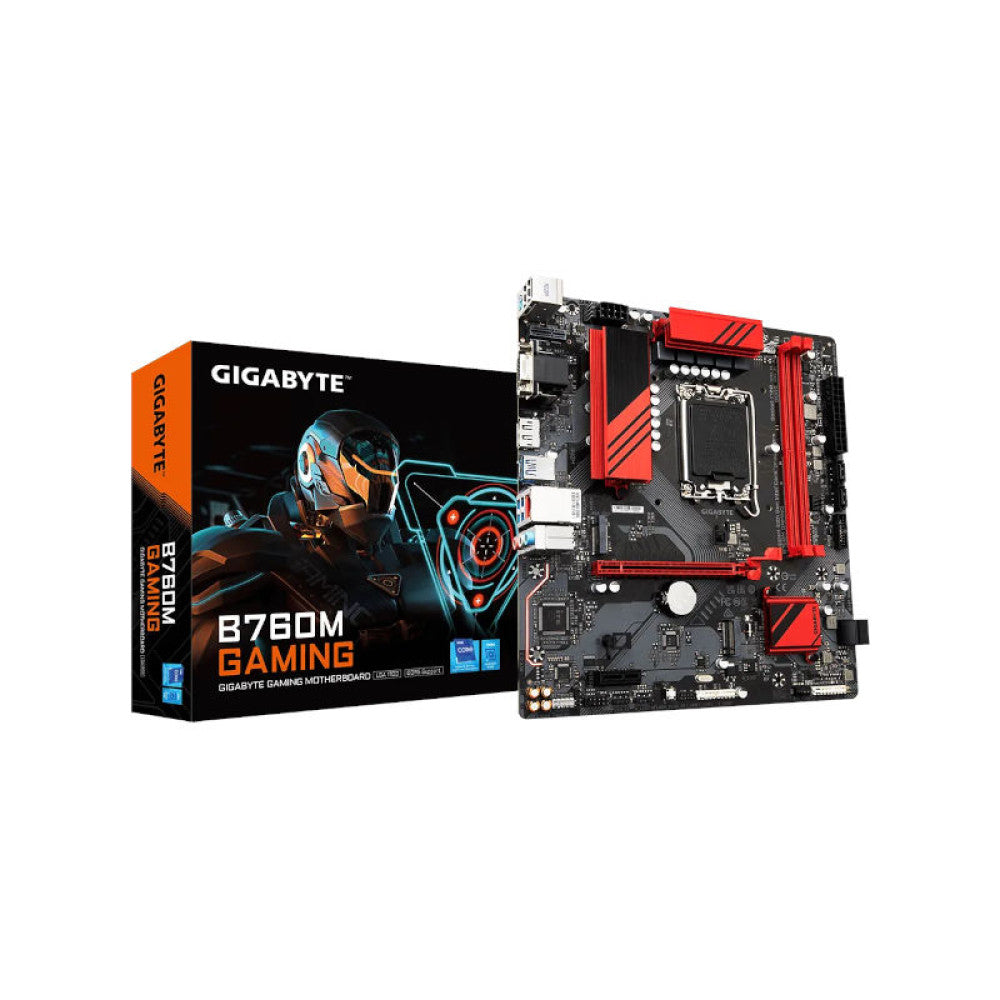

GIGABYTE B760M Gaming DDR5 Intel Motherboard
MPN GIGABYTE-B760M-GAMING · Brand Gigabyte · mATX
GIGABYTE B760M Gaming DDR5 is a Micro ATX motherboard for Intel LGA1700 (12th/13th Gen) processors, featuring dual DDR5 slots up to 96 GB, two PCIe 4.0 M.2 slots, 2.5GbE LAN, USB-C, and Q-Flash Plus BIOS update support
Inclusive of GST · GST invoice available
Overview

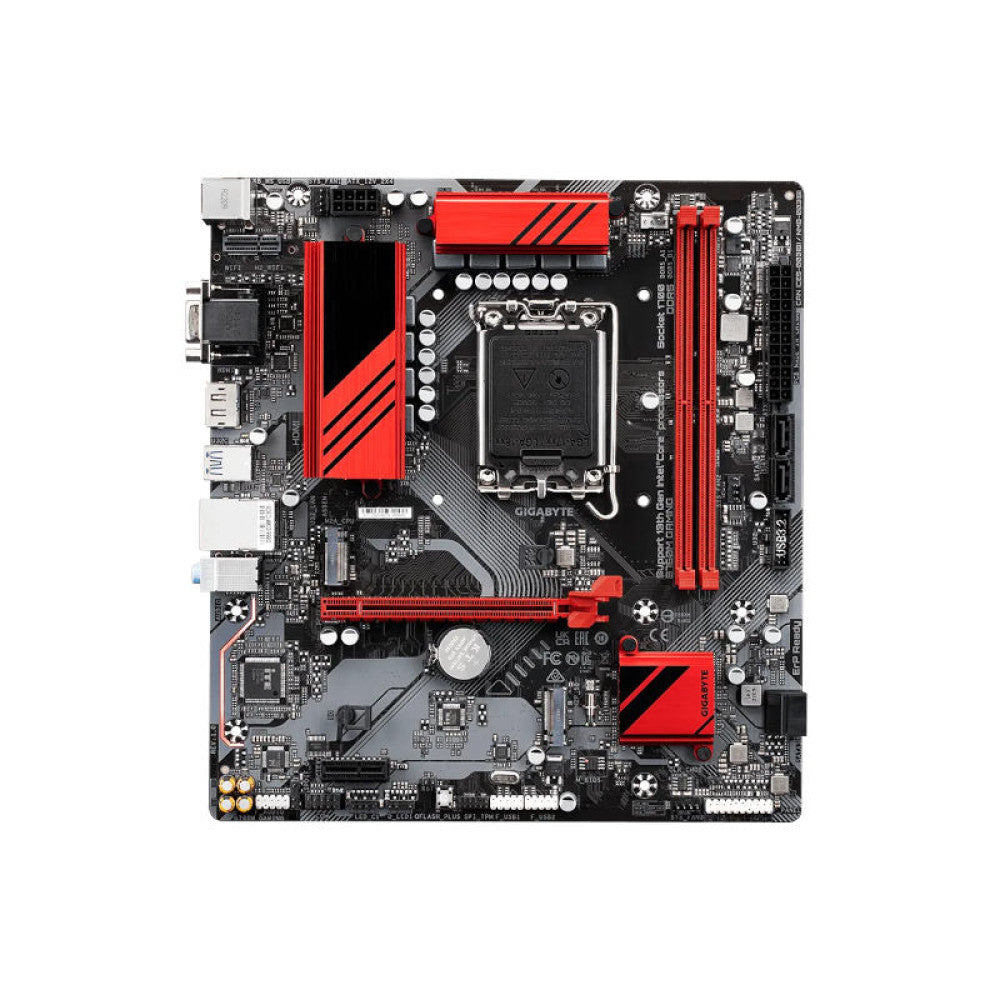

The GIGABYTE B760M Gaming DDR5 is a Micro ATX motherboard built on the Intel B760 Express Chipset and designed for Intel LGA1700 socket processors. It is compatible with 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors, making it a versatile foundation for both new builds and platform upgrades. Memory support is a standout feature: two DDR5 DIMM slots accommodate up to 96 GB of system memory (48 GB per DIMM) and support speeds from 4800 MT/s up to 7800 MT/s via overclocking, with full XMP profile compatibility. The dual-channel memory architecture helps maintain strong data throughput across gaming and productivity workloads. Storage expansion is handled by two M.2 connectors — one CPU-attached and one chipset-attached — both supporting PCIe 4.0 x4 type-2280 NVMe drives. An additional four SATA 6 Gb/s ports round out storage connectivity, and RAID 0, 1, 5, and 10 configurations are supported for SATA devices. For networking, a Realtek 2.5GbE LAN chip delivers Multi-Gig connectivity at 2.5 Gbps, 1 Gbps, and 100 Mbps — a significant step beyond standard gigabit connections for online gaming and large file transfers. The rear I/O panel includes a USB Type-C port (USB 3.2 Gen 1, 5 Gb/s), three USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, DisplayPort 1.2, HDMI 2.0 (up to 4K/60 Hz), a D-Sub port, a PS/2 combo port, an RJ-45 jack, and three audio jacks. Realtek High Definition Audio with 2/4/5.1/7.1-channel output and S/PDIF Out is also present. GIGABYTE's Q-Flash Plus allows BIOS updates without a CPU or memory installed — a useful recovery feature during platform bring-up. Smart Fan 6 technology provides hybrid fan headers with FAN STOP capability and multiple temperature sensor inputs. RGB Fusion 2.0 supports both ARGB and standard RGB LED strip headers for case lighting customisation. Verified Specifications: • Socket: Intel LGA1700 • Chipset: Intel B760 Express • Form Factor: Micro ATX, 244 mm × 225 mm • Memory: 2× DDR5 DIMM, up to 96 GB, DDR5-4800 native / up to DDR5-7800 (O.C.), XMP support • PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (Chipset) • Storage: 2× M.2 PCIe 4.0 x4 (type 2280), 4× SATA 6 Gb/s; RAID 0/1/5/10 • LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) • USB (rear): 1× USB-C 3.2 Gen 1, 3× USB-A 3.2 Gen 1, 2× USB 2.0 • Display outputs: HDMI 2.0, DisplayPort 1.2, D-Sub • Audio: Realtek HD Audio, 7.1-channel, S/PDIF Out • BIOS: AMI UEFI, 128 Mbit flash, Q-Flash Plus • VRM: 6+2+1 Phase Hybrid Digital • OS: Windows 11 / Windows 10 (64-bit) • Warranty: 3 Years

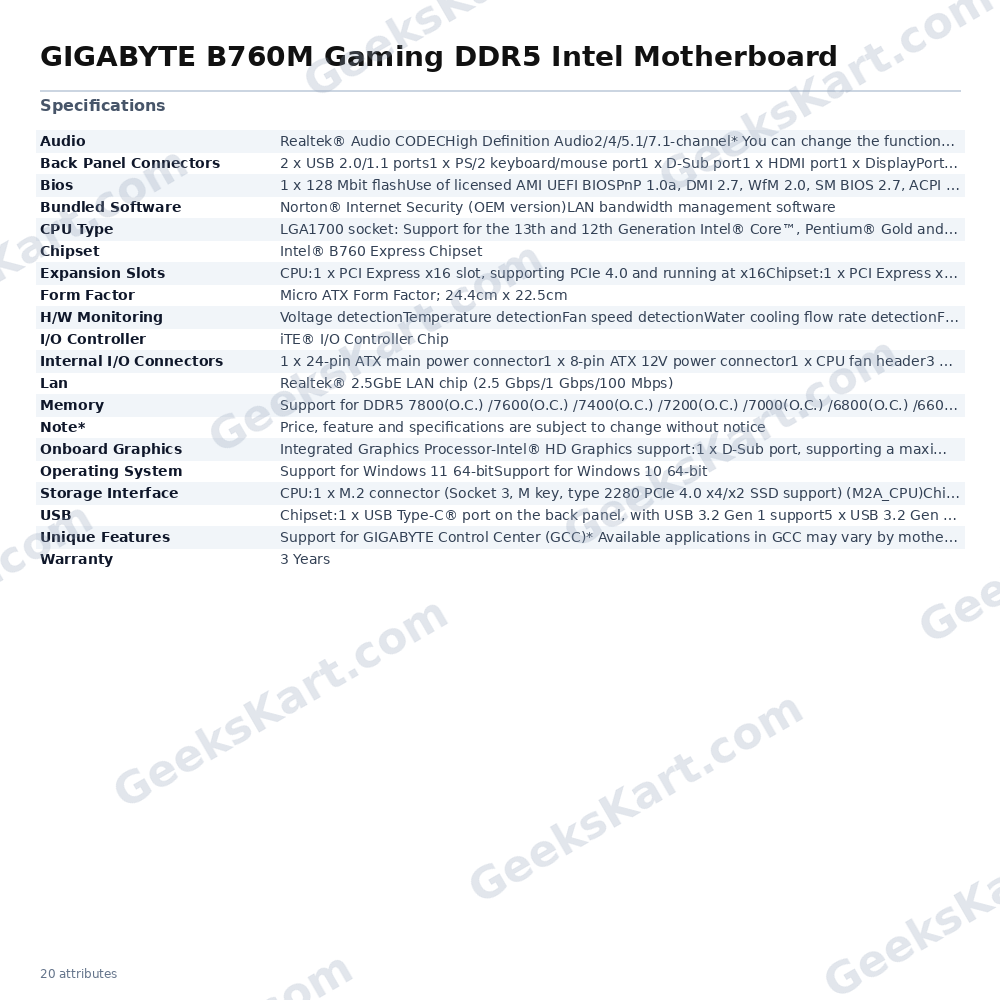

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B760 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | Support for DDR5 7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)Support for up to 3 displays at the same time |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |

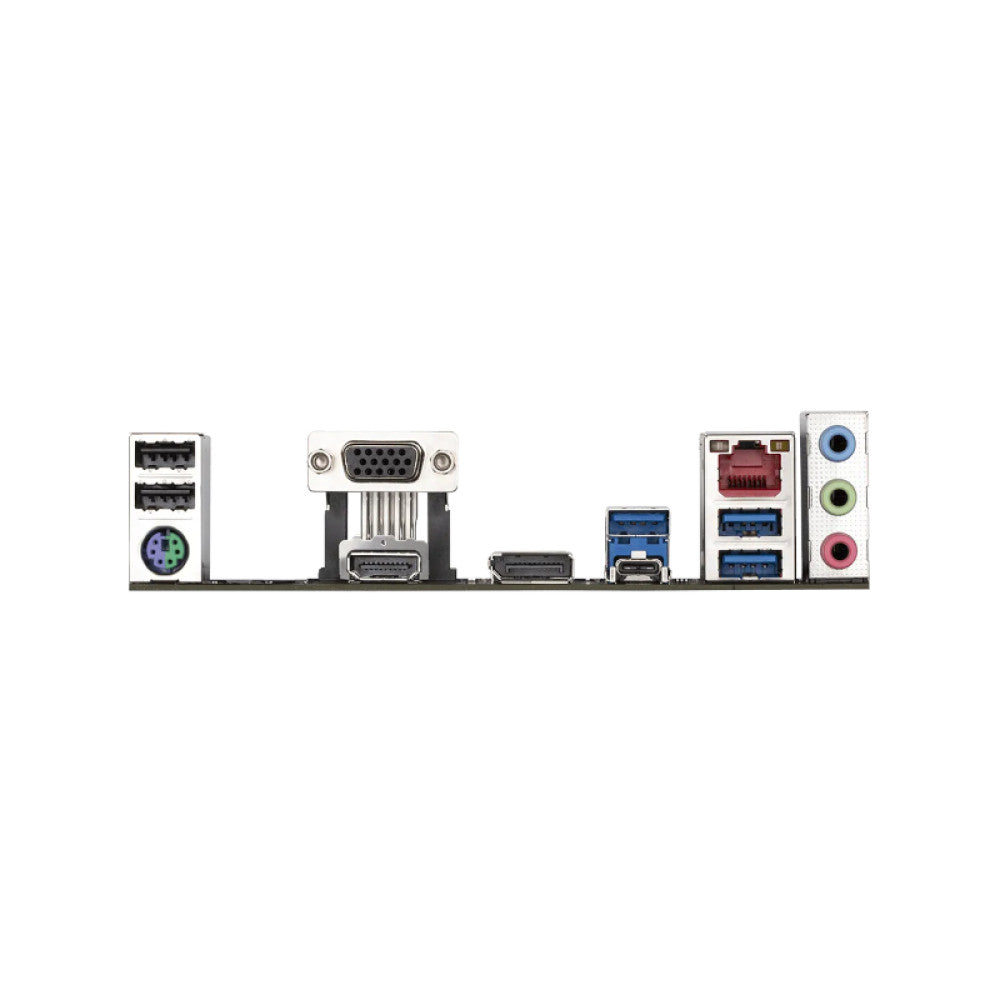

| Back Panel Connectors | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port1 x DisplayPort3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip headers1 x RGB LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
