The GIGABYTE B760M H DDR4 is a Micro-ATX motherboard designed for Intel’s LGA1700 platform, offering broad compatibility with 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors paired with the Intel B760 Express chipset. It is a value-focused board that does not compromise on the essentials: a 6+1+1 phase hybrid digital VRM with low RDS MOSFETs, premium chokes, and capacitors ensures stable power delivery to modern Intel processors under sustained workloads. Memory support is provided through two DDR4 DIMM slots capable of holding up to 64 GB (32 GB per slot) in dual-channel configuration. Supported speeds span DDR4-2133 through DDR4-3200 MT/s, with Extreme Memory Profile (XMP) support for straightforward memory tuning in the AMI UEFI BIOS. ECC Un-buffered DIMMs are accepted but operate in non-ECC mode. Storage options are generous for this segment. Two M.2 slots—one CPU-attached and one chipset-attached—both support PCIe 4.0 x4 NVMe drives in the 2280 form factor, enabling high-throughput SSD configurations. Four SATA 6 Gb/s ports round out the storage I/O with RAID 0, 1, 5, and 10 support for SATA devices. Connectivity on the rear panel includes four USB 3.2 Gen 1 ports, two USB 2.0 ports, Realtek Gigabit Ethernet (1 Gbps), HDMI (up to 4096×2160 @ 60 Hz via integrated graphics), D-Sub (up to 1920×1200 @ 60 Hz), and three audio jacks backed by a Realtek High Definition Audio CODEC supporting up to 7.1-channel output. The PCIe x16 slot runs at full PCIe 4.0 x16 bandwidth and features GIGABYTE’s EZ-Latch quick-release mechanism for easier GPU or NVMe SSD installation. Smart Fan 6 thermal management delivers multiple temperature sensor inputs, hybrid fan headers with FAN STOP capability, and water-cooling flow-rate detection—giving builders precise thermal control in compact mATX enclosures. An onboard RGB LED strip header enables basic lighting customisation. The GIGABYTE Control Center (GCC) software and Q-Flash BIOS update utility are included. The board measures 23.0 cm × 21.5 cm (Micro-ATX) and carries a 3-year manufacturer warranty. — Verified Specifications — Socket: LGA1700 | Chipset: Intel B760 Express | Form Factor: Micro-ATX (23.0 × 21.5 cm) | Memory: 2× DDR4 DIMM, max 64 GB, DDR4-2133 to DDR4-3200 MT/s, XMP, dual-channel | VRM: 6+1+1 phase hybrid digital | M.2: 2× PCIe 4.0 x4 (type 2280) | SATA: 4× 6 Gb/s (RAID 0/1/5/10) | PCIe: 1× x16 (PCIe 4.0), 1× x1 (PCIe 3.0) | Display: 1× HDMI (4K@60 Hz), 1× D-Sub (1920×1200@60 Hz) | USB (rear): 4× USB 3.2 Gen 1, 2× USB 2.0 | LAN: Realtek GbE (1 Gbps) | Audio: Realtek HD, up to 7.1-channel | BIOS: AMI UEFI, Q-Flash | OS: Windows 10/11 64-bit | Warranty: 3 years
MSI MPG Z890 Edge TI WiFi LGA1851 ATX Motherboard
₹44,365.00

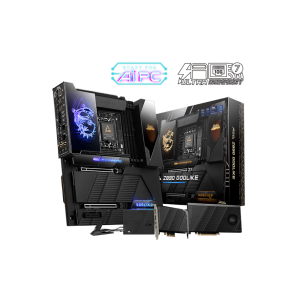

MSI Meg Z890 Godlike Wifi7 DDR5 Intel Motherboard
₹141,920.00
Gigabyte B760M H DDR4 M-ATX Motherboard
₹9,405.00
The GIGABYTE B760M H DDR4 is a Micro-ATX motherboard for Intel LGA1700 (12th–14th Gen) featuring a 6+1+1 phase VRM, dual-channel DDR4 up to 64 GB, two PCIe 4.0 x4 M.2 slots, and Gigabit LAN

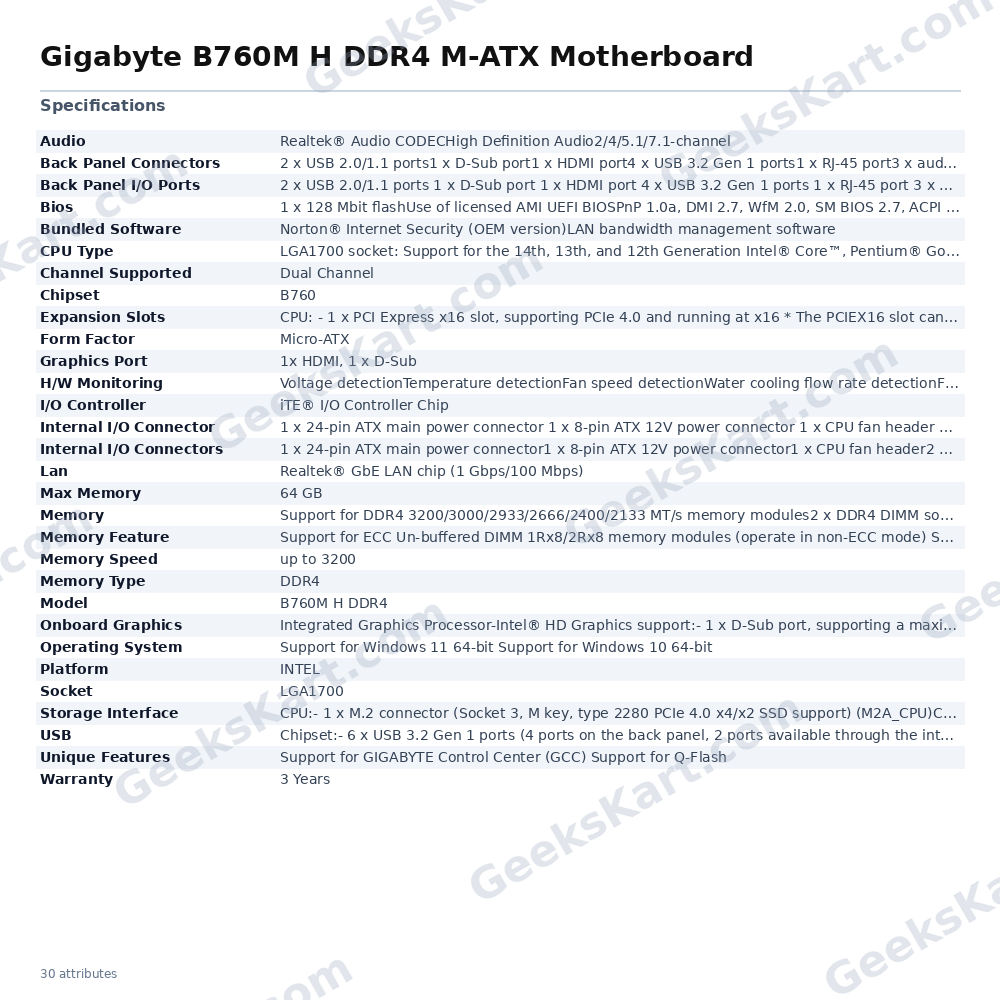

Additional information
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
| Max Memory | 64 GB |
| Memory Speed | up to 3200 |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| USB | Chipset:- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| Platform | INTEL |
| Model | B760M H DDR4 |
| Graphics Port | 1x HDMI, 1 x D-Sub |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 H |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Channel Supported | Dual Channel |
| Storage Interface | CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports1 x D-Sub port1 x HDMI port4 x USB 3.2 Gen 1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper |
