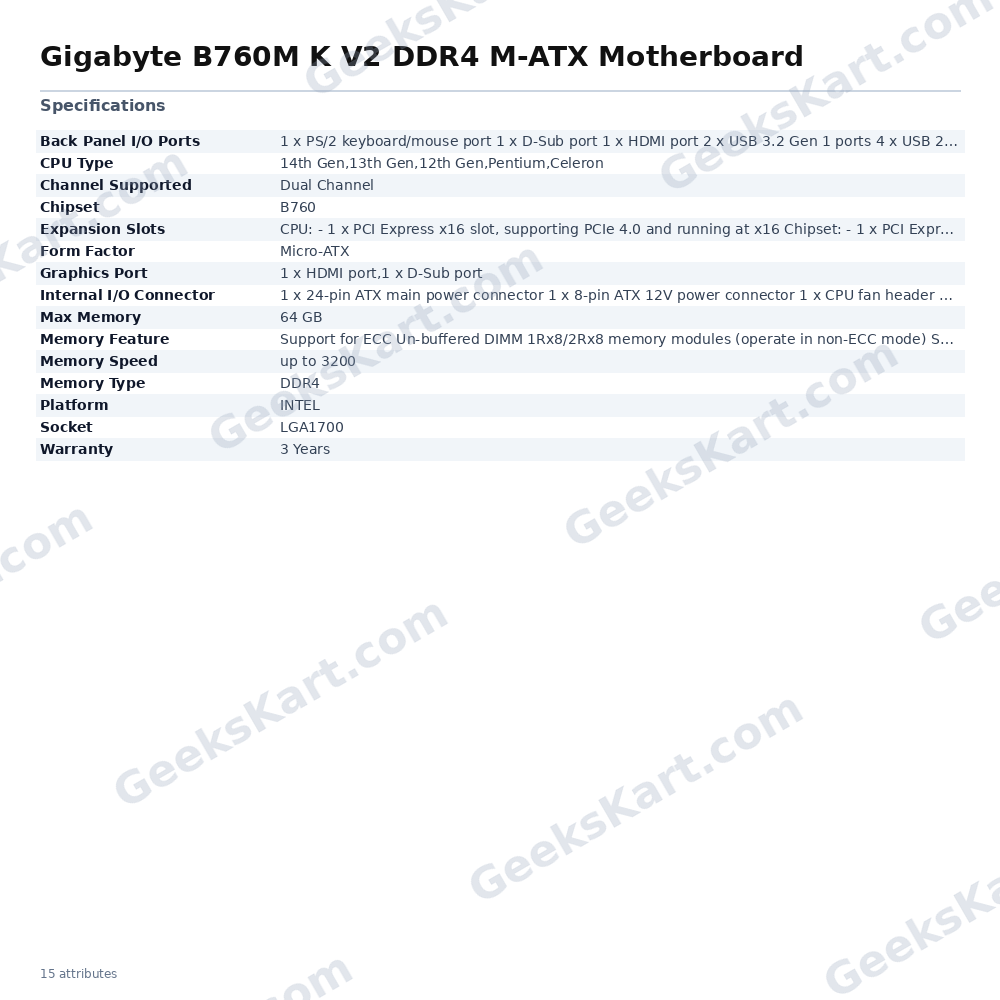

Gigabyte B760M K V2 DDR4 M-ATX Motherboard

The GIGABYTE B760M K V2 DDR4 is a Micro-ATX motherboard built on the Intel B760 chipset and designed for Intel LGA1700 processors spanning the 12th, 13th, and 14th Generation Core families, as well as Pentium and Celeron processors on the same socket. It offers a practical combination of stable power delivery, capable connectivity, and a compact form factor that suits space-efficient desktop builds without sacrificing the essential features enthusiasts and mainstream users rely Power delivery is handled by a 4+1+1 Hybrid Digital VRM design. Low RDS MOSFETs and solid capacitors work together to reduce heat generation, improve transient response, and minimize oscillation — qualities that help maintain CPU stability under sustained workloads. A solid-pin 8-pin ATX 12V power connector provides consistent current to the socket. Memory support spans two DDR4 DIMM slots in a dual-channel configuration, accepting non-ECC unbuffered DDR4 modules at speeds up to DDR4-3200 (with XMP profile support), and the platform can accommodate up to 64 GB total when each slot is populated with a 32 GB module. ECC un-buffered DIMMs are physically supported but operate in non-ECC mode only. For storage, a single M.2 Socket 3 connector operates at PCIe Gen3 x4 (NVMe), and four SATA 6 Gb/s ports add conventional drive capacity. Expansion is handled by one PCIe 4.0 x16 slot (CPU-connected) for a discrete graphics card and one PCIe 3.0 x1 slot via the chipset. The back-panel I/O includes one HDMI port and one D-Sub (VGA) port for integrated graphics output, two USB 3.2 Gen 1 Type-A ports, four USB 2.0/1.1 ports, one RJ-45 Gigabit Ethernet port, and three 3.5 mm audio jacks. An onboard audio section uses high-quality audio capacitors with a PCB-level Audio Noise Guard trace separation to reduce signal interference. Smart Fan 6 fan control supports up to one CPU fan header and two system fan headers, all capable of running PWM or DC fans and water-cooling pumps at up to 24 W (12V × 2A) with over-current protection. Users can configure up to seven temperature-and-speed control points per header and enable Fan Stop below a defined threshold. Additional internal connectors include one RGB LED strip header, one USB 3.2 Gen 1 header, two USB 2.0/1.1 headers, a TPM header (SPI type), a serial port header, a chassis intrusion header, and a Clear CMOS jumper. Anti-Sulfur Resistors protect onboard resistors from sulfur-compound corrosion in the operating environment. — Verified Specifications — Socket: Intel LGA1700 | Chipset: Intel B760 | Form Factor: Micro-ATX | CPU Support: Intel Core 12th / 13th / 14th Gen, Pentium, Celeron (LGA1700) | Memory: 2 × DDR4 DIMM, Dual-Channel, Non-ECC Unbuffered, XMP supported, up to DDR4-3200, max 64 GB | Storage: 1 × M.2 (PCIe Gen3 x4 / NVMe), 4 × SATA 6 Gb/s | Expansion: 1 × PCIe 4.0 x16 (CPU), 1 × PCIe 3.0 x1 (Chipset) | Display Out: 1 × HDMI, 1 × D-Sub | USB (rear): 2 × USB 3.2 Gen 1, 4 × USB 2.0 | LAN: 1 × Gigabit Ethernet (RJ-45) | Audio: 3 × 3.5 mm jacks | Fan Headers: 1 × CPU, 2 × System | Warranty: 3 Years
