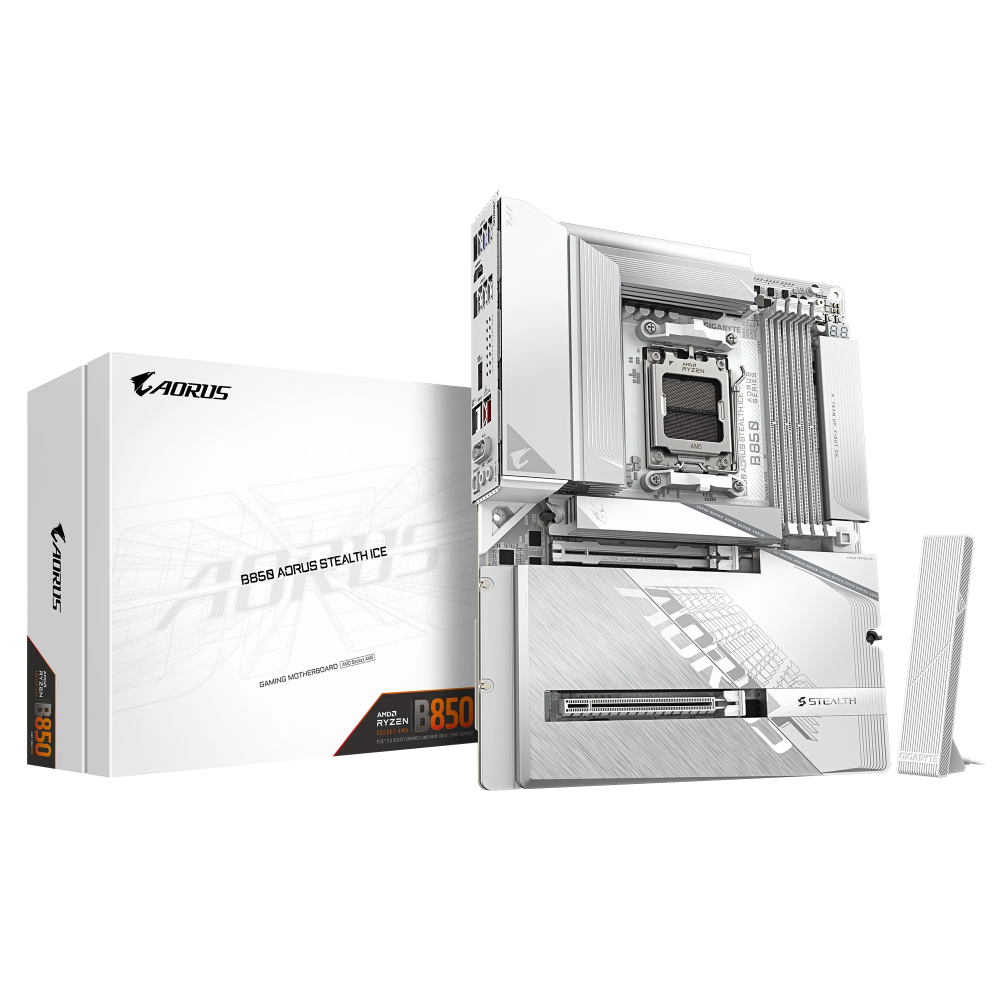

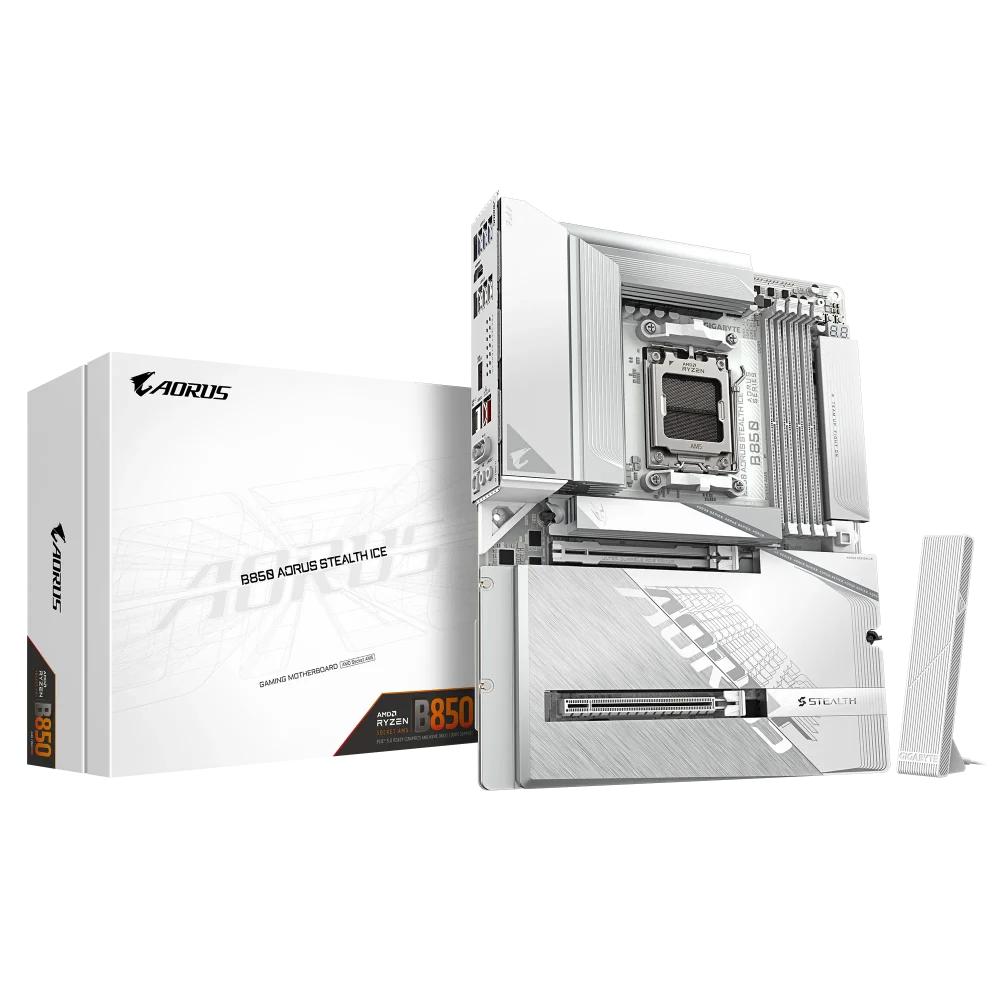

GIGABYTE B850 Aorus Stealth ICE Wifi7 DDR5 AMD Motherboard
MPN GIGABYTE-B850-AORUS-STEALTH-ICE-DDR5 · Brand GIGABYTE · ATX
The GIGABYTE B850 Aorus Stealth ICE is an AMD AM5 ATX motherboard featuring DDR5 support up to 8200 MT/s, four M.2 slots with PCIe 5.0, Wi-Fi 7, 5GbE LAN, and a 14+2+2 phase VRM — purpose-built for Ryzen 9000/8000/7000 gaming builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B850 Aorus Stealth ICE is a full-size ATX gaming motherboard built on the AMD B850 chipset, designed for AMD Socket AM5 processors including the Ryzen 9000, Ryzen 8000, and Ryzen 7000 series. Its clean white aesthetic and STEALTH-series design philosophy prioritise broad chassis compatibility, making it a versatile choice for DIY builders who want a cohesive, minimalist white build. Power delivery centres on a digital twin 14+2+2 phase VRM solution, reinforced by VRM Thermal Armor Advanced heatsinks that maintain stable CPU voltages even under sustained multi-core workloads. GIGABYTE's X3D Turbo Mode BIOS feature applies dedicated optimisation parameters that can raise gaming frame rates on Ryzen 9000-series processors, including non-X3D variants, by tuning cache and latency settings at the firmware level. Memory support spans four DDR5 DIMM slots in a dual-channel configuration, accommodating up to 256 GB (with 64 GB single-DIMM modules) at speeds from 4400 MT/s up to 8200 MT/s via overclocking. Both AMD EXPO and Intel XMP memory profiles are supported, simplifying one-click memory tuning in the AMI UEFI BIOS. Storage options are expansive: four M.2 slots (including one PCIe 5.0 x4 CPU-connected slot capable of next-generation NVMe speeds) plus two SATA 6 Gb/s ports. RAID 0, 1, 5, and 10 are available for NVMe devices (RAID 5 requires a Ryzen 9000 processor), while SATA supports RAID 0 and RAID 1. The EZ-Latch Plus and EZ-Latch Click mechanisms allow tool-free M.2 and PCIe card installation. Connectivity is handled by a Realtek Wi-Fi 7 (RTL8922AE) module covering 2.4 GHz, 5 GHz, and 6 GHz bands with 160 MHz channel support and Bluetooth 5.4, alongside a Realtek 5GbE wired LAN port. The back panel provides one USB Type-C (USB 3.2 Gen 2), two USB 3.2 Gen 2 Type-A, four USB 3.2 Gen 1, four USB 2.0 ports, HDMI 2.1 output (up to 4096×2160 @ 60 Hz for iGPU use), optical S/PDIF out, and dual audio jacks. Onboard audio is powered by the Realtek ALC1220 codec with 7.1-channel HD Audio support. RGB lighting is managed through three addressable RGB Gen2 headers and one standard RGB header, with full control available via GIGABYTE Control Center software. Q-Flash Plus enables BIOS updates without a CPU or memory installed. Verified Specifications: - Form Factor: ATX, 30.5 cm × 24.4 cm - Chipset: AMD B850 - Socket: AMD AM5 (Ryzen 9000 / 8000 / 7000 series) - Memory: 4× DDR5 DIMM, dual-channel, up to 256 GB, 4400–8200 MT/s (OC), AMD EXPO & XMP - Primary PCIe slot: PCIe 5.0 x16 (Ryzen 9000/7000) - M.2 slots: 4× (1× PCIe 5.0 x4 via CPU, 1× PCIe 5.0 x4 via CPU, 2× PCIe 4.0 x4 via chipset) - SATA: 2× 6 Gb/s - LAN: Realtek 5GbE (5/2.5/1 Gbps / 100 Mbps) - Wireless: Realtek Wi-Fi 7 RTL8922AE, 2.4/5/6 GHz, BT 5.4 - Audio: Realtek ALC1220, 7.1-channel HD Audio, S/PDIF out - USB back panel: 1× USB-C 3.2 Gen 2, 2× USB-A 3.2 Gen 2, 4× USB 3.2 Gen 1, 4× USB 2.0 - BIOS: AMI UEFI, 512 Mbit flash, Q-Flash Plus - OS: Windows 11 64-bit

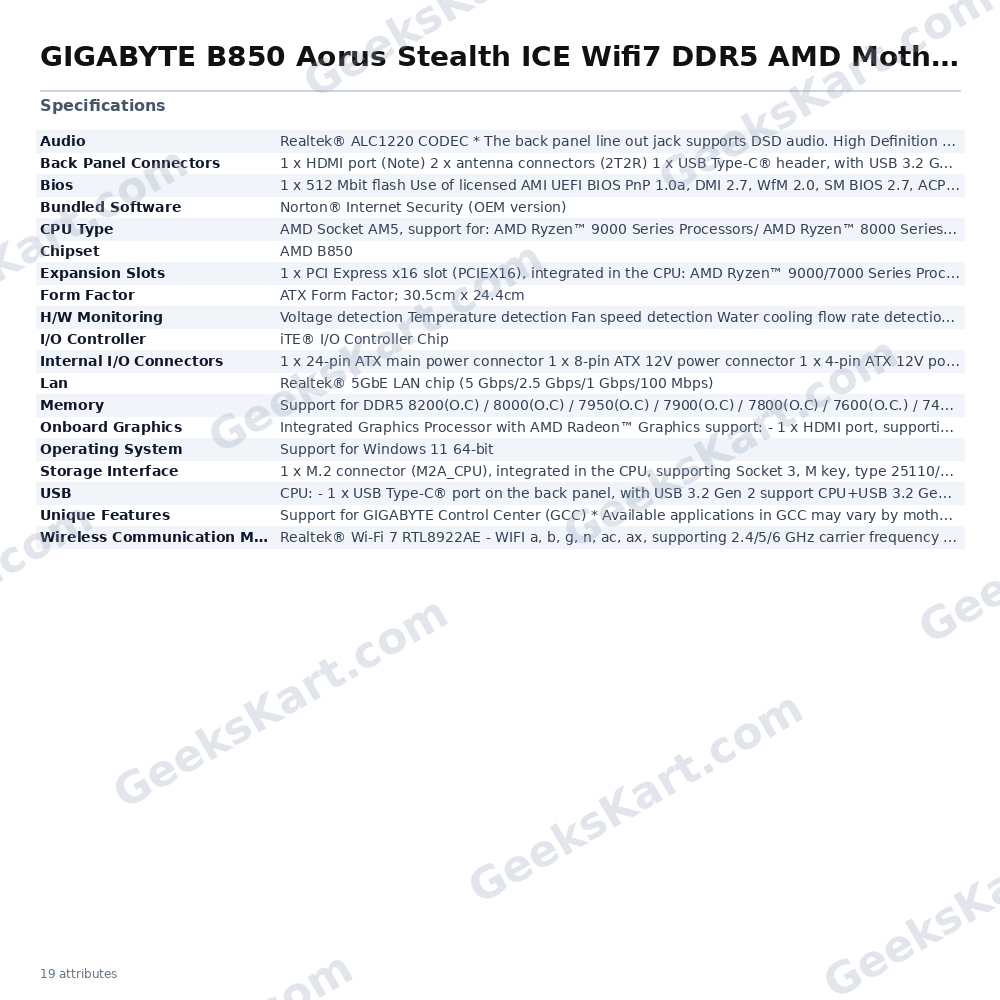

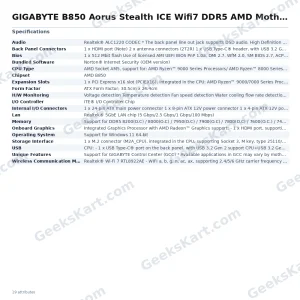

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | AMD B850 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 9000 Series Processors/ AMD RyzenTM 8000 Series Processors/ AMD RyzenTM 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support CPU+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs * The M2B_CPU connector becomes unavailable when an AMD Ryzen™ 8000 SeriesPhoenix 2 processor is used. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices |
| Back Panel Connectors | 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x USB Type-C® header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks (Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x power button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
| Wireless Communication Module | Realtek® Wi-Fi 7 RTL8922AE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations |
