Gigabyte B850 Eagle WiFi6E Motherboard
MPN B850-EAGLE-WIFI6E · Brand Gigabyte · ATX
Gigabyte B850 Eagle WiFi6E Motherboard. Highlights: up to 8200
Inclusive of GST · GST invoice available
Overview
The Gigabyte B850 Eagle WiFi6E Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: AM5; Chipset: B850; Form Factor: ATX; Memory Type: DDR5; Memory Speed: up to 8200; Color: Black. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹16093 subject to availability — confirm at checkout
Datasheet
| Motherboard Series | Gigabyte Eagle |
|---|---|
| Platform | AMD |
| Graphics Port | 1 x DisplayPort,1 x HDMI |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Visit Brand website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3) |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

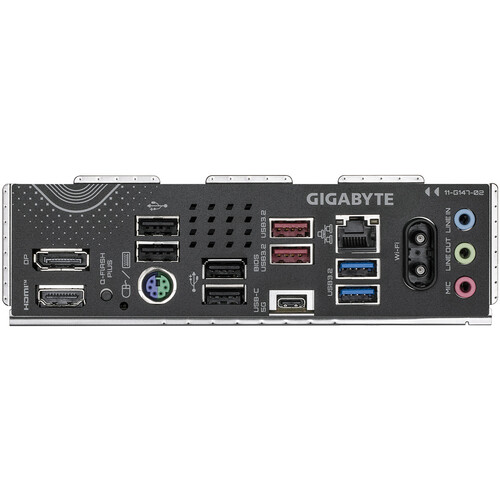

| Back Panel I/O Ports | 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | ATX |
| color | Black |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8200 |
