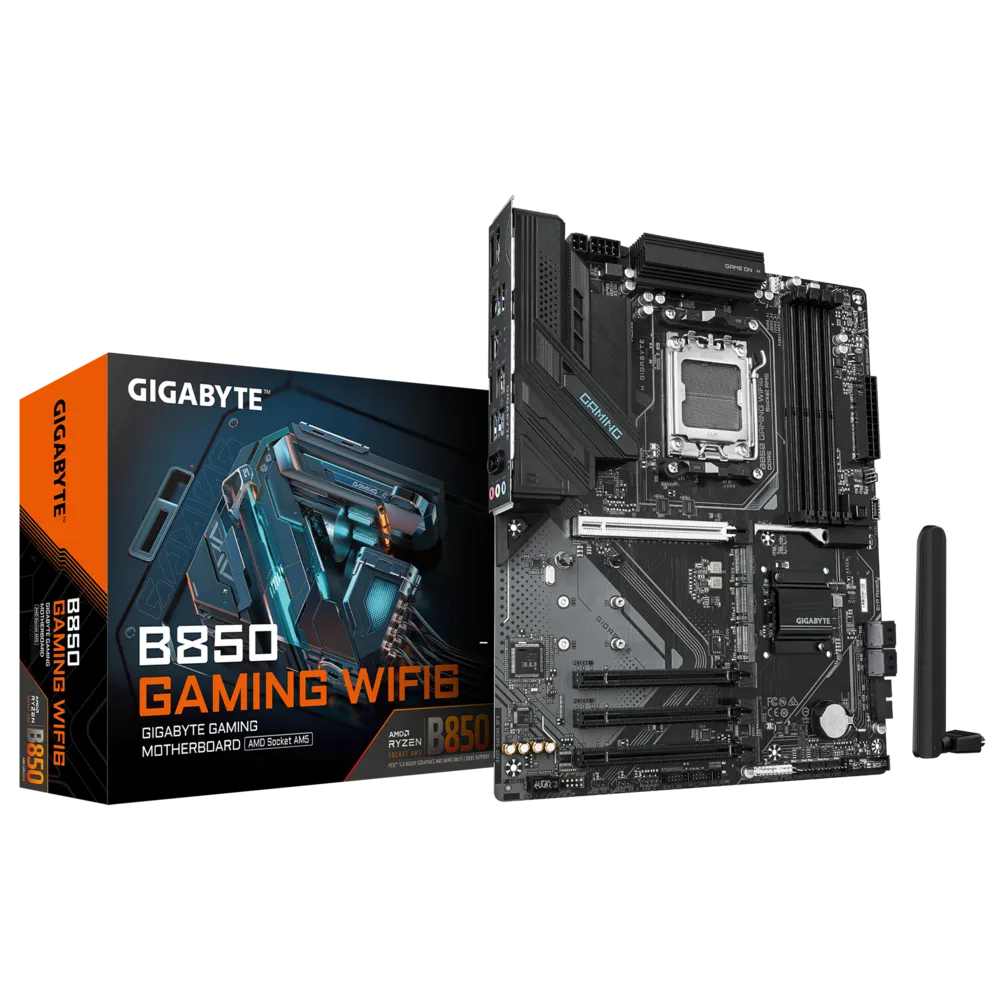

GIGABYTE B850 Gaming WIFI6 AMD Motherboard

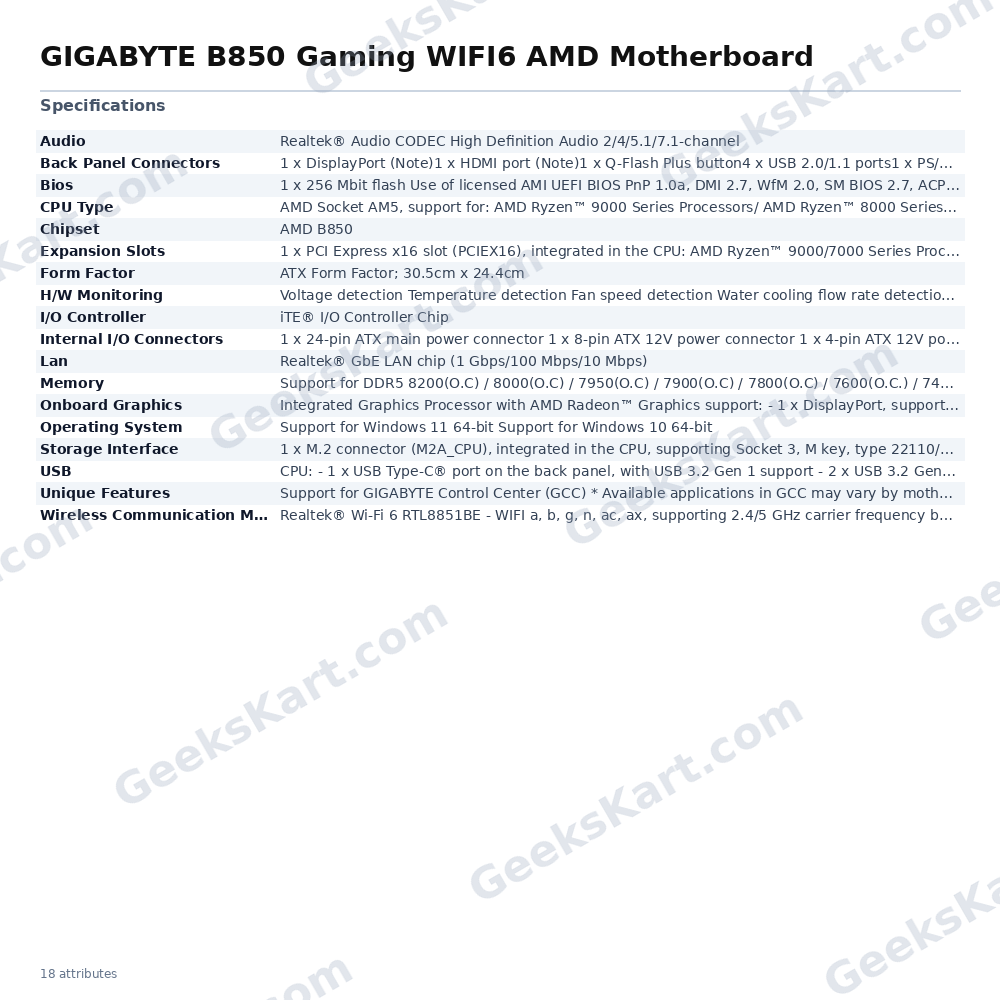

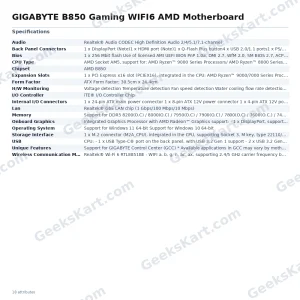

The GIGABYTE B850 Gaming WIFI6 is a full-size ATX motherboard (30.5 cm x 24.4 cm) built on the AMD B850 chipset with an AM5 socket, designed to support AMD Ryzen 9000, 8000, and 7000 Series processors. It pairs that platform with DDR5 memory support across four DIMM slots, accommodating up to 256 GB of system memory (64 GB per DIMM) in dual-channel configuration at speeds up to DDR5-8200 (O.C.), with compatibility for both AMD EXPO and Intel XMP profiles. For storage, the board provides three M.2 connectors: the primary CPU-attached M.2 (M2A_CPU) supports PCIe 5.0 x4 NVMe drives with Ryzen 9000 and 7000 processors, a second CPU-attached slot (M2B_CPU) runs at PCIe 4.0 x4, and a chipset-attached slot (M2C_SB) operates at PCIe 4.0 x2. Four SATA 6 Gb/s ports round out the storage options, with RAID 0, 1, 5 (Ryzen 9000 only), and 10 support for NVMe arrays and RAID 0, 1, and 10 for SATA. The primary PCIe x16 slot (CPU-attached) supports PCIe 5.0 x16 mode with Ryzen 9000 and 7000 processors, making it ready for next-generation discrete graphics cards. Networking is handled by a Realtek Wi-Fi 6 (802.11ax, 2.4/5 GHz, 11ax 80 MHz) module with Bluetooth 5.3, alongside a Realtek GbE LAN chip offering 1 Gbps wired connectivity. GIGABYTE’s X3D Turbo Mode is a BIOS-level feature that applies optimized parameters for Ryzen 9000 X3D and non-X3D processors to improve gaming frame rates and reduce latency with a single click. The AORUS AI SNATCH utility provides one-click CPU and DDR5 memory acceleration, with GIGABYTE claiming up to 9% CPU and memory performance improvement and up to 8% AI processing uplift under specific conditions. The board’s PCB incorporates GIGABYTE’s AI-Driven PCB technologies — AI-ViaFusion, AI-Trace, and AI-Layer — which optimize via sizing, trace routing, and PCB layer materials for improved signal integrity. Thermal management is addressed through integrated molded heatsinks over the MOSFETs with 5 W/mK thermal pads and a multi-cut fin design for airflow. Smart Fan 6 fan control supports PWM and DC fans plus water-cooling pumps, with up to 24 W (12 V × 2 A) per header and built-in over-current protection. Seven adjustable fan curve control points and Fan Stop technology enable silent operation under light loads. Audio is provided by a Realtek HD Audio CODEC supporting 2/4/5.1/7.1-channel output, with PCB-level audio noise isolation. Onboard video outputs include DisplayPort 1.4 (up to 3840×2160@144 Hz) and HDMI 2.1 (up to 4096×2160@60 Hz) for use with processors that include integrated Radeon graphics. The back panel also carries two USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 1 Type-C port, two USB 3.2 Gen 1 Type-A ports, four USB 2.0 ports, a PS/2 port, and a Q-Flash Plus button for BIOS update without a CPU installed. Verifiable Specifications: – Socket: AMD AM5 – Chipset: AMD B850 – Form Factor: ATX, 30.5 cm × 24.4 cm – Memory: 4× DDR5 DIMM, up to 256 GB, DDR5-4400 to DDR5-8200 (O.C.), dual-channel, EXPO & XMP – Storage: 3× M.2 (PCIe 5.0 x4 / 4.0 x4 / 4.0 x2), 4× SATA 6 Gb/s, RAID 0/1/5/10 – Primary PCIe: x16 PCIe 5.0 (CPU, Ryzen 9000/7000); additional chipset PCIe 3.0 x1 slots ×3 – Wireless: Realtek RTL8851BE Wi-Fi 6 (802.11ax), Bluetooth 5.3 – LAN: Realtek GbE (1 Gbps/100 Mbps/10 Mbps) – USB (back panel): 2× USB 3.2 Gen 2 Type-A, 1× USB 3.2 Gen 1 Type-C, 2× USB 3.2 Gen 1, 4× USB 2.0 – Display Output: 1× DisplayPort 1.4 (3840×2160@144 Hz), 1× HDMI 2.1 (4096×2160@60 Hz) – Audio: Realtek HD Audio CODEC, 7.1-channel – BIOS: 256 Mbit flash, AMI UEFI – Fan Headers: 5× system/pump headers, supports PWM/DC, up to 24 W per header – OS Support: Windows 11 64-bit, Windows 10 64-bit
