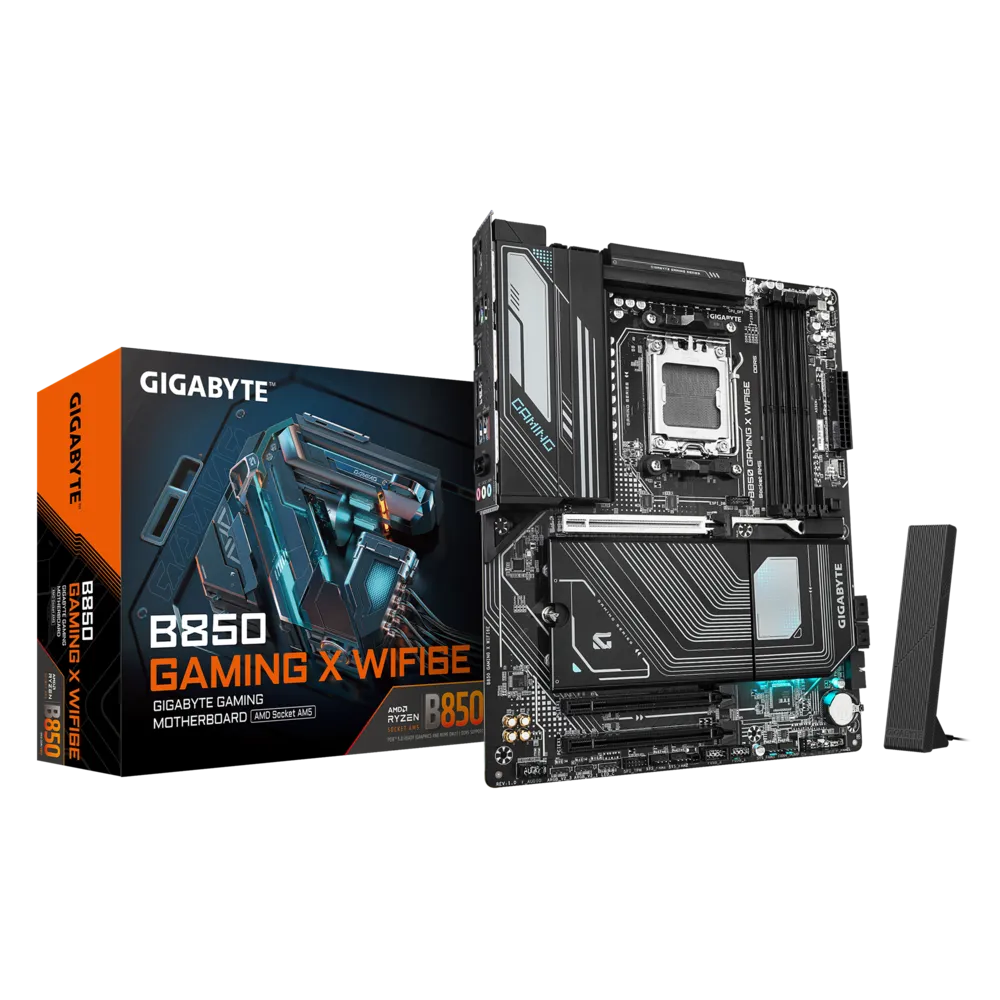

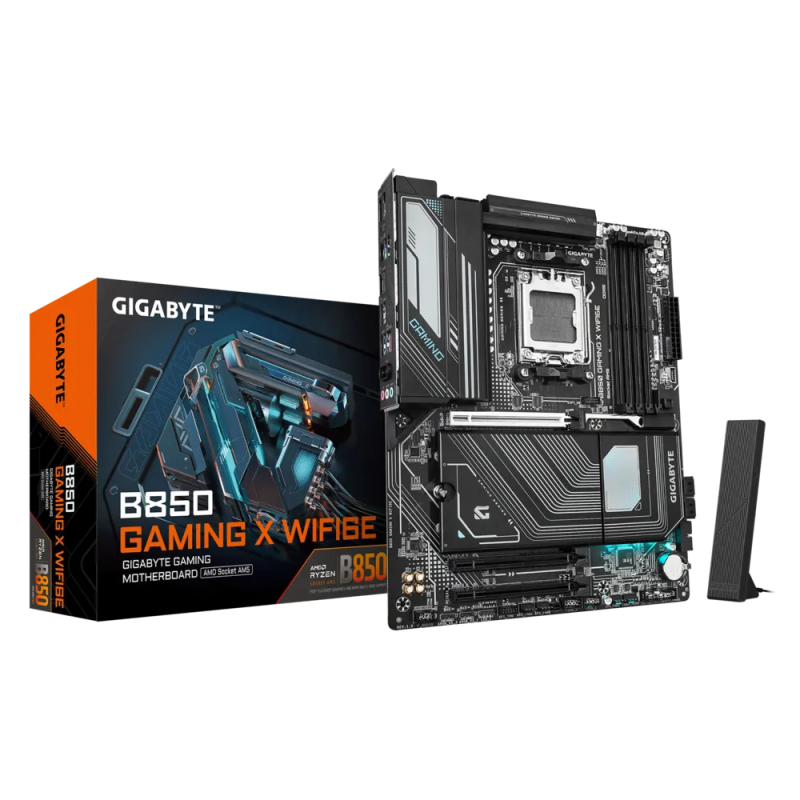

GIGABYTE B850 Gaming X WIFI6E AMD Motherboard
MPN GIGABYTE-B850-GAMING-X-WIFI6E · Brand GIGABYTE · ATX
The GIGABYTE B850 Gaming X WiFi 6E is an ATX motherboard for AMD AM5 processors (Ryzen 9000/8000/7000), featuring DDR5 support up to 256 GB, PCIe 5.0, three M.2 slots, Wi-Fi 6E with Bluetooth 5.3, and 2.5GbE LAN
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B850 Gaming X WiFi 6E is a full-size ATX motherboard (30.5 cm x 24.4 cm) built on the AMD B850 chipset and the AM5 socket platform. It is compatible with AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors, making it a versatile choice for both current and upcoming AMD CPU generations. Memory support is extensive: four DDR5 DIMM slots accommodate up to 256 GB of system RAM (64 GB per slot maximum) in a dual-channel configuration, with speeds ranging from native 4400 MT/s up to 8200 MT/s via overclocking. Both AMD EXPO and Intel XMP memory profiles are supported, enabling straightforward memory optimisation directly from the BIOS. The board also ships with GIGABYTE's AORUS AI SNATCH and X3D Turbo Mode BIOS features, which apply one-click CPU and memory tuning profiles for users seeking easy performance uplift without manual overclocking. Storage expansion is handled by three M.2 connectors — two CPU-attached (M2A_CPU and M2B_CPU, supporting up to PCIe 5.0 x4 and PCIe 4.0 x4 respectively with Ryzen 9000/7000 processors) and one chipset-attached (M2C_SB, PCIe 4.0 x4). Four SATA 6 Gb/s ports round out the storage options, with RAID 0, 1, 5, and 10 support for NVMe devices (RAID 5 limited to Ryzen 9000 Series). The primary PCIe x16 slot runs at PCIe 5.0 x16 with Ryzen 9000/7000 processors, while two additional PCIe x16 physical slots (electrically x1, PCIe 3.0) provide further expansion. Wireless connectivity is provided by a Realtek RTL8852CE module supporting Wi-Fi 6E across 2.4 GHz, 5 GHz, and 6 GHz bands with 160 MHz channel width and 11ax standard, alongside Bluetooth 5.3. Wired networking uses a Realtek 2.5GbE LAN chip supporting 2.5 Gbps, 1 Gbps, and 100 Mbps speeds. The rear I/O panel includes one USB Type-C port (USB 3.2 Gen 2), one USB 3.2 Gen 2 Type-A (red), three USB 3.2 Gen 1 Type-A, three USB 2.0 ports, one HDMI 2.1 output (up to 4096x2160 at 60 Hz), one DisplayPort 1.4 output (up to 3840x2160 at 144 Hz), a PS/2 port, RJ-45, two antenna connectors (2T2R), and three audio jacks. An internal USB Type-C header supports USB 3.2 Gen 2x2 (20 Gbps). Fan headers support both PWM and DC modes at up to 24 W (12 V x 2 A) each, with built-in over-current protection and Fan Stop functionality for silent operation at low loads. The PCB incorporates GIGABYTE's AI-Driven PCB Technology suite — AI-ViaFusion, AI-Trace, and AI-Layer — for signal integrity optimisation across layers. The BIOS is a licensed AMI UEFI implementation with GIGABYTE's User-Centred (UC) interface, supporting Q-Flash Plus (BIOS update without a CPU installed), multi-theme options, and EZ Debug Zone LEDs for streamlined system diagnosis. RGB management is handled via three ARGB Gen2 headers and one standard RGB header, controllable through GIGABYTE Control Center (GCC) software. Verified Specifications: - Socket: AMD AM5 - Chipset: AMD B850 - Form Factor: ATX, 30.5 cm x 24.4 cm - Memory: 4x DDR5 DIMM, up to 256 GB, up to 8200 MT/s (O.C.), dual-channel, AMD EXPO & XMP support - Primary PCIe slot: PCIe 5.0 x16 (Ryzen 9000/7000) - M.2 slots: 3x (up to PCIe 5.0 x4 on M2A_CPU with Ryzen 9000/7000) - SATA: 4x 6 Gb/s - Wi-Fi: 6E (RTL8852CE), 2.4/5/6 GHz, 11ax 160 MHz, Bluetooth 5.3 - LAN: Realtek 2.5GbE - USB rear: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 3x USB 3.2 Gen 1, 3x USB 2.0 - Display outputs: 1x HDMI 2.1, 1x DisplayPort 1.4 - Audio: Realtek HD Audio, 7.1-channel - BIOS: 256 Mbit flash, AMI UEFI

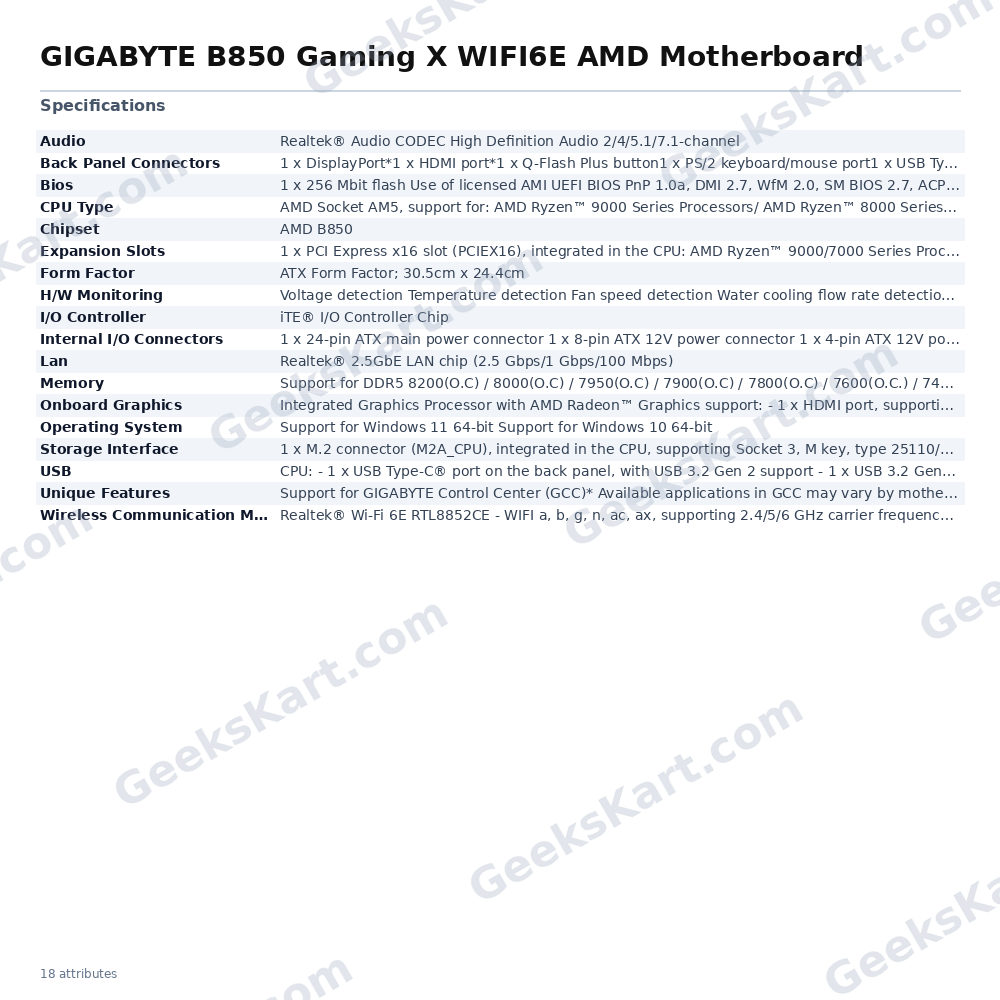

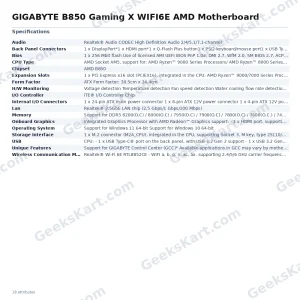

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | AMD B850 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 9000 Series Processors/ AMD RyzenTM 8000 Series Processors/ AMD RyzenTM 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: – 3 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/25110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x DisplayPort*1 x HDMI port*1 x Q-Flash Plus button1 x PS/2 keyboard/mouse port1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red)3 x USB 3.2 Gen 1 ports3 x USB 2.0/1.1 ports1 x RJ-45 port2 x antenna connectors (2T2R)3 x audio jacks* Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |
| Wireless Communication Module | Realtek® Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
