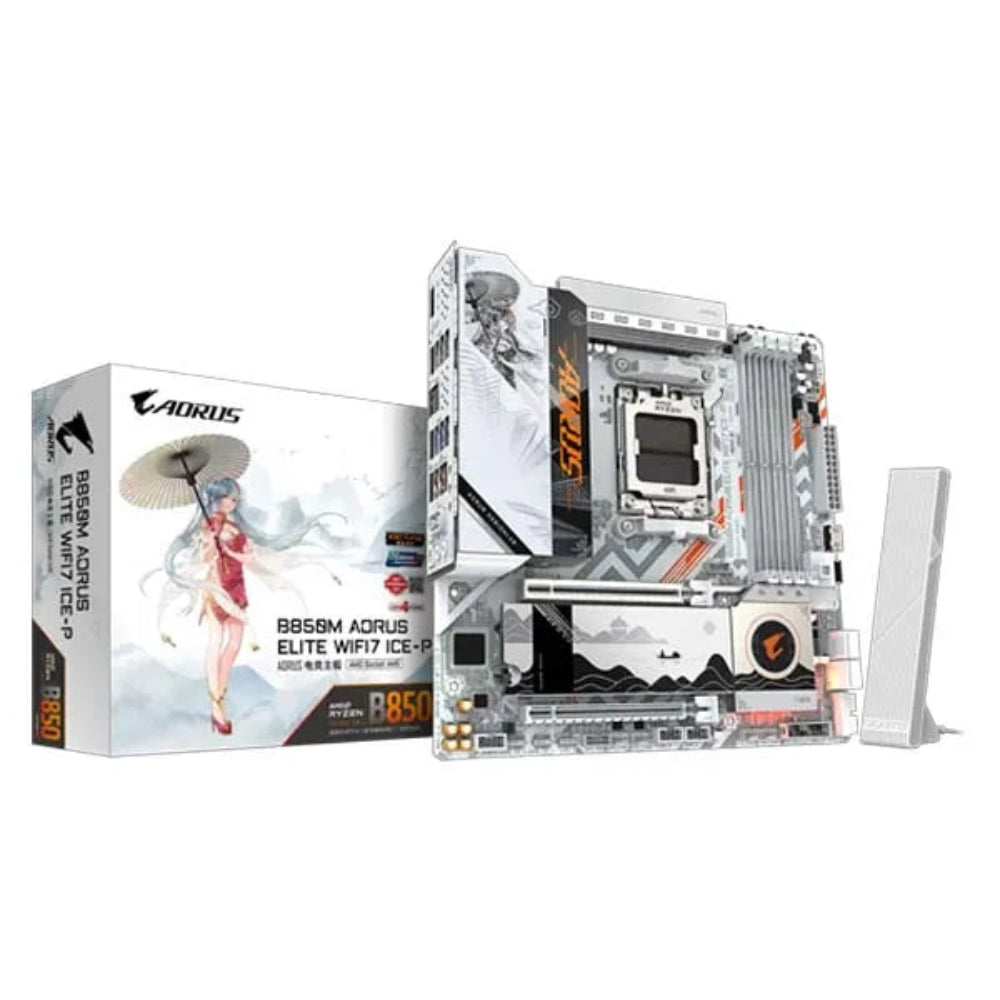

GIGABYTE B850M Aorus Elite ICE-P Wifi7 DDR5 AMD Motherboard
MPN GIGABYTE-B850M-AORUS-ELITE-ICE-P · Brand GIGABYTE · mATX
The GIGABYTE B850M Aorus Elite ICE-P is a Micro-ATX AM5 motherboard featuring the AMD B850 chipset, PCIe 5.0 x16 and M.2, Wi-Fi 7, DDR5 support up to 8200 MT/s OC, and a 12+2+2 phase VRM — purpose-built for AMD Ryzen 9000/8000/7000 series builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B850M Aorus Elite ICE-P is a Micro-ATX motherboard built on the AMD B850 chipset with an AM5 socket, designed for AMD Ryzen 9000, 8000, and 7000 series processors. Its white ICE-P aesthetic makes it a natural fit for clean, minimalist builds, while its feature set targets gamers and power users seeking a mid-range platform with next-generation connectivity. At the heart of the board's power delivery is a 12+2+2 phase digital twin VRM solution, complemented by VRM Thermal Armor Advanced heatsinks to sustain stable operation under sustained CPU loads. The platform supports DDR5 memory across four DIMM slots with a capacity ceiling of 256 GB (up to 64 GB per module) and dual-channel operation. Memory frequencies scale from 4800 MT/s native up to 8200 MT/s via overclocking, with support for both AMD EXPO and Intel XMP profiles. Storage is handled through two M.2 slots: the primary slot (M2A_CPU) supports PCIe 5.0 x4 NVMe with Ryzen 9000 and 7000 series CPUs, while the secondary slot (M2B_CPU) runs at PCIe 4.0 x4. Four SATA 6 Gb/s ports round out storage options, and RAID 0, 1, 5, and 10 configurations are available for NVMe drives (RAID 5 requires a Ryzen 9000 series CPU). The primary PCIe x16 slot operates at PCIe 5.0 x16 with Ryzen 9000/7000 CPUs and features GIGABYTE's PCIe UD Slot reinforcement. Both M.2 slots and the PCIe slot use EZ-Latch Plus and EZ-Latch Click screwless release mechanisms for easier installation and upgrades. Networking is covered by a Realtek 2.5GbE LAN controller alongside a Realtek Wi-Fi 7 RTL8922AE module supporting 802.11a/b/g/n/ac/ax/be across 2.4 GHz, 5 GHz, and 6 GHz bands with 160 MHz channel width and Bluetooth 5.4. The WIFI EZ-Plug connector simplifies antenna attachment. Note: full Wi-Fi 7 functionality requires Windows 11 SV3; 6 GHz band availability is subject to local regulatory approval. The back panel provides 4× USB 2.0, 5× USB 3.2 Gen 1 Type-A, 2× USB 3.2 Gen 2 Type-A (red), 1× USB 3.2 Gen 2 Type-C, DisplayPort 1.4 (up to 3840×2160@144 Hz with compatible APU), RJ-45, optical S/PDIF out, and two audio jacks. Internal headers include a USB 3.2 Gen 2×2 Type-C front-panel header, addressable RGB Gen 2 and standard RGB headers, and comprehensive fan/pump control headers managed through GIGABYTE's Smart Fan 6 system. Audio is powered by a Realtek ALC1220 codec with High Definition Audio supporting up to 7.1-channel output and DSD playback on the back-panel line-out. BIOS features include AMI UEFI, Q-Flash Plus for no-CPU BIOS updates, and GIGABYTE's X3D Turbo Mode and HyperTune AI-assisted memory and signal optimisation. GIGABYTE Control Center software provides system monitoring and fan control in Windows. Verified Specifications: - Form Factor: Micro ATX, 244 mm × 244 mm - Socket: AMD AM5 - Chipset: AMD B850 - CPU Support: AMD Ryzen 9000 / 8000 / 7000 series - Memory: 4× DDR5 DIMM, up to 256 GB, 4800–8200 MT/s (OC), AMD EXPO & XMP - Primary M.2: PCIe 5.0 x4 (Ryzen 9000/7000), types 25110/22110/2580/2280 - Secondary M.2: PCIe 4.0 x4 (Ryzen 9000/7000), types 22110/2280 - SATA: 4× SATA 6 Gb/s - PCIe x16: PCIe 5.0 x16 (Ryzen 9000/7000) - LAN: Realtek 2.5GbE - Wi-Fi: Wi-Fi 7 (802.11be), Bluetooth 5.4 (Realtek RTL8922AE) - Audio: Realtek ALC1220, 7.1-channel, S/PDIF out - Display Out: DisplayPort 1.4, HDMI 1.4 (CPU-dependent) - USB (rear): 4× USB 2.0, 5× USB 3.2 Gen 1, 2× USB 3.2 Gen 2 Type-A, 1× USB 3.2 Gen 2 Type-C - ARGB: 3× ARGB Gen 2 headers, 1× RGB header - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - OS Support: Windows 11 64-bit - Warranty: 3 years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD B850 |
| CPU Type | AMD Socket AM5, support for:AMD RyzenTM 9000 Series Processors/AMD RyzenTM 8000 Series Processors/AMD RyzenTM 7000 Series Processors(Go to GIGABYTE’s website for the latest CPU support list.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU:– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelCPU+USB 2.0 Hub:– 4 x USB 2.0/1.1 ports on the back panelChipset+USB 3.2 Gen 1 Hub:– 4 x USB 3.2 Gen 1 ports on the back panelChipset:– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)– 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | Support for DDR5 DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200/4800 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Model | B850M-A-ELITE-WF7-ICE-P |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version and HDR.– 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x DisplayPort (Note)1 x Q-Flash Plus button4 x USB 2.0/1.1 ports5 x USB 3.2 Gen 1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector(Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x reset button1 x reset jumper1 x Clear CMOS jumper(Note) Actual support may vary by CPU |
| Wireless Communication Module | Realtek® Wi-Fi 7 RTL8922AE– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands– BLUETOOTH 5.4– Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.*** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details |
