Gigabyte B850M Force WIFI6E V2 M-ATX Motherboard
MPN B850M-FORCE-WIFI6E-V2 · Brand GIGABYTE · mATX
GIGABYTE B850M Force WiFi 6E V2 is a Micro-ATX AM5 motherboard with B850 chipset, dual-channel DDR5 up to 9600 MHz, PCIe 5.0 M.2 storage, WiFi 6E, 2.5 GbE LAN, and support for AMD Ryzen 7000/8000/9000 Series processors
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B850M Force WiFi 6E V2 is a Micro-ATX motherboard built on AMD's B850 chipset, designed to pair with the AM5 socket ecosystem. It supports AMD Ryzen 9000, 8000, and 7000 Series processors, making it a forward-looking platform for builders who want compatibility across multiple processor generations without committing to a premium X-series chipset cost. At its core, the board features a digital 8+2+2 phase VRM solution, offering a stable power delivery configuration suited to mainstream Ryzen AM5 builds. Memory support is dual-channel DDR5 via two DIMM slots, with speeds reaching up to DDR5-9600 and compatibility with AMD EXPO and XMP overclocking profiles. Maximum supported memory capacity is 128 GB. Storage options are comprehensive for a Micro-ATX form factor: three M.2 slots are onboard, with one supporting the high-bandwidth PCIe 5.0 x4 interface — capable of doubling the data transfer rate over PCIe 4.0 at 32 GT/s per lane. The remaining M.2 slots and four SATA 6 Gb/s ports provide additional flexibility. The primary PCIe x16 slot supports PCIe 5.0 x16 mode with Ryzen 9000 and 7000 Series processors, while Ryzen 8000 Series Phoenix processors run at PCIe 4.0 x8 or x4 depending on variant. Connectivity is a highlight. The integrated 802.11ax WiFi 6E module covers the 2.4 GHz, 5 GHz, and 6 GHz bands, supporting speeds up to 2.4 Gbps and pairing with Bluetooth 5.3. A 2.5 GbE wired LAN port rounds out fast networking options. The board's WIFI EZ-Plug simplifies antenna installation without tools. The rear I/O panel includes HDMI and DisplayPort outputs for integrated graphics use, a USB 3.2 Gen 2 Type-A port, one USB Type-C (USB 3.2 Gen 1), two USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, three audio jacks, a PS/2 combo port, and the 2.5 GbE RJ-45 jack. Internally, the board provides headers for USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, two USB 2.0 headers, three addressable RGB Gen 2 headers, one standard RGB header, and a Q-Flash Plus button for BIOS flashing without a CPU or RAM installed. GIGABYTE's BIOS features include X3D Turbo Mode — a parameter-level optimisation available for supported Ryzen X3D and non-X3D Ryzen 9000 processors — along with AIO fan control, multi-theme UI, and Q-Flash Auto Scan for straightforward firmware management. Warranty coverage is three years. Key Specifications: - Form Factor: Micro-ATX - Chipset: AMD B850 - CPU Socket: AM5 - Supported CPUs: AMD Ryzen 9000, 8000, 7000 Series - Memory: 2x DDR5 DIMM, Dual Channel, up to 128 GB, up to DDR5-9600, EXPO & XMP - Primary PCIe Slot: PCIe 5.0 x16 (CPU-direct, Ryzen 9000/7000) - M.2 Slots: 3x (1x PCIe 5.0 x4, others PCIe 4.0) - SATA: 4x SATA 6 Gb/s - Wireless: WiFi 6E (802.11ax), Bluetooth 5.3 - LAN: 2.5 GbE - Display Output: 1x HDMI, 1x DisplayPort - USB (Rear): 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0 - VRM: Digital 8+2+2 phase - Warranty: 3 Years

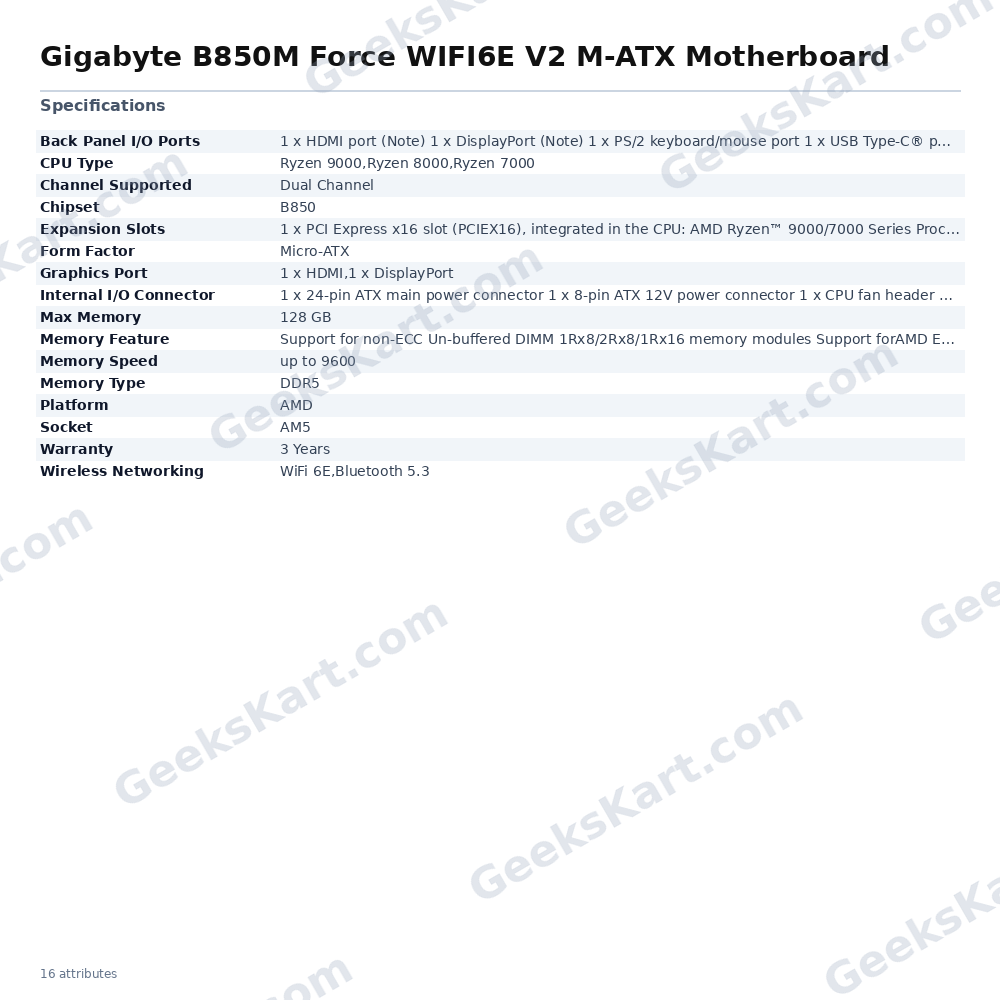

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 128 GB |
| Memory Speed | up to 9600 |
| Platform | AMD |
| Graphics Port | 1 x HDMI,1 x DisplayPort |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (1T1R) 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
