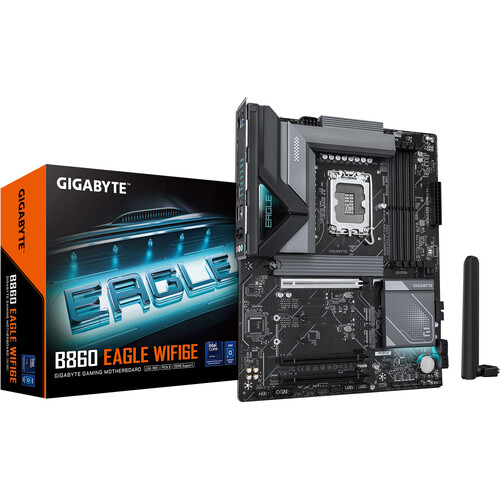

GIGABYTE B860 Eagle WIFI6E ATX Motherboard
MPN B860-EAGLE-WIFI6E · Brand Gigabyte · ATX
GIGABYTE B860 Eagle WIFI6E ATX Motherboard. Highlights: up to 9066
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B860 Eagle WIFI6E ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: LGA 1851; Chipset: B860; Form Factor: ATX; Memory Type: DDR5; Memory Speed: up to 9066; Color: Black. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹17924 subject to availability — confirm at checkout
Datasheet
| Platform | INTEL |
|---|---|
| Motherboard Series | Gigabyte Eagle |
| Graphics Port | 1 x HDMI Port,1 x DisplayPort |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

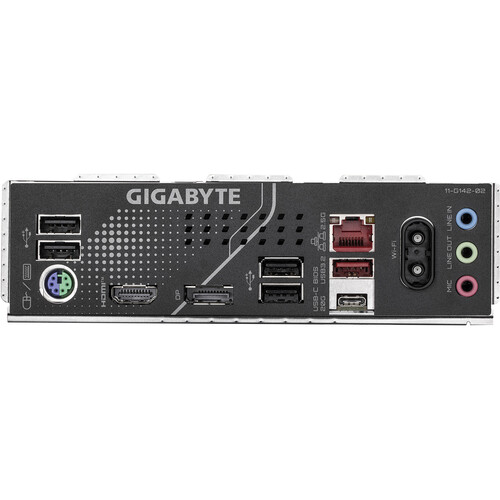

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB Type-C port, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | ATX |
| color | Black |
| Chipset | B860 |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Max Memory | 256 GB |
| Memory Speed | up to 9066 |
