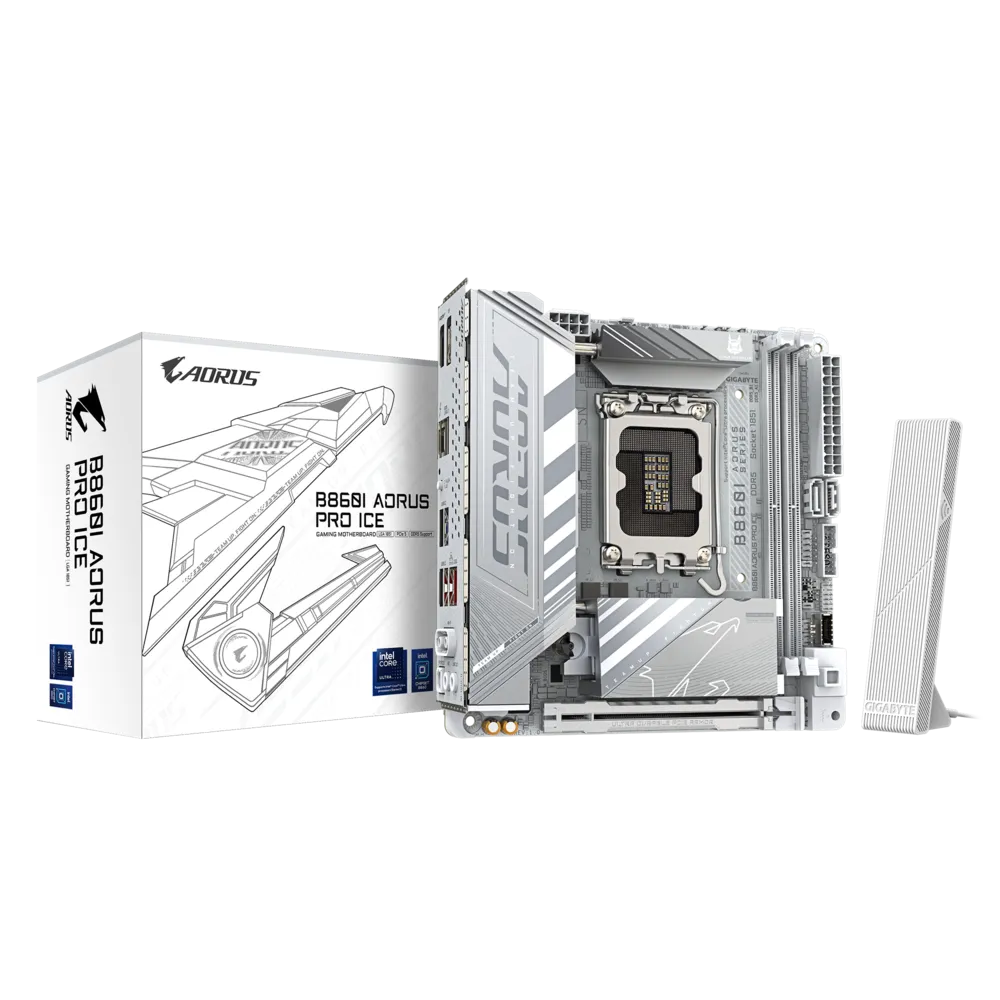

GIGABYTE B860I Aorus Pro ICE DDR5 Intel Motherboard ( White )
MPN GIGABYTE-B860I-AORUS-PRO-ICE-WHITE · Brand GIGABYTE · Mini-ITX
The GIGABYTE B860I Aorus Pro ICE is a Mini-ITX DDR5 motherboard for Intel LGA1851 Core Ultra Series 2 CPUs, packing Wi-Fi 7, Thunderbolt 4, PCIe 5.0 M.2, and an 8+1+2 phase VRM into a compact 17 cm × 17 cm white design
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B860I Aorus Pro ICE is a compact Mini-ITX motherboard designed for Intel Core Ultra Series 2 processors on the LGA1851 socket, powered by the Intel B860 Express Chipset. Despite its 17 cm × 17 cm footprint, it delivers a feature set that rivals larger form-factor boards, making it an ideal choice for small-form-factor PC builders who refuse to compromise on performance. At the heart of the power delivery is a digital 8+1+2 phase VRM solution — eight 80 A DrMOS phases for VCORE, one 40 A phase for VCCGT (integrated GPU), and two 80 A phases for VCCSA — ensuring stable power for multi-core workloads and memory-intensive tasks. The VRM Thermal Armor Advanced heatsink and M.2 Thermal Guard work together to keep temperatures in check under sustained loads. Memory support spans two DDR5 DIMM slots in dual-channel configuration, accommodating up to 128 GB (64 GB per DIMM). Native speeds start at DDR5-5600/6400 MT/s, with XMP overclocking support reaching up to DDR5-9200 (O.C.). The AI PerfDrive feature applies pre-optimised BIOS profiles automatically, while the DDR5 XMP Booster streamlines overclocking without manual timing entry. Storage is handled by one PCIe 5.0 x4 M.2 slot (CPU-direct) and one PCIe 4.0 x4 M.2 slot on the board's reverse side (chipset), complemented by two SATA 6 Gb/s ports with RAID 0/1 support. The single PCIe 5.0 x16 slot accommodates a full-length graphics card. Connectivity is equally strong: Wi-Fi 7 (802.11be, 2.4/5/6 GHz, 160 MHz), Bluetooth 5.4, and a Realtek 2.5 GbE LAN port cover wired and wireless networking. The rear panel features one Thunderbolt 4 / USB4 Type-C port (supporting DisplayPort and up to 5120×2880 @ 60 Hz on a TB4 monitor), one DisplayPort 2.1 (up to 3840×2160 @ 144 Hz), one HDMI 2.1 port (up to 4096×2160 @ 60 Hz), three USB 3.2 Gen 2 Type-A ports, and two USB 3.2 Gen 1 ports. Assembly is simplified through EZ-Latch Plus (screwless PCIe and M.2 slot release), EZ-Latch Click (screwless M.2 heatsink removal), WIFI EZ-Plug (tool-free antenna attachment), an EZ Debug Zone with dedicated LEDs, a DRAM Indicator LED, and Q-Flash Plus for BIOS updates without a CPU or RAM installed. Two addressable RGB Gen 2 headers enable lighting customisation. The board ships with a 3-year manufacturer warranty and runs Windows 11 64-bit. Verifiable Specifications: - Form Factor: Mini-ITX, 17.0 cm × 17.0 cm - Socket / Chipset: LGA1851 / Intel B860 Express - CPU Support: Intel Core Ultra Series 2 - Memory: 2× DDR5 DIMM, up to 128 GB, DDR5-5600 native / DDR5-9200 O.C., XMP support - VRM: 8+1+2 phase digital (8× 80 A VCORE, 1× 40 A VCCGT, 2× 80 A VCCSA) - Storage: 1× M.2 PCIe 5.0 x4 (CPU), 1× M.2 PCIe 4.0 x4 (chipset, rear-mounted), 2× SATA 6 Gb/s, RAID 0/1 - Expansion: 1× PCIe 5.0 x16 - Networking: Realtek 2.5 GbE; Wi-Fi 7 (802.11be, 2.4/5/6 GHz, 160 MHz), BT 5.4 - Display Outputs: Thunderbolt 4 / USB4 Type-C (DP Alt), DisplayPort 2.1, HDMI 2.1; triple-display support - USB (rear): 1× USB4 Type-C, 3× USB 3.2 Gen 2 Type-A, 2× USB 3.2 Gen 1 - Audio: Realtek HD Audio CODEC, 2/4/5.1/7.1-channel, optical S/PDIF out - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash, Q-Flash Plus - Warranty: 3 years

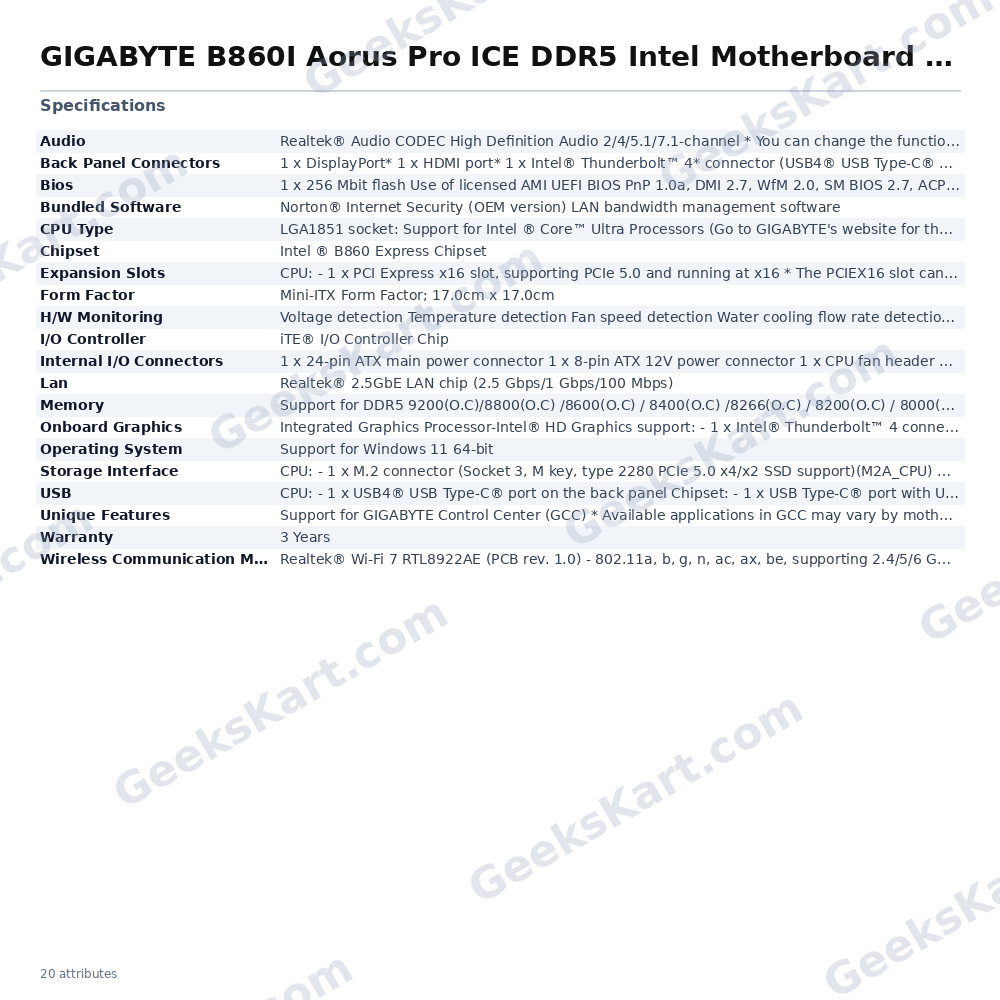

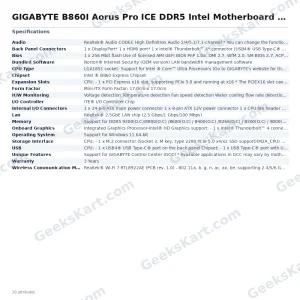

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | Intel ® B860 Express Chipset |
| CPU Type | LGA1851 socket: Support for Intel ® CoreTM Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: – 1 x USB4® USB Type-C® port on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: – 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) – 2 x SATA 6Gb/s connectors RAID 0 and RAID 1 support for SATA storage devices |
| Back Panel Connectors | 1 x DisplayPort* 1 x HDMI port* 1 x Intel® Thunderbolt™ 4* connector (USB4® USB Type-C® port) 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector * Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |
| Wireless Communication Module | Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations |
