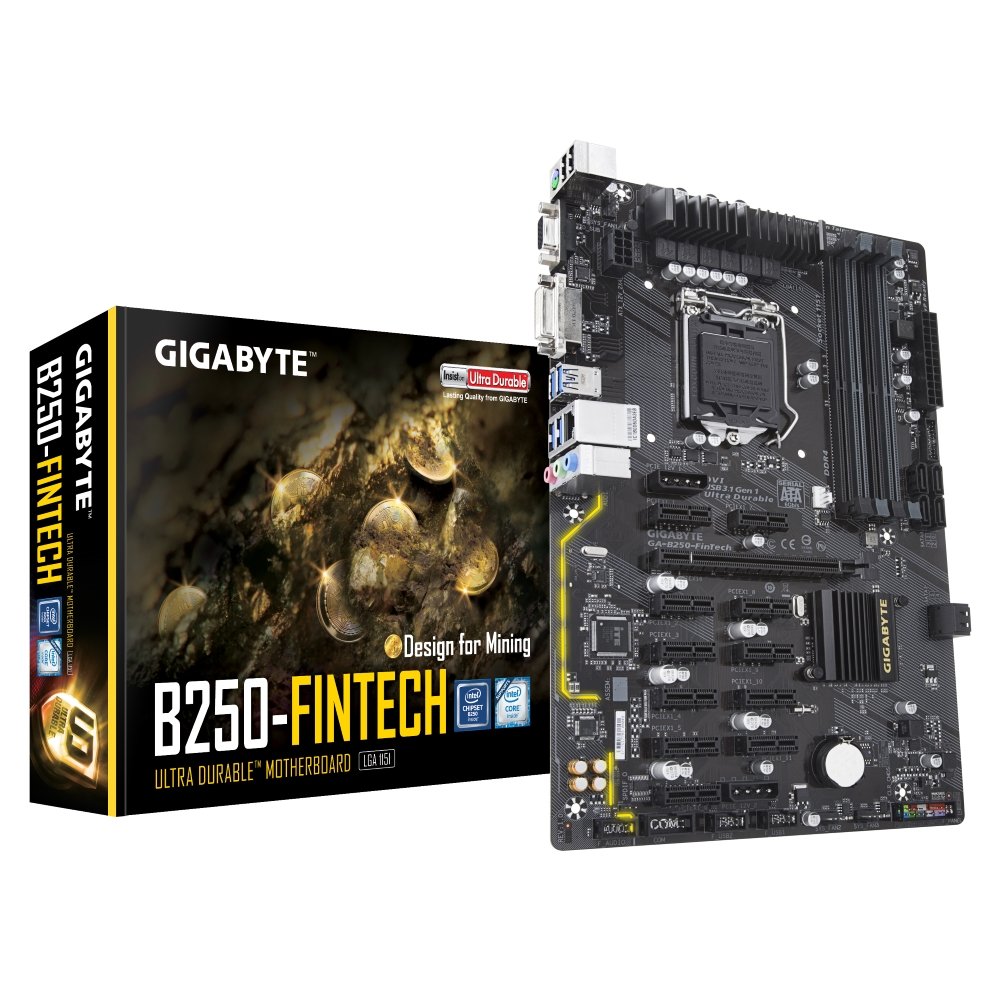

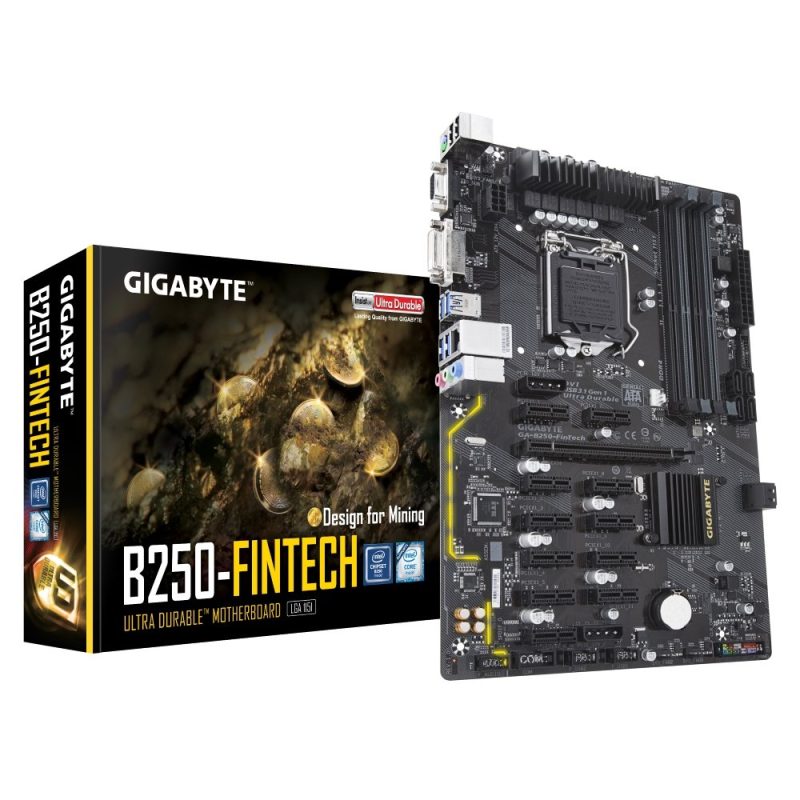

Feature of Gigabyte GA-B250-FinTech DDR4
- 12 PCIe Slots Perfect for Mining
- Dual 12V AUX power connector for PCIe slot
- Supports 7th/ 6th Generation Intel® Core™ Pro-cessors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 8-channel HD Audio with High Quality Audio Capacitors
- Audio Noise Guard with LED Trace Path Lighting
- Realtek GbE LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- APP Center Including EasyTune™ and Cloud Station™ Utilities
Cost saving combination
The GIGABYTE GA-AX-B250-Fin Tech DDR4 not only offers double the GPU support than standard motherboards but at the same time saves you money. Get the same mining performance without having to pay extra money for a second setup. Paying extra money for a second CPU, motherboard, HDD / SDD and memory kit can be costly.
That’s what makes the GIGABYTE B250-FinTech the ideal choice for miners!
Front Panel Switch Card
This GIGABYTE module adds Power-On and Reset button on your system making your mining experience smoother.
3-in-1 PSU Power-On Adapter
Smart Fan 5
With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
All Hybrid Fan Pin Headers
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.
Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

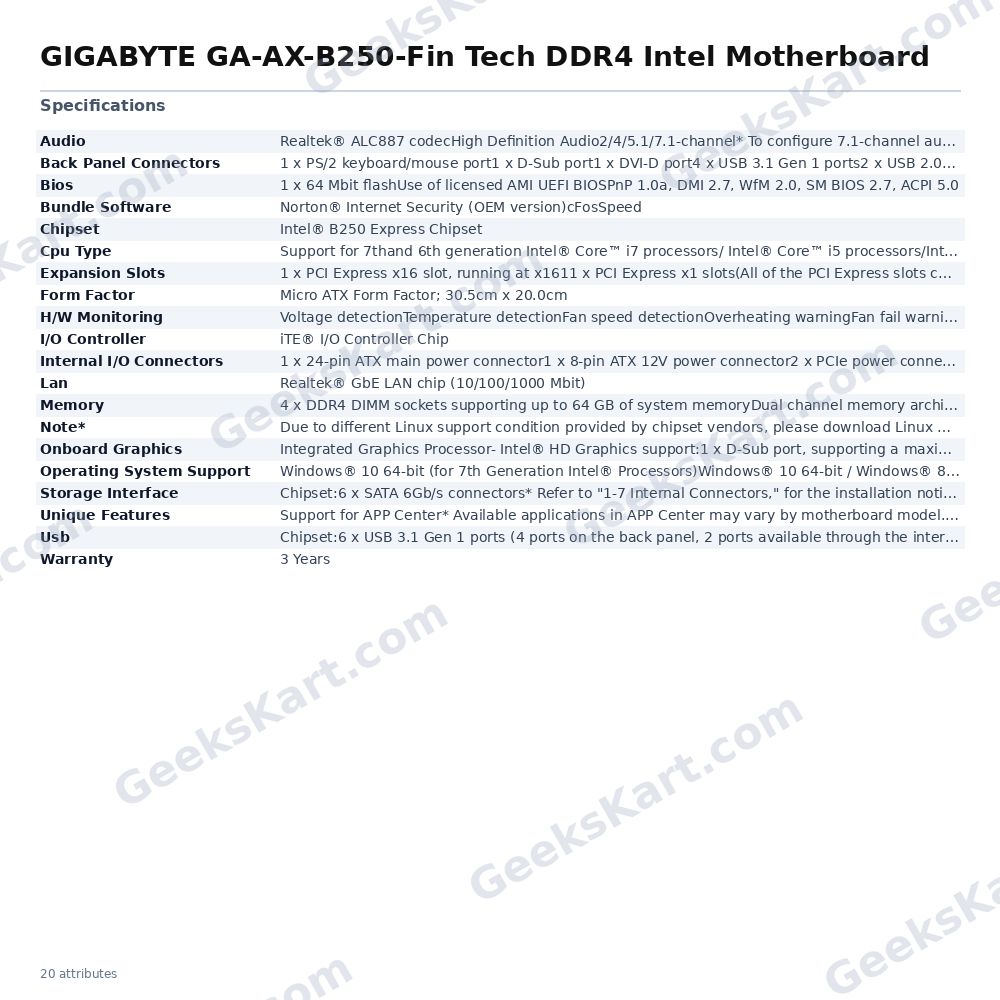

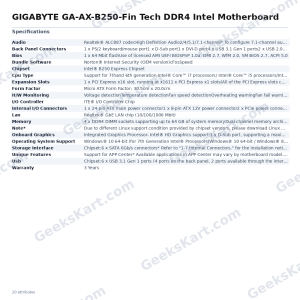

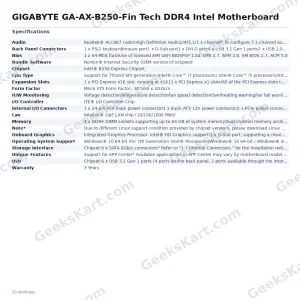

Specifications of Gigabyte GA-B250-FinTech DDR4
| CPU | Support for 7thand 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer “CPU Support List” for more information.) |
| Chipset | Intel® B250 Express Chipset |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x PCIe power connectors 1 x CPU fan header 3 x system fan headers 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th Generation processor. (Please refer “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor- Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 1 GB |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 11 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) * When two or more graphics cards are installed, be sure to connect the power cable from the power supply to the PCIE_12V_1 or PCIE_12V_2 connector to provide sufficient current to the system and prevent damage to the devices. |
| Storage Interface | Chipset: 6 x SATA 6Gb/s connectors * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. |
| USB | Chipset: 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |
| Operating System Support | Windows® 10 64-bit (for 7th Generation Intel® Processors) Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors) * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 30.5cm x 20.0cm |
| Bundle Software | Norton® Internet Security (OEM version) cFosSpeed |
| Warranty | 3 Years |
| Note* | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. Price, feature and specifications are subject to change without notice |
