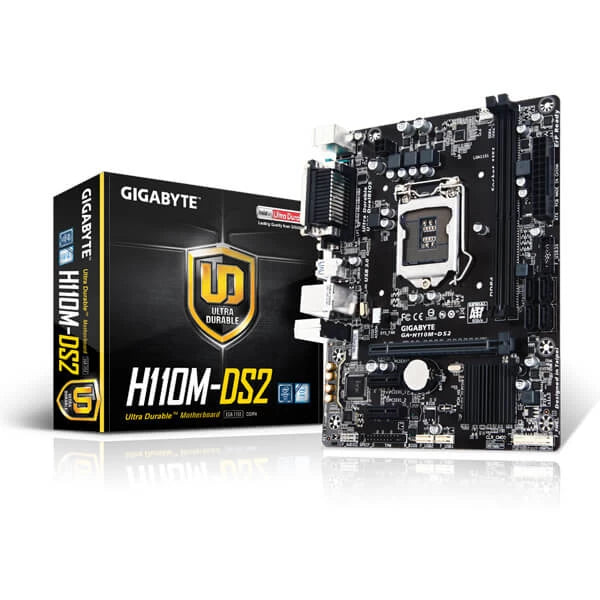

GIGABYTE GA-H110M-DS2 DDR4 Intel Motherboard
MPN GIGABYTE-GA-H110M-DS2 · Brand Gigabyte · mATX
The Gigabyte GA-H110M-DS2 is a Micro ATX motherboard with an LGA1151 socket, Intel H110 chipset, dual-channel DDR4 support up to 32 GB, and GIGABYTE DualBIOS protection — compatible with 6th and 7th Generation Intel Core processors
Inclusive of GST · GST invoice available
Overview
The Gigabyte GA-H110M-DS2 is a Micro ATX motherboard built on the Intel H110 Express Chipset and designed for the LGA1151 socket. It supports 6th and 7th Generation Intel Core i7, i5, and i3 processors, as well as Intel Pentium and Celeron processors in the same package, making it a versatile foundation for budget-conscious builds and small-form-factor desktop systems. Memory support spans two DDR4 DIMM slots in a dual-channel configuration, accommodating DDR4 2400 and 2133 MHz modules with a maximum system memory capacity of 32 GB. The board accepts both ECC UDIMM (operating in non-ECC mode) and standard non-ECC UDIMM modules, giving builders practical flexibility when sourcing RAM. For connectivity, the board offers 4 USB 3.0/2.0 ports and 6 USB 2.0/1.1 ports across back-panel and internal headers, alongside 4 SATA 6Gb/s connectors for storage. Networking is handled by a Realtek Gigabit Ethernet chip paired with cFosSpeed software for traffic prioritisation, helping maintain low latency in demanding environments. Onboard audio is driven by a Realtek High Definition Audio CODEC supporting 2, 4, 5.1, and 7.1-channel output plus S/PDIF Out, with high-quality audio capacitors and an audio noise guard design. Integrated Intel HD Graphics output via a D-Sub port supports resolutions up to 1920×1200 at 60 Hz with up to 1024 MB shared memory. Expansion is provided by one PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots. GIGABYTE's patented DualBIOS technology stores a backup BIOS alongside the main AMI UEFI BIOS, safeguarding against corruption from power loss or failed updates. The board's Glass Fabric PCB construction is designed to resist moisture ingress, while Low RDS MOSFETs reduce excess heat from power delivery. Verified Specifications: - Socket: LGA1151 | Chipset: Intel H110 Express - CPU Support: 6th & 7th Gen Intel Core i7/i5/i3, Pentium, Celeron - Memory: 2× DDR4 DIMM, up to 32 GB, DDR4 2400/2133 MHz, dual-channel - Expansion: 1× PCIe 3.0 x16; 2× PCIe 2.0 x1 - Storage: 4× SATA 6Gb/s - USB: 4× USB 3.0/2.0; 6× USB 2.0/1.1 - Display: 1× D-Sub (max 1920×1200 @ 60 Hz) - Audio: Realtek HD Audio, up to 7.1-channel, S/PDIF Out - LAN: Realtek GbE (1000/100 Mbit) + cFosSpeed - BIOS: AMI UEFI DualBIOS, 2× 64 Mbit flash - Form Factor: Micro ATX, 22.6 cm × 17.4 cm - OS Support: Windows 10 64-bit (7th Gen); Windows 10/8.1/7 (6th Gen) - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® H110 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (1000/100 Mbit) |
| USB | 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 64 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memoryDual channel memory architectureSupport for DDR4 2400/2133 MHz memory modulesSupport for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
| H/W Monitoring | System voltage detectionCPU/System temperature detectionCPU/System fan speed detectionCPU/System overheating warningCPU/System fan fail warningCPU/System fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeSmart BackupSystem Information ViewerSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor – Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 HzMaximum shared memory of 1024 MB |
| Operating System | Windows® 10 64-bit (for 7th Generation Intel® Processors)Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors) |
| Storage Interface | 4 x SATA 6Gb/s connectors |
| Back Panel Connectors | 1 x PS/2 mouse port1 x PS/2 Keyboard port1 x parallel port1 x serial port1 x D-Sub port2 x USB 3.0/2.0 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks (Line In, Line Out, Mic In) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.0/2.0 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header1 x Clear CMOS jumper |
