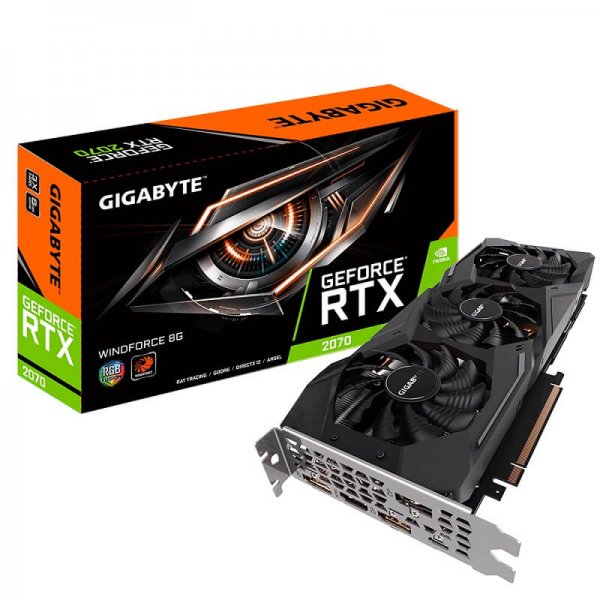

Features of GIGABYTE GeForce RTX 2070 WindForce 8GB Nvidia Graphic Card
CREATE YOUR WORK FASTER THAN EVER
Powerful GIGABYTE GeForce RTX 2070 WindForce 8GB Nvidia graphics card for pc accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING、3D ANIMATION、PHOTOGRAPHY、GRAPHIC DESIGN、ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
NVIDIA AMPERE ARCHITECTURE
The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.
- Powered by GeForce® RTX 2070
- Integrated with 8GB GDDR6 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion – 16.7M customizable color lighting
- Metal Back Plate
- WINDFORCE 3X COOLING SYSTEM
- ALTERNATE SPINNING
- UNIQUE BLADE FAN
- 3D ACTIVE FAN
Specifications:
| Brand | GIGABYTE |
| Manufacturer | Gigabyte |
| Item Height | 1.58 Inches |
| Item Width | 4.58 Inches |
| Product Dimensions | 28.04 x 11.63 x 4.01 cm; 920.79 Grams |
| Item model number | GV-N2070WF3-8GC |
| Processor Count | 1 |
| Memory Clock Speed | 14000 MHz |
| Graphics Coprocessor | NVIDIA GeForce RTX 2070 |
| Graphics Card Ram Size | 8 GB |
| Graphics Card Interface | PCI-E |
| Number of USB 2.0 Ports | 1 |
| Wattage | 650 Watts |
| Are Batteries Included | No |
| Included Components | GRAPHIC CARD, USERS MANUAL |
| Manufacturer | Gigabyte |
| Item Weight | 921 g |
