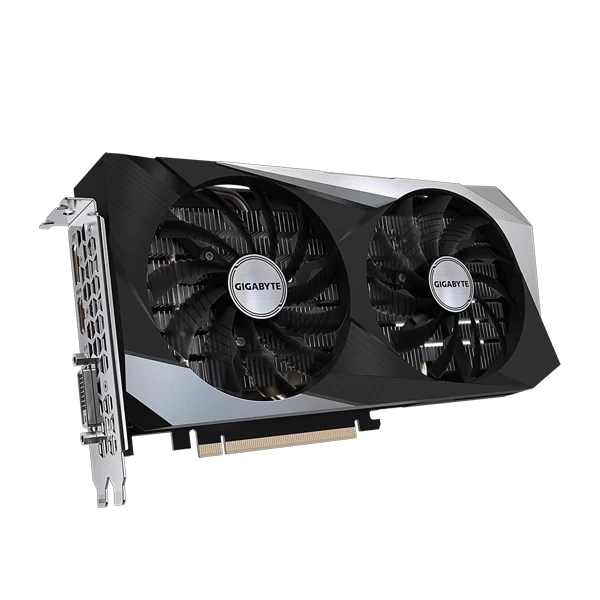

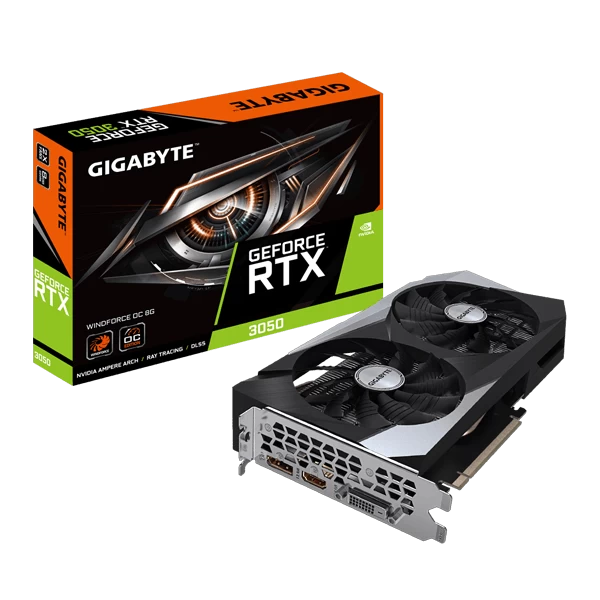

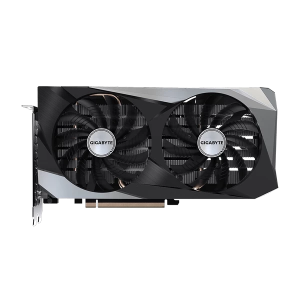

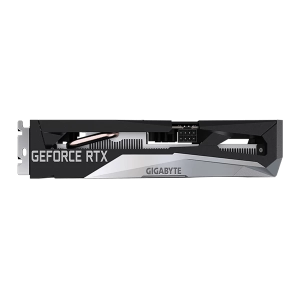

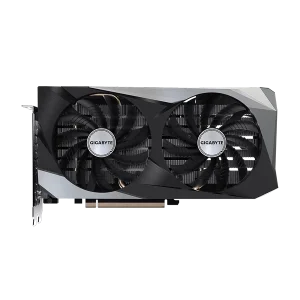

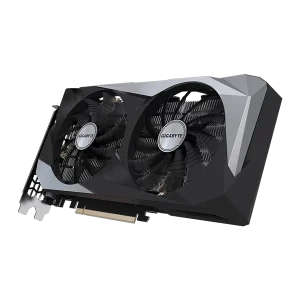

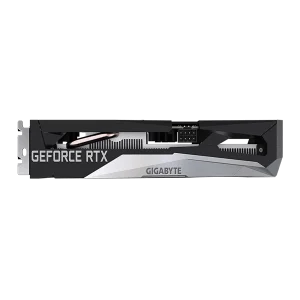

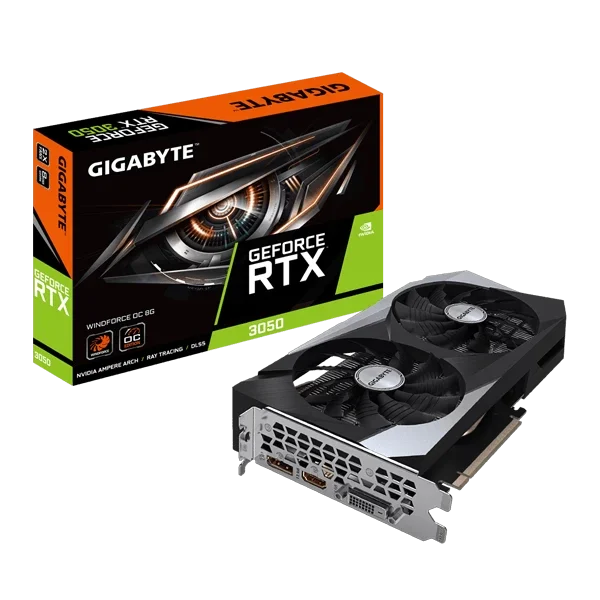

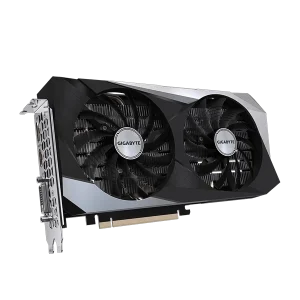

Features of GIGABYTE GeForce RTX 3050 WindForce OC
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3050
- Integrated with 8GB GDDR6 128-bit memory interface
- WINDFORCE Cooling System
- Protection back plate

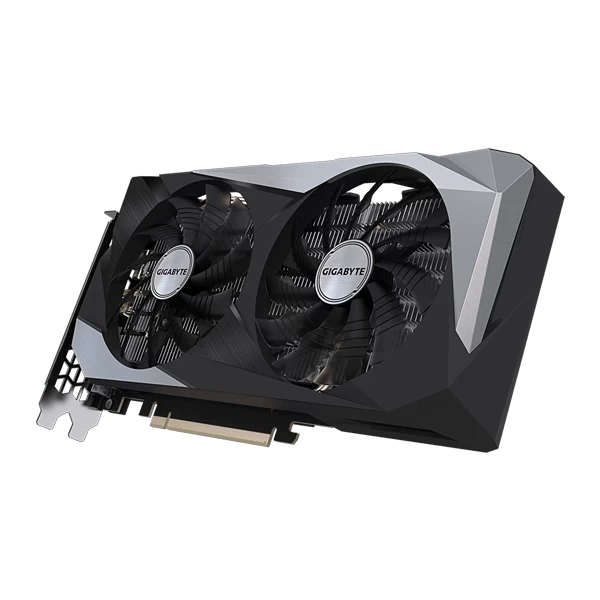

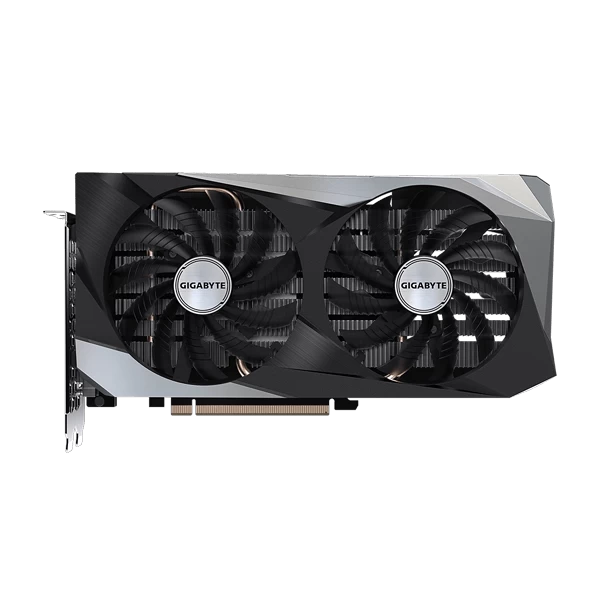

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system of the GIGABYTE GeForce rtx 3050 WindForce OC Nvidia graphics card for pc features two 100mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. gigabyte rtx 3050 turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
ULTRA DURABLE
-
ULTRA COOLING
Lower RDS MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
-
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
-
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

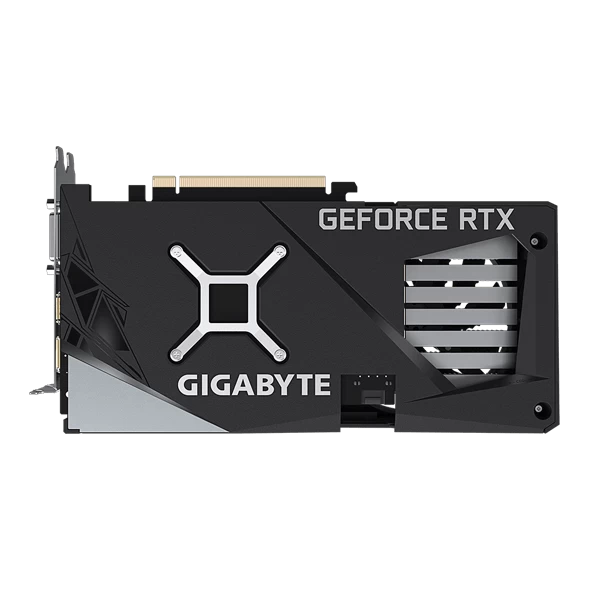

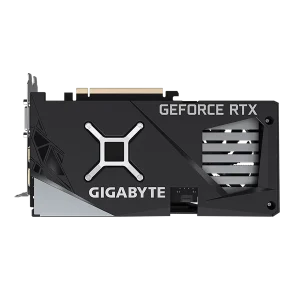

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

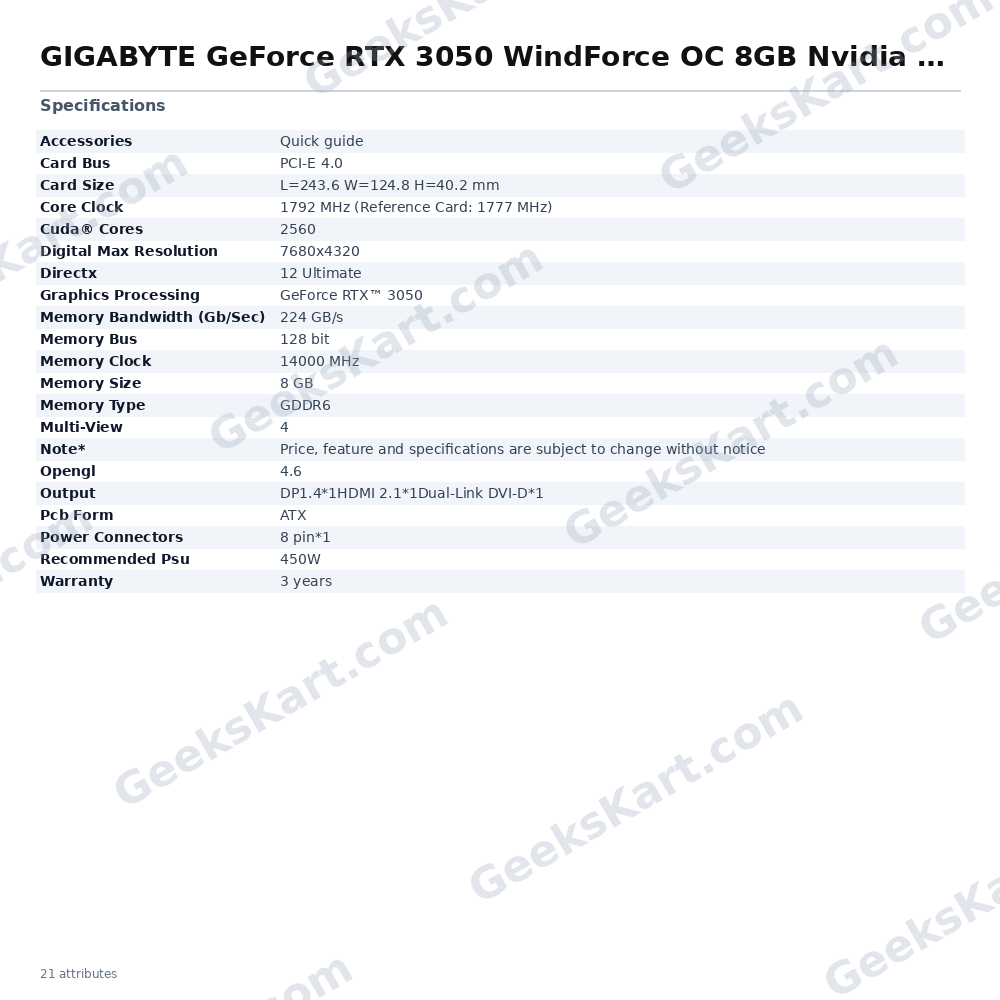

Specifications of GIGABYTE GeForce RTX 3050 WindForce OC
| Graphics Processing | GeForce RTX™ 3050 |
| Core Clock | 1792 MHz (Reference Card: 1777 MHz) |
| CUDA® Cores | 2560 |
| Memory Clock | 14000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Memory Bandwidth (GB/sec) | 224 GB/s |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=243.6 W=124.8 H=40.2 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 450W |

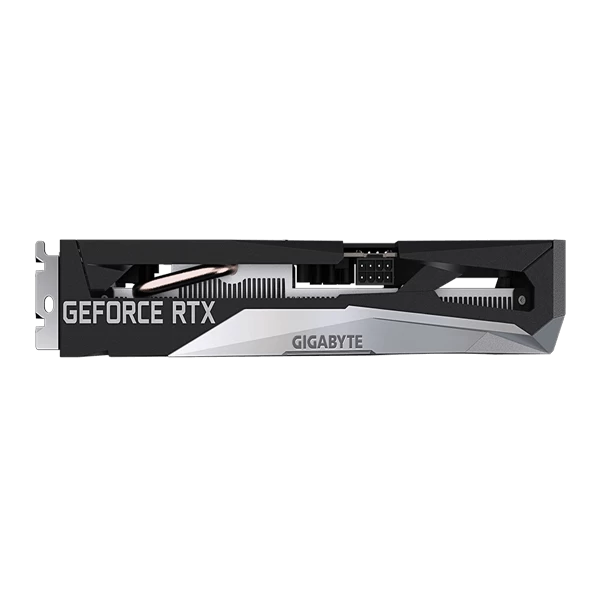

| Power Connectors | 8 pin*1 |

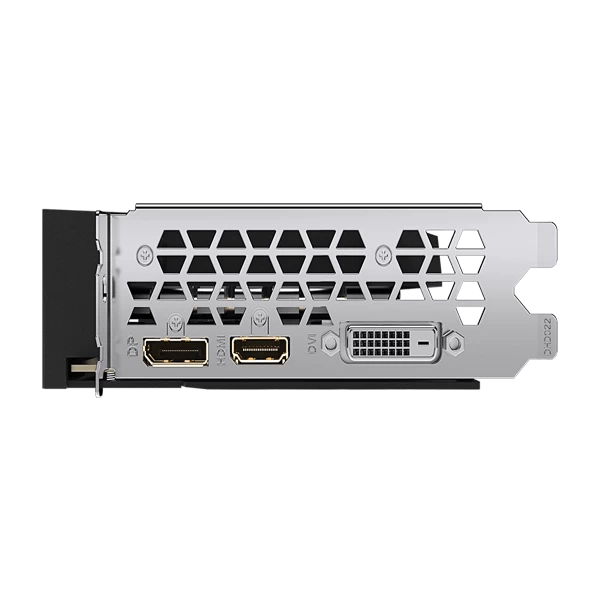

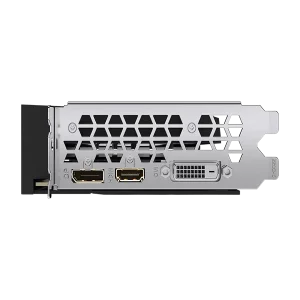

| Output | DP1.4*1 HDMI 2.1*1 Dual-Link DVI-D*1 |
| Accessories | Quick guide |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice. |
