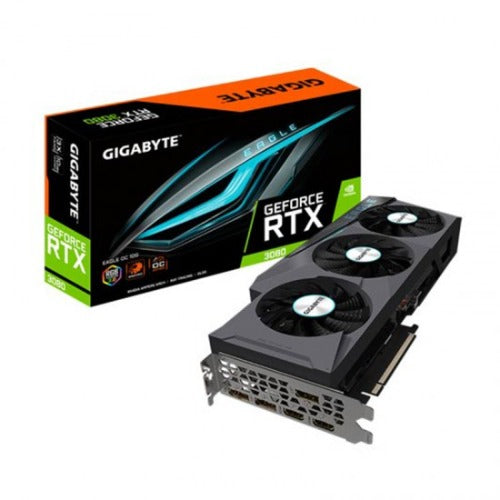

Features of GIGABYTE GeForce RTX 3080 Eagle OC 10GB Nvidia Graphic Card
CREATE YOUR WORK FASTER THAN EVER
Powerful GIGABYTE GeForce RTX 3080 Eagle OC 10GB Nvidia graphics card for pc accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING、3D ANIMATION、PHOTOGRAPHY、GRAPHIC DESIGN、ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3080
- Integrated with 10GB GDDR6X 320-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0
- Protection metal back plate

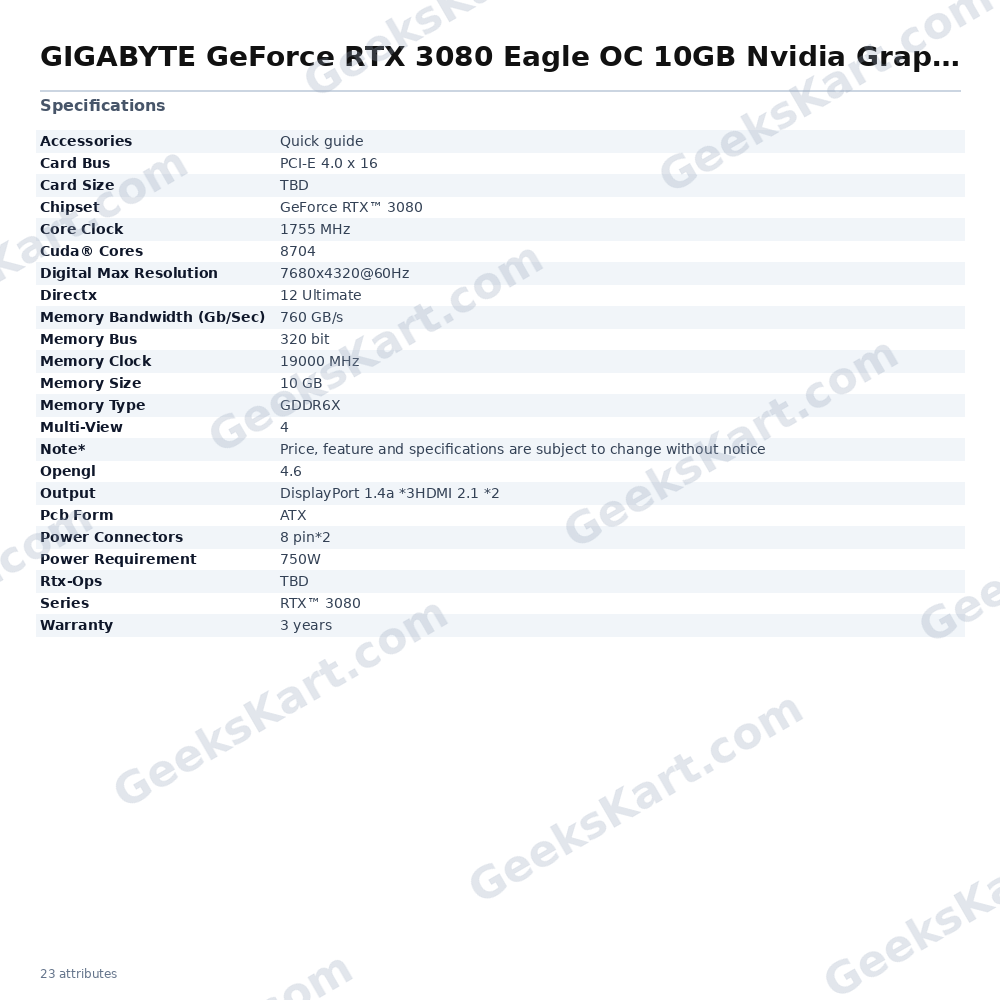

Specifications of GIGABYTE GeForce RTX 3080 Eagle OC 10GB Nvidia Graphic Card
| Chipset | GeForce RTX™ 3080 |
| MEMORY SIZE | 10 GB |
| Core Clock | 1755 MHz |
| RTX-OPS | TBD |
| MEMORY TYPE | GDDR6X |
| CUDA® Cores | 8704 |
| Memory Clock | 19000 MHz |
| Memory Bus | 320 bit |
| Memory Bandwidth (GB/sec) | 760 GB/s |
| SERIES | RTX™ 3080 |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680×4320@60Hz |
| Multi-view | 4 |
| Card size | TBD |
| PCB Form | ATX |
| CHIPSET | NVIDIA GeForce |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Power requirement | 750W |
| Power Connectors | 8 pin*2 |
| Output | DisplayPort 1.4a *3 HDMI 2.1 *2 |
| SLI support | N/A |
| Accessories | Quick guide |
| WARRANTY | 3 years |
| Note* | Price, feature and specifications are subject to change without notice. |
