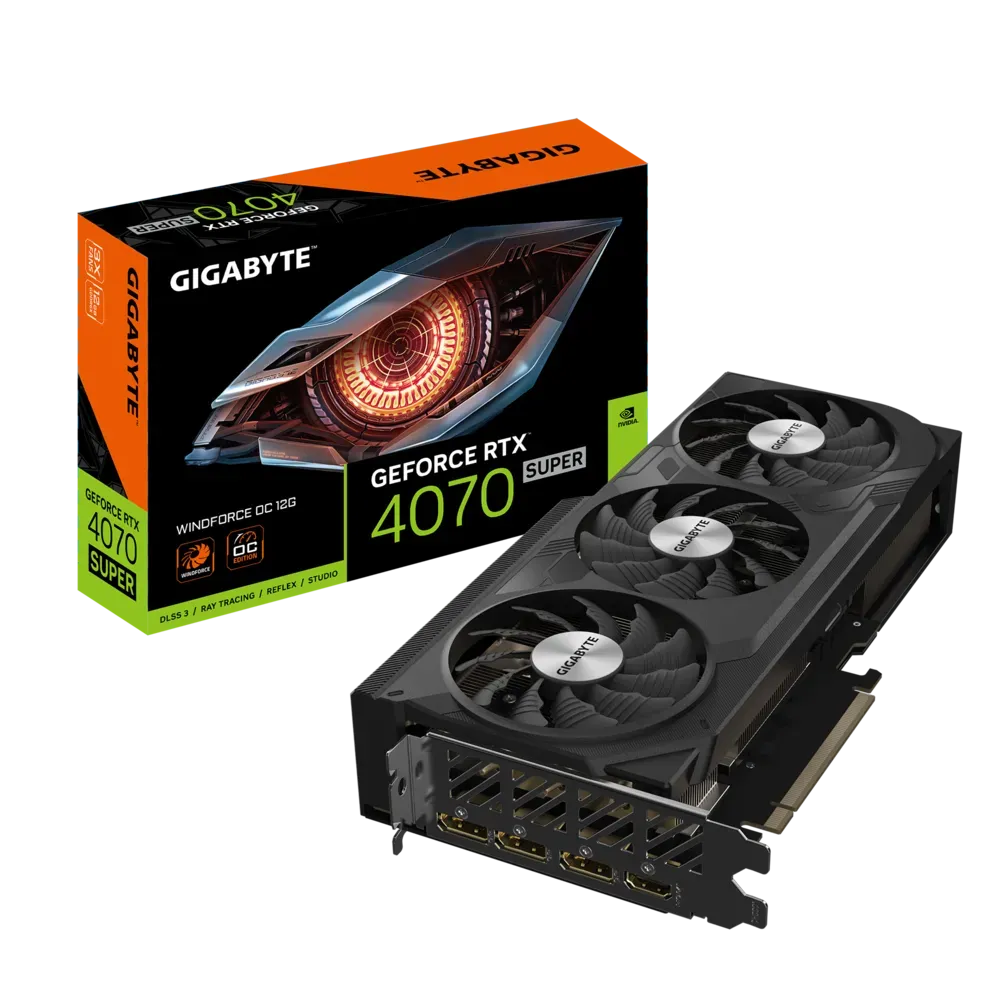

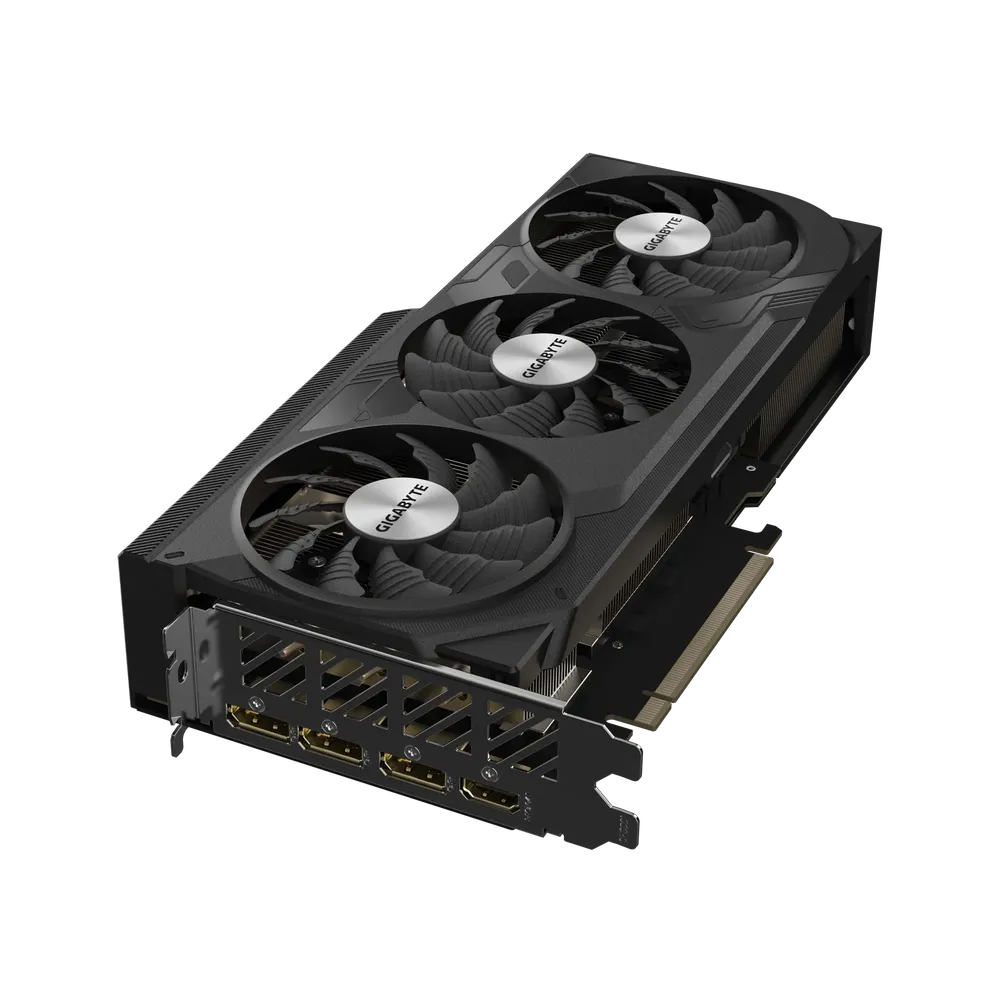

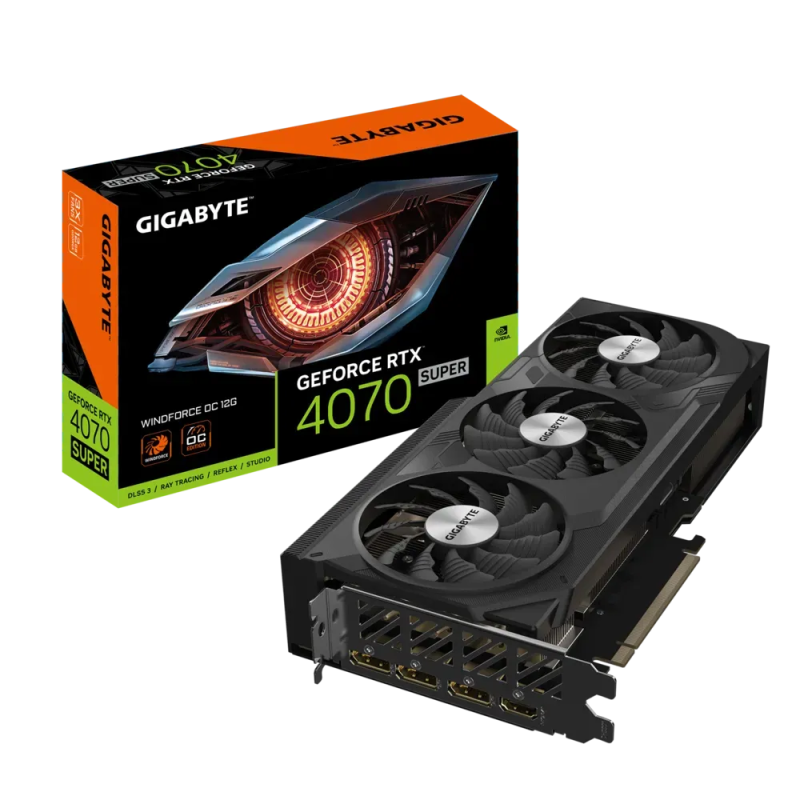

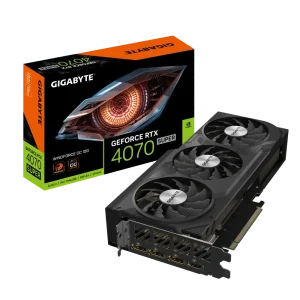

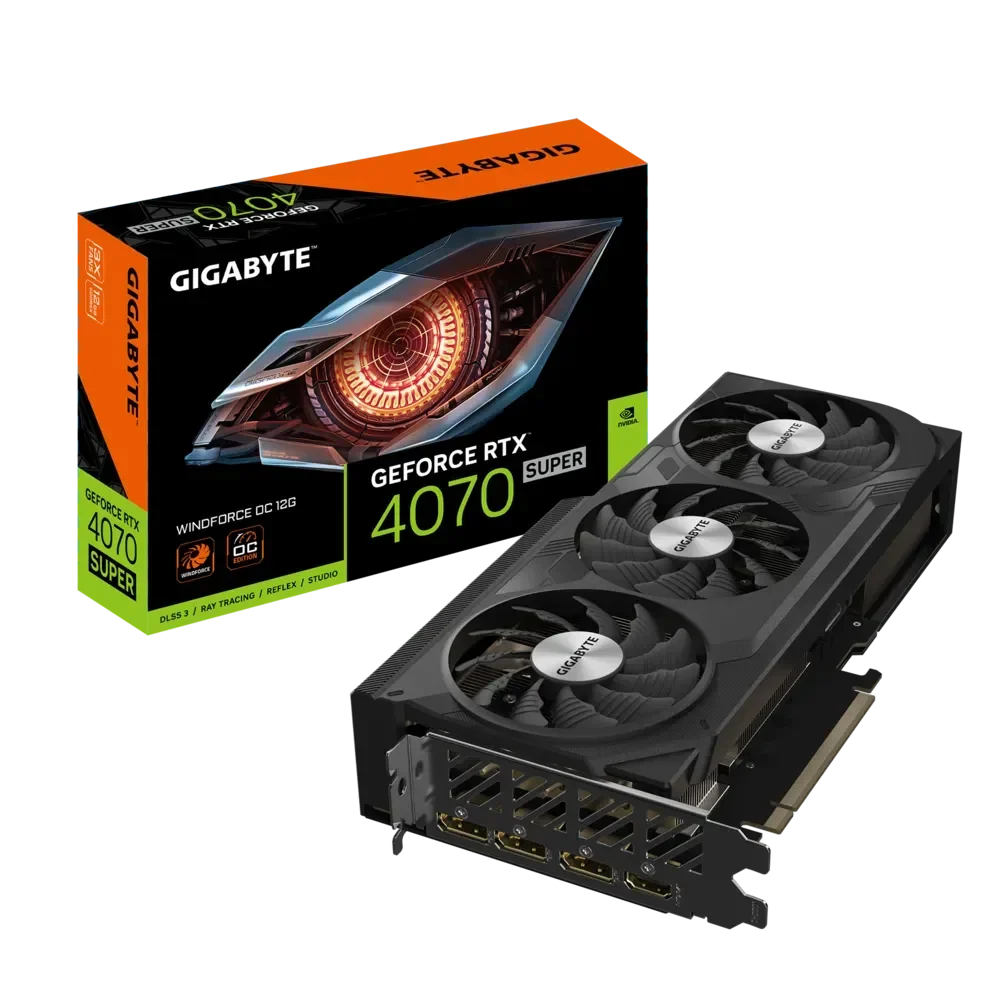

GIGABYTE GeForce RTX 4070 Super Windforce OC 12GB Nvidia Graphic Card
MPN GIGABYTE-RTX-4070-SUPER-WINDFORCE-OC · Brand Gigabyte
Features Of GIGABYTE GeForce RTX 4070 Super Windforce OC Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2X ray tracing performance Powered by GIGABYTE GeForce RTX 4070 Super Windforce OC graphics card for pc Integrated with 12GB GDDR6X 192bit memory interface WINDFORCE Cooling System Protection metal back plate WINDFORCE COOLING SYSTEM The WIND
Inclusive of GST · GST invoice available
Overview
Features Of GIGABYTE GeForce RTX 4070 Super Windforce OC
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GIGABYTE GeForce RTX 4070 Super Windforce OC graphics card for pc
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE Cooling System
- Protection metal back plate
WINDFORCE
COOLING SYSTEM

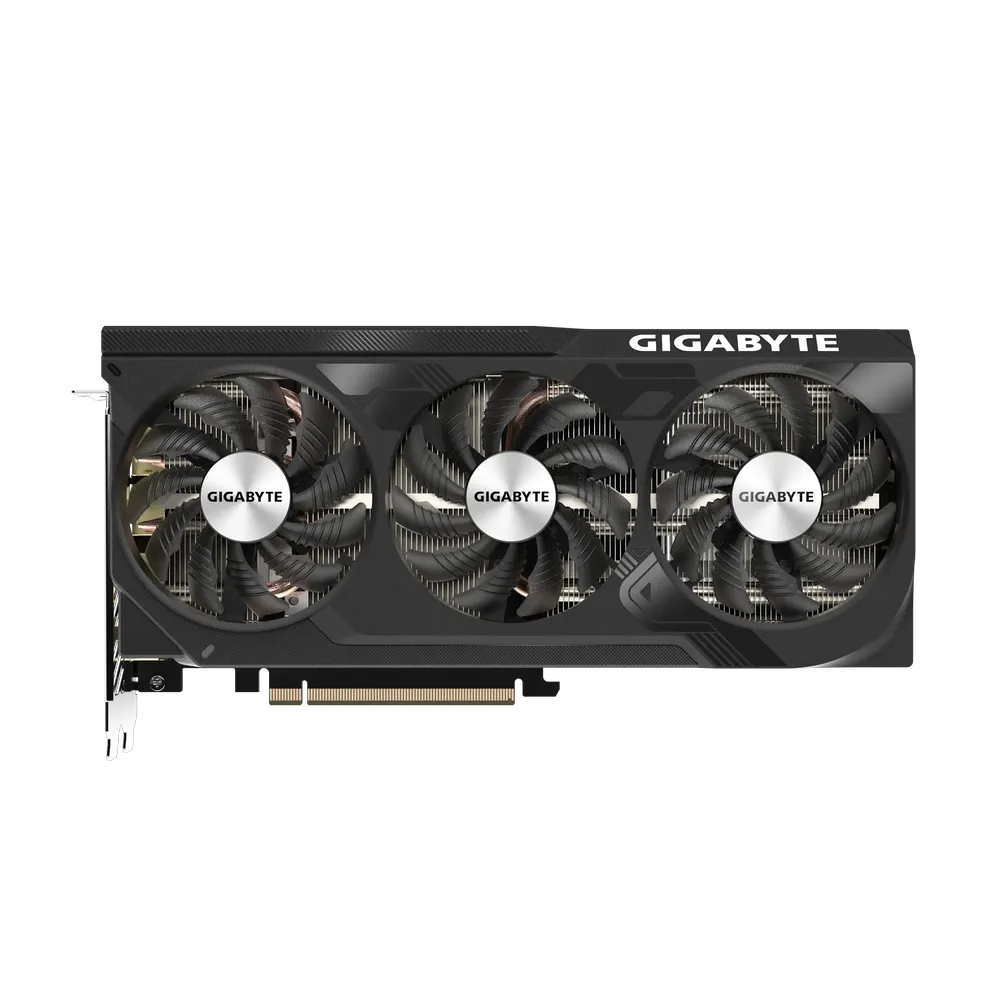

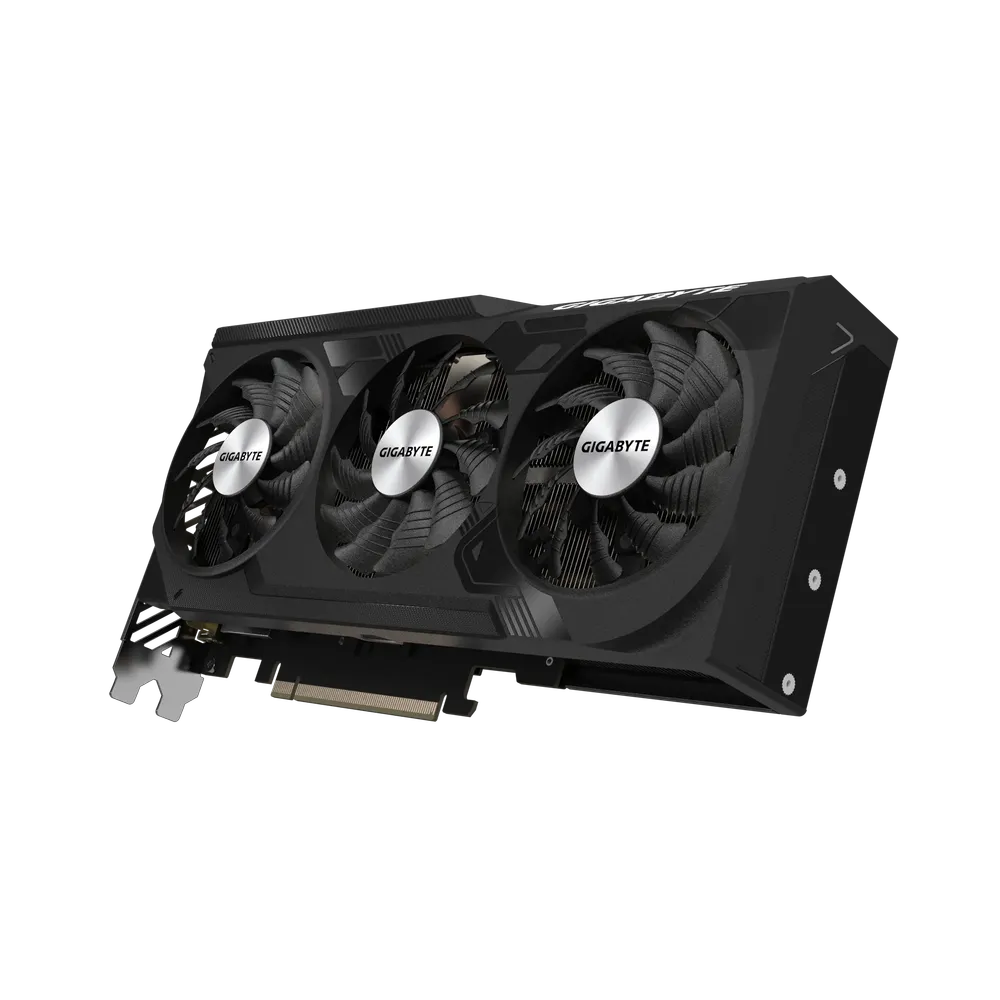

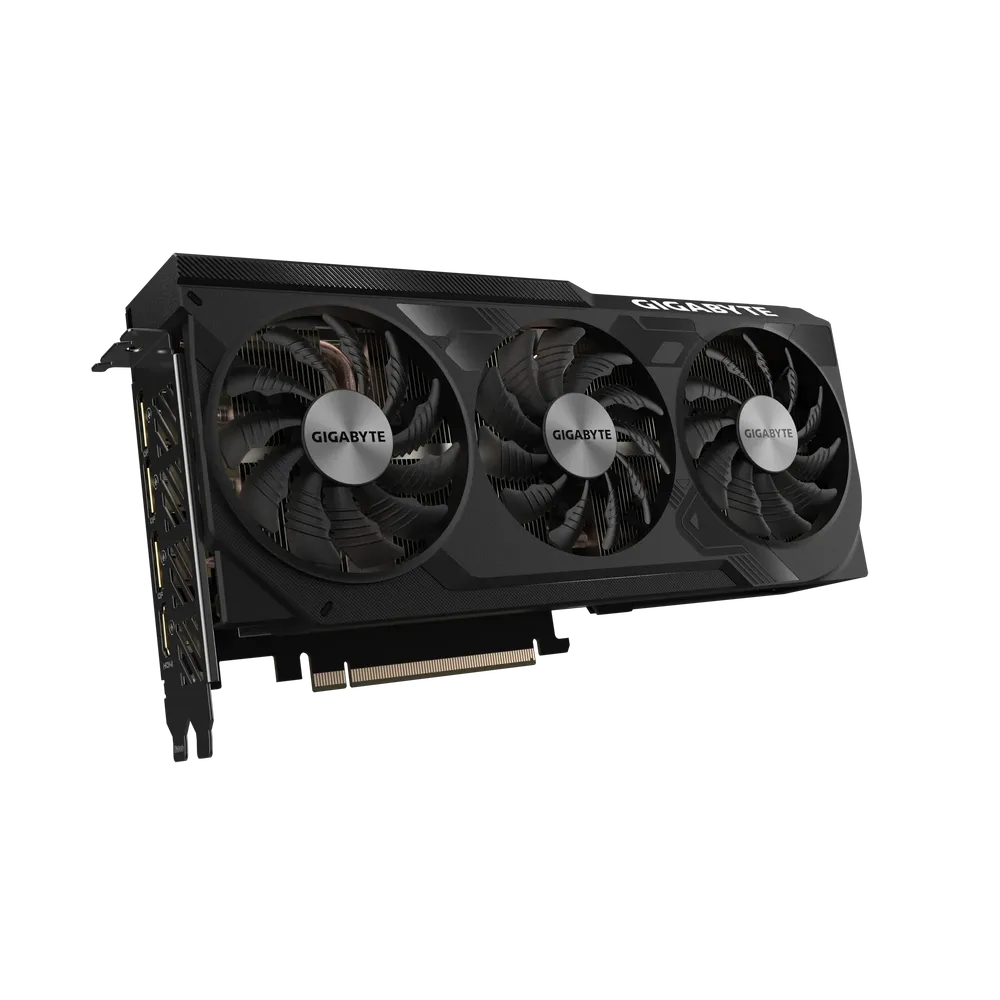

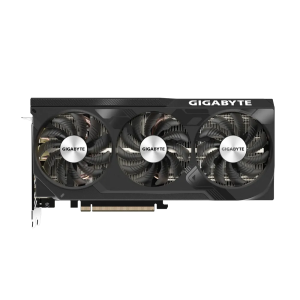

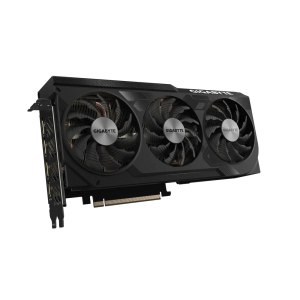

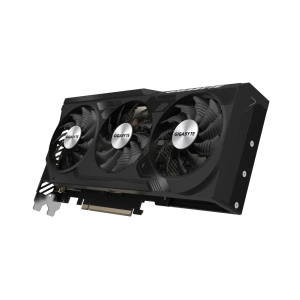

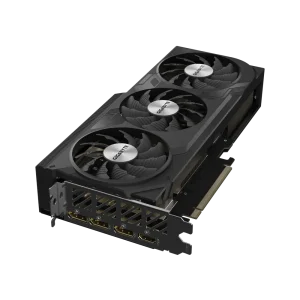

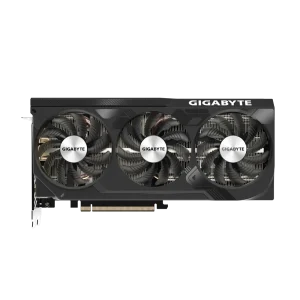

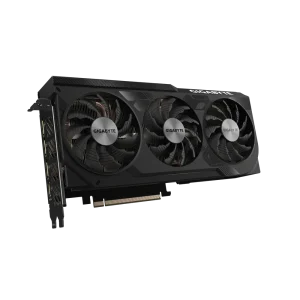

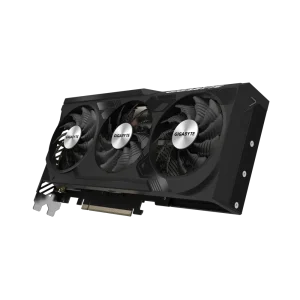

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
SCREEN COOLING

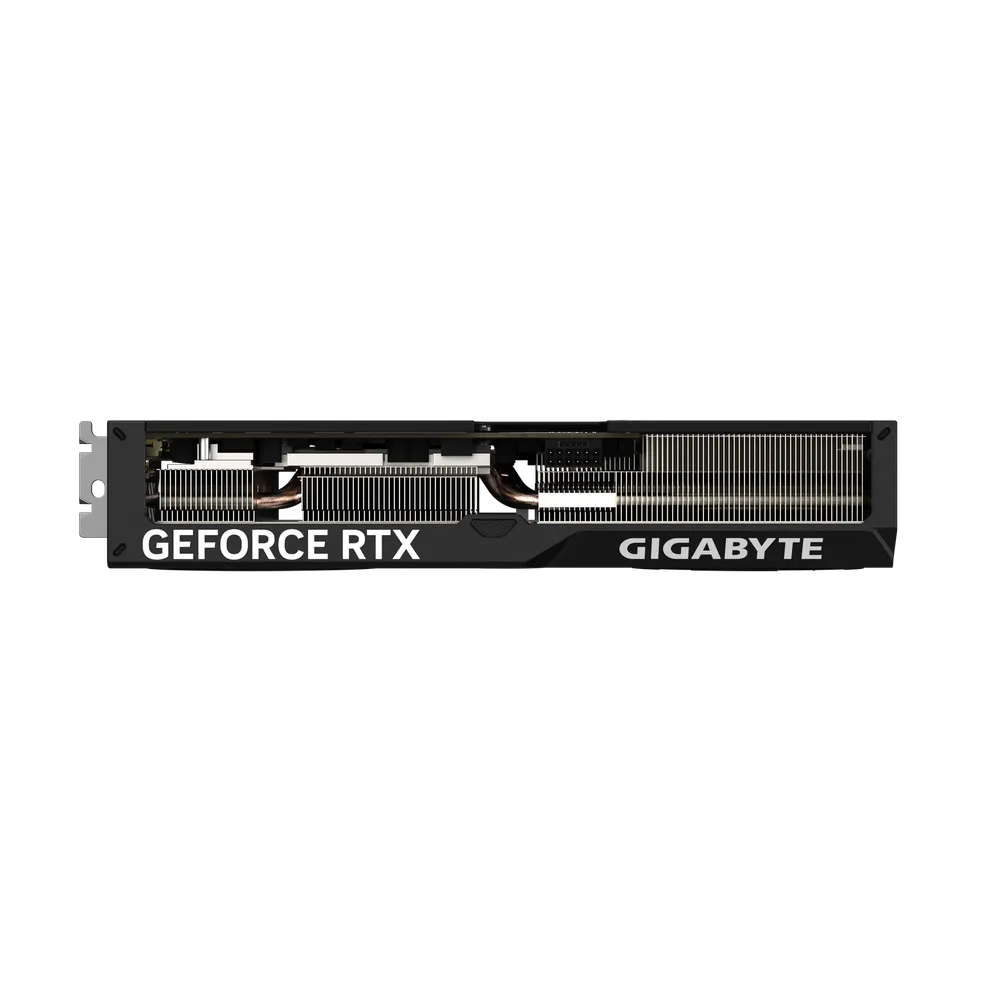

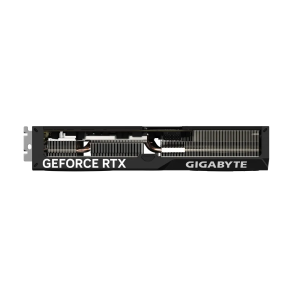

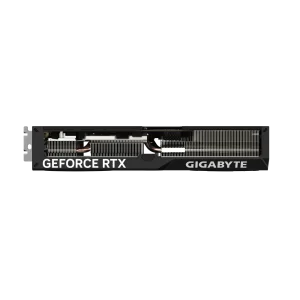

Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

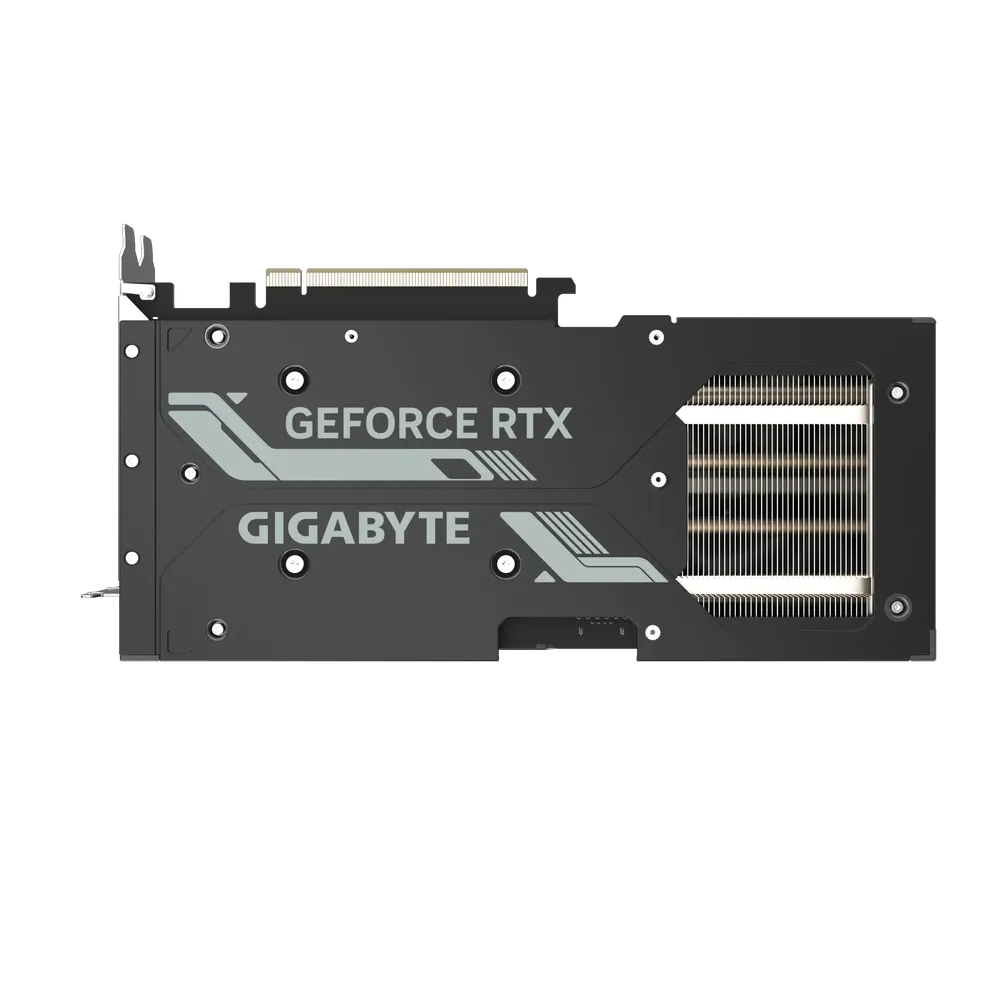

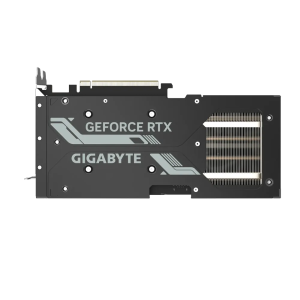

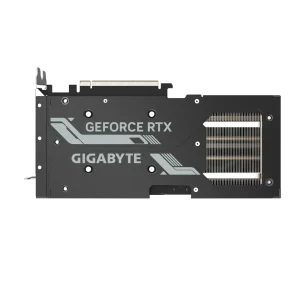

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
Specifications Of GIGABYTE GeForce RTX 4070 Super Windforce OC
| Graphics Processing | GeForce RTX™ 4070 SUPER |
| Core Clock | 2505 MHz (Reference card: 2475 MHz) |
| CUDA® Cores | 7168 |
| Memory Clock | 21 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6X |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=261 W=126 H=50 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 700W |
| Power Connectors | 16 pin*1 |

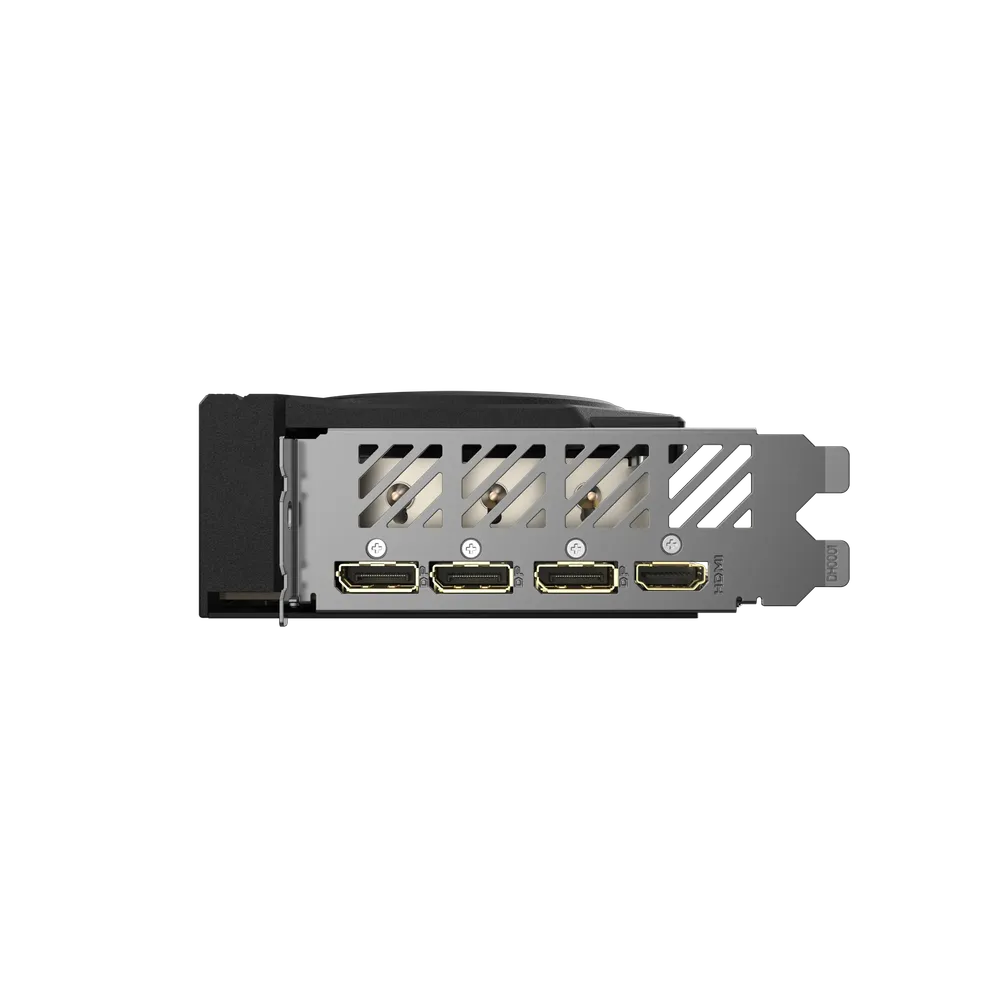

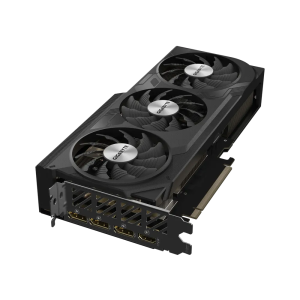

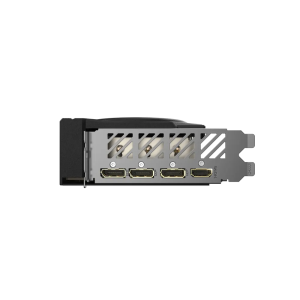

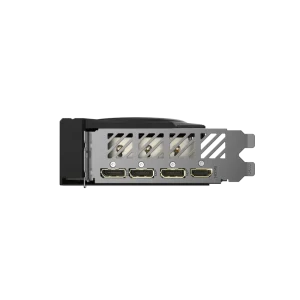

| Output | DisplayPort 1.4a *3 HDMI 2.1a *1 |
| Accessories | 1. Quick guide 2. One 16-pin to two 8-pin power adaptor |
Datasheet
| Opengl | 4.6 |
|---|---|
| Output | DisplayPort 1.4a *3 HDMI 2.1a *1 |
| Directx | 12 Ultimate |
| Card Bus | PCI-E 4.0 |
| Pcb Form | ATX |
| Card Size | L=261 W=126 H=50 mm |
| Core Clock | 2505 MHz (Reference card: 2475 MHz) |
| Memory Bus | 192 bit |
| Multi-View | 4 |
| Accessories | 1. Quick guide2. One 16-pin to two 8-pin power adaptor |
| Cuda® Cores | 7168 |
| Power Connectors | 16 pin*1 |
| Graphics Processing | GeForce RTX™ 4070 SUPER |
| Digital Max Resolution | 7680×4320 |
| Memory Type | GDDR6X |
| Memory Size | 12 GB |
| Memory Clock | 21 Gbps |
| Recommended PSU | 700W |
