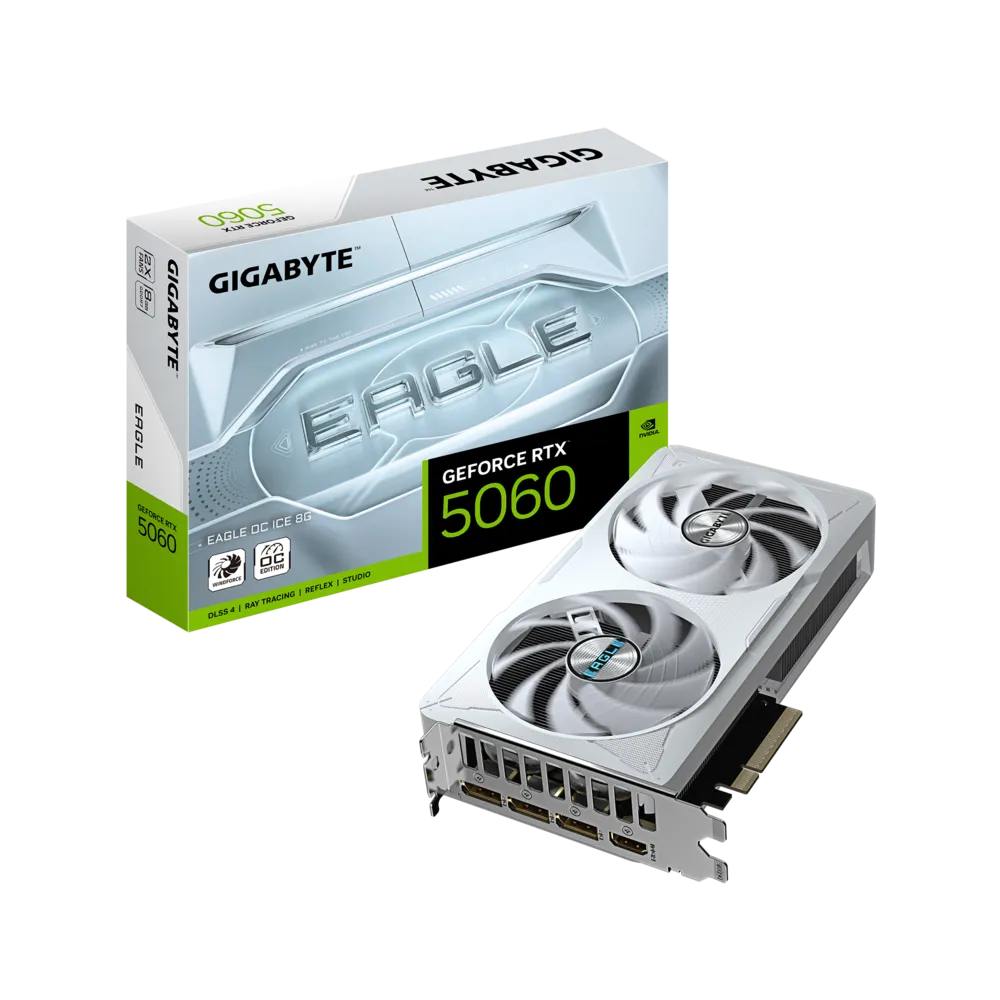

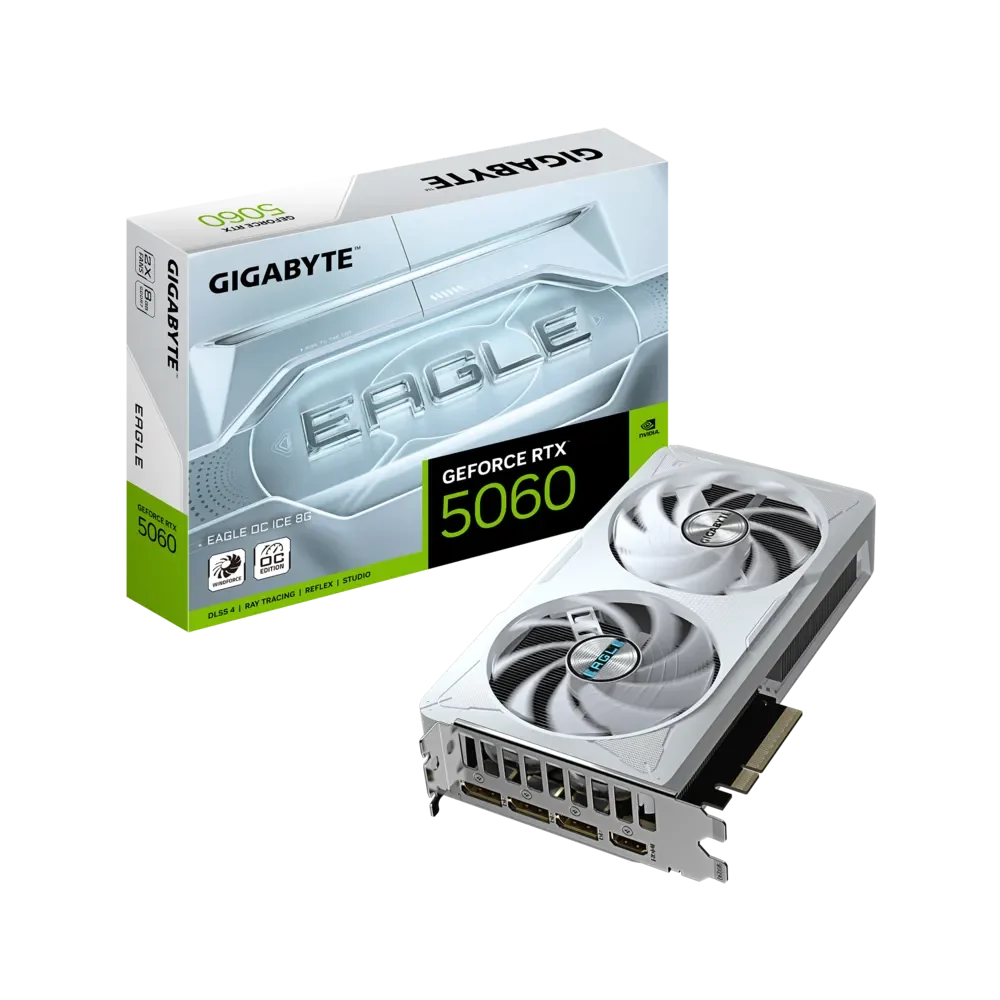

GIGABYTE GeForce RTX 5060 Eagle OC ICE 8GB NVIDIA Graphic Card

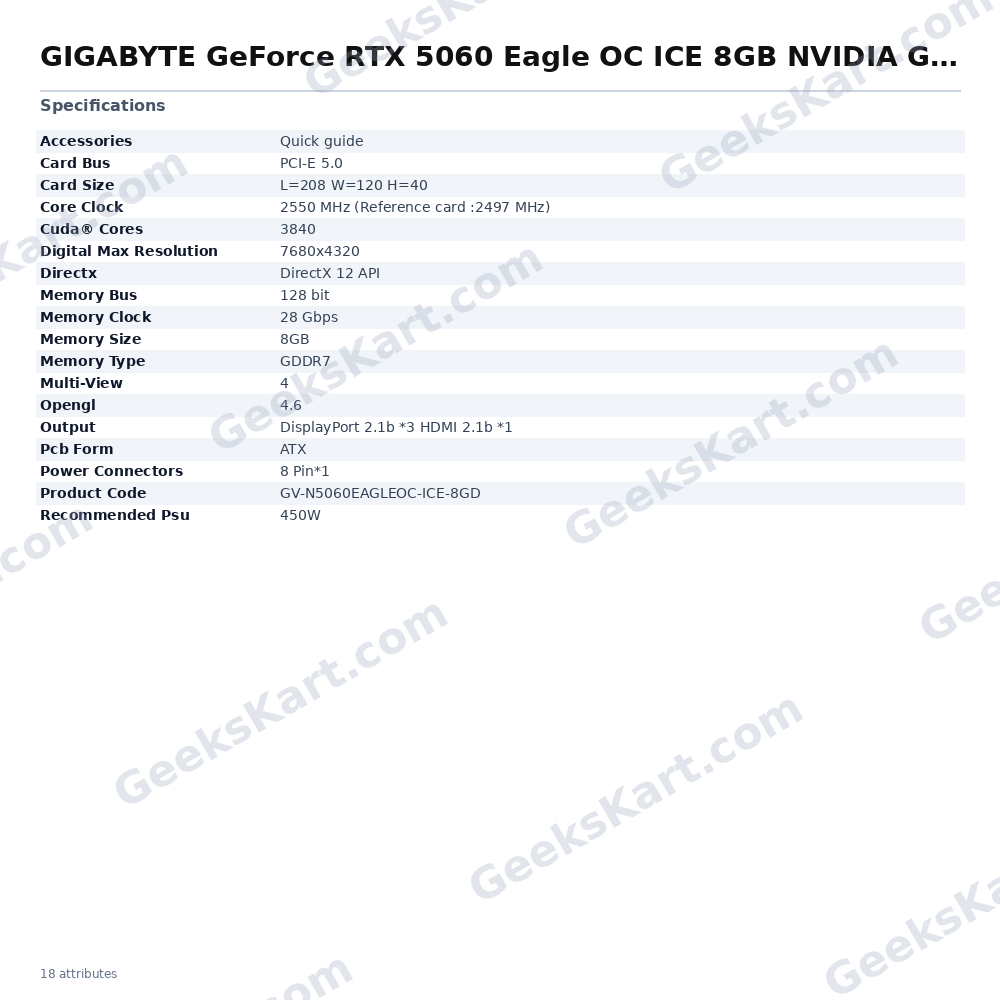

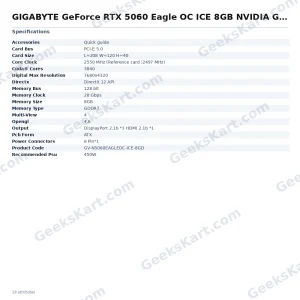

The GIGABYTE GeForce RTX 5060 Eagle OC ICE 8GB (model GV-N5060EAGLEOC-ICE-8GD) is a factory-overclocked NVIDIA Blackwell-architecture graphics card designed for gamers and content creators who want capable 1080p and 1440p performance in a clean white aesthetic. The card ships with 3840 CUDA cores and a boost clock of 2550 MHz — up from the reference specification of 2497 MHz — giving a measured factory overclock out of the box. Memory is 8 GB of GDDR7 operating at 28 Gbps across a 128-bit bus, delivering strong bandwidth for the segment. The interface is PCI Express 5.0, ensuring the card is ready for current and near-future platforms. Four display outputs are provided: three DisplayPort 2.1b and one HDMI 2.1b, with support for up to four simultaneous monitors and a maximum digital resolution of 7680×4320 (8K). API support covers DirectX 12 and OpenGL 4.6. GIGABYTE’s WINDFORCE cooling system anchors the thermal solution. Hawk Fans with an eagle-wing-inspired blade geometry are said to increase air pressure by up to 53.6% and air volume by up to 12.5% compared to conventional fan designs, according to GIGABYTE’s published specifications. Adjacent fans use alternate spinning to reduce turbulence and improve overall airflow pressure. The 3D Active Fan feature allows the fans to stop completely under light or idle loads, contributing to quieter operation in everyday desktop use. A copper plate makes direct contact with the GPU die, paired with composite copper heat pipes that carry heat efficiently to the heatsink array. Server-grade thermal conductive gel — rather than conventional thermal pads — is applied to VRAM and MOSFETs for reliable long-term contact even after transport vibration. Fan longevity is addressed through graphene nano lubricant in the sleeve bearings, which GIGABYTE states extends bearing life by approximately 2.1 times versus standard lubrication, approaching the service life of double-ball-bearing fans. The card supports fifth-generation Tensor Cores with FP4 precision for AI-accelerated workloads and DLSS 4, plus fourth-generation Ray Tracing Cores and new Streaming Multiprocessors optimised for neural shader techniques. GIGABYTE Control Center (GCC) software allows real-time tuning of clock speed, voltage, fan curves, and power targets. Verified Specifications: • Model: GV-N5060EAGLEOC-ICE-8GD • CUDA Cores: 3840 • Boost Clock: 2550 MHz (reference: 2497 MHz) • Memory: 8 GB GDDR7, 28 Gbps, 128-bit bus • Interface: PCI-E 5.0 • Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max Resolution: 7680×4320 • Multi-display: up to 4 • DirectX: 12 API | OpenGL: 4.6 • Power Connector: 1× 8-pin • Recommended PSU: 450 W • Card Dimensions: 208 mm (L) × 120 mm (W) × 40 mm (H) • PCB Form: ATX • Accessories: Quick guide
