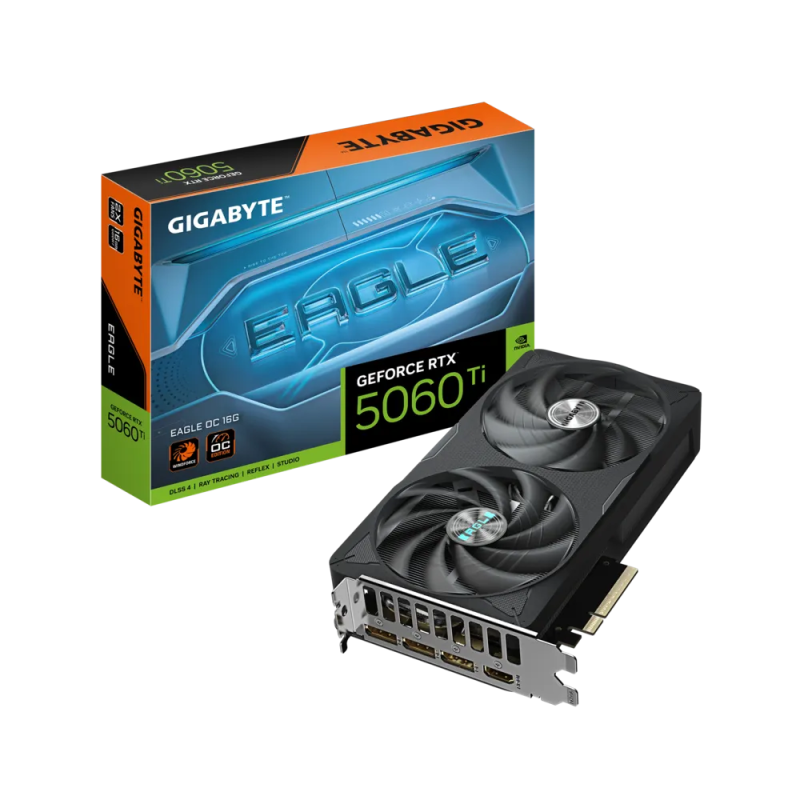

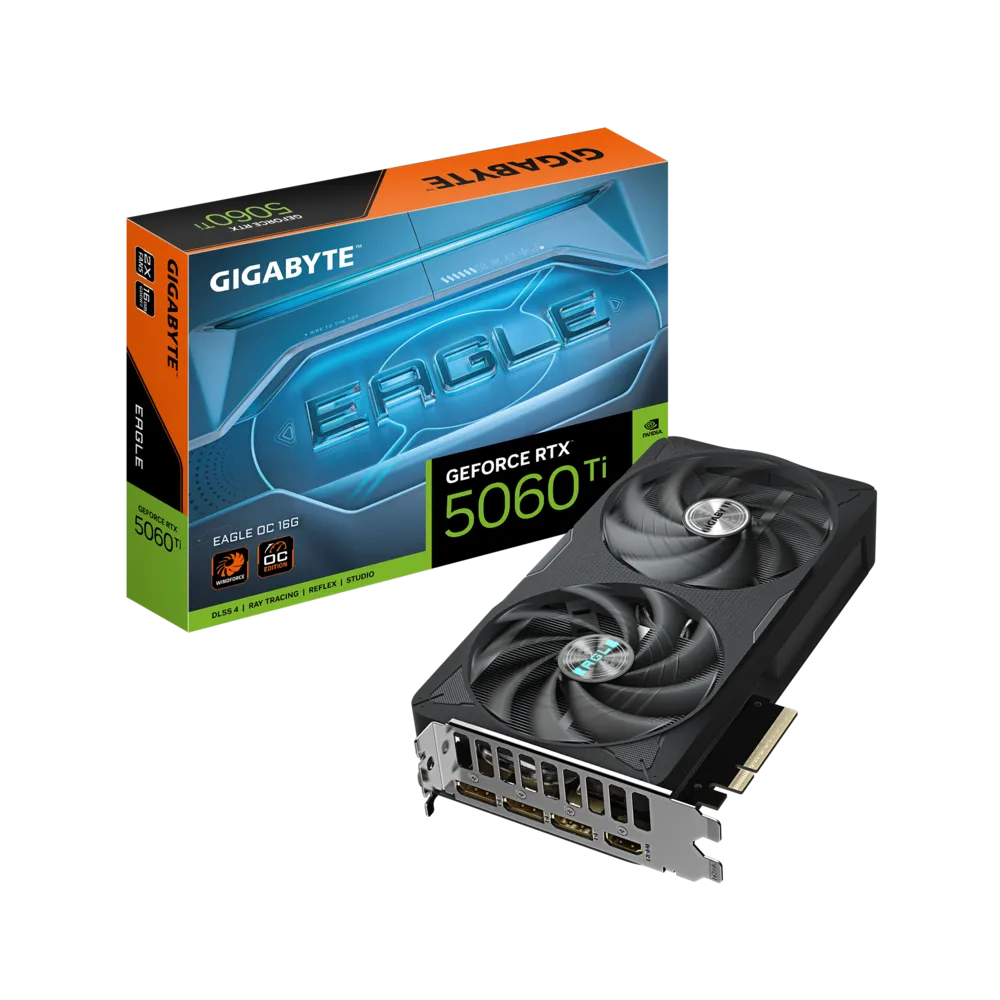

GIGABYTE GeForce RTX 5060 Ti Eagle OC 16GB Nvidia Graphic Card

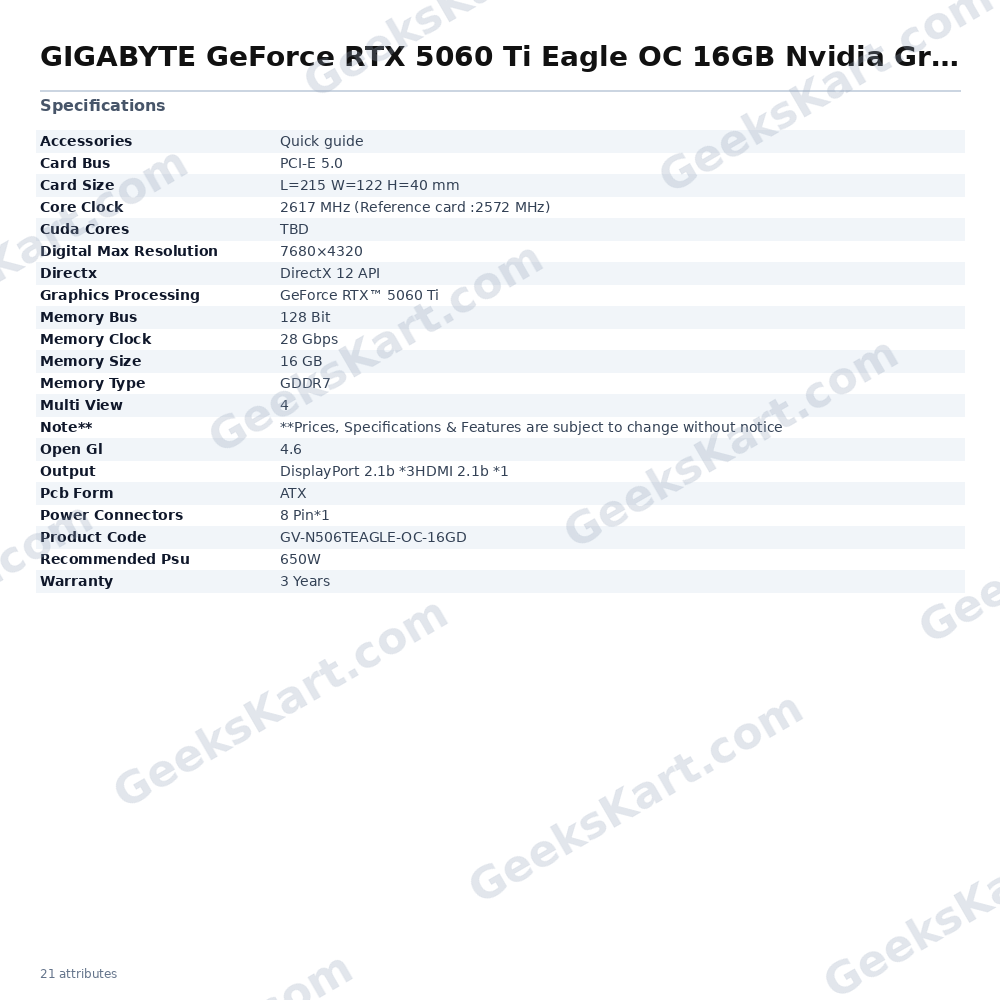

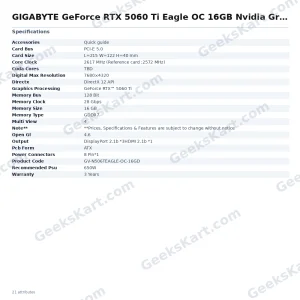

The GIGABYTE GeForce RTX 5060 Ti Eagle OC 16GB is a mid-to-high-range desktop graphics card built on NVIDIA’s Blackwell architecture. It carries the model code GV-N506TEAGLE-OC-16GD and ships with 16 GB of GDDR7 memory across a 128-bit bus running at 28 Gbps effective speed. The factory-overclocked core reaches 2617 MHz boost, surpassing NVIDIA’s reference specification of 2572 MHz. The card connects via a PCI Express 5.0 x16 slot and outputs to up to four displays simultaneously through three DisplayPort 2.1b and one HDMI 2.1b connector, supporting a digital maximum resolution of 7680×4320. A single 8-pin power connector and a minimum 650 W PSU are recommended. The card measures 215 mm (L) × 122 mm (W) × 40 mm (H) in ATX form factor. GIGABYTE’s WINDFORCE cooling system underpins thermal management. Hawk fans — whose blade profile draws on eagle-wing aerodynamics — operate in alternate-spin mode to reduce inter-fan turbulence. The 3D Active Fan feature keeps the fans off under low GPU load, reducing noise during light workloads. Bearings are lubricated with graphene nano lubricant, which GIGABYTE states extends sleeve-bearing life by approximately 2.1×. A copper plate contacts the GPU die directly, feeding heat into composite copper heat pipes that route it to the fin stack. Screen cooling extends the heatsink to allow through-air dissipation. For VRAM and MOSFETs, server-grade thermal conductive gel replaces conventional thermal pads, providing deformation resistance during transport and long-term use. A reinforced metal backplate with bent-edge fastening to the I/O bracket adds structural integrity. On the software side, GIGABYTE Control Center (GCC) lets users adjust clock speed, voltage, fan curves, and power target in real time. The card supports DirectX 12 API and OpenGL 4.6, and leverages DLSS 4 via fifth-generation Tensor Cores with FP4 precision, plus fourth-generation Ray Tracing Cores designed for Mega Geometry workloads. New Streaming Multiprocessors are optimised for neural shaders. Verified Specifications: • GPU: GeForce RTX 5060 Ti (Blackwell) • Memory: 16 GB GDDR7, 128-bit bus, 28 Gbps • Boost clock: 2617 MHz (OC) / 2572 MHz (reference) • Interface: PCI-E 5.0 • Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max resolution: 7680×4320 • Power connector: 1× 8-pin • Recommended PSU: 650 W • Dimensions: 215 × 122 × 40 mm • APIs: DirectX 12, OpenGL 4.6 • Warranty: 3 years
