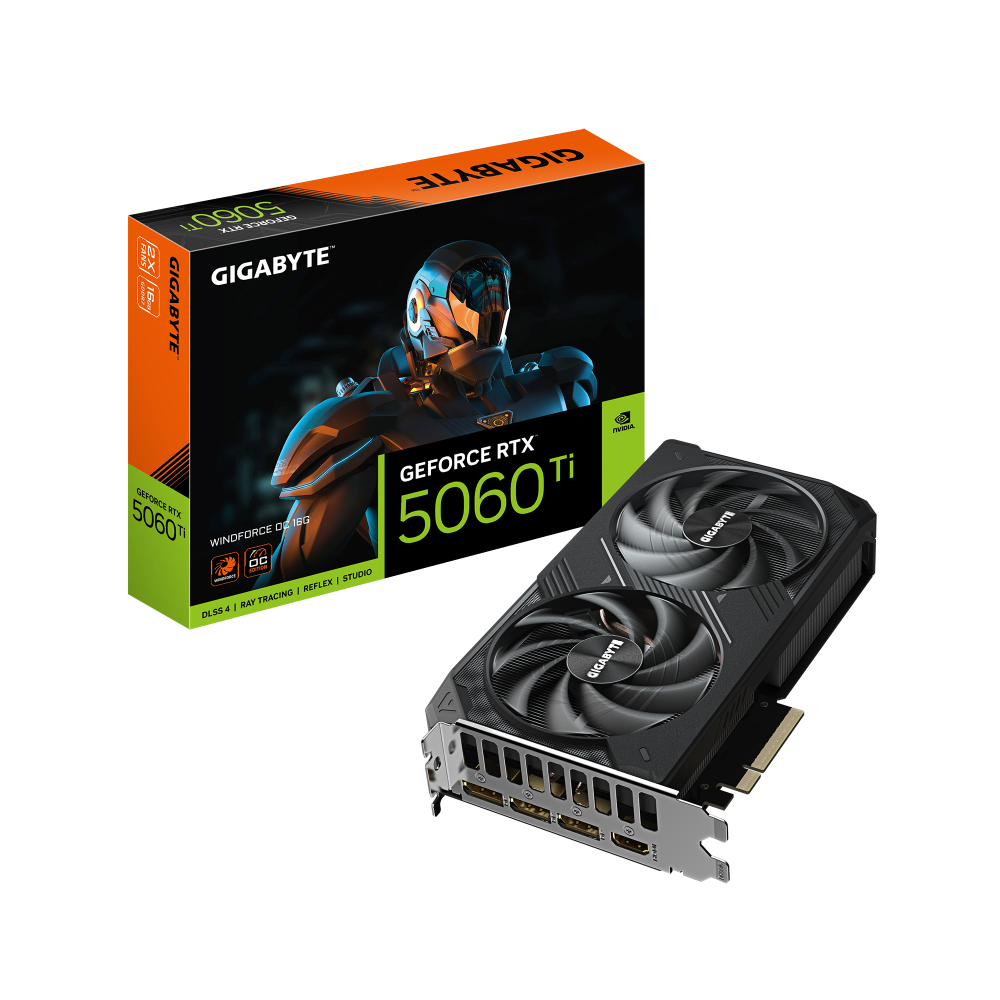

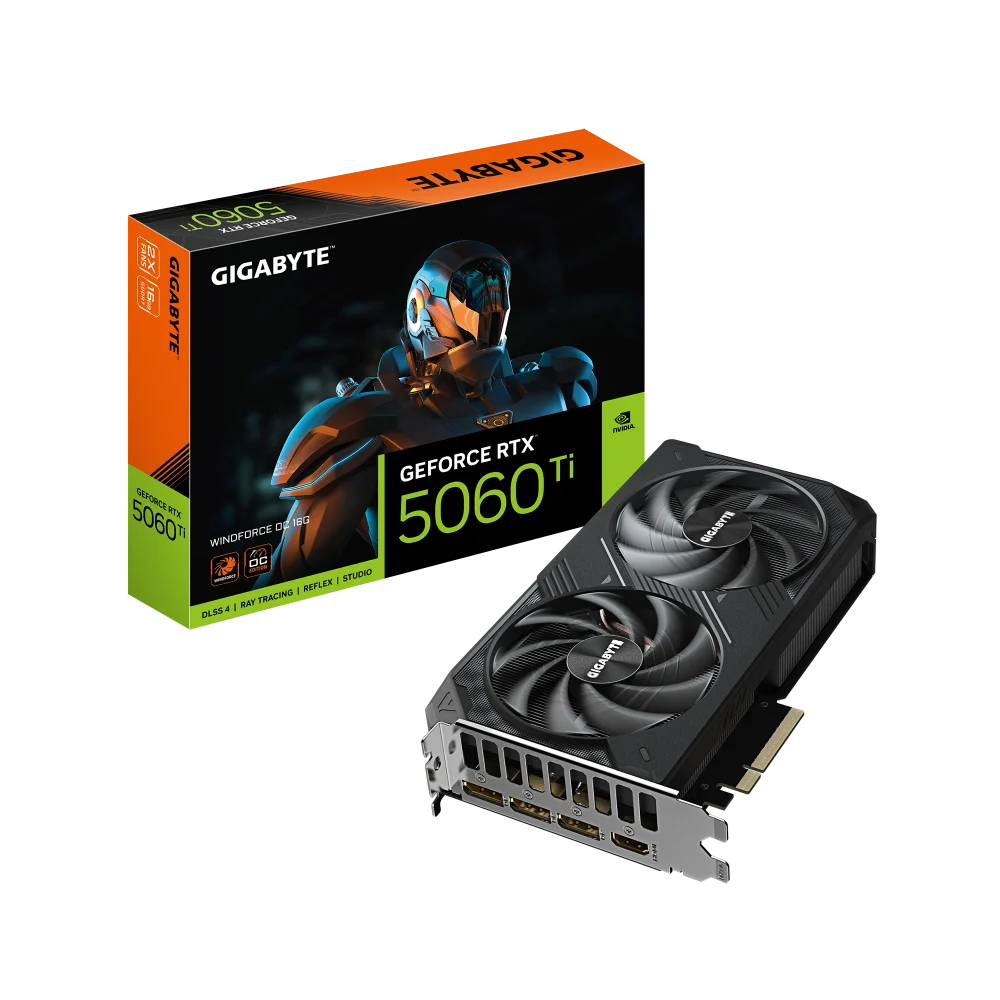

GIGABYTE GeForce RTX 5060 Ti Windforce OC 16GB Nvidia Graphic card

The GIGABYTE GeForce RTX 5060 Ti Windforce OC 16GB (model GV-N506TWF2OC-16GD) is a factory-overclocked graphics card built on the NVIDIA GeForce RTX 5060 Ti GPU. With a boost clock of 2587 MHz — 15 MHz above the 2572 MHz reference specification — it offers a modest but measurable frequency advantage straight out of the box, without requiring manual tuning. At the heart of the card's thermal design is GIGABYTE's WINDFORCE cooling system, which combines several complementary technologies. Three Hawk fans feature a blade profile modelled on eagle-wing aerodynamics, and adjacent fans spin in alternate directions to reduce inter-fan turbulence and maintain consistent airflow pressure. The 3D Active Fan feature allows all fans to stop completely when the GPU is under light load or low-power workloads, reducing noise during everyday desktop use. A copper base plate makes direct contact with the GPU die, while composite copper heat pipes carry heat rapidly to an extended aluminium heatsink that incorporates screen-cooling cutouts to let air pass through the fin stack. Server-grade thermal conductive gel — a highly deformable, non-fluid compound — is applied to the VRAM and MOSFET regions to ensure reliable contact even on uneven surfaces, and GIGABYTE states it resists deformation from vibration or prolonged use better than traditional thermal pads. Fan bearings are treated with graphene nano lubricant, which GIGABYTE claims extends sleeve-bearing lifespan by approximately 2.1 times compared to unlubricated bearings. The card ships with 16 GB of GDDR7 memory on a 128-bit bus running at an effective 28 Gbps, yielding a theoretical memory bandwidth of 448 GB/s. The interface is PCI Express 5.0, and the card supports up to four simultaneous displays at digital resolutions up to 7680×4320 (8K). Display outputs consist of three DisplayPort 2.1b and one HDMI 2.1b connector. A single 8-pin power connector is used, and GIGABYTE recommends a 650 W power supply. The card measures 208 mm (L) × 120 mm (W) × 40 mm (H) and uses a standard ATX PCB form factor. API support covers DirectX 12 and OpenGL 4.6. The Ultra Durable component selection — low-RDS MOSFETs, metal-core chokes, and low-ESR solid capacitors — is intended to reduce switching losses and improve longevity. A reinforced backplate is bolted to the I/O bracket for structural rigidity, and the solder-side PCB surface is finished to eliminate sharp protrusions. GIGABYTE Control Center (GCC) software provides real-time tuning of clock speed, voltage, fan mode, and power target from a single interface. Verified Specifications: • GPU: GeForce RTX 5060 Ti • Boost Clock: 2587 MHz (Reference: 2572 MHz) • CUDA Cores: Not disclosed by manufacturer at time of listing • Memory: 16 GB GDDR7, 128-bit bus, 28 Gbps effective • Interface: PCI Express 5.0 • Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max Resolution: 7680×4320 • Multi-display: Up to 4 • Power Connector: 1× 8-pin • Recommended PSU: 650 W • Dimensions: 208 mm × 120 mm × 40 mm • DirectX: 12 | OpenGL: 4.6 • Model Number: GV-N506TWF2OC-16GD
