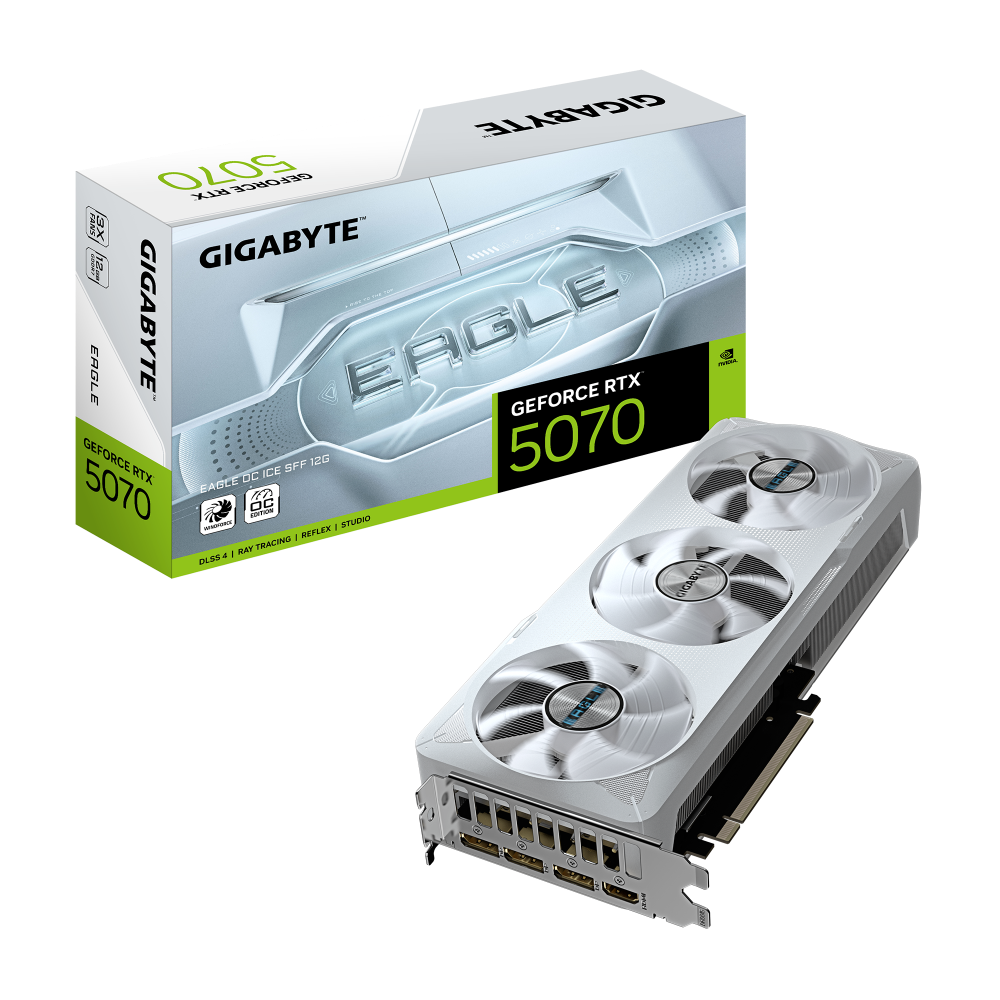

GIGABYTE GeForce RTX 5070 Eagle Ice SFF OC White 12GB Nvidia Graphic Card
MPN GV-N5070EAGLEOC ICE-12GD · Brand GIGABYTE
The GIGABYTE GeForce RTX 5070 Eagle Ice SFF OC White features 12 GB GDDR7 memory, 6,144 CUDA Cores, and NVIDIA Blackwell architecture in a compact SFF-Ready form factor with WINDFORCE cooling and RGB lighting
Inclusive of GST · GST invoice available
Overview
The GIGABYTE GeForce RTX 5070 Eagle Ice SFF OC White (Part No. GV-N5070EAGLEOC ICE-12GD) is a compact, high-performance graphics card built on the NVIDIA Blackwell architecture. Designed for small-form-factor systems while maintaining full desktop GPU capability, this card brings together cutting-edge AI rendering, powerful ray tracing, and a clean white aesthetic — making it a strong choice for both gamers and content creators who demand performance in a tighter chassis. At its core sits the GeForce RTX 5070 GPU, delivering 6,144 CUDA Cores and a factory overclocked boost clock of 2,587 MHz — higher than the reference clock of 2,512 MHz. The card is equipped with 12 GB of GDDR7 memory running at 28 Gbps across a 192-bit memory bus, providing the bandwidth needed for demanding workloads at high resolutions up to 7680×4320 (8K). GIGABYTE's WINDFORCE cooling system features Hawk fans alongside server-grade thermal conductive gel, helping to manage heat output efficiently within the card's compact 290 × 120 × 50 mm footprint. The dual-slot form factor and NVIDIA SFF-Ready certification mean this card is validated for small-form-factor builds where space is limited. Connectivity is well-rounded: three DisplayPort 2.1a outputs and one HDMI 2.1b port support up to four simultaneous displays. The card connects via a PCI-Express 5.0 interface and draws power through a single 16-pin connector; a 12V-2×6 to 2×PCIe 8-pin adapter is included in the box. DirectX 12 API and OpenGL 4.6 are supported. Software capabilities include NVIDIA DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 with Frame Warp for reduced latency in competitive gaming, and full ray tracing acceleration via fourth-generation RT Cores, all accelerated by fifth-generation Tensor Cores. Key Verified Specifications: • GPU: GeForce RTX 5070 (Blackwell) • CUDA Cores: 6,144 • Boost Clock: 2,587 MHz (Reference: 2,512 MHz) • Memory: 12 GB GDDR7, 28 Gbps, 192-bit bus • Interface: PCI-Express 5.0 • Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b • Max Resolution: 7,680 × 4,320 • Multi-display: Up to 4 • Card Dimensions: 290 × 120 × 50 mm • Power Connector: 1× 16-pin • DirectX: 12 API | OpenGL: 4.6 • PCB Form: ATX | SFF-Ready certified • Recommended PSU: Not specified by manufacturer at time of listing • Accessories: Quick guide, 12V-2×6 to 2×PCIe 8-pin adapter

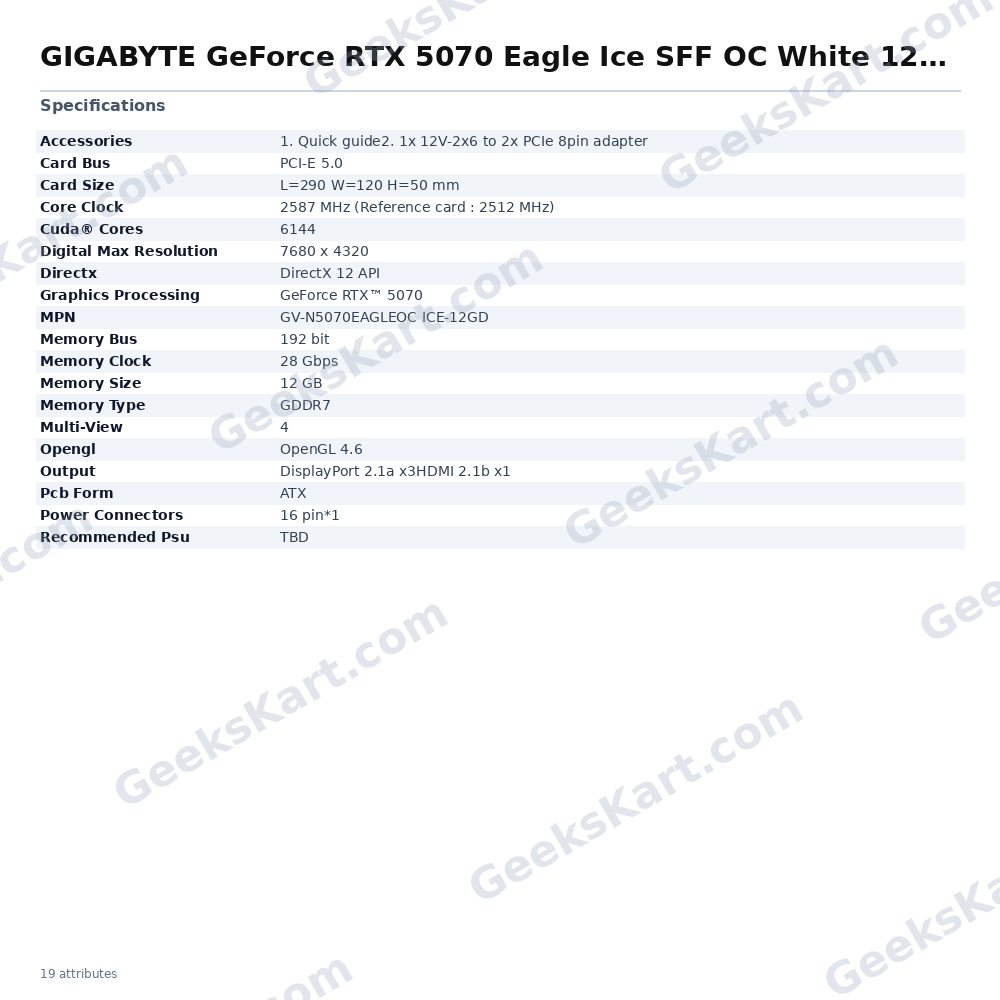

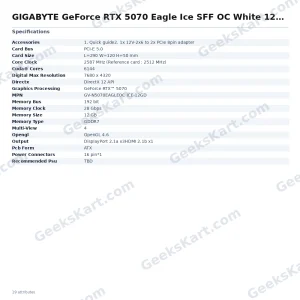

Datasheet
| Memory Type | GDDR7 |
|---|---|
| Memory Size | 12 GB |
| Memory Clock | 28 Gbps |
| Recommended PSU | TBD |
| Opengl | OpenGL 4.6 |
| Output | DisplayPort 2.1a x3HDMI 2.1b x1 |
| Directx | DirectX 12 API |
| Card Bus | PCI-E 5.0 |
| Pcb Form | ATX |
| Card Size | L=290 W=120 H=50 mm |
| Core Clock | 2587 MHz (Reference card : 2512 MHz) |
| Memory Bus | 192 bit |
| Multi-View | 4 |
| Accessories | 1. Quick guide2. 1x 12V-2×6 to 2x PCIe 8pin adapter |
| Cuda® Cores | 6144 |
| Power Connectors | 16 pin*1 |
| Graphics Processing | GeForce RTX™ 5070 |
| Digital Max Resolution | 7680 x 4320 |
