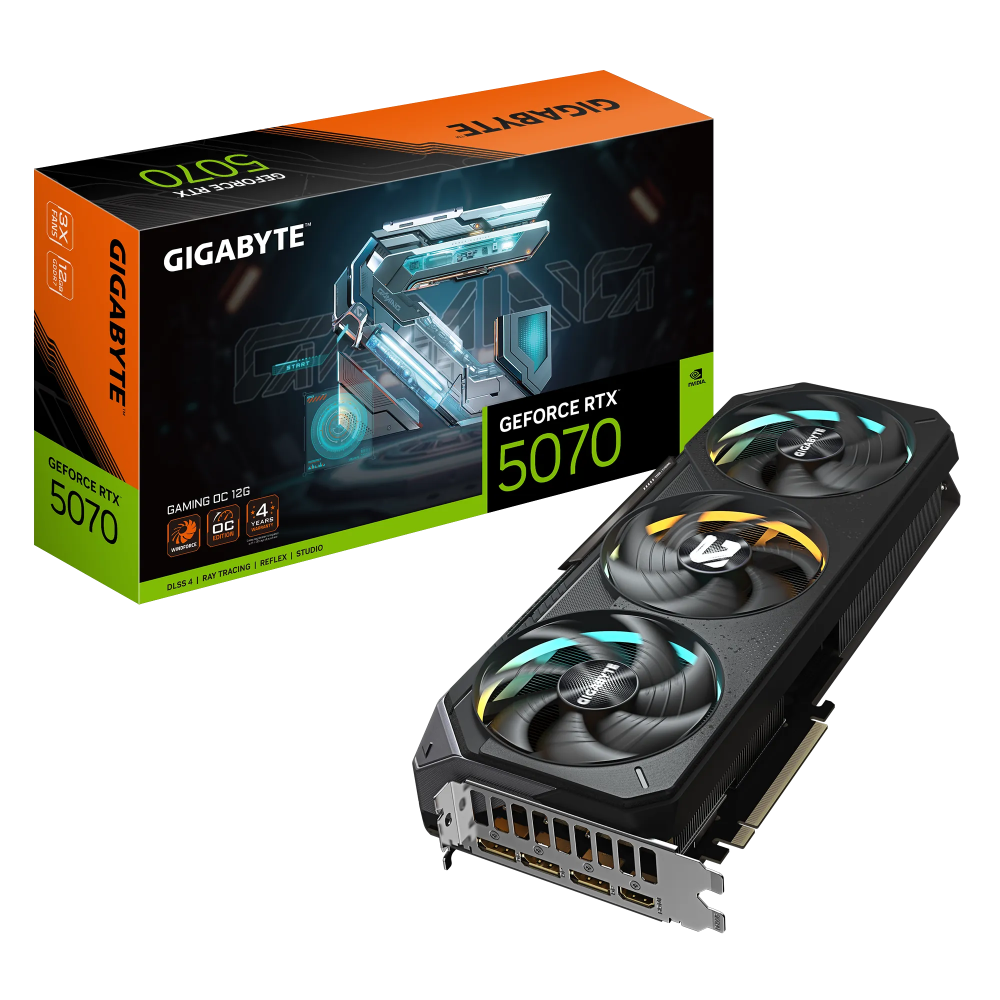

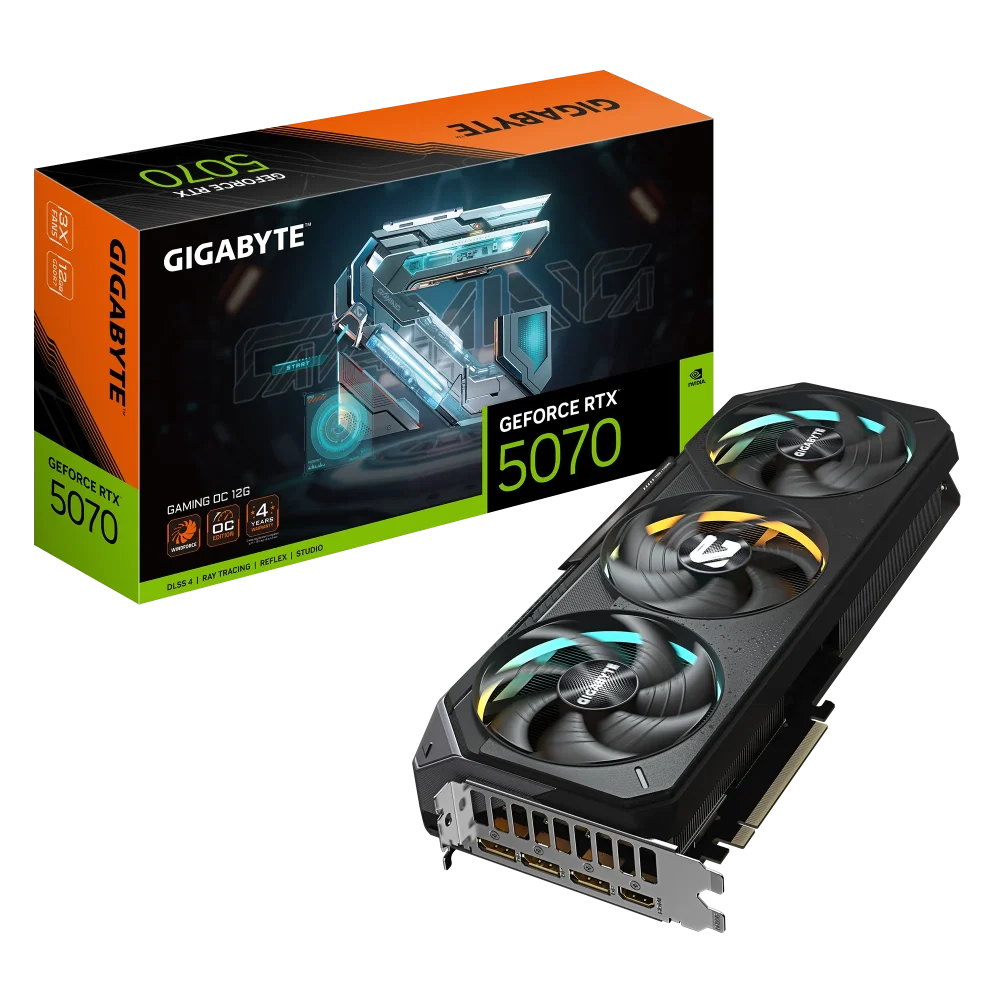

GIGABYTE GeForce RTX 5070 GAMING OC 12GB Nvidia Graphic Card

The GIGABYTE GeForce RTX 5070 GAMING OC 12GB is a factory-overclocked graphics card built on the NVIDIA Blackwell architecture. It ships with NVIDIA DLSS 4 support, giving compatible titles access to the latest AI-powered frame generation and upscaling technologies. The card carries GIGABYTE's product code GV-N5070GAMING-OC-12GD and arrives with an OC-mode boost clock of 2625 MHz — up from the reference specification of 2512 MHz — alongside 6144 CUDA cores. Memory consists of 12 GB of GDDR7 running at 28 Gbps across a 192-bit bus, enabling high-bandwidth data throughput for demanding workloads and high-resolution gaming. The card connects via a PCI-Express 5.0 slot, supports DirectX 12 API and OpenGL 4.6, and can drive up to four displays simultaneously at resolutions up to 7680 × 4320 (8K). Display outputs include three DisplayPort 2.1b and one HDMI 2.1b connector. Thermal management is handled by GIGABYTE's WINDFORCE cooling system. The stack includes Hawk fans with alternate spinning, composite copper heat pipes, a direct-contact copper plate, 3D active fan technology, and screen cooling via an extended heatsink that allows air to pass through for improved heat dissipation. Server-grade thermal conductive gel — a highly deformable, non-fluid compound — is used on critical components such as VRAM and MOSFETs in place of traditional thermal pads, improving contact reliability over the product's lifetime. The GAMING series exterior draws on a mech-warrior aesthetic featuring multi-layered surface finishes, unique textures, and a sliding side plate for build customisation. An RGB Halo three-ring lighting system is controllable through GIGABYTE CONTROL CENTER (GCC), which also allows real-time adjustment of clock speed, voltage, fan mode, and power target. A Dual BIOS switch offers a choice between Performance and Silent modes. A power indicator LED alerts users to any PSU abnormality by flashing. A reinforced metal backplate with bent edge, fastened to the I/O bracket, provides structural integrity. The bundled Versatile VGA holder offers multiple mounting configurations to prevent GPU sag. A 16-pin (12V-2×6) power connector is required; GIGABYTE recommends a minimum 750 W power supply. The card measures 327 mm × 132 mm × 56 mm (ATX form factor) and is compatible with standard full-size cases. Key Verified Specifications: - GPU: GeForce RTX 5070 (Blackwell) - CUDA Cores: 6144 - Boost Clock (OC mode): 2625 MHz | Reference: 2512 MHz - Memory: 12 GB GDDR7, 28 Gbps, 192-bit bus - Interface: PCI-Express 5.0 - Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b - Max Resolution: 7680 × 4320 - Power Connector: 1× 16-pin (12V-2×6) - Recommended PSU: 750 W - Dimensions: 327 × 132 × 56 mm - DirectX: 12 API | OpenGL: 4.6 - Warranty: 3+1 years (online registration required) - Product Code: GV-N5070GAMING-OC-12GD
