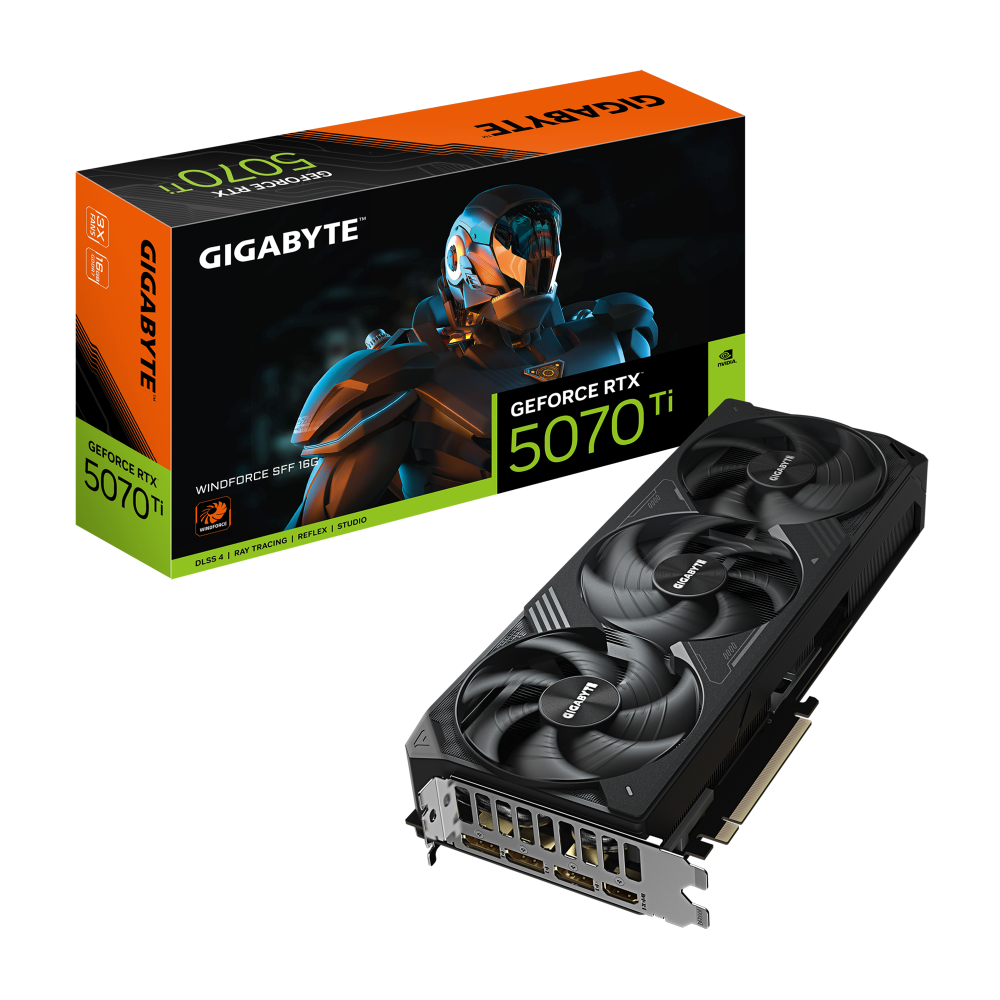

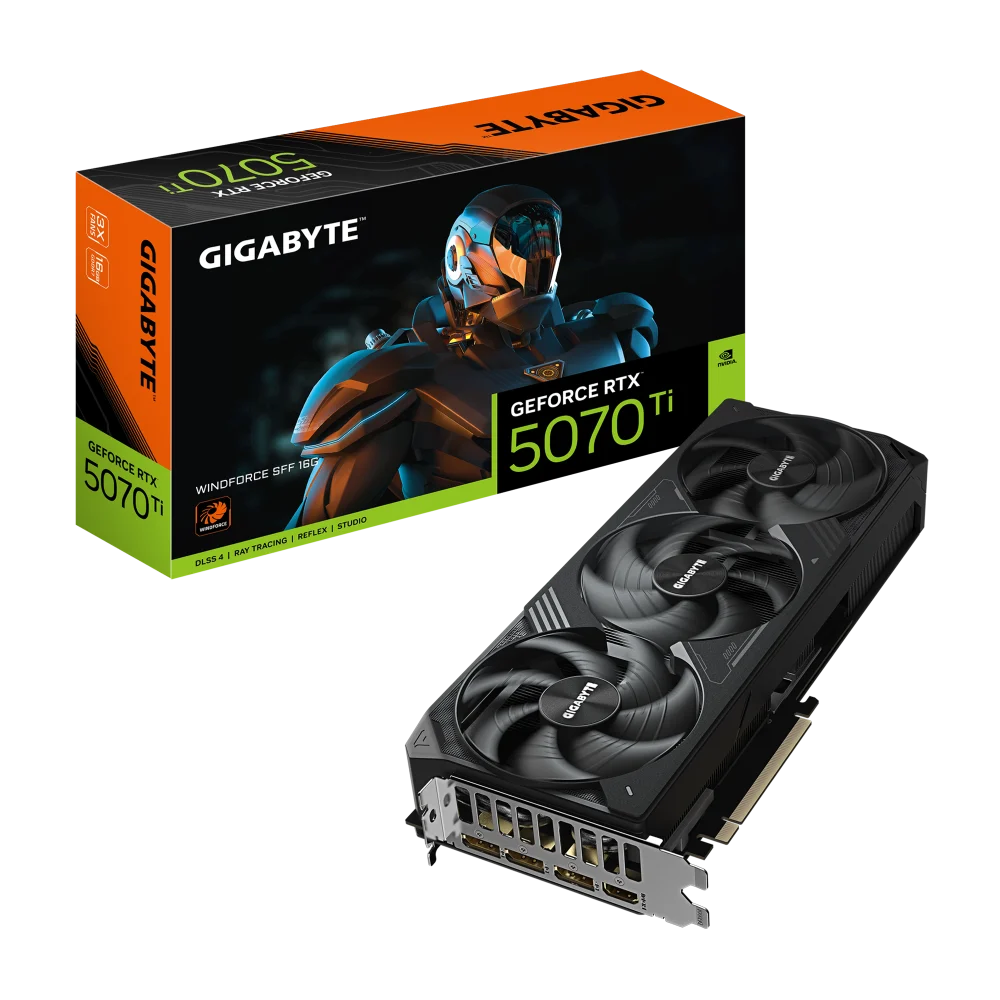

GIGABYTE GeForce RTX 5070 Ti Windforce SFF 16GB Nvidia Graphic Card
MPN GIGABYTE-RTX-5070-TI-WINDFORCE-SFF-16GB-BLACK · Brand GIGABYTE
Features of GIGABYTE GeForce RTX 5070 Ti Windforce SFF 16GB Nvidia Graphic Card Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX 5070 Ti Integrated with 16GB GDDR7 256bit memory interface WINDFORCE cooling system Hawk fan Server-grade thermal conductive gel Dual BIOS (Performance / Silent) NVIDIA SFF-ready Reinforced structure Versatile VGA holder CORE CLOCK: 2452 MHz WINDFORCE COOLING SYSTEM The WINDFORCE cooling system delivers exceptional thermal performance thro
Inclusive of GST · GST invoice available
Overview
Features of GIGABYTE GeForce RTX 5070 Ti Windforce SFF 16GB Nvidia Graphic Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5070 Ti
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel - Dual BIOS (Performance / Silent)
- NVIDIA SFF-ready
- Reinforced structure
- Versatile VGA holder
- CORE CLOCK: 2452 MHz
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
DUAL BIOS (Performance / Silent)
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
NVIDIA SFF-READY
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
VERSATILE VGA HOLDER
Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.
Specifications of GIGABYTE GeForce RTX 5070 Ti Windforce SFF 16GB Nvidia Graphic Card
| Model | GV-N507TWF3-16GD |
| Graphics Processing | GeForce RTX™ 5070 Ti |
| Core Clock | 2452 MHz |
| CUDA® Cores | 8960 |
| Memory Clock | 28 Gbps |
| Memory Size | 16GB |
| Memory Type | GDDR7 |
| Memory Bus | 256 bit |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680 x 4320 |
| Multi-view | 4 |
| Card size | L=304 W=126 H=50 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | OpenGL 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 16 pin*1 |
| Output | DisplayPort 2.1b x3 HDMI 2.1b x1 |
| Accessories | 1. VGA manual 2. 1x 12V-2x6 to 2x PCIe 8pin adapter 3. Versatile VGA holder 4. Versatile VGA holder manual |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |

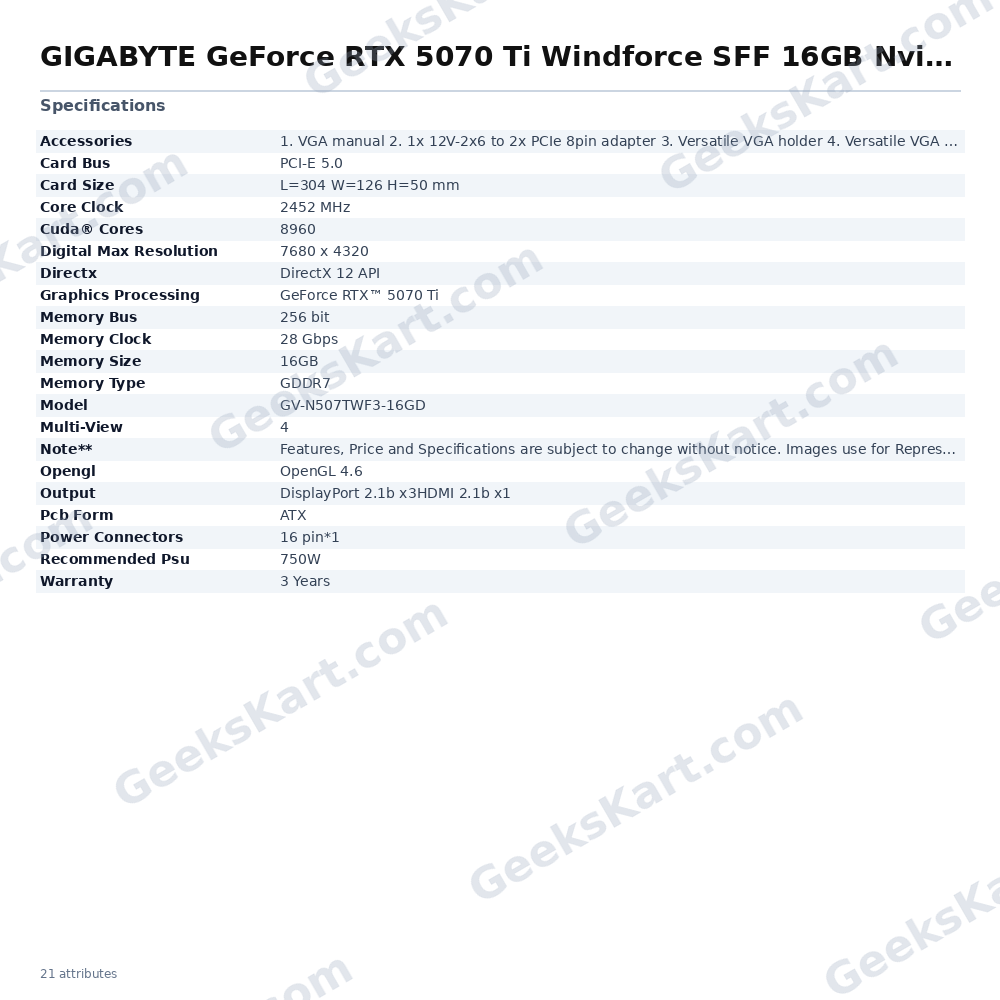

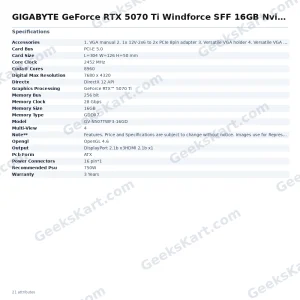

Datasheet
| Model | GV-N507TWF3-16GD |
|---|---|
| Note** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Opengl | OpenGL 4.6 |
| Output | DisplayPort 2.1b x3HDMI 2.1b x1 |
| Pcb Form | ATX |
| Directx | DirectX 12 API |
| Card Bus | PCI-E 5.0 |
| Card Size | L=304 W=126 H=50 mm |
| Core Clock | 2452 MHz |
| Memory Bus | 256 bit |
| Multi-View | 4 |
| Accessories | 1. VGA manual 2. 1x 12V-2×6 to 2x PCIe 8pin adapter 3. Versatile VGA holder 4. Versatile VGA holder manual |
| Cuda® Cores | 8960 |
| Power Connectors | 16 pin*1 |
| Graphics Processing | GeForce RTX™ 5070 Ti |
| Digital Max Resolution | 7680 x 4320 |
| Memory Type | GDDR7 |
| Warranty | 3 Years |
| Memory Size | 16GB |
| Memory Clock | 28 Gbps |
| Recommended PSU | 750W |
