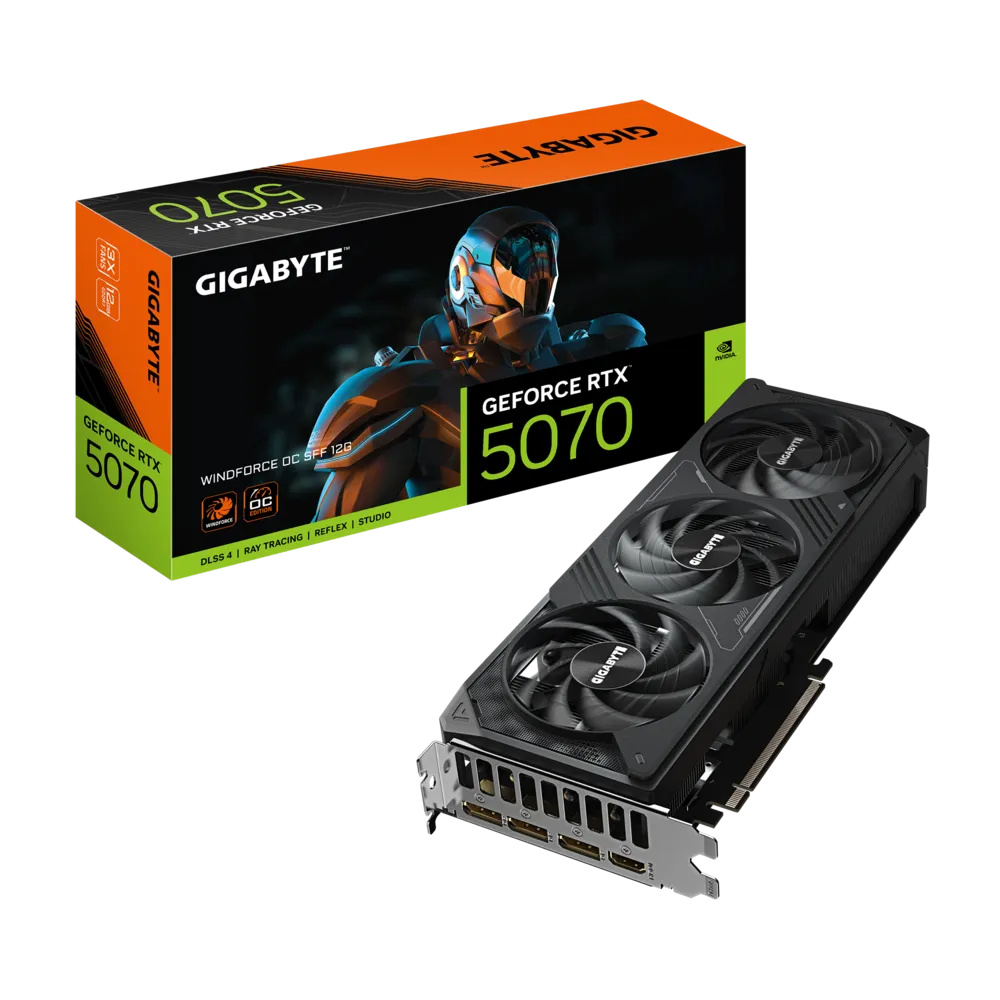

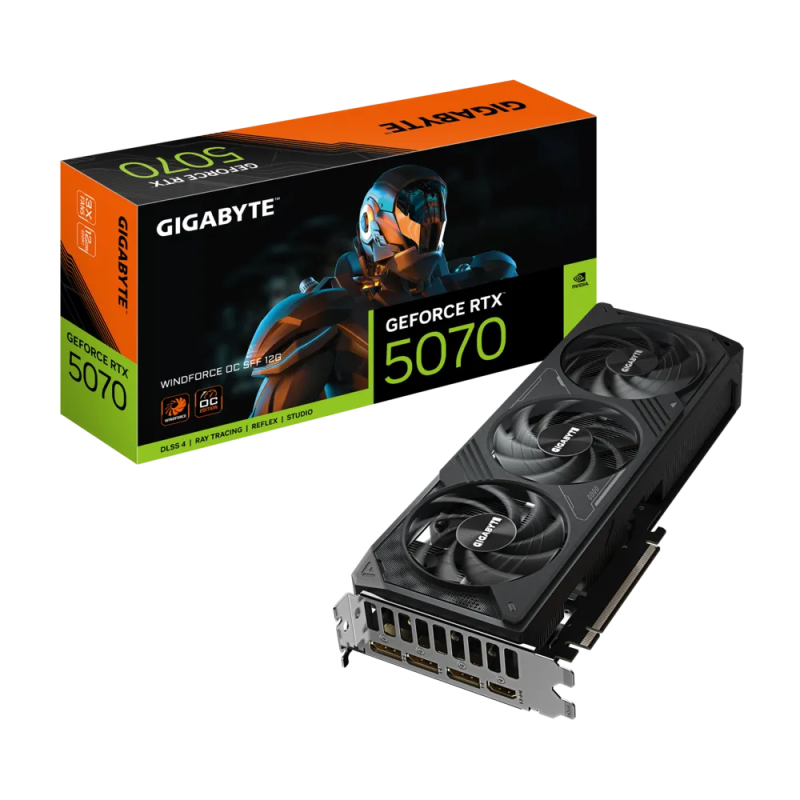

GIGABYTE Geforce RTX 5070 WindForce OC SFF 12GB NVIDIA Graphic Card

The GIGABYTE GeForce RTX 5070 WindForce OC SFF (model GV-N5070WF3OC-12GD) is a compact, performance-focused graphics card built on the NVIDIA Blackwell architecture. Designed specifically for Small Form Factor (SFF) builds, it delivers flagship-tier capability within tight chassis constraints without compromising thermal performance or overclocking headroom. At its core sits NVIDIA’s GeForce RTX 5070 GPU with 6,144 CUDA cores and a factory-overclocked boost clock of 2,542 MHz, surpassing the reference specification of 2,512 MHz. The card is equipped with 16GB of GDDR7 memory running at 30 Gbps across a 192-bit memory bus, offering substantial bandwidth for demanding workloads including 4K gaming, ray-traced titles, and AI-accelerated creative applications. GIGABYTE’s WINDFORCE cooling system keeps thermals in check using Hawk fans and server-grade thermal conductive gel applied to critical heat-transfer surfaces. The reinforced structural design adds rigidity suitable for transport and compact enclosures. Despite its SFF designation, the card measures 282 mm (L) × 110 mm (W) × 50 mm (H), accommodating a dual-slot profile. On the software side, DLSS 4 with Multi Frame Generation leverages fifth-generation Tensor Cores to dramatically multiply rendered frames, lowering latency and raising effective frame rates in supported titles. Fourth-generation RT Cores accelerate ray-traced shadows, reflections, and global illumination. NVIDIA Reflex 2 with Frame Warp further cuts system latency for competitive play. The ninth-generation NVENC encoder accelerates video exports in applications such as DaVinci Resolve and Adobe Premiere Pro. Connectivity includes three DisplayPort 2.1a outputs and one HDMI 2.1b port, supporting up to four simultaneous displays and a digital maximum resolution of 7,680 × 4,320 pixels. The card connects via PCI-Express 5.0 and requires a single 16-pin power connector. GIGABYTE recommends a 750 W power supply. An included 12V-2×6 to 2×PCIe 8-pin adapter ships in the box alongside a quick-start guide. Verifiable Specifications: • Part Number: GV-N5070WF3OC-12GD • GPU: GeForce RTX 5070 (Blackwell architecture) • CUDA Cores: 6,144 • Boost Clock: 2,542 MHz (Reference: 2,512 MHz) • Memory: 16GB GDDR7, 192-bit bus, 30 Gbps • Card Dimensions: 282 × 110 × 50 mm • Outputs: DisplayPort 2.1a ×3, HDMI 2.1b ×1 • Max Resolution: 7,680 × 4,320 • Interface: PCI-E 5.0 • Power Connector: 16-pin ×1 • Recommended PSU: 750W • API Support: DirectX 12, OpenGL 4.6 • NVIDIA SFF-Ready certified
