GIGABYTE Geforce RTX 5080 Gaming OC 16GB NVIDIA Graphic Card

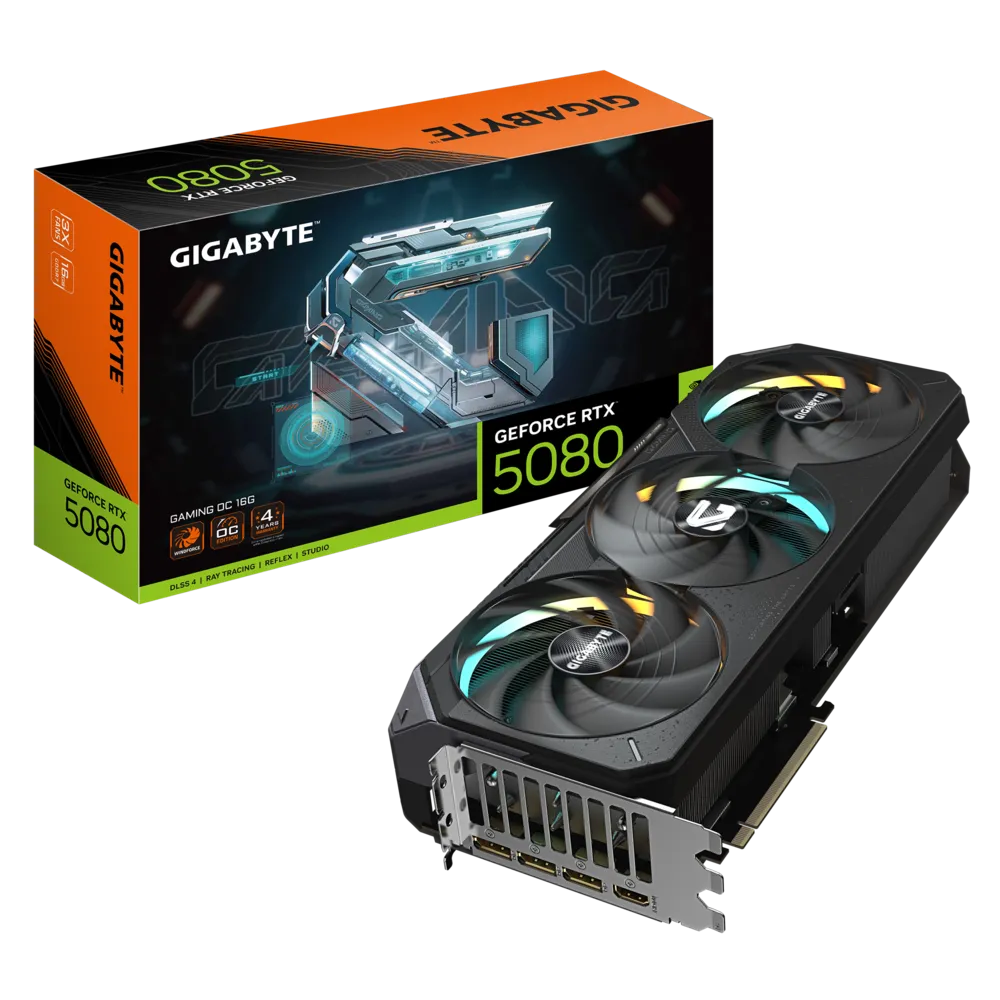

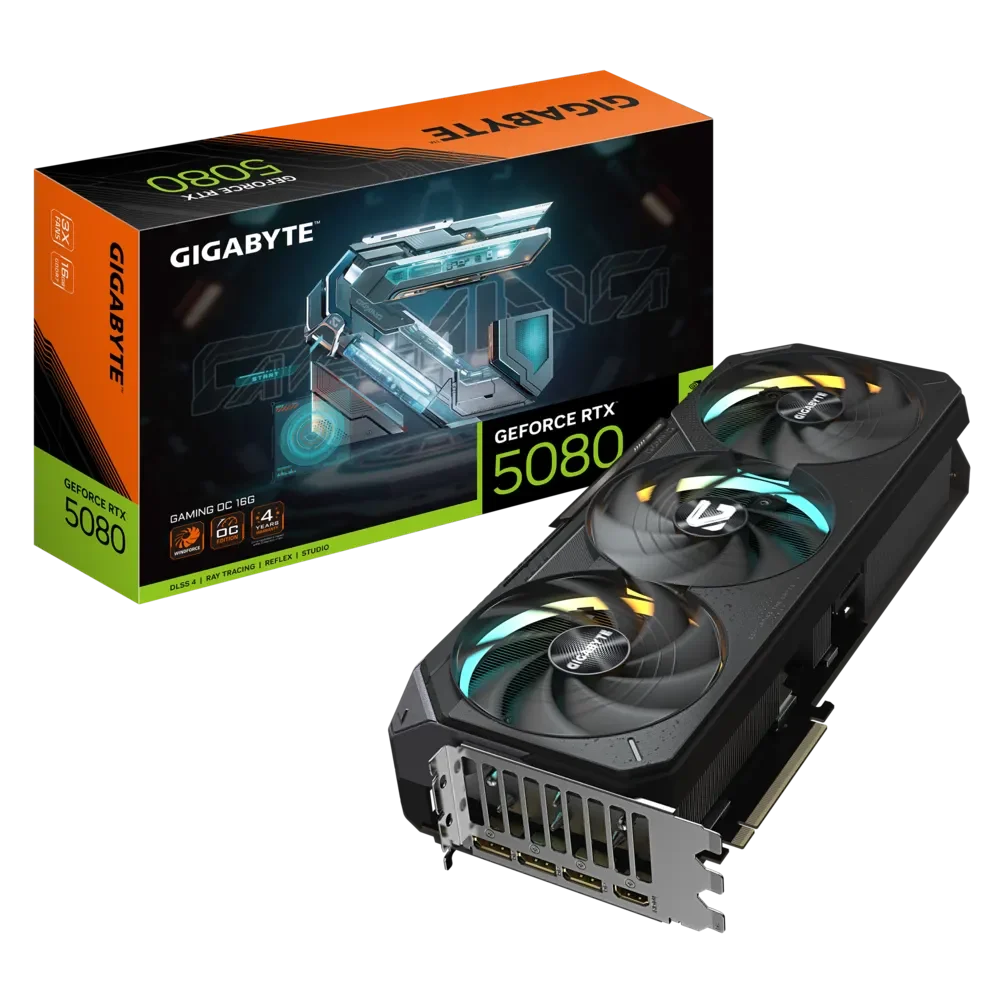

The GIGABYTE GeForce RTX 5080 Gaming OC 16GB (model GV-N5080GAMING-OC-16GD) is a high-performance desktop graphics card built on the NVIDIA Blackwell architecture and designed to take full advantage of DLSS 4 technology. At the heart of this card is 16 GB of GDDR7 memory running at 30 Gbps across a 256-bit memory interface, providing the bandwidth headroom needed for demanding workloads and high-resolution gaming up to 7680 x 4320 (8K). GIGABYTE has overclocked the GPU boost clock to 2730 MHz, compared to the NVIDIA reference specification of 2617 MHz, without requiring any user intervention. A Dual BIOS switch lets you toggle between a Performance mode and a Silent mode, giving you straightforward control over the card’s acoustic and thermal profile at any time. The WINDFORCE cooling system is the centrepiece of the card’s thermal design. It combines server-grade thermal conductive gel, Hawk fans with alternate-spinning blades to reduce turbulence, composite copper heat pipes, a large vapour chamber, 3D active fans, and a screen-cooling design. The result is efficient heat dissipation across the entire PCB and component stack. The Gaming series exterior draws from a mech-warrior design language, featuring a multi-layered structure with varied surface-material finishes and a sliding side plate that allows some degree of build customisation. A three-ring RGB Halo lighting zone can be configured or synchronised with other devices through the GIGABYTE CONTROL CENTER software, which also exposes real-time tuning of clock speed, voltage, fan mode, and power target. Construction quality is reinforced by Ultra Durable certified components — highest-grade metal chokes, low-ESR solid capacitors, a 2 oz copper PCB, and low RDS MOSFETs — alongside a metal backplate with a bent edge fastened to the I/O bracket for structural integrity. The fully automated production process eliminates sharp solder protrusions from the PCB surface. Display connectivity is provided by three DisplayPort 2.1a outputs and one HDMI 2.1b port, supporting up to four simultaneous displays. The card uses a single 16-pin (12V-2×6) power connector and a 1× 12V-2×6 to 3× PCIe 8-pin adapter is included in the box. GIGABYTE recommends a minimum 850 W power supply. A 4-year warranty is available when the product is registered on GIGABYTE’s website within 30 days of purchase (standard warranty is 3 years; the additional 1-year extension requires online registration). Verified Specifications: • Model: GV-N5080GAMING-OC-16GD • GPU Architecture: NVIDIA Blackwell • Boost Clock: 2730 MHz (Reference: 2617 MHz) • Memory: 16 GB GDDR7, 30 Gbps, 256-bit bus • Interface: PCI-E 5.0 • Outputs: DisplayPort 2.1a ×3, HDMI 2.1b ×1 • Max Resolution: 7680×4320 • Multi-Display: Up to 4 • Power Connector: 16-pin ×1 (12V-2×6) • Recommended PSU: 850 W • Card Dimensions: 340 mm (L) × 140 mm (W) × 70 mm (H) • DirectX: 12 API | OpenGL: 4.6 • Warranty: 4 years (online registration within 30 days required)
