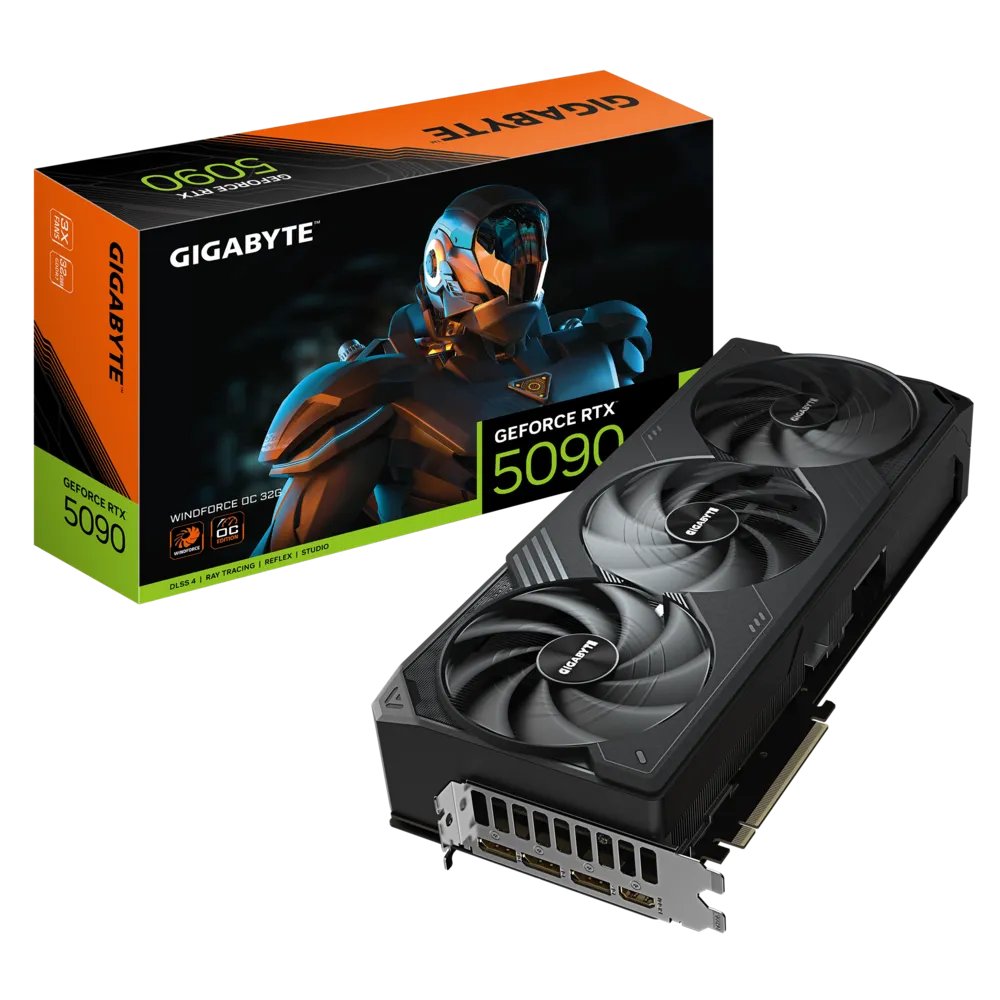

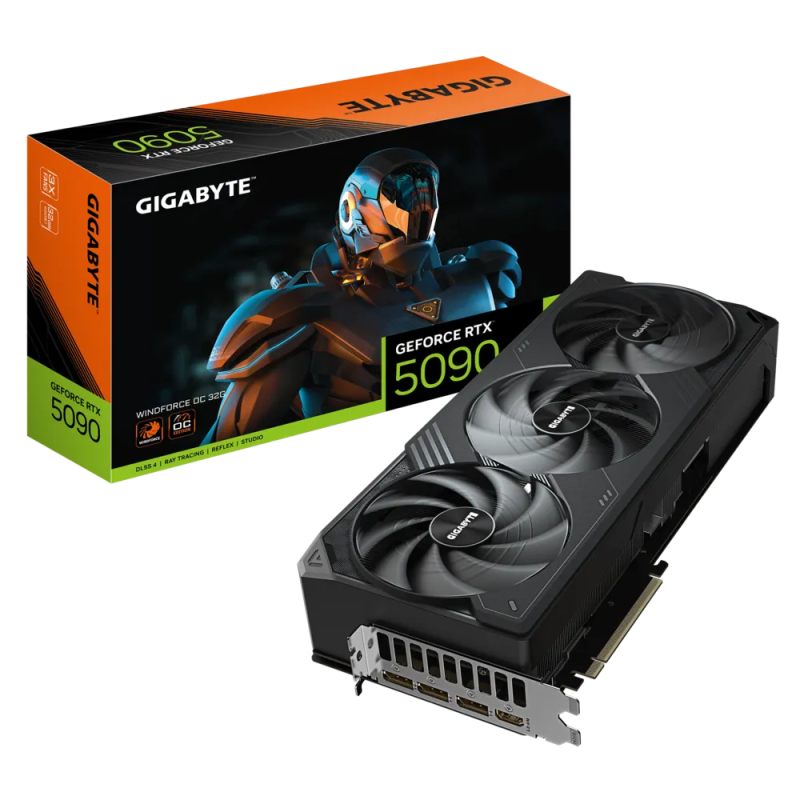

GIGABYTE GeForce RTX 5090 Windforce OC 32GB Nvidia Graphic Card
MPN GIGABYTE-GEFORCE-RTX-5090-WINDFORCEOC-32GB · Brand GIGABYTE
GIGABYTE GeForce RTX 5090 Windforce OC delivers 21,760 CUDA cores, 32 GB GDDR7 on a 512-bit bus, and NVIDIA Blackwell architecture with DLSS 4 — cooled by GIGABYTE's Hawk-fan WINDFORCE system with Dual BIOS
Inclusive of GST · GST invoice available
Overview
The GIGABYTE GeForce RTX 5090 Windforce OC 32GB is a flagship-tier graphics card built on the NVIDIA Blackwell architecture and powered by DLSS 4. Designed for demanding workloads including 4K and 8K gaming, content creation, and AI-accelerated tasks, this card delivers substantial headroom for years of high-fidelity computing. At the heart of the Windforce OC is GIGABYTE's multi-fan cooling solution featuring Hawk fans — a blade design informed by eagle-wing aerodynamics — that deliver increased air pressure and airflow while keeping noise levels in check. Alternate-spinning fans reduce air turbulence between adjacent blades, and the system incorporates a large vapor chamber that contacts the GPU die directly, composite copper heat pipes for rapid heat transfer to the fin array, and screen cooling via an extended heatsink that allows airflow to pass through the card body for additional heat dissipation. Server-grade thermal conductive gel is applied to critical components including the VRAM and MOSFETs, replacing traditional thermal pads with a material that maintains optimal contact across uneven surfaces and resists deformation during transport or extended use. A Dual BIOS switch (Performance / Silent) lets users choose between maximum clock speeds and quieter operation without reflashing firmware. The factory default is Performance mode. Structural integrity is reinforced by a metal backplate with a bent edge secured to the I/O bracket, paired with a newly designed versatile VGA holder that offers multiple mounting configurations to prevent GPU sag. The PCB itself uses GIGABYTE's Ultra Durable construction: highest-grade metal chokes, lower-ESR solid capacitors, a 2 oz copper PCB layer, and lower RDS MOSFETs. Fully automated PCB production eliminates sharp solder protrusions for safer handling during installation. — Verified Specifications — GPU: GeForce RTX 5090 (NVIDIA Blackwell) CUDA Cores: 21,760 Boost Clock: 2,467 MHz (Reference: 2,407 MHz) Memory: 32 GB GDDR7 Memory Bus: 512-bit Memory Speed: 28 Gbps Interface: PCI-E 5.0 Display Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b Max Resolution: 7680×4320 (8K) Max Multi-Display: 4 DirectX: 12 API | OpenGL: 4.6 Recommended PSU: 1000 W Power Connector: 1× 16-pin (12V-2x6) Dimensions: 342 mm (L) × 150 mm (W) × 65 mm (H) Form Factor: ATX In the Box: Quick guide, 12V-2x6 to 4× PCIe 8-pin adapter, Versatile VGA holder, VGA holder manual
Datasheet
| Memory Type | GDDR7 |
|---|---|
| Memory Size | 32 GB |
| Memory Clock | 28 Gbps |
| Recommended PSU | 1000W |
| Opengl | 4.6 |
| Output | DisplayPort 2.1a *3 HDMI 2.1b *1 |
| Directx | DirectX 12 API |
| Card Bus | PCI-E 5.0 |
| Pcb Form | ATX |
| Card Size | L=342 W=150 H=65 mm |
| Core Clock | 2467 MHz (Reference card : 2407MHz) |
| Memory Bus | 512 bit |
| Multi-View | 4 |
| Accessories | 1. Quick guide 2. 1x 12V-2×6 to 4x PCIe 8pin adapter 3. Versatile VGA holder 4. Versatile VGA holder manual |
| Cuda® Cores | 21760 |
| Power Connectors | 16 Pin*1 |
| Graphics Processing | GeForce RTX™ 5090 |
| Digital Max Resolution | 7680×4320 |
