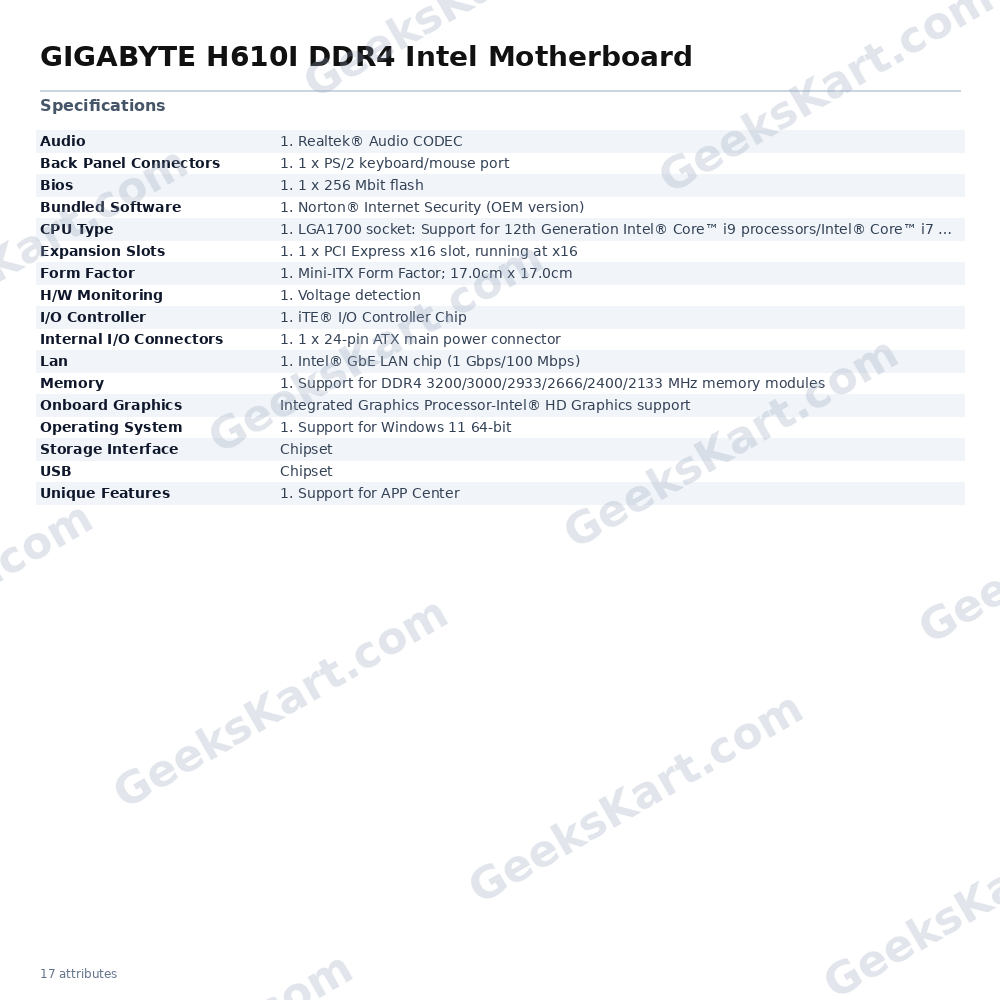

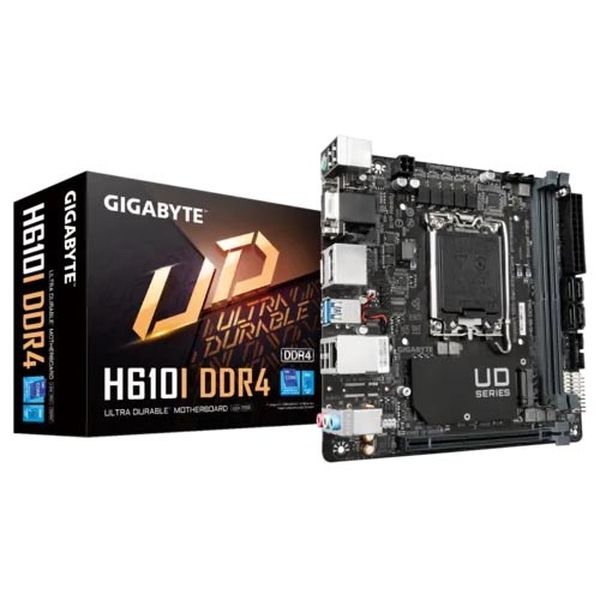

GIGABYTE H610I DDR4 Intel Motherboard

The Gigabyte H610I DDR4 is a Mini-ITX form factor motherboard built on Intel's H610 Express chipset, designed specifically to support 12th Generation Intel Core i5, i7, and i9 processors via the LGA1700 socket. At just 17.0 cm × 17.0 cm, it packs a comprehensive feature set into a compact chassis-friendly footprint, making it a practical choice for small form factor builds, home theatre PCs, or office workstations. Memory support is handled through two DDR4 DIMM slots running in dual-channel configuration. Each slot supports up to 32 GB, giving the board a maximum capacity of 64 GB. Compatible speeds range from DDR4-2133 up to DDR4-3200, and XMP profiles are supported for users who wish to run rated kit speeds. The board also accepts ECC Unbuffered modules operating in non-ECC mode. Power delivery is managed by a 4+1+1 hybrid digital VRM design using DrMOS phases, backed by solid capacitors for improved transient response and stability under sustained CPU loads. The 24-pin ATX and 4-pin ATX 12V connectors feature solid pin construction for a reliable power connection. Storage options include one M.2 Socket 3 (M key, type 2280) connector supporting PCIe 3.0 x4 NVMe SSDs, alongside four SATA 6 Gb/s ports for traditional drives. The single PCIe x16 expansion slot conforms to the PCIe 4.0 standard, accommodating modern discrete graphics cards. Display output is handled through integrated Intel HD Graphics when a compatible CPU is used, with one D-Sub port (up to 1920×1200 @ 60 Hz), one HDMI 2.1-compatible port (up to 4096×2160 @ 60 Hz with HDCP 2.3), and two DisplayPort 1.2 outputs (up to 4096×2304 @ 60 Hz), supporting up to three simultaneous displays. Audio is provided by a Realtek High Definition Audio CODEC supporting 2/4/5.1/7.1-channel output, paired with high-quality audio capacitors and an audio noise guard layer to reduce PCB interference. Networking is handled by an Intel GbE LAN chip (1 Gbps/100 Mbps) with cFosSpeed traffic management software included. USB connectivity on the rear panel includes two USB 3.2 Gen 1 Type-A ports and four USB 2.0/1.1 ports, plus a PS/2 combo port. Internal headers expand this with an additional USB 3.2 Gen 1 header and two USB 2.0/1.1 headers. Fan management is handled by Gigabyte's Smart Fan 6 system with hybrid fan headers supporting FAN STOP functionality and multiple temperature sensor inputs. Board protection features include anti-sulfur resistor design to guard against corrosion from airborne sulfur compounds. Software support includes Gigabyte APP Center (with @BIOS, EasyTune, Fast Boot, Game Boost, RGB Fusion, and Smart Backup utilities), Q-Flash for BIOS updates, and Xpress Install. The BIOS uses a licensed AMI UEFI implementation stored on a 256 Mbit flash chip, compliant with ACPI 5.0 and SM BIOS 2.7. Verified Specifications: • Form Factor: Mini-ITX, 17.0 cm × 17.0 cm • Socket: LGA1700 (12th Gen Intel Core i5/i7/i9) • Chipset: Intel H610 Express • Memory: 2× DDR4 DIMM, up to 64 GB, DDR4-2133 to DDR4-3200, Dual Channel, XMP support • VRM: 4+1+1 hybrid digital (DrMOS) • PCIe Slot: 1× PCIe 4.0 x16 • Storage: 1× M.2 (PCIe 3.0 x4, type 2280) + 4× SATA 6 Gb/s • Display: 1× D-Sub, 1× HDMI 2.1, 2× DisplayPort 1.2 (up to 3 displays simultaneously) • USB Rear: 2× USB 3.2 Gen 1, 4× USB 2.0/1.1, 1× PS/2 • LAN: Intel GbE (1 Gbps/100 Mbps) • Audio: Realtek HD Audio, 7.1-channel • BIOS: AMI UEFI, 256 Mbit flash • OS Support: Windows 11 64-bit, Windows 10 64-bit
