GIGABYTE H610M Gaming Wifi DDR4 Intel Motherboard
MPN GIGABYTE-H610M-GAMING-WIFI · Brand GIGABYTE · mATX
The GIGABYTE H610M Gaming WiFi DDR4 is a Micro ATX motherboard with Intel H610 chipset, LGA1700 socket, support for Intel 12th–14th Gen CPUs, 64 GB DDR4 dual-channel memory, PCIe 4.0 x16, Wi-Fi 802.11ac, Bluetooth 5.1, and dual M.2 storage slots
Inclusive of GST · GST invoice available
Overview
The GIGABYTE H610M Gaming WiFi DDR4 is a Micro ATX motherboard built on the Intel H610 Express Chipset, designed for LGA1700 socket processors including Intel Core 12th, 13th, and 14th Generation CPUs, as well as Pentium Gold and Celeron processors. Measuring 24.4 cm x 22.0 cm, it fits standard Micro ATX chassis and provides a reliable, feature-rich foundation for gaming and everyday computing builds. Memory support spans two DDR4 DIMM slots in a dual-channel configuration, accommodating speeds from 2133 MT/s up to 3200 MT/s and a maximum total capacity of 64 GB (up to 32 GB per DIMM). XMP profiles are supported for users who wish to run memory at elevated speeds. For connectivity, the board ships with an Intel Wireless-AC 9560 module supporting Wi-Fi 802.11 a/b/g/n/ac across 2.4 GHz and 5 GHz dual bands, Bluetooth 5.1, and 160 MHz channel support. Wired networking is handled by a Realtek Gigabit Ethernet chip with LAN bandwidth management software included. Storage options include two M.2 connectors — one PCIe 3.0 x4/x2 (type 2280/2260) and one PCIe 3.0 x2 (type 2280/2260) — alongside four SATA 6 Gb/s ports. The primary expansion slot is a CPU-connected PCIe 4.0 x16 slot featuring GIGABYTE's EZ-Latch quick-release mechanism, complemented by a chipset-connected PCIe 3.0 x1 slot. Display output is handled via integrated Intel HD Graphics, with two DisplayPort 1.2 outputs (up to 4096×2304 @ 60 Hz) and one HDMI 2.1 port (up to 4096×2160 @ 60 Hz), supporting up to triple-display configurations. Audio is delivered through a Realtek High Definition Audio CODEC with dedicated high-quality capacitors and a PCB-level Audio Noise Guard that isolates analog audio circuitry from digital interference. The codec supports 2/4/5.1/7.1-channel output. Fan management is handled by Smart Fan 6, which supports PWM and DC fans as well as water cooling pumps on headers rated up to 24 W (12V × 2A) with over-current protection. Customizable fan curves with up to seven control points, Slope/Stair dual-graph modes, and a Fan Stop function (fans halt below a user-defined temperature threshold) are all configurable via the BIOS or GIGABYTE Control Center software. Two addressable RGB Gen2 LED headers allow compatible lighting accessories to be connected. The board uses a 6+1+1 hybrid digital VRM design with Low RDS MOSFETs and an enlarged MOSFET heatsink to support stable CPU power delivery. BIOS is AMI UEFI with Q-Flash support for easy firmware updates. The board carries a 3-year warranty. Verified Specifications: - Socket: LGA1700 - Chipset: Intel H610 Express - Form Factor: Micro ATX (24.4 cm × 22.0 cm) - Memory: 2× DDR4 DIMM, up to 64 GB, DDR4-2133 to DDR4-3200, Dual Channel, XMP supported - PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (Chipset) - Storage: 2× M.2 (PCIe 3.0), 4× SATA 6 Gb/s - Display: 2× DisplayPort 1.2, 1× HDMI 2.1 - Audio: Realtek HD Audio CODEC, up to 7.1-channel - LAN: Realtek GbE (1 Gbps/100 Mbps/10 Mbps) - Wireless: Intel Wireless-AC 9560, Wi-Fi 802.11ac, Dual Band, Bluetooth 5.1 - USB (rear): 2× USB 3.2 Gen 1, 4× USB 2.0 - VRM: 6+1+1 Hybrid Digital - BIOS: 128 Mbit AMI UEFI - OS Support: Windows 10 64-bit, Windows 11 64-bit - Warranty: 3 Years

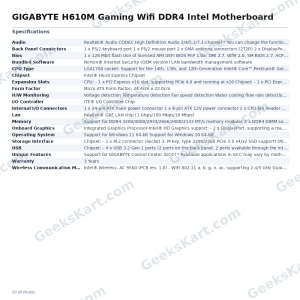

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® H610 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® CoreTM,Pentium® Gold and Celeron® Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPU |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| USB | Chipset: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+2 USB 2.0 Hubs: – 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 2 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB) – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB) – 4 x SATA 6Gb/s connectors |
| Back Panel Connectors | 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 2 x addressable RGB Gen2 LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wireless- AC 9560 (PCB rev. 1.0) – WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 5.1 – Support 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
