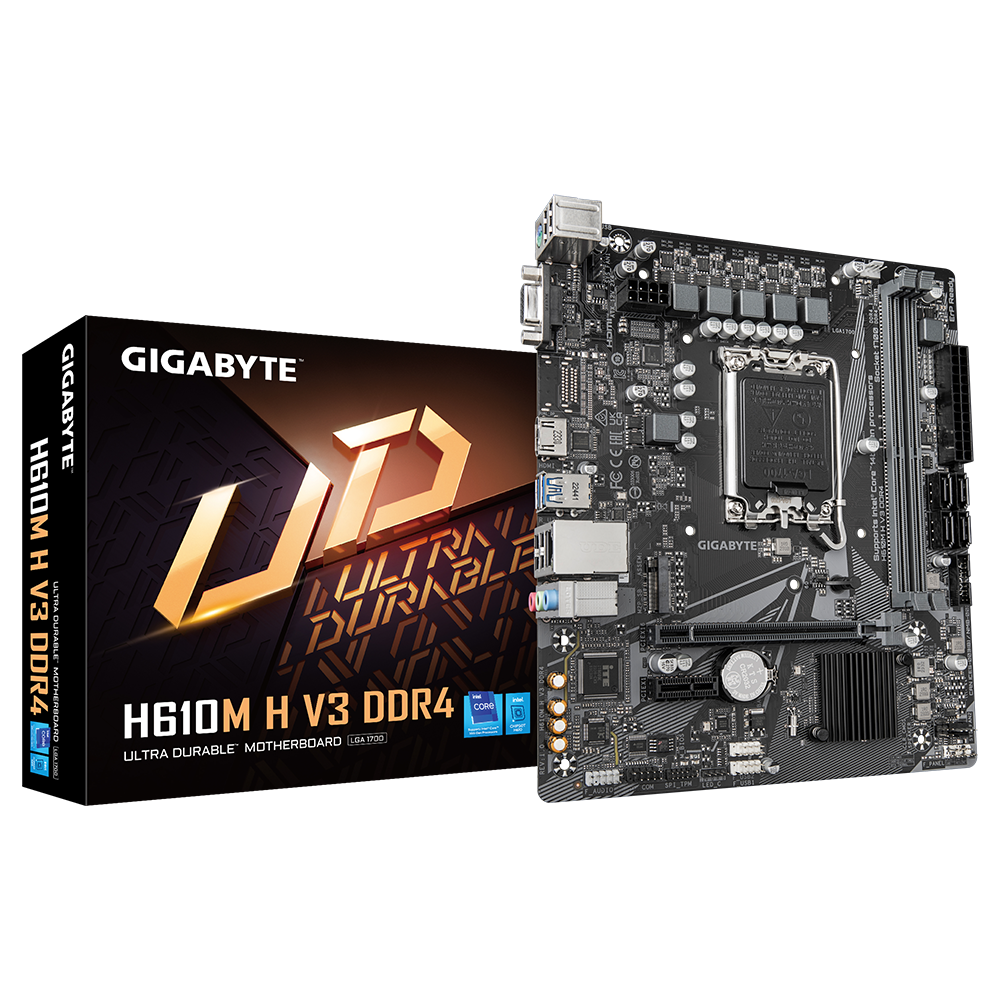

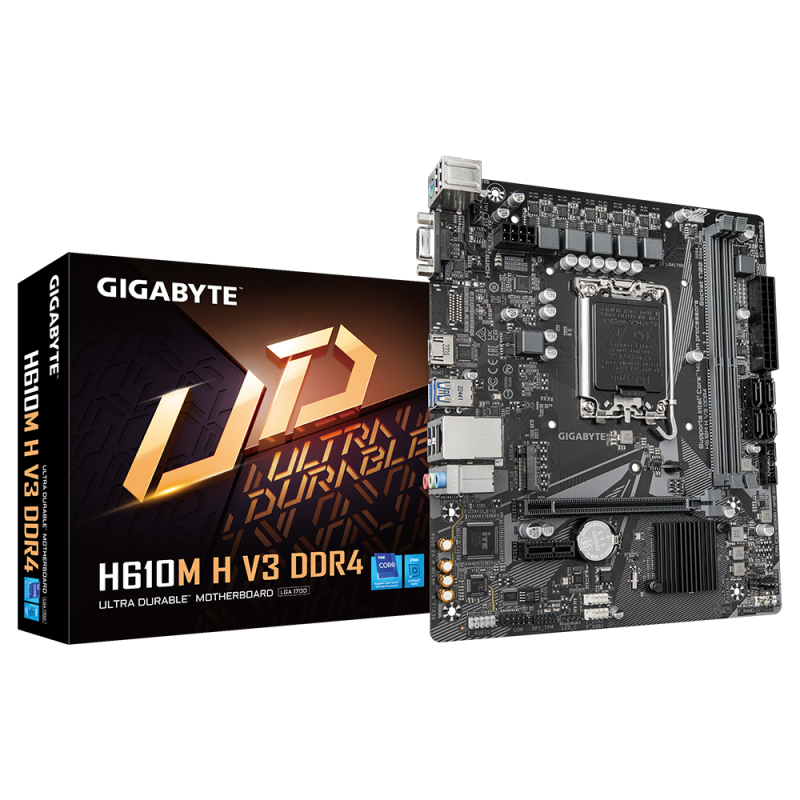

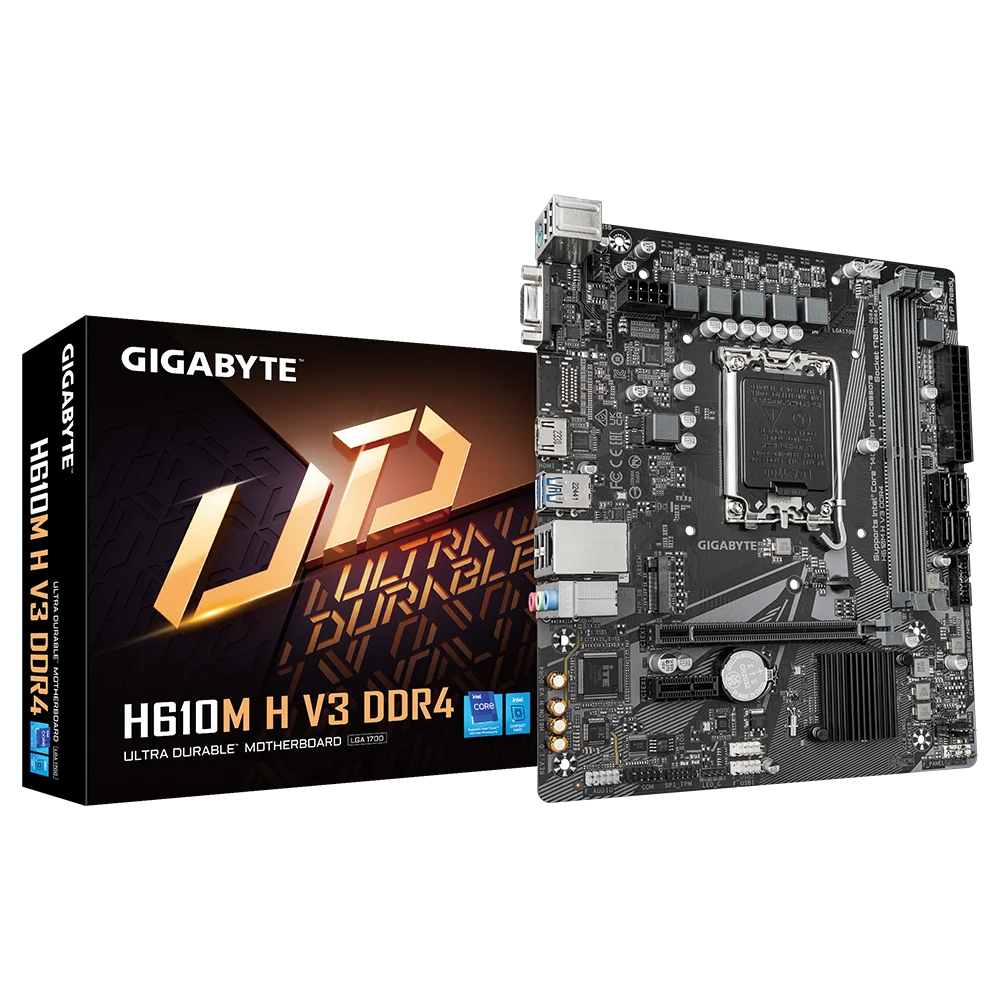

GIGABYTE H610M H V3 DDR4 Intel Motherboard
MPN GIGABYTE-H610M-H-V3-DDR4 · Brand GIGABYTE · mATX
The GIGABYTE H610M H V3 DDR4 is a Micro ATX motherboard for Intel LGA1700 CPUs (12th–14th Gen), featuring dual-channel DDR4 up to 64 GB, PCIe 4.0 x16, M.2 NVMe, HDMI 2.1, and Smart Fan 6 thermal management
Inclusive of GST · GST invoice available
Overview
The GIGABYTE H610M H V3 DDR4 is a Micro ATX motherboard built on the Intel H610 Express Chipset, designed for the LGA1700 socket. It supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, making it a versatile platform for home, office, and entry-level productivity builds. The board features a 4+1+1 hybrid digital VRM design with low RDS MOSFETs and solid capacitors, supporting stable power delivery under sustained CPU loads. The 8-pin solid pin ATX 12V CPU power connector provides a larger contact area and improved heat tolerance compared to standard connectors. For memory, two DDR4 DIMM slots support speeds from 2133 up to 3200 MT/s and a maximum capacity of 64 GB (32 GB per slot) in a dual-channel configuration. XMP profiles are supported for compatible kits. Storage options include one M.2 Socket 3 connector (type 2280/2260, PCIe 3.0 x4/x2 NVMe) and four SATA 6Gb/s ports. The primary PCIe slot runs at x16 with PCIe 4.0 support from the CPU, with an additional PCIe 3.0 x1 slot from the chipset. Onboard display outputs consist of one D-Sub port (up to 1920×1200 @ 60 Hz) and one HDMI 2.1 port (up to 4096×2160 @ 60 Hz, HDCP 2.3), both driven by the CPU's integrated Intel HD Graphics. Audio is handled by a Realtek HD Audio CODEC supporting up to 7.1-channel output. Networking is provided by a Realtek Gigabit Ethernet controller. USB connectivity includes four USB 3.2 Gen 1 ports (two rear, two via internal header) and eight USB 2.0/1.1 ports. Smart Fan 6 technology enables temperature-based fan speed control across one CPU fan header and two system fan headers, with a fan-stop feature for silent operation at low loads. An RGB LED strip header is included for basic lighting customisation. Verified Specifications: - Form Factor: Micro ATX, 22.3 cm × 19.3 cm - Socket: LGA1700 | Chipset: Intel H610 Express - CPU Support: Intel 12th / 13th / 14th Gen Core, Pentium Gold, Celeron - Memory: 2× DDR4 DIMM, up to 64 GB, DDR4-2133 to DDR4-3200, dual-channel, XMP - PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (chipset) - Storage: 1× M.2 (PCIe 3.0 x4, type 2280/2260), 4× SATA 6Gb/s - Display: 1× D-Sub (1920×1200 @ 60 Hz), 1× HDMI 2.1 (4096×2160 @ 60 Hz) - USB: 4× USB 3.2 Gen 1, 8× USB 2.0/1.1 - Audio: Realtek HD Audio, up to 7.1-channel - LAN: Realtek 1 Gbps - BIOS: AMI UEFI, 128 Mbit flash, Q-Flash support - OS: Windows 11 64-bit, Windows 10 64-bit

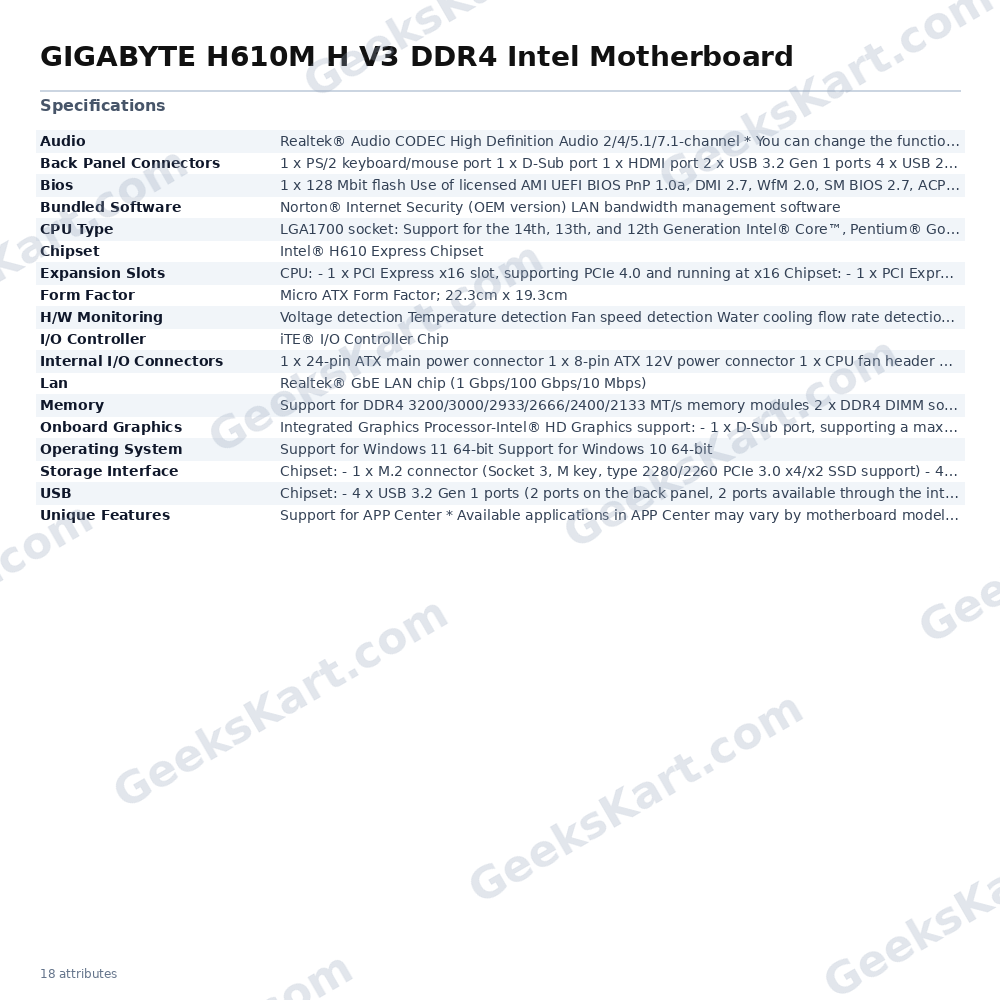

Datasheet
| Form Factor | mATX |
|---|---|
| Chipset | Intel® H610 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| USB | Chipset: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – @BIOS – EasyTune – Smart Backup – System Information Viewer Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) – 4 x SATA 6Gb/s connectors |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |
