GIGABYTE H610M S2 V2 DDR4 intel Motherboard

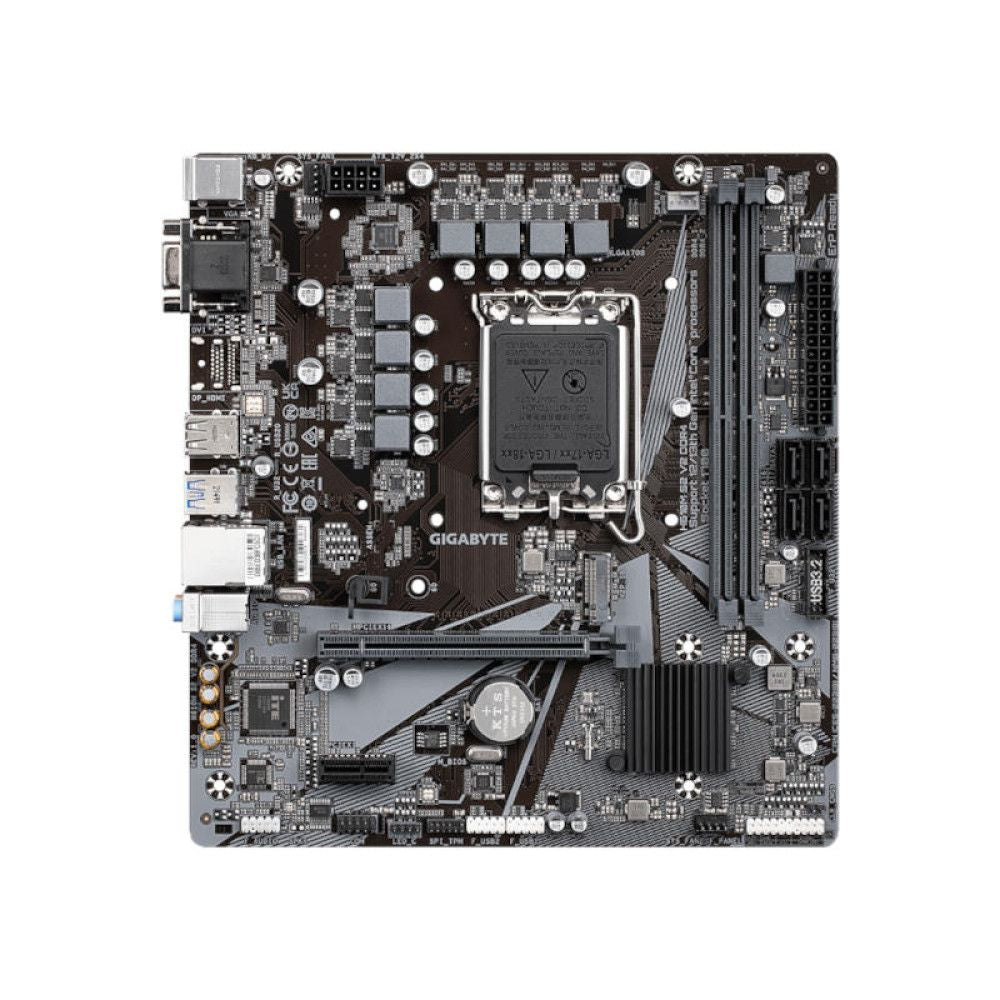

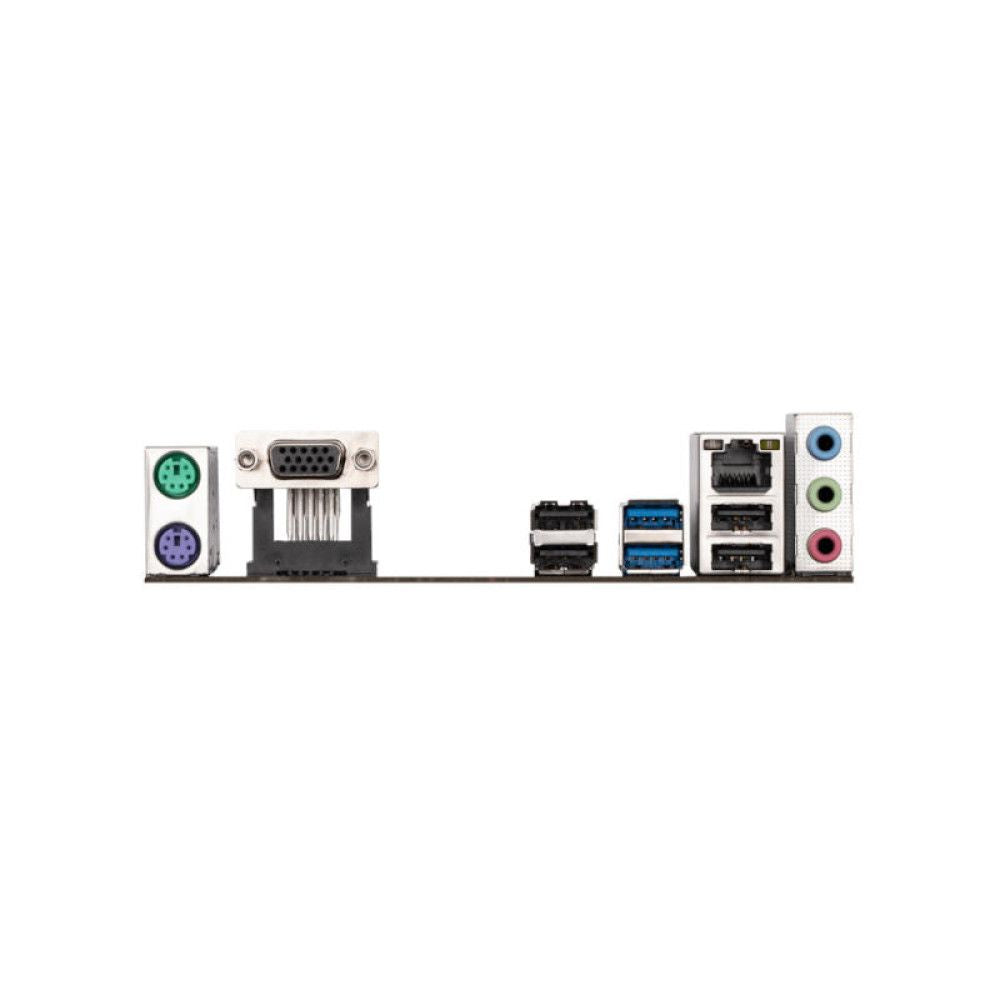

The Gigabyte H610M S2 V2 DDR4 is a Micro ATX motherboard built on the Intel H610 Express chipset, designed for LGA1700 socket processors including 12th and 13th Generation Intel Core, Pentium Gold, and Celeron series CPUs. Its compact 23.0 cm × 21.5 cm footprint makes it well-suited for space-efficient desktop builds without sacrificing essential connectivity. Power delivery relies on a 6+1+1 hybrid digital VRM design using low RDS MOSFETs and solid capacitors, connected via an 8-pin ATX 12V solid-pin power connector to support stable operation under sustained CPU loads. Memory support covers two DDR4 DIMM slots in dual-channel configuration, accepting speeds from 2133 MT/s up to 3200 MT/s and XMP profiles, with a total capacity ceiling of 64 GB (up to 32 GB per slot). ECC unbuffered modules are supported but operate in non-ECC mode. For graphics, a single PCIe 4.0 x16 slot (CPU-direct) handles discrete GPU installation, while integrated Intel HD Graphics output is available through the rear D-Sub port at up to 1920×1200 @ 60 Hz. A PCIe 3.0 x1 slot via the chipset rounds out expansion. Storage options include one M.2 Socket 3 (M key, 2280/2260) supporting PCIe 3.0 x4/x2 NVMe SSDs, along with four SATA 6 Gb/s connectors. USB connectivity is provided by four USB 3.2 Gen 1 ports (two rear, two via internal header) and eight USB 2.0/1.1 ports split between the rear panel and internal headers. Networking is handled by a Realtek GbE LAN chip (1 Gbps/100 Mbps), and audio by a Realtek High Definition Audio CODEC supporting 2/4/5.1/7.1-channel output through three rear audio jacks. Smart Fan 6 technology manages the one CPU and two system fan headers with PWM/DC support, up to 24 W per header, seven-point fan curves, and a full fan-stop capability below user-defined temperature thresholds. The board ships with a licensed AMI UEFI BIOS (128 Mbit flash), anti-sulfur resistors for long-term reliability, one RGB LED strip header, a TPM header (GC-TPM2.0 SPI module), and an iTE I/O controller. The rear I/O panel also retains legacy PS/2 keyboard and mouse ports. Bundled software includes GIGABYTE APP Center, EasyTune, @BIOS, System Information Viewer, Smart Backup, Q-Flash, Xpress Install, and Norton Internet Security (OEM). Windows 10 64-bit and Windows 11 64-bit are officially supported. Verifiable Specifications: • Socket: LGA1700 | Chipset: Intel H610 Express • Memory: 2× DDR4 DIMM, dual-channel, up to 64 GB, DDR4-2133–3200, XMP • Form Factor: Micro ATX, 23.0 cm × 21.5 cm • PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (chipset) • Storage: 1× M.2 PCIe 3.0 x4 (2280/2260), 4× SATA 6 Gb/s • USB: 4× USB 3.2 Gen 1, 8× USB 2.0/1.1 • LAN: Realtek GbE (1 Gbps/100 Mbps) | Audio: Realtek HD, 7.1-ch • Display Output: 1× D-Sub (max 1920×1200 @ 60 Hz) • BIOS: AMI UEFI, 128 Mbit flash • Warranty: 3 Years
