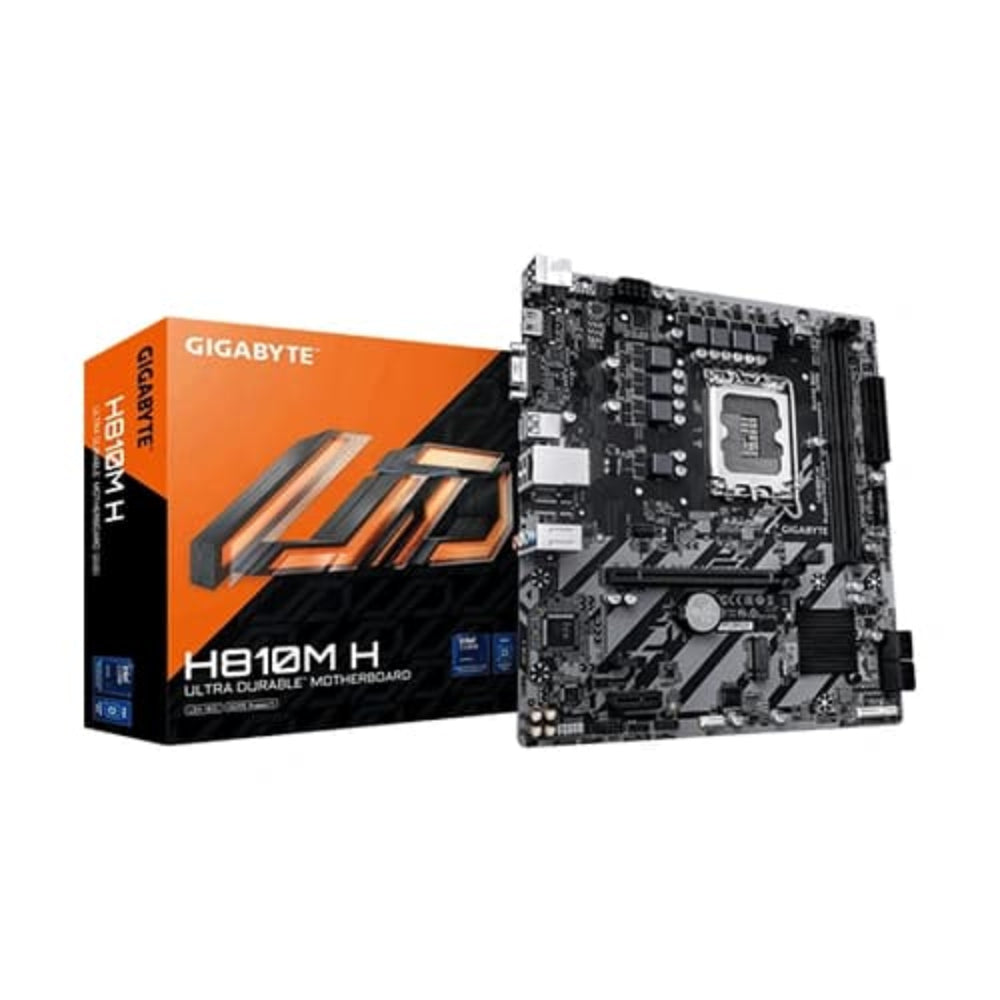

GIGABYTE H810M H DDR5 Intel Motherboard
MPN GIGABYTE-H810M-H-DDR5 · Brand GIGABYTE · mATX
The GIGABYTE H810M H DDR5 is a Micro-ATX motherboard for Intel LGA 1851 Core Ultra Series 2 processors, featuring DDR5 memory support up to 6400 MHz, a PCIe 4.0 x16 slot, PCIe 4.0 M.2, and GbE LAN — a solid entry-level Intel platform
Inclusive of GST · GST invoice available
Overview
The GIGABYTE H810M H DDR5 is a Micro-ATX form-factor motherboard built on Intel's H810 chipset and designed for the LGA 1851 socket. It is compatible with Intel Core Ultra processors (Series 2), making it a capable foundation for mainstream desktop builds that benefit from Intel's latest architecture without requiring a premium chipset. Power delivery is handled by a hybrid 4+1+2 phase VRM solution, providing stable voltage regulation for the CPU across everyday workloads. Memory support is comprehensive: the board accepts DDR5 modules in dual-channel configuration, with speeds up to 6400 MHz (XMP), and a maximum capacity of 128 GB across its DIMM slots. Both ECC Un-buffered (operating in non-ECC mode) and standard non-ECC Un-buffered DIMM modules in 1Rx8, 2Rx8, and 1Rx16 configurations are supported. Storage and expansion options are well-covered for the H810 tier. A single PCIe 4.0 x16 slot (CPU-connected) accommodates a discrete graphics card or an NVMe SSD, while a chipset-connected PCIe 3.0 x1 slot offers additional card flexibility. One M.2 Socket 3 connector with PCIe 4.0 x4 bandwidth enables fast NVMe SSD installation, and four SATA 6 Gb/s ports round out the storage connectivity. The rear I/O panel includes one HDMI port, one D-Sub (VGA) port for integrated graphics output, one USB 3.2 Gen 1 Type-A port, five USB 2.0/1.1 Type-A ports, one RJ-45 GbE LAN port, three 3.5 mm audio jacks, and a legacy PS/2 keyboard/mouse port. Internal headers extend connectivity further with a USB Type-C header (USB 3.2 Gen 1), a USB 3.2 Gen 1 Type-A header, a USB 2.0/1.1 header, two addressable RGB Gen2 (ARGB) LED strip headers, one CPU fan header, two system fan headers, S/PDIF Out, front panel audio, and a TPM header. The BIOS features GIGABYTE's UC BIOS interface with multi-theme support and Q-Flash Auto Scan, which automatically detects BIOS update files on a USB drive without manual navigation. The EZ-Latch mechanism on the PCIe x16 slot simplifies graphics card installation and removal. An EZ Debug Zone with diagnostic LEDs aids troubleshooting during system assembly. Verifiable Specifications: - Socket: LGA 1851 - Chipset: Intel H810 - Form Factor: Micro-ATX - CPU Compatibility: Intel Core Ultra (Series 2) - Memory Type: DDR5 (Dual Channel) - Max Memory: 128 GB - Memory Speed: Up to 6400 MHz (XMP) - PCIe Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) - M.2: 1x M.2 Socket 3 (PCIe 4.0 x4) - SATA: 4x SATA 6 Gb/s - Display Output: 1x HDMI, 1x D-Sub - Rear USB: 1x USB 3.2 Gen 1, 5x USB 2.0/1.1 - LAN: 1x GbE RJ-45 - ARGB Headers: 2x Gen2 - Warranty: 3 Years

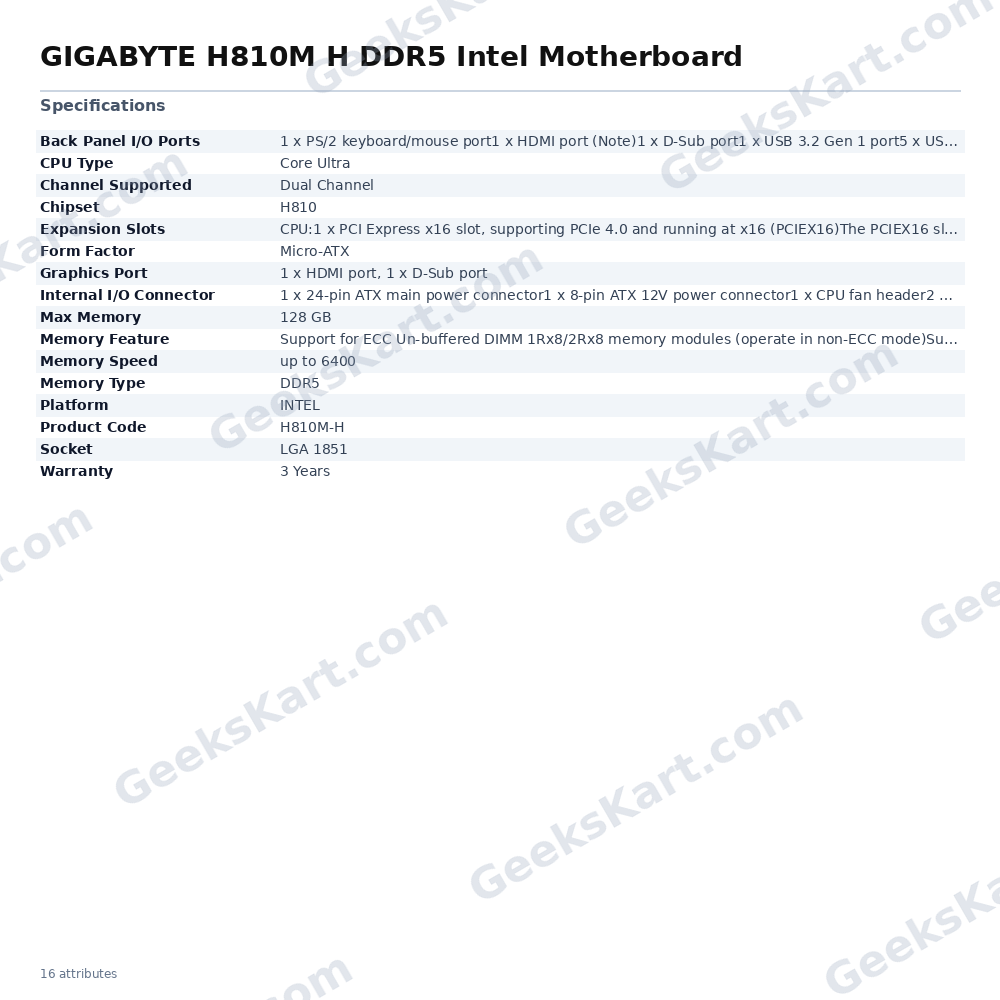

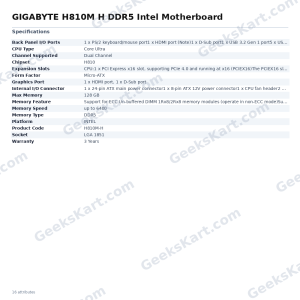

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H810 |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Max Memory | 128 GB |
| Memory Speed | up to 6400 |
| Platform | INTEL |
| Product Code | H810M-H |
| Graphics Port | 1 x HDMI port, 1 x D-Sub port |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number ofDRAM modules, please refer to "Memory Support List" on Visit Brand website for more information.) |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Channel Supported | Dual Channel |
| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port1 x HDMI port (Note)1 x D-Sub port1 x USB 3.2 Gen 1 port5 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable RGB Gen2 LED strip headers1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper |
