GIGABYTE TRX40 Designare Wifi DDR4 AMD Motherboard
MPN GIGABYTE-TRX40-DESIGNARE · Brand Gigabyte · XL-ATX
The Gigabyte TRX40 Designare WiFi DDR4 is an XL-ATX motherboard for AMD sTRX4 Ryzen Threadripper processors, featuring a 16+3 phase VRM, eight DDR4 DIMM slots (up to 256 GB ECC), four PCIe 4.0 M.2 slots, Intel Wi-Fi 6, dual Intel GbE LAN, and a bundled Thunderbolt 3 add-in card
Inclusive of GST · GST invoice available
Overview
The Gigabyte TRX40 Designare WiFi DDR4 is an XL-ATX motherboard built around the AMD TRX40 chipset and the sTRX4 socket, designed to support 3rd Generation AMD Ryzen Threadripper processors. It is targeted at content creators, 3D artists, engineers, and other professionals who need sustained multi-core performance alongside a broad set of connectivity options. Power delivery relies on a 16+3 phase Infineon digital VRM solution rated at 70A per power stage, fed through two 8-pin ATX 12V connectors plus a dedicated OC_PEG connector. Thermal management across the VRM and chipset uses fin-array heatsinks connected by an 8 mm mega-heatpipe, supplemented by enlarged M.2 thermal guards over each of the four onboard M.2 slots. Memory capacity reaches up to 256 GB across eight DDR4 DIMM slots operating in quad-channel mode. The board supports ECC unbuffered modules (1Rx8/2Rx8) as well as non-ECC unbuffered modules (1Rx8/2Rx8/1Rx16), and XMP profiles. Native DDR4-3200 is supported alongside overclocked profiles up to DDR4-4400. Storage options include four M.2 Socket 3 connectors — two CPU-direct and two chipset-connected — all supporting PCIe 4.0 x4 NVMe drives, plus eight SATA 6 Gb/s ports with support for RAID 0, 1, and 10. A bundled AORUS Gen4 AIC adaptor can accommodate up to four additional PCIe 4.0/3.0 x4 M.2 drives via an add-in card slot. Expansion slots comprise two PCIe 4.0 x16 slots (operating at x16), two PCIe 4.0 x16 slots (operating at x8), and one PCIe 4.0 x1 slot. The board supports AMD Quad-GPU CrossFire and NVIDIA Quad-GPU SLI configurations. Wired networking is handled by dual Intel Gigabit LAN (10/100/1000 Mbit) controllers paired with cFosSpeed traffic-shaping software. Wireless connectivity comes from an Intel Wi-Fi 6 AX200 module (802.11a/b/g/n/ac/ax, 2.4/5 GHz dual-band, up to 2.4 Gbps theoretical, 160 MHz channel support) with Bluetooth 5.0. A bundled GC-Titan Ridge add-in card provides a 40 Gb/s Thunderbolt 3 connection. Audio is delivered through a dual-codec solution — Realtek ALC4050H and ALC1220-VB — with WIMA audio capacitors, 120 dB SNR AMP-UP output, DTS:X Ultra support, 2/4/5.1/7.1-channel output, and an optical S/PDIF output. The rear I/O panel includes five USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port, two USB 2.0 ports, two RJ-45 ports, five audio jacks, and optical S/PDIF out. An internal USB 3.2 Gen 2 Type-C header is also provided. The board uses Gigabyte's DualBIOS with Q-Flash Plus, enabling BIOS updates without an installed CPU, memory, or GPU. Fan control is managed by Smart Fan 5 with multiple temperature sensor headers, hybrid fan/pump headers with FAN STOP capability, and water cooling flow rate monitoring. RGB FUSION provides multi-zone addressable LED and RGB LED strip control via two addressable LED headers and two RGB LED strip headers. Verified Specifications: - Socket: AMD sTRX4 - Chipset: AMD TRX40 - Form Factor: XL-ATX, 32.5 cm x 26.9 cm - Memory: 8x DDR4 DIMM, up to 256 GB, quad-channel, ECC/non-ECC unbuffered, DDR4-2133 to DDR4-4400 (OC) - M.2 Slots: 4x onboard (PCIe 4.0 x4 NVMe) - SATA: 8x SATA 6 Gb/s, RAID 0/1/10 - PCIe: 5x slots (PCIe 4.0: 2x x16 full, 2x x8, 1x x1) - VRM: 16+3 phase Infineon digital, 70A per stage - LAN: 2x Intel GbE (10/100/1000) - Wi-Fi: Intel AX200, Wi-Fi 6 (802.11ax), Bluetooth 5.0 - Audio: Realtek ALC4050H + ALC1220-VB, 120 dB SNR, DTS:X Ultra - USB (rear): 5x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 2x USB 2.0 - BIOS: Dual AMI UEFI, Q-Flash Plus - OS Support: Windows 10 64-bit - Warranty: 3 Years

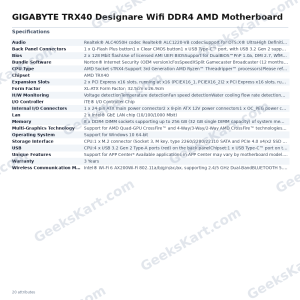

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | XL-ATX |
| Chipset | AMD TRX40 |
| CPU Type | AMD Socket sTRX4:Support 3rd Generation AMD RyzenTM ThreadripperTM processors(Please refer "CPU Support List" for more information.) |
| Lan | 2 x Intel® GbE LAN chip (10/100/1000 Mbit) |
| USB | CPU:4 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset:1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panel4 x USB 3.2 Gen 1 ports available through the internal USB headersChipset 2 USB 2.0 Hubs:6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC4050H codec Realtek® ALC1220-VB codecSupport for DTS:X® UltraHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memoryQuad Channel memory architectureSupport for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)cFosSpeedXSplit Gamecaster Broadcaster (12 months license) |
| Expansion Slots | 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)1 x PCI Express x1 slot(All of the PCI Express slots conform to PCI Express 4.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSAutoGreenCloud StationEasyTuneFast BootGame BoostRGB FusionSmart BackupSmart KeyboardSmart SurveySystem Information ViewerUSB BlockerUSB TurboChargerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)Chipset:1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C)8 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, and RAID 10 |
| Back Panel Connectors | 1 x Q-Flash Plus button1 x Clear CMOS button1 x USB Type-C™ port, with USB 3.2 Gen 2 support5 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 2.0/1.1 ports2 x RJ-45 ports2 x SMA antenna connectors (2T2R)1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x OC_PEG power connector1 x CPU fan header1 x water cooling CPU fan header2 x system fan headers4 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors8 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C™ header, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x power button1 x reset button2 x temperature sensor headers1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologiesSupport for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies |
| Wireless Communication Module | Intel® Wi-Fi 6 AX200Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.0Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
