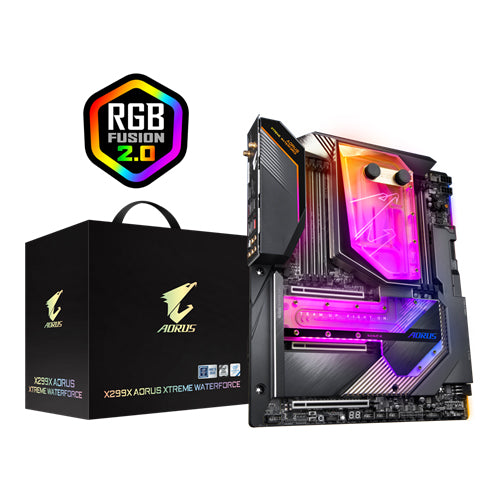

GIGABYTE X299X Aorus Xtreme Waterforce DDR4 Intel Motherboard

The GIGABYTE X299X Aorus Xtreme Waterforce is a flagship XL-ATX motherboard designed for Intel Core X-series processors in the LGA2066 socket, built around the Intel X299 Express chipset. It is engineered for content creators, 3D rendering professionals, and enthusiasts who demand maximum CPU bandwidth, comprehensive cooling, and rich connectivity in a single platform. At the heart of its power delivery sits a 16-phase IR digital VRM solution, with each power stage rated at 70A, providing the current headroom needed to sustain heavy workloads on high-core-count Intel X-series CPUs such as the Core i9-10980XE. The board ships with an integrated AORUS all-in-one monoblock that simultaneously covers the CPU, VRM, M.2 SSDs, and PCH. Built with high-density copper fins and a thermally conductive pad, the monoblock also incorporates a leak-detection circuit that automatically shuts the system down if coolant is detected, protecting your components. Memory capacity varies by processor lane count. With 48-lane processors, all eight DDR4 DIMM slots support up to 256 GB (32 GB per DIMM) of quad-channel non-ECC unbuffered DDR4, with XMP profiles reaching DDR4-4333 (OC). Storage options include two onboard M.2 Socket 3 connectors (type 2242 through 22110, supporting both SATA and PCIe NVMe x4) plus eight SATA 6 Gb/s ports. An included AORUS Gen4 AIC Adapter adds four more M.2 PCIe slots via a PCIe slot, with combined sequential read/write performance advertised up to 15,000 MB/s. RAID 0, 1, 5, and 10 are supported; PCIe NVMe RAID requires an Intel VROC Upgrade Key. Graphics flexibility comes from three PCIe 3.0 x16 slots (all running at x16 with 48-lane CPUs), supporting Quad-GPU NVIDIA SLI and AMD CrossFire configurations. Networking is handled by a dual-port setup: an Aquantia 10GbE controller (10/5/2.5/1 Gbit/100 Mbit auto-negotiating) and an Intel Gigabit Ethernet port managed by cFosSpeed traffic shaping. Onboard Intel Wi-Fi 6 (802.11ax, 2T2R, 160 MHz) delivers wireless throughput up to 2.4 Gbps (theoretical maximum, subject to environment), complemented by Bluetooth 5.0. Two rear-panel Thunderbolt 3 ports (USB Type-C) offer up to 40 Gb/s throughput, DisplayPort 1.2 output at up to 4096×2304@60 Hz, and daisy-chaining of up to six devices per port. Additional rear-panel USB includes two USB 3.2 Gen 2 Type-A (10 Gb/s) and two USB 3.2 Gen 1 Type-A ports. Audio is handled by dual Realtek ALC1220-VB codecs paired with dual ESS SABRE9218 DAC chips, delivering 2/4/5.1/7.1-channel HD audio with S/PDIF output and DTS:X Ultra support. RGB Fusion 2.0 controls onboard and header-connected addressable and standard RGB LEDs. The included AORUS RGB Fan Commander expands the system with eight hybrid fan headers, eight RGB headers, and eight addressable LED headers. DualBIOS (2×128 Mbit AMI UEFI flash) and Q-Flash Plus allow BIOS recovery and updates without an installed CPU or GPU. Key Verified Specifications: – Socket: LGA2066 | Chipset: Intel X299 Express – Form Factor: XL-ATX, 32.5 cm × 27.5 cm – Memory: 8× DDR4 DIMM; up to 256 GB (48-lane CPU) or 128 GB (44/28-lane CPU); quad-channel; non-ECC unbuffered; XMP; DDR4-4333 OC – VRM: 16-phase IR digital, 70A per phase – Storage: 2× M.2 (2242–22110, SATA/PCIe x4 NVMe); 8× SATA 6 Gb/s; RAID 0/1/5/10 – Expansion: 3× PCIe 3.0 x16 (x16/x16/x16 with 48-lane CPU) – LAN: Aquantia 10GbE + Intel GbE – Wireless: Wi-Fi 6 802.11ax 2T2R (up to 2.4 Gbps theoretical) + Bluetooth 5.0 – Thunderbolt 3: 2× rear-panel (40 Gb/s, DP 1.2, USB 3.2 Gen 2) – Audio: 2× Realtek ALC1220-VB + 2× ESS SABRE9218 DAC; 7.1-ch; S/PDIF out – BIOS: DualBIOS, AMI UEFI, Q-Flash Plus – OS: Windows 10 64-bit
