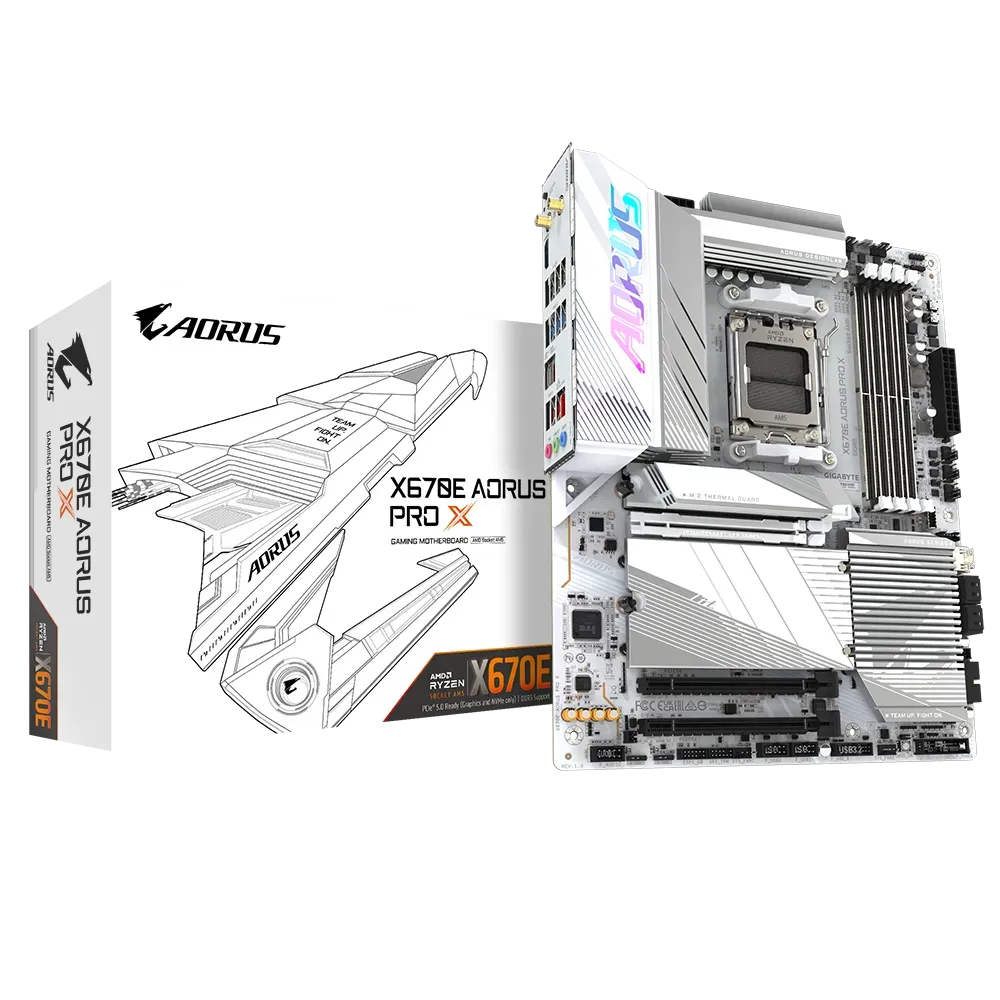

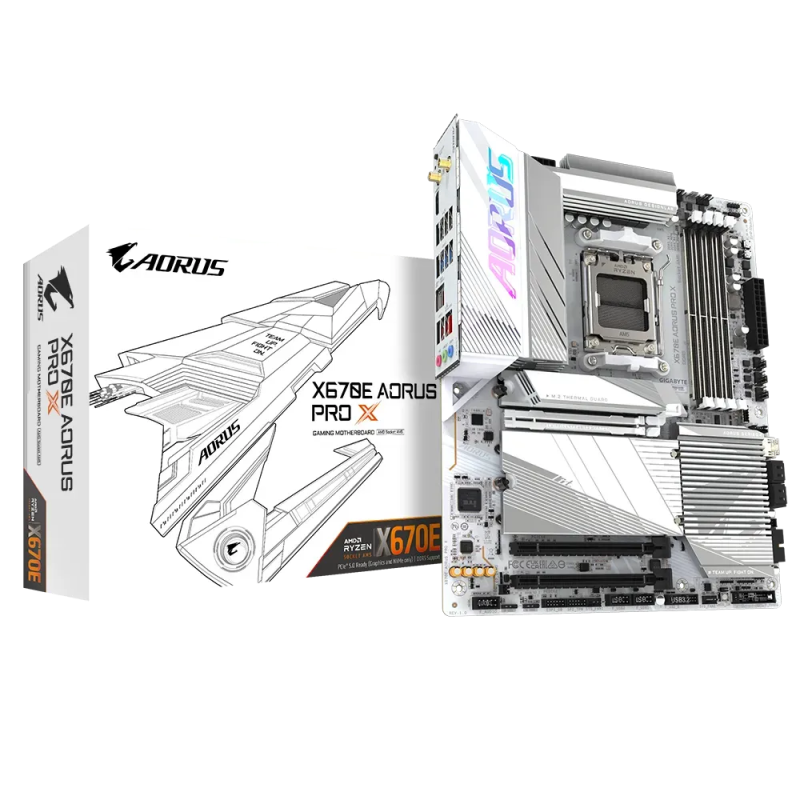

The Gigabyte X670E Aorus Pro X is a premium E-ATX motherboard engineered for AMD Ryzen 7000 and Ryzen 8000 Series processors on the AM5 socket, built around the AMD X670E chipset for enthusiasts who demand the highest platform bandwidth available on the AM5 ecosystem. At its core, a digital twin 16+2+2 phase VRM solution paired with VRM Thermal Armor Advanced — a single-piece heatsink with multi-cut airflow channels, an 8mm heatpipe, and a 7W/mK thermal pad — keeps power delivery stable under sustained workloads and overclocking sessions. Memory headroom is expansive: four DDR5 DIMM slots support up to 192GB of system memory (48GB per DIMM) at speeds reaching DDR5-8000 (OC), with native AMD EXPO and Intel XMP profile support for one-click memory tuning. The Gigabyte UC BIOS adds SPD re-definition, performance simulation, and save/load profile capabilities so overclockers can fine-tune timings and transfer profiles between systems. Storage is served by four M.2 slots, two of which run at PCIe 5.0 x4 speeds (with Ryzen 7000 CPUs), protected by M.2 Thermal Guard XL heatsinks accessible via EZ-Latch Click and EZ-Latch Plus screwless retention — no tools required. Six SATA 6Gb/s ports and RAID 0/1/10 support across both NVMe and SATA arrays round out storage flexibility. Networking is handled by a Marvell AQtion AQC113C 10GbE LAN controller alongside Wi-Fi 6E (2.4/5/6GHz, up to 2.4Gbps) via either an Intel AX210 or AMD RZ616 module depending on PCB revision, with a 2T2R antenna. Audio is powered by a Realtek ALC1220-VB codec supported by an ESS ES9118 DAC chip and audiophile-grade capacitors, delivering up to 5.1-channel output with DTS:X Ultra and optical S/PDIF out. Connectivity at the rear includes two USB Type-C ports (one Gen 2×2 at 20Gb/s, one Gen 2 at 10Gb/s), six USB 3.2 Gen 2 Type-A ports, HDMI 2.1 (4096×2160@60Hz), DisplayPort 1.4 (3840×2160@144Hz), and Q-Flash Plus for BIOS update without a CPU installed. The Smart Fan 6 system manages up to eight fan/pump headers with PWM/DC support and up to 24W per header, with 7-point curve control and Fan Stop functionality. Verified Specifications: – Form Factor: E-ATX, 30.5cm × 26.9cm – Socket: AMD AM5 – Chipset: AMD X670E – CPU Support: AMD Ryzen 7000 / Ryzen 8000 Series – Memory: 4× DDR5 DIMM, up to 192GB, DDR5-4400 to DDR5-8000(OC) – Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 7000) – M.2 Slots: 4× (2× PCIe 5.0 x4 with Ryzen 7000) – SATA: 6× SATA 6Gb/s – LAN: Marvell AQtion AQC113C, 10GbE – Wireless: Wi-Fi 6E + Bluetooth 5.3 (rev. 1.0) / Bluetooth 5.2 (rev. 1.1) – Audio: Realtek ALC1220-VB + ESS ES9118 DAC – Rear USB: 2× USB-C (Gen 2×2 + Gen 2), 6× USB-A Gen 2, 4× USB 2.0 – Display Output: 1× HDMI 2.1, 1× DisplayPort 1.4 – BIOS: AMI UEFI, 256Mbit flash, Q-Flash Plus – OS Support: Windows 11 / Windows 10 (64-bit)
ASUS ROG STRIX Z890-I Gaming Wifi DDR5 Intel Motherboard
₹55,445.00
Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
₹32,050.00
GIGABYTE X670E Aorus Pro X DDR5 AMD Motherboard (White)
₹38,020.00
The Gigabyte X670E Aorus Pro X is an E-ATX AMD AM5 motherboard featuring PCIe 5.0 x16, four DDR5 DIMM slots (up to 192GB), 10GbE LAN, Wi-Fi 6E, and a robust 16+2+2 phase VRM — built for AMD Ryzen 7000 Series overclocking and high-bandwidth workloads
Out of stock

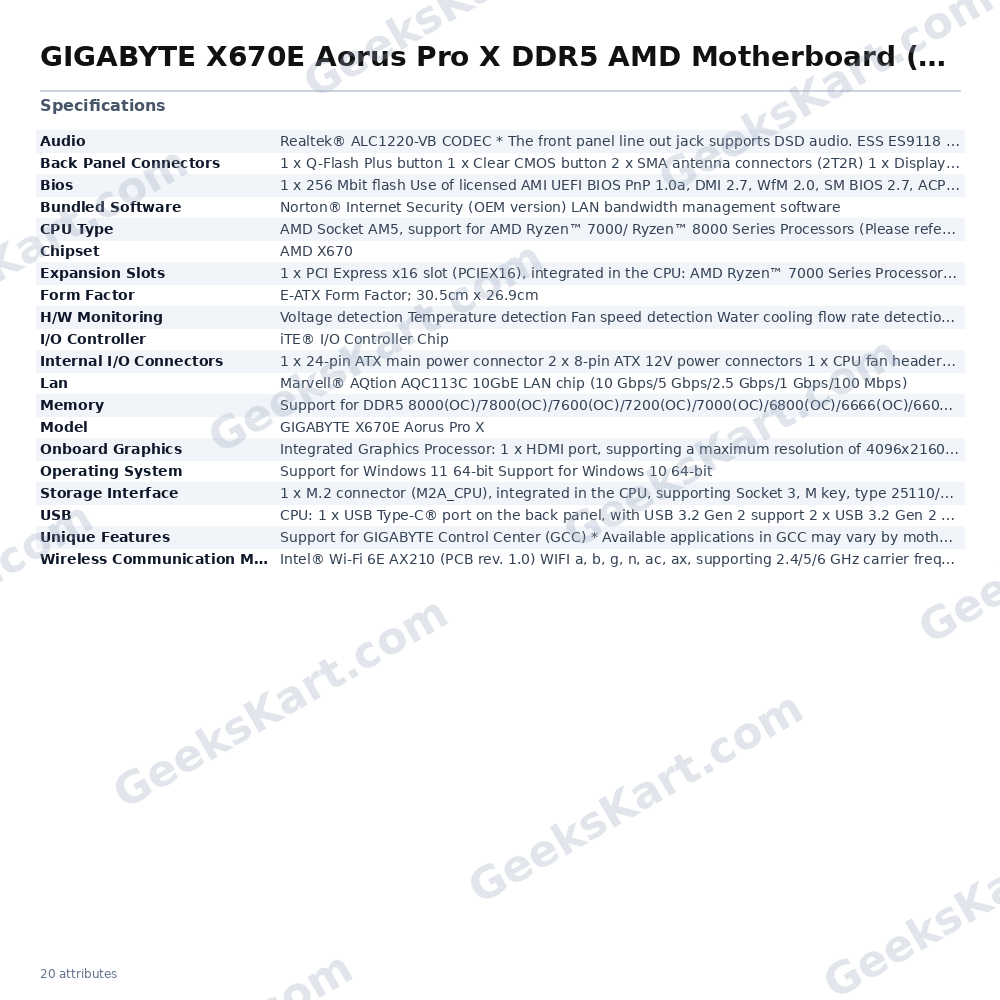

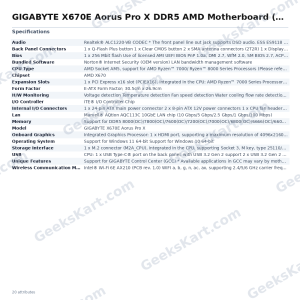

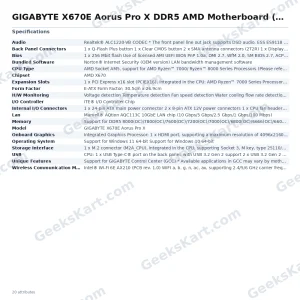

Additional information
| Form Factor | E-ATX |
|---|---|
| Chipset | AMD X670 |
| CPU Type | AMD Socket AM5, support for AMD RyzenTM 7000/ RyzenTM 8000 Series Processors (Please refer "CPU Support List" for more information.) |
| Lan | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Model | GIGABYTE X670E Aorus Pro X |
| Memory | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connectors are populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3,M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 1 x USB Type-C® port, with USB 3.2 Gen 2 support 6 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wi-Fi 6E AX210 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
